NSN 6220-01-287-5413 12353969-2, 940833, 94083-3
Product Details | CLEARANCE MARKER LIGHT
6220-01-287-5413 A light specifically designed to indicate clearance and/or the general outline of a ground vehicle.
Part Alternates: 12353969-2, 940833, 94083-3, 6220-01-287-5413, 01-287-5413, 6220012875413, 123539692, 012875413
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 23 OCT 1988 | 01-287-5413 | 17701 ( LIGHT, MARKER, CLEARANCE ) |

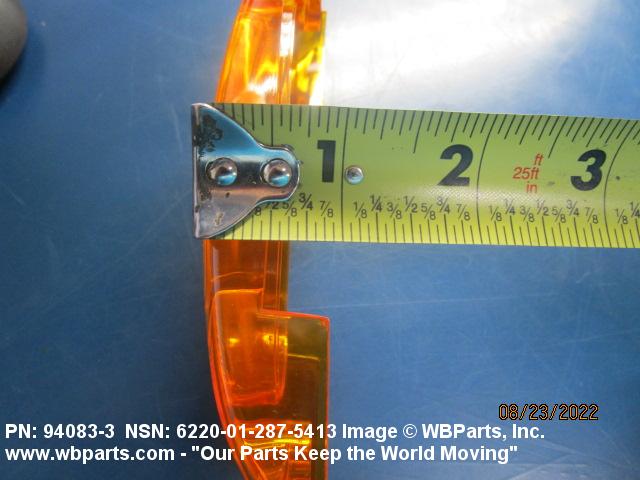

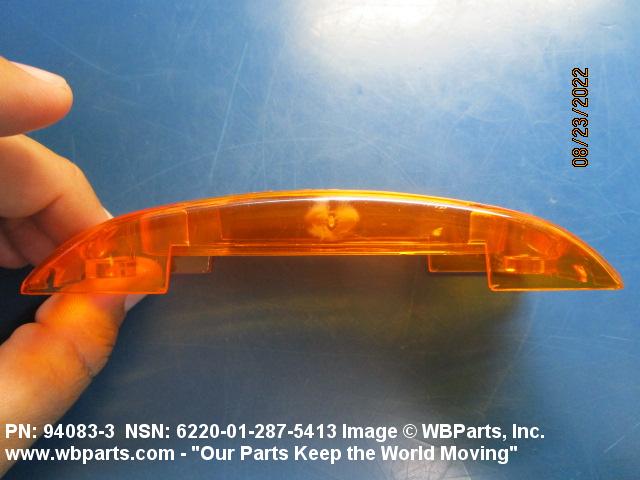

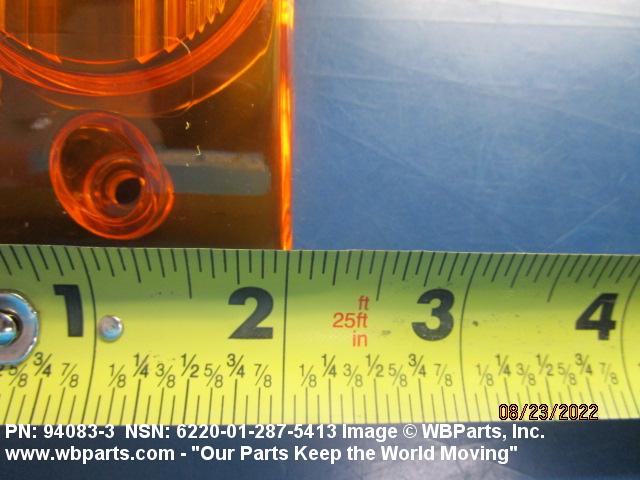

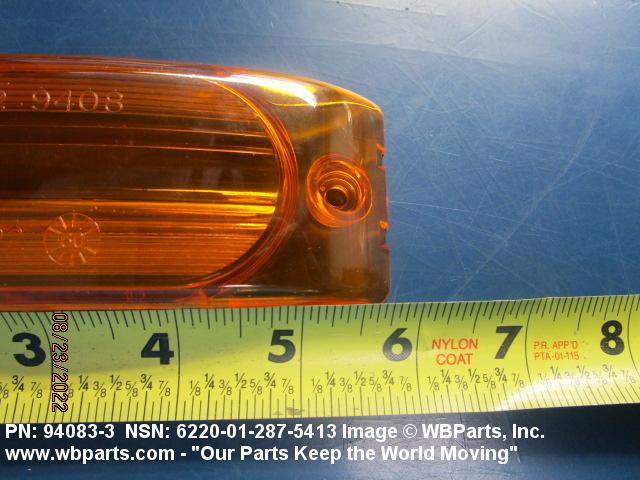

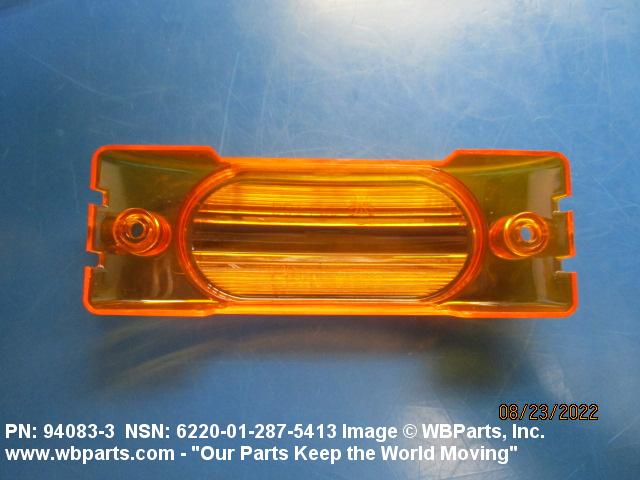

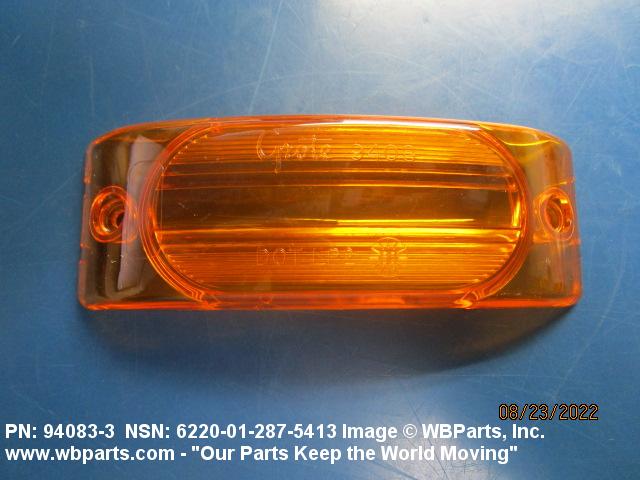

Drawings & Photos | NSN 6220-01-287-5413
Demand History | NSN 6220-01-287-5413
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6220-01-287-5413 | 2022-08-213 | 6 | Taiwan |
| 6220-01-287-5413 | 2022-07-212 | 6 | Taiwan |
| 6220-01-287-5413 | 2022-03-85 | 6 | TW |
| 6220012875413 | 2020-10-295 | 6 | US |
| 6220-01-287-5413 | 2017-07-208 | 80 | DIBBS |
| 6220-01-287-5413 | 2008-11-316 | 723 | DIBBS |
| 6220-01-287-5413 | 2008-03-61 | 100 | DIBBS |
| 6220-01-287-5413 | 2008-01-15 | 39 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6220-01-287-5413
Related Products | NSN 6220-01-287-5413
Technical Data | NSN 6220-01-287-5413
| Characteristic | Specifications |
|---|---|
| OVERALL HEIGHT | 0.940 INCHES MINIMUM AND 1.060 INCHES MAXIMUM |
| OVERALL LENGTH | 5.840 INCHES NOMINAL |
| OVERALL WIDTH | 2.020 INCHES NOMINAL |
| VOLTAGE RATING IN VOLTS | 12.0 DC NOMINAL |
| MATERIAL | PLASTIC POLYCARBONATE BODY PLASTIC POLYCARBONATE LENS |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 2 INCANDESCENT |
| LAMP BASE TYPE ACCOMMODATED | MINIATURE BAYONET |
| LENS TYPE AND QUANTITY | 1 FLAT, RECTANGULAR, FRAMED |
| LENS SURFACE CONDITION | GROOVED BACK SMOOTH FACE |
| LENS COLOR | AMBER |
| LENS TRANSPARENCY | TRANSLUCENT |
| MOUNTING METHOD | UNTHREADED HOLE |
| FURNISHED ITEMS AND QUANTITY | 2 LAMP |
Restrictions/Controls & Freight Information | NSN 6220-01-287-5413
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 017870 | AUTO ASSEMBLIES/DEVICE LIGHT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 885 | unknown |
| Originating Activity Code | CH | Defense Supply Center Richmond Richmond, VA 23297 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6220-01-287-5413
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
