NSN 6220-01-252-9283 MS5132923, MS51329-23, 01-252-9283
Product Details | LIGHT LENS
6220-01-252-9283 A transparent or translucent item designed to enclose or be placed in front of a light source. Sections of the lens may be opaque. It may or may not include a holder. It is designed to be either a replacement unit for a specific type of light, such as LIGHT, INDICATOR; LIGHT, NAVIGATIONAL, MARINE; STOP LIGHT, VEHICULAR; and LANTERN, ELECTRIC or that portion of a SWITCH, (as modified) used as an actuator and having provisions for illumination. See also, WINDOW, LIGHTING FIXTURE; GLOBE; ELECTRIC LIGHT; and FILTER (2), (as modified).20658500051Visible and Invisible Light Communication Equipment62100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures65150057Medical and Surgical Instruments, Equipment, and Supplies65200043Dental Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies
Part Alternates: MS5132923, MS51329-23, 6220-01-252-9283, 01-252-9283, 6220012529283, 012529283
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 10 APR 1987 | 01-252-9283 | 29939 ( LENS, LIGHT ) |
Drawings & Photos | NSN 6220-01-252-9283
Demand History | NSN 6220-01-252-9283
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6220-01-252-9283 | 2012-03-87 | 122 | DIBBS |
| 6220-01-252-9283 | 2012-03-72 | 1 | DIBBS |
| 6220-01-252-9283 | 2011-09-258 | 244 | DIBBS |
| 6220-01-252-9283 | 2011-03-77 | 100 | United Kingdom |
| 6220-01-252-9283 | 2010-04-95 | 60 | Turkey |
| 6220-01-252-9283 | 2009-04-115 | 30 | us |
| 6220-01-252-9283 | 2007-09-246 | 100 | Turkey |
Cross Reference | NSN 6220-01-252-9283
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS51329-23 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6220-01-252-9283
Technical Data | NSN 6220-01-252-9283
| Characteristic | Specifications |
|---|---|

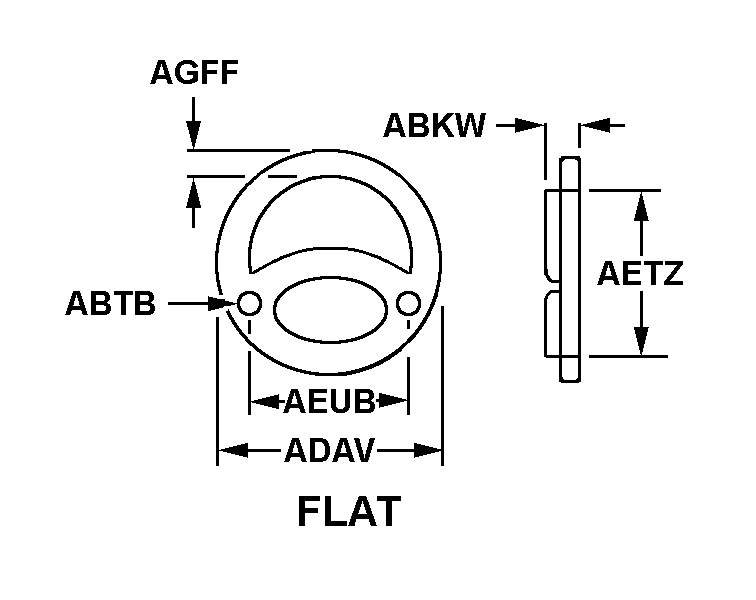

| STYLE DESIGNATOR | 3 FLAT |
| OVERALL DIAMETER | 5.310 INCHES NOMINAL |
| MATERIAL | STEEL HOLDER PLASTIC METHACRYLATE LENS |
| LIGHT TRANSMISSION DESIGN | TRANSLUCENT LENS |
| HOLDER SURFACE TREATMENT | CADMIUM |
| MOUNTING METHOD | SCREW |
| MOUNTING DEVICE QUANTITY | 6 |
| THREAD SERIES | UNC |
| THREAD QUANTITY | 24 PER INCH |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| COLOR | RED LENS |
| SPECIAL FEATURES | W/CLEAR LOWER LENS FOR BLACKOUT PORTION OF LIGHT |
| SPECIFIC USE | GROUND VEHICLE STOP LIGHT-TAILLIGHT |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51329-23 |
Restrictions/Controls & Freight Information | NSN 6220-01-252-9283
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CH | Defense Supply Center Richmond Richmond, VA 23297 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6220-01-252-9283
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
