NSN 6220-01-178-6275 3016905, 30-1690-5, 01-178-6275

6220-01-178-6275

Part Alternates: 3016905, 30-1690-5, 6220-01-178-6275, 01-178-6275, 6220011786275, 011786275

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
62	08 MAY 1984	01-178-6275	77777 ( )

Part Number	Request Date	QTY	Origin
6220-01-178-6275	2014-12-349	13	DIBBS
6220-01-178-6275	2014-11-308	13	DIBBS
6220-01-178-6275	2013-02-38	12	DIBBS
6220-01-178-6275	2012-06-156	16	DIBBS
6220-01-178-6275	2012-03-65	16	DIBBS
6220-01-178-6275	2011-12-357	4	DIBBS
6220-01-178-6275	2011-12-341	4	DIBBS
6220-01-178-6275	2011-10-280	4	United States
6220-01-178-6275	2011-09-255	3	DIBBS
6220-01-178-6275	2011-08-237	4	DIBBS
6220-01-178-6275	2011-06-168	3	DIBBS
6220-01-178-6275	2008-09-260	4	DIBBS

Part Number	Cage Code	Manufacturer
30-1690-5	72914	GRIMES AEROSPACE COMPANY DBA HONEYWELL

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 6220-01-178-6275

Compare

6220-01-178-6808, 6220-01-178-6843, 6220-01-178-7223, 6220-01-178-8249, 6220-01-178-9040

Characteristic	Specifications

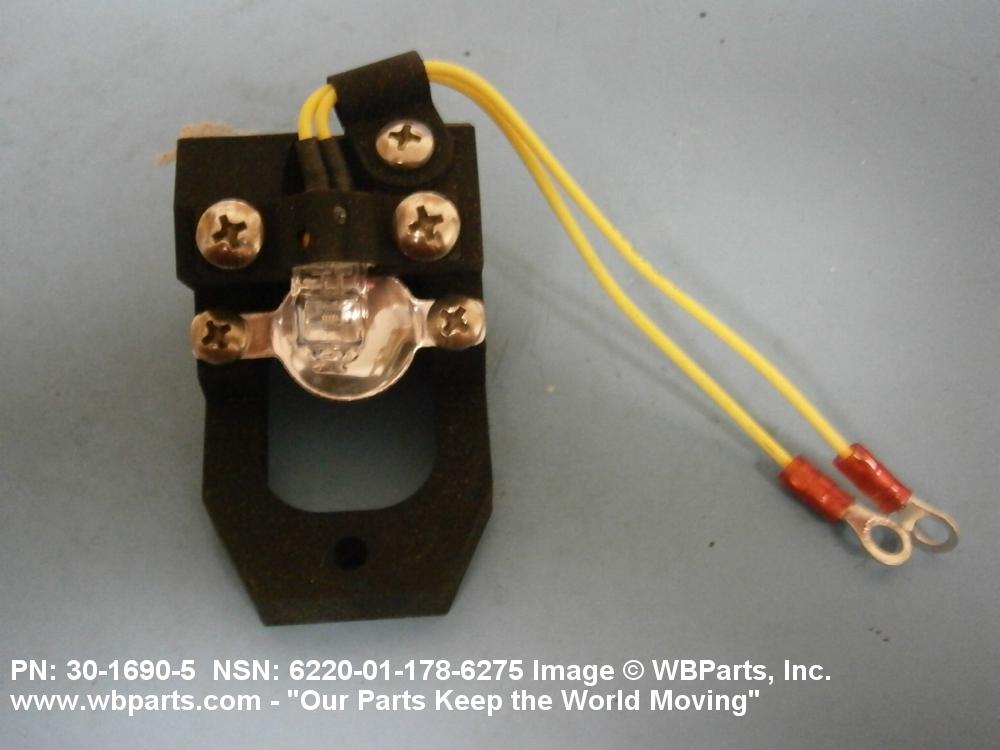

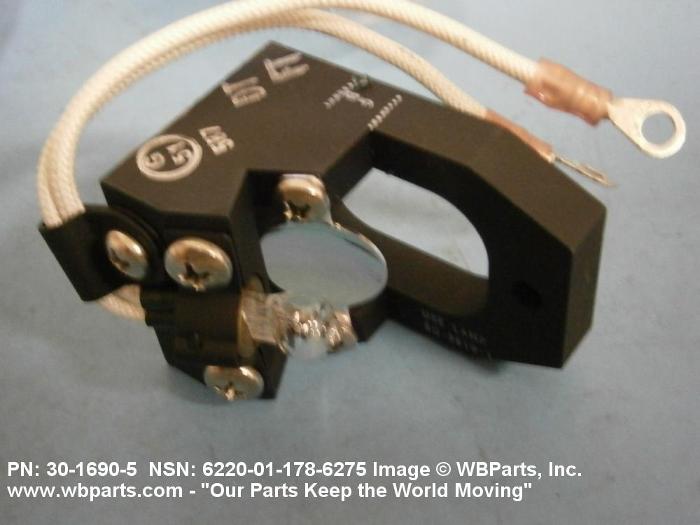

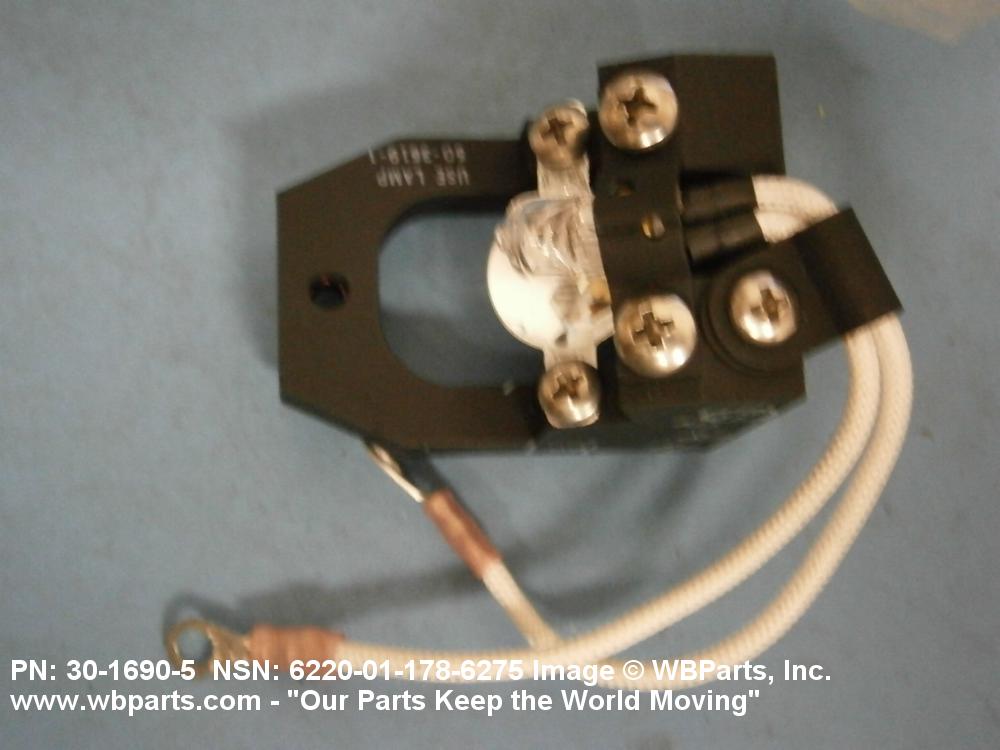

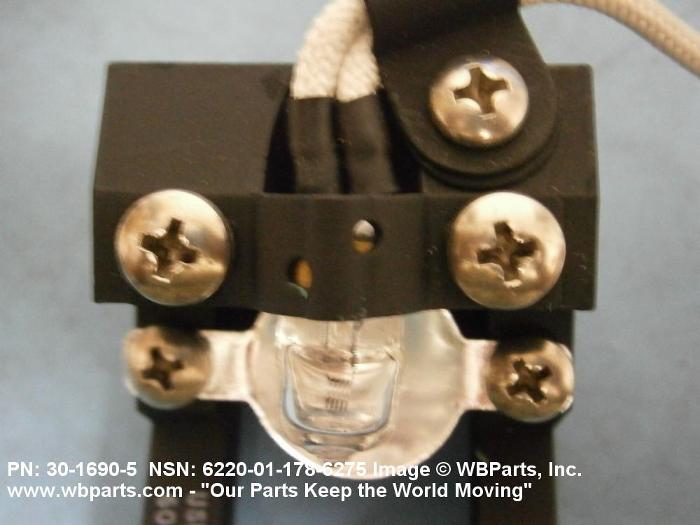

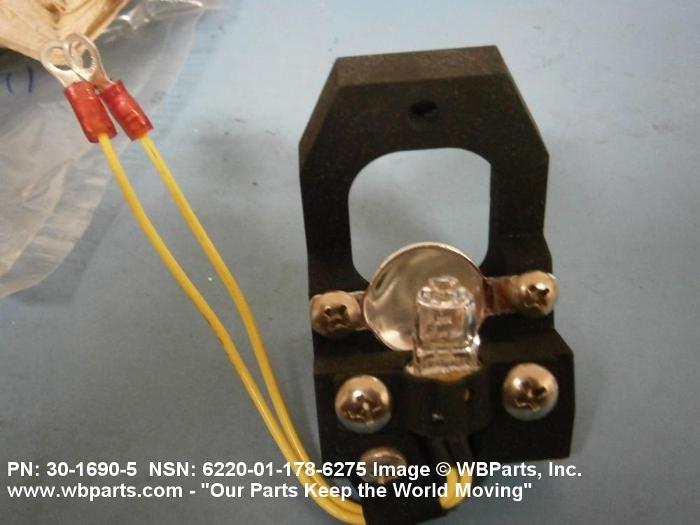

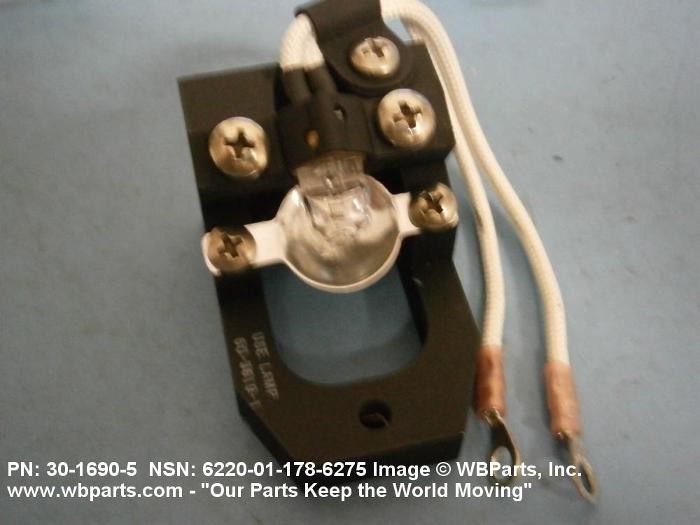

GENERAL CHARACTERISTICS ITEM DESCRIPTION	2.250 IN. O/A LG; 1.600 IN. O/A W; THREE NO.10-32 HELI-COILS,1.750 IN. C TO C ALONG LG,1.100 IN. C TO C ALONG W
III END ITEM IDENTIFICATION	ACFT MODEL AV-8
MANUFACTURERS CODE	72914
DESIGN CONTROL REFERENCE	30-1690-5

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating	P	77.5
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KE	Naval ICP Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
