Product Details | MARINE NAVIGATIONAL LIGHT

6220-01-161-6432 A light specifically designed to be mounted on a marine craft to indicate its position in motion or at rest, its speed and/or its direction of travel.20262200038Electric Vehicular Lights and Fixtures62600031Nonelectrical Lighting Fixtures

Part Alternates: M24560/10-001, M2456010001, MIL-L-24560/10, MILL2456010, 6220-01-161-6432, 01-161-6432, 6220011616432, 011616432

Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures

Supply Group (FSG) NSN Assign. NIIN
62 08 SEP 1983 01-161-6432

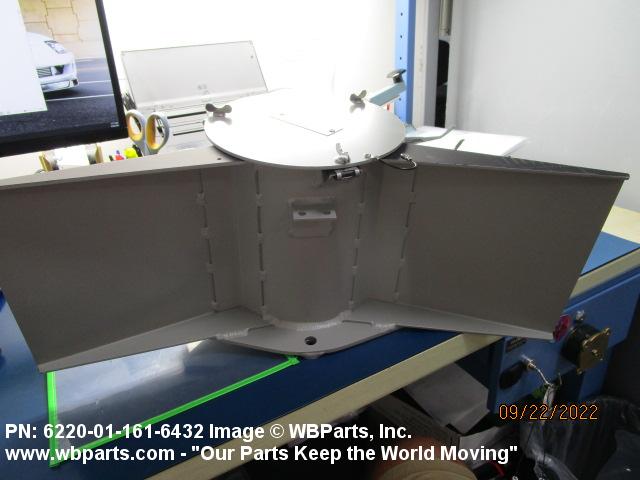

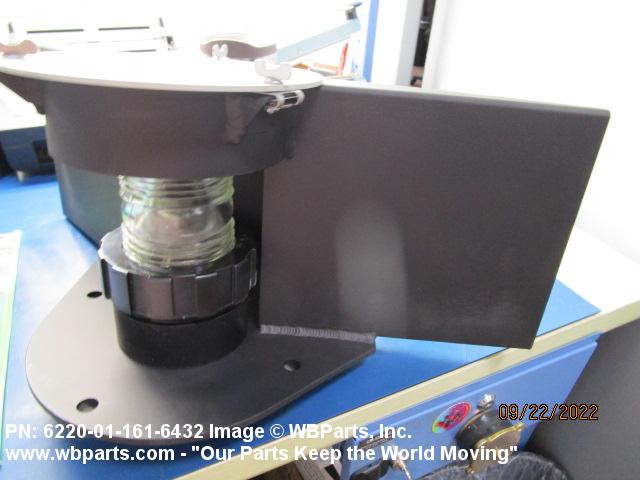

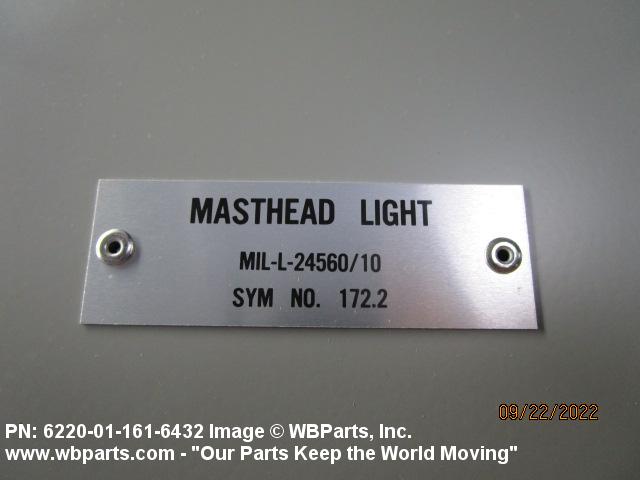

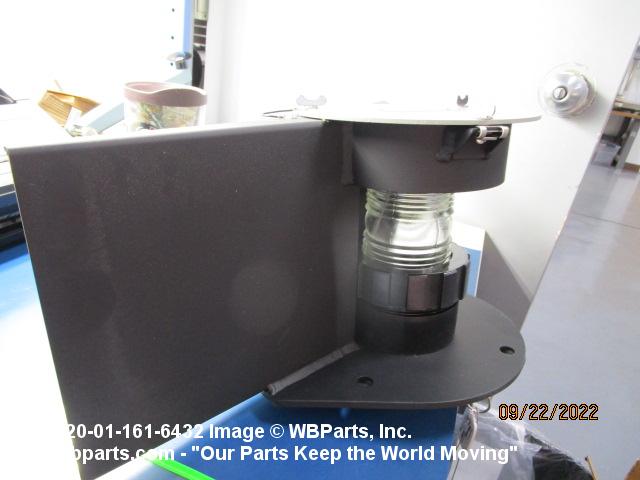

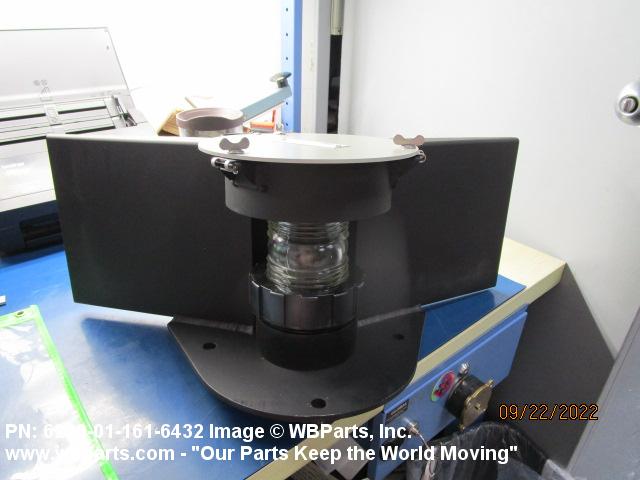

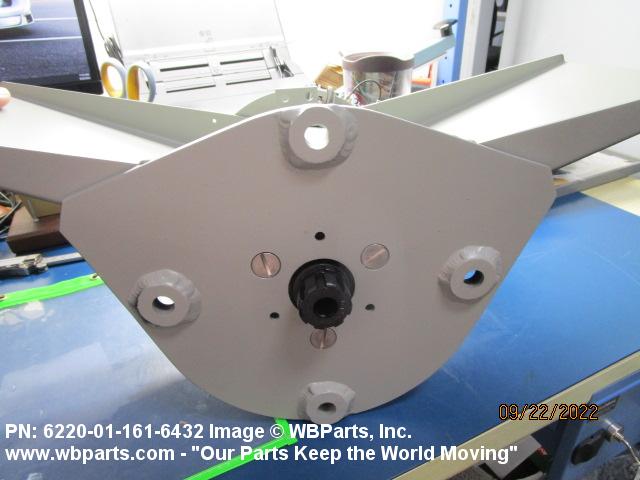

Drawings & Photos | NSN 6220-01-161-6432


Demand History | NSN 6220-01-161-6432

Part Number Request Date QTY Origin
6220-01-161-6432 2024-10-303 1 US
6220-01-161-6432 2024-09-248 12 DIBBS
6220-01-161-6432 2024-03-65 9 DIBBS
6220-01-161-6432 2022-09-259 1 us
6220-01-161-6432 2022-09-258 1 US
6220-01-161-6432 2022-09-258 17 DIBBS
6220-01-161-6432 2020-04-110 6 DIBBS
6220-01-161-6432 2018-07-191 11 DIBBS
6220-01-161-6432 2017-12-355 1 DIBBS-RFPs
6220-01-161-6432 2017-10-291 14 DIBBS
6220-01-161-6432 2017-08-220 14 DIBBS
6220-01-161-6432 2017-03-66 4 DIBBS
6220-01-161-6432 2015-03-61 11 DIBBS
6220-01-161-6432 2013-03-86 28 DIBBS
6220-01-161-6432 2012-01-04 2 Taiwan
6220-01-161-6432 2011-07-201 3 DIBBS
6220-01-161-6432 2011-04-96 7 DIBBS
6220-01-161-6432 2010-12-347 3 DIBBS
6220-01-161-6432 2010-08-243 3 DIBBS
6220-01-161-6432 2010-05-133 22 DIBBS
6220-01-161-6432 2009-07-203 4 DIBBS
6220-01-161-6432 2008-09-270 4 DIBBS

Cross Reference | NSN 6220-01-161-6432

Part Number Cage Code Manufacturer
M24560/10-001 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-L-24560/10 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6220-01-161-6432

Technical Data | NSN 6220-01-161-6432

Characteristic Specifications
SHAPE TAPERED
OVERALL DIAMETER ANY ACCEPTABLE
OVERALL LENGTH 8.188 INCHES NOMINAL
VOLTAGE RATING IN VOLTS 120.0 AC NOMINAL
MATERIAL ALUMINUM BODY GLASS LENS
LAMP TYPE ACCOMMODATED AND QUANTITY 1 INCANDESCENT
LAMP BASE TYPE ACCOMMODATED CANDELABRA SCREW
LENS TYPE AND QUANTITY 1 CYLINDRICAL, FLUTED, LONG
LENS SURFACE CONDITION SMOOTH BACK FRESNEL FACE
LENS COLOR COLORLESS
LENS TRANSPARENCY TRANSPARENT
MOUNTING METHOD UNTHREADED HOLE
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION SPLASHPROOF
FURNISHED ITEMS AND QUANTITY 1 LAMP
SPECIAL FEATURES MASTHEAD MTD
III UNPACKAGED UNIT WEIGHT 18.000 POUNDS
MANUFACTURERS CODE 81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MIL-L-24560/10
MANUFACTURERS CODE 81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE M24560/10-001

Restrictions/Controls & Freight Information | NSN 6220-01-161-6432

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 017870 AUTO ASSEMBLIES/DEVICE LIGHT
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 585 unknown
Originating Activity Code CX Defense Supply Center Richmond
Richmond, VA 23297-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6220-01-161-6432

Category Code Description
Cognizance Codes3BNavy-owned stocks of field level repairable DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
