Product Details | PARKING LIGHT

6220-01-126-4839 A light specifically designed to indicate the presence of a parked vehicle. Includes items which may be used for directional signaling.

Part Alternates: MS521262, MS52126-2, 11614156, 6220-01-126-4839, 01-126-4839, 6220011264839, 011264839

Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures

Supply Group (FSG) NSN Assign. NIIN
62 11 FEB 1982 01-126-4839

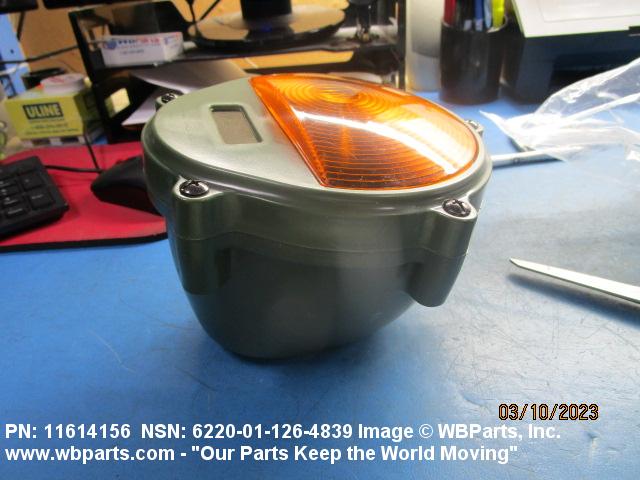

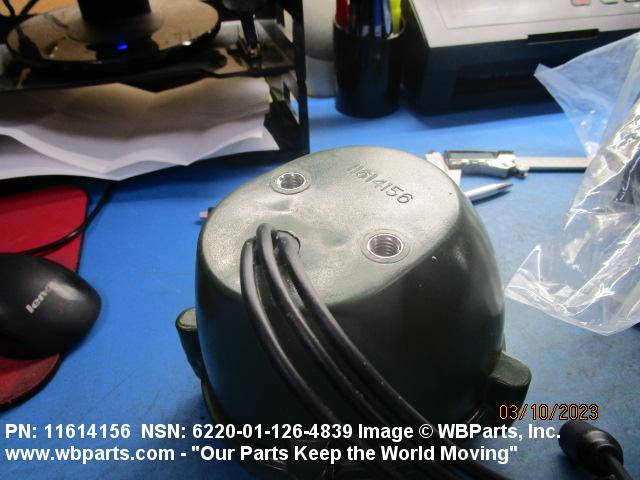

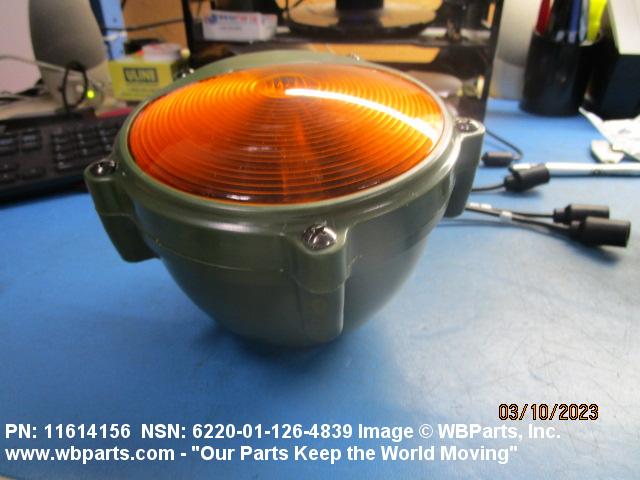

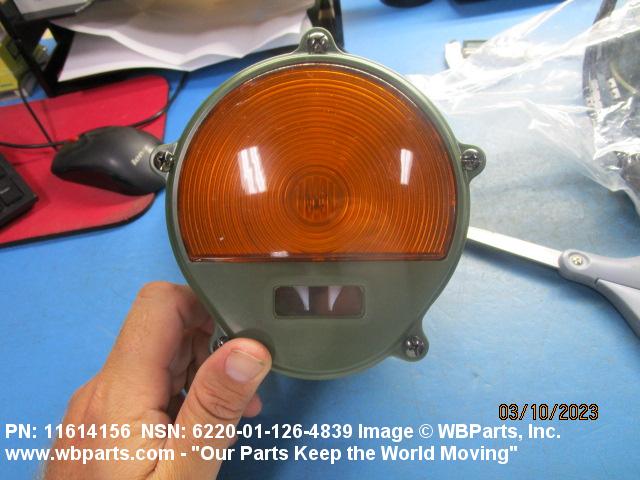

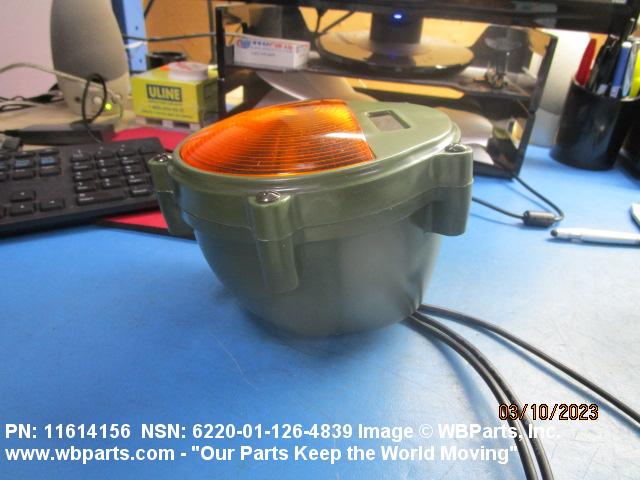

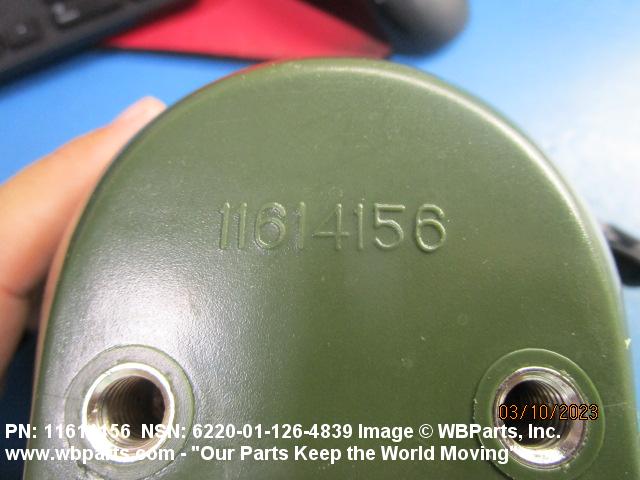

Drawings & Photos | NSN 6220-01-126-4839


Demand History | NSN 6220-01-126-4839

Part Number Request Date QTY Origin
011264839 2024-09-269 2 United States
11614156 2023-11-320 60 United States
6220-01-126-4839 2023-09-255 60 BD
6220-01-126-4839 2023-07-199 16 DIBBS
6220-01-126-4839 2023-04-96 2 United States
6220-01-126-4839 2023-03-89 1 DIBBS
6220-01-126-4839 2023-03-67 3 DIBBS
6220-01-126-4839 2023-03-60 2 United States
6220-01-126-4839 2023-02-51 1 DIBBS
6220-01-126-4839 2023-02-38 1 DIBBS
6220-01-126-4839 2023-01-18 1 DIBBS
6220-01-126-4839 2022-09-270 1 DIBBS
6220-01-126-4839 2022-09-251 2 DIBBS
6220-01-126-4839 2018-10-285 1 US
6220-01-126-4839 2017-06-176 4 TW
11614156 2015-02-40 15 US
6220-01-126-4839 2013-01-28 700 DIBBS
6220-01-126-4839 2011-08-222 400 DIBBS
11614156 2011-06-180 5 AE
11614156 2011-06-180 5 AE
6220-01-126-4839 2010-08-229 3 DIBBS
6220-01-126-4839 2010-08-218 300 DIBBS
11614156 2009-04-101 85 Thailand
MS521262 2009-03-90 2 Australia
MS521262 2008-04-92 288 US

Cross Reference | NSN 6220-01-126-4839

Part Number Cage Code Manufacturer
11614156 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
6220011264839 SCY13 E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
MS52126-2 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6220-01-126-4839

Technical Data | NSN 6220-01-126-4839

Characteristic Specifications
SHAPE IRREGULAR
OVERALL HEIGHT 6.400 INCHES MAXIMUM
OVERALL LENGTH 4.600 INCHES MAXIMUM
OVERALL WIDTH 6.150 INCHES MAXIMUM
VOLTAGE RATING IN VOLTS 24.0 DC NOMINAL
MATERIAL ALUMINUM ALLOY BODY
MATERIAL DOCUMENT AND CLASSIFICATION QQ-A-591 FED SPEC SINGLE MATERIAL RESPONSE BODY
SURFACE TREATMENT PAINT BODY
LAMP TYPE ACCOMMODATED AND QUANTITY 3 INCANDESCENT
LAMP BASE TYPE ACCOMMODATED DOUBLE CONTACT BAYONET CANDELABRA INDEXING
LENS TYPE AND QUANTITY 1 TEARDROP,PLAIN AND 1 FLAT,RECTANGULAR
LENS SURFACE CONDITION SMOOTH BACK SMOOTH FACE
LENS COLOR COLORLESS
LENS TRANSPARENCY TRANSLUCENT
MOUNTING METHOD THREADED HOLE

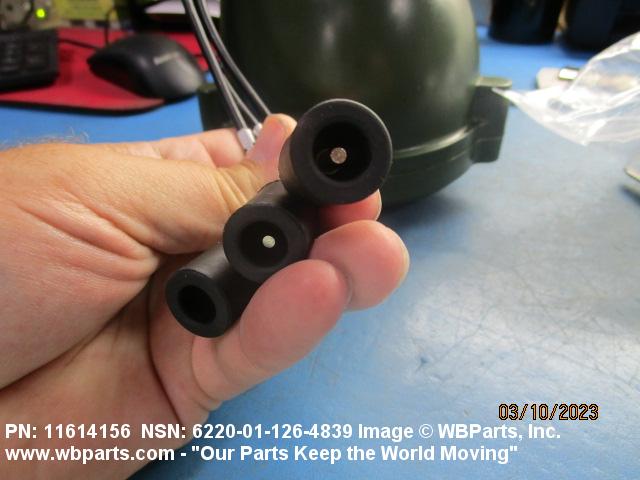

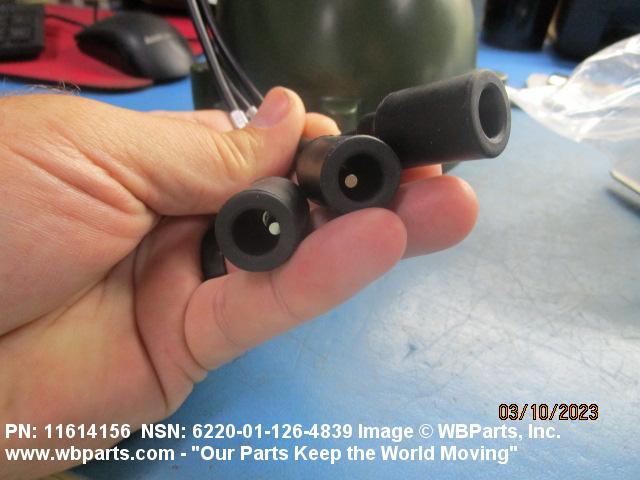

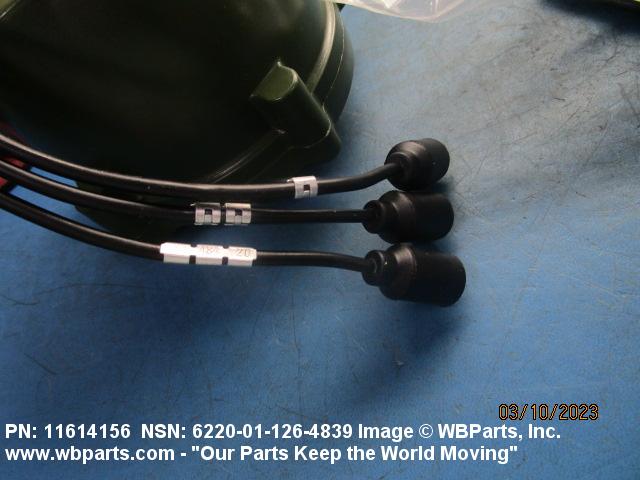

TERMINAL TYPE AND QUANTITY 3 QUICK DISCONNECT, MALE
WIRING PROVISION METHOD INDIVIDUAL WIRE
WIRING PROVISION LENGTH 8.62 INCHES MINIMUM AND 9.38 INCHES MAXIMUM ALL PROVISIONS
LIGHT BEAM MOTION FIXED AND FLASHING
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION ANY ACCEPTABLE
FURNISHED ITEMS AND QUANTITY 3 LAMP
SPECIAL FEATURES FLAT,RECTANGULAR LENS AND ONE SINGLE CONTACT CANDELABRA LAMP ALLOW ILLUMINATION OF BLACKOUT MARKER LIGHT

Restrictions/Controls & Freight Information | NSN 6220-01-126-4839

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 017870 AUTO ASSEMBLIES/DEVICE LIGHT
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 585 unknown
Originating Activity Code CX Defense Supply Center Richmond
Richmond, VA 23297-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6220-01-126-4839

Category Code Description
Materiel Category and Inventory ManagerJ Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment1 REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
Specific Group/Generic CodeN Tactical Vehicles
Weapons Systems/End Item or Homogeneous GroupN5High Mobility Multi-Purpose Wheeled Vehicle (HMMWV)
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityOIf condemned or economically unserviceable, dispose at organizational level.
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
