NSN 6220-00-812-0515 AN317712, AN3177-12, B3525A2324
Product Details | AIRCRAFT RECOGNITION LIGHT
6220-00-812-0515 A light specifically designed to be permanently installed on aircraft to produce a steady or flashing signal for identification between aircraft in flight or between an aircraft in flight and a ground station.
Part Alternates: AN317712, AN3177-12, B3525A2324, B3525A23-24, S1206D, 6220-00-812-0515, 00-812-0515, 6220008120515, 008120515
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1960 | 00-812-0515 | 11498 ( LIGHT, RECOGNITION, AIRCRAFT ) |

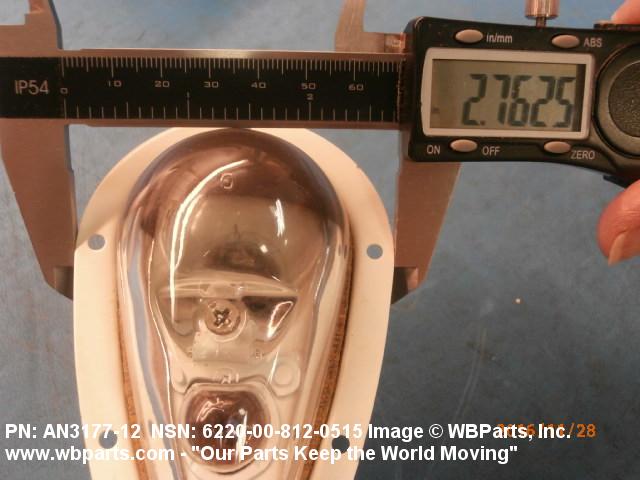

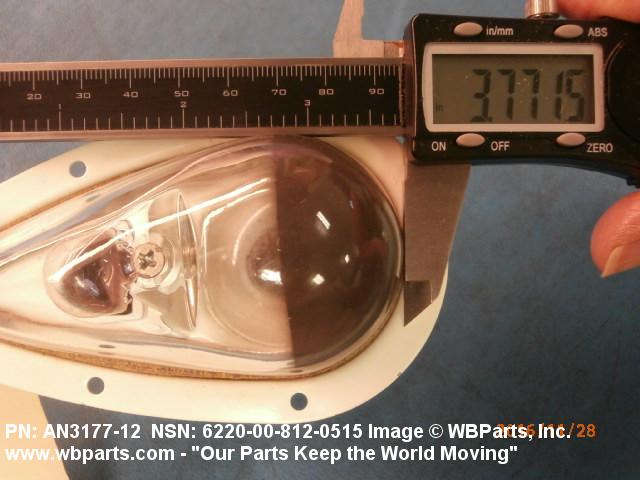

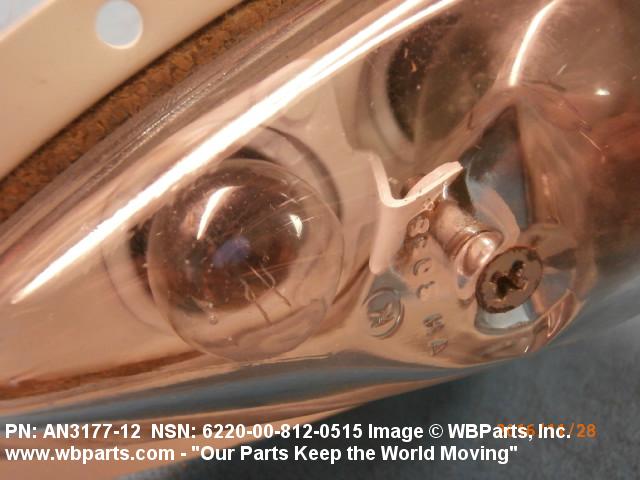

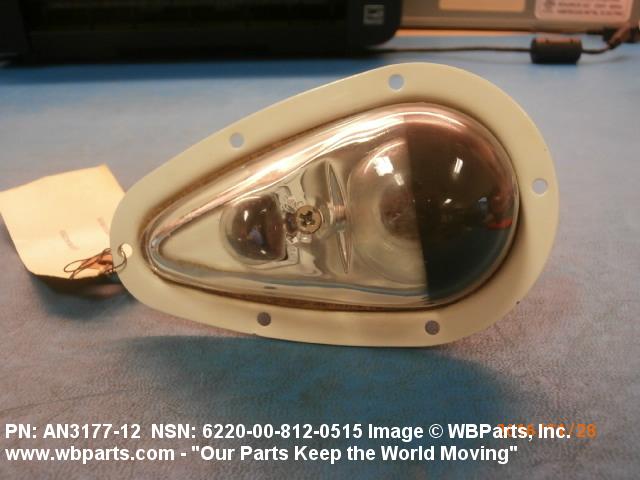

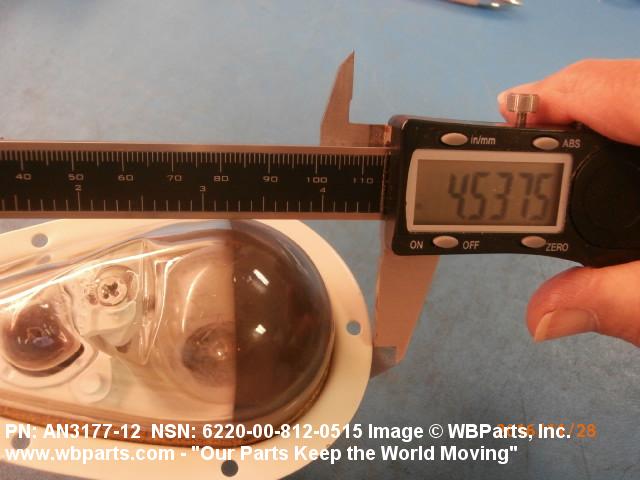

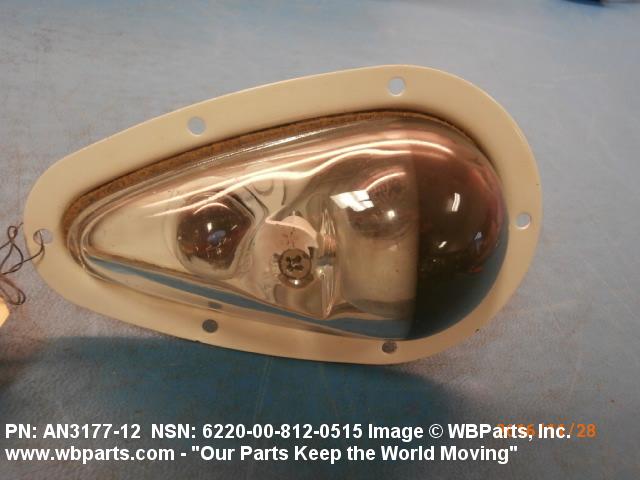

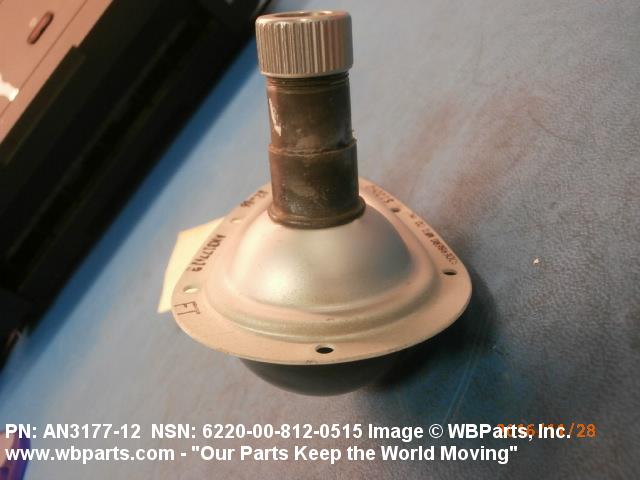

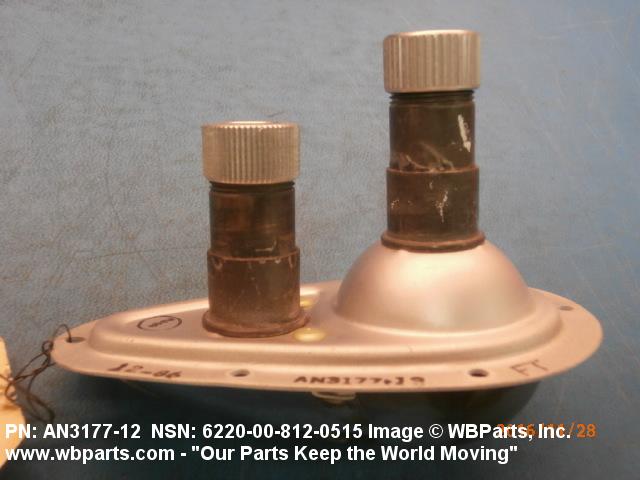

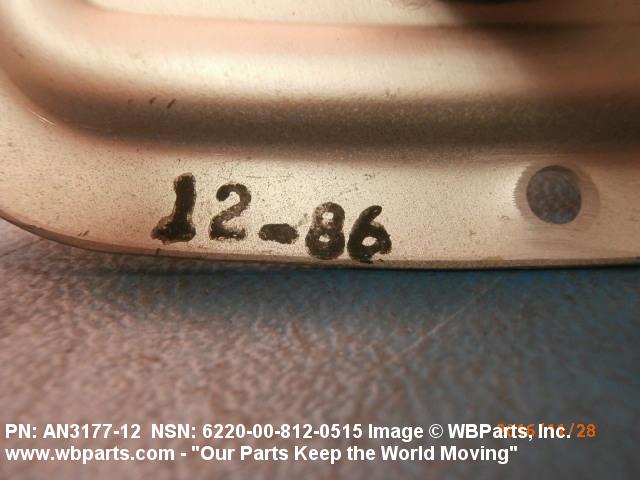

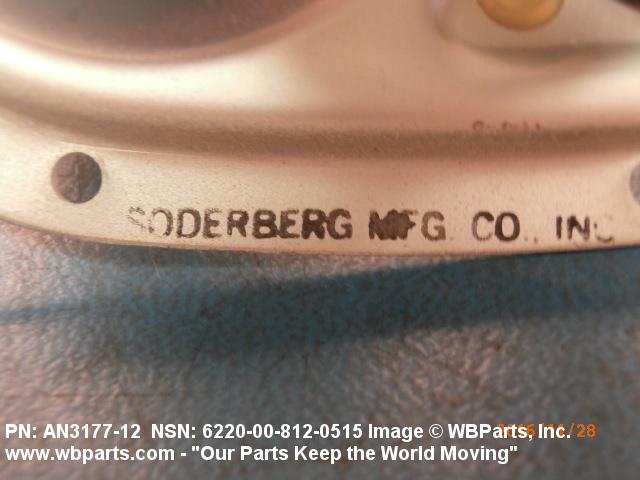

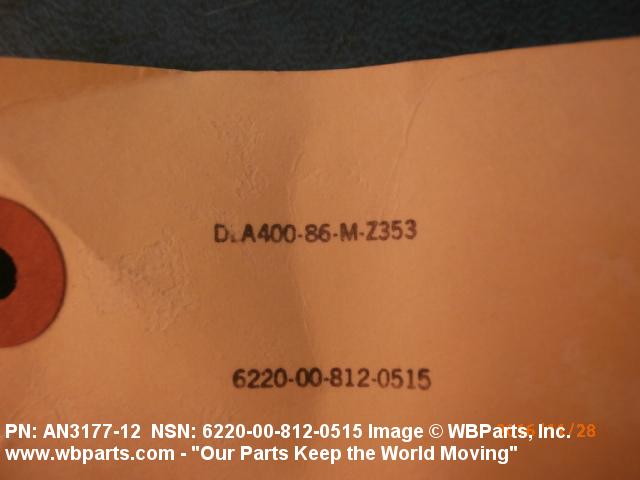

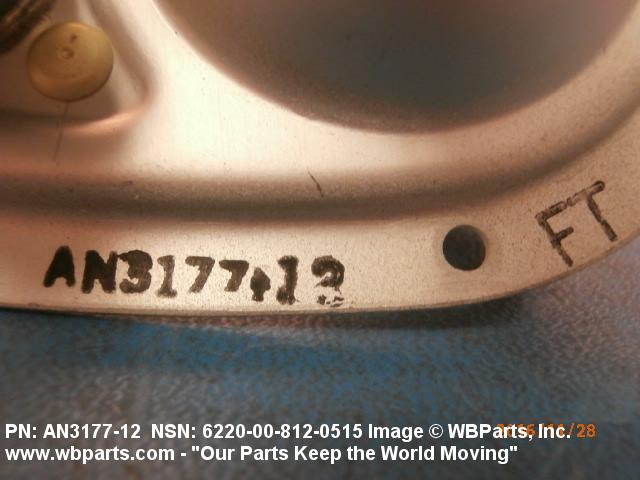

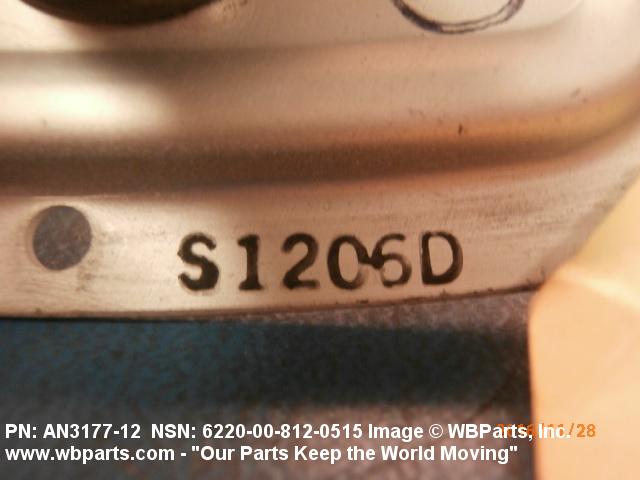

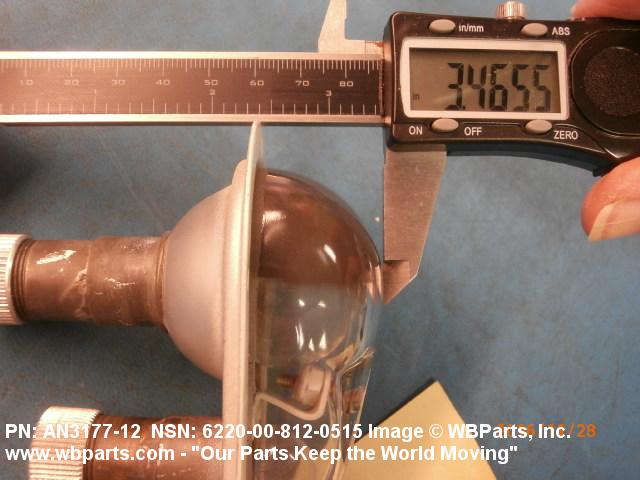

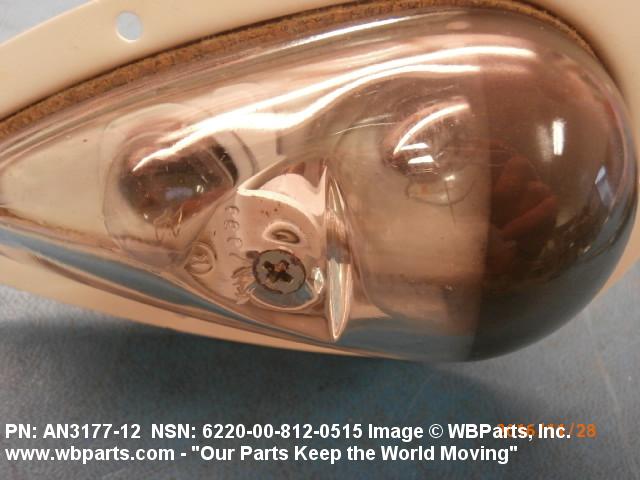

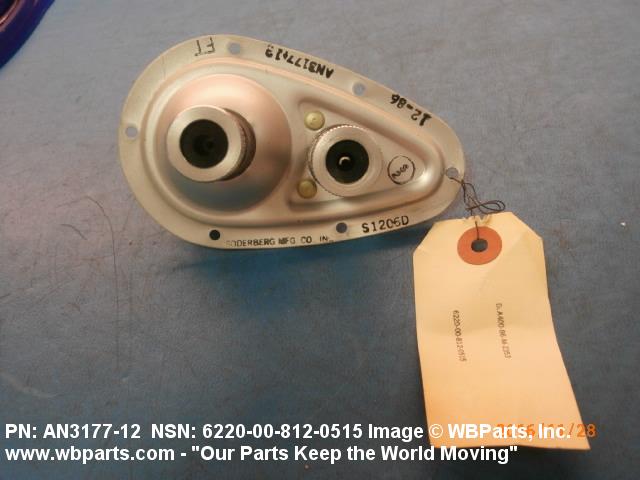

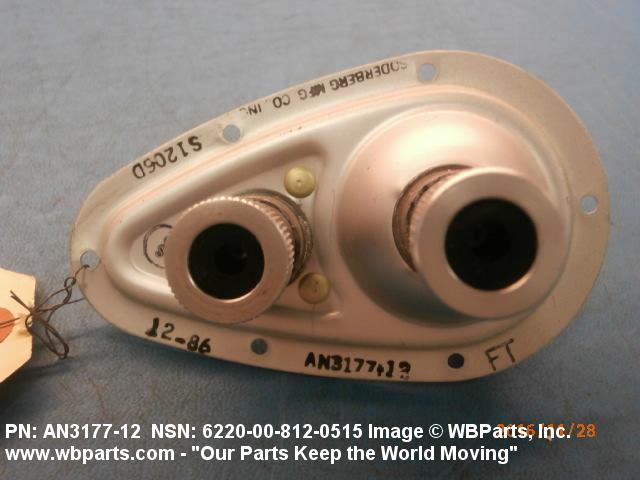

Drawings & Photos | NSN 6220-00-812-0515
Demand History | NSN 6220-00-812-0515
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6220-00-812-0515 | 2024-05-144 | 9 | Malaysia |
| 6220-00-812-0515 | 2024-05-131 | 9 | Malaysia |
| 6220-00-812-0515 | 2017-07-209 | 30 | Malaysia |
| AN317712 | 2016-10-295 | 1 | United Kingdom |
| 6220-00-812-0515 | 2016-08-221 | 3 | Malaysia |
| AN317712 | 2016-07-213 | 3 | Malaysia |
| 6220-00-812-0515 | 2014-09-261 | 30 | IT |
| AN317712 | 2014-07-207 | 30 | Italy |
| 6220-00-812-0515 | 2013-02-38 | 52 | DIBBS |
| 6220-00-812-0515 | 2010-03-70 | 20 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6220-00-812-0515
Related Products | NSN 6220-00-812-0515
Technical Data | NSN 6220-00-812-0515
| Characteristic | Specifications |
|---|---|
| SHAPE | TEARDROP |
| OVERALL HEIGHT | 3.562 INCHES NOMINAL |
| OVERALL LENGTH | 3.562 INCHES NOMINAL |
| OVERALL WIDTH | 2.750 INCHES NOMINAL |
| VOLTAGE RATING IN VOLTS | 28.0 DC NOMINAL |
| MATERIAL | ALUMINUM BASE GLASS LENS |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 2 INCANDESCENT |
| LAMP BASE TYPE ACCOMMODATED | SINGLE CONTACT BAYONET CANDELABRA |
| LENS TYPE AND QUANTITY | 1 TEARDROP, FLANGED |
| LENS SURFACE CONDITION | SMOOTH BACK SMOOTH FACE |
| LENS COLOR | WHITE |
| LENS TRANSPARENCY | TRANSLUCENT |
| MOUNTING METHOD | UNTHREADED HOLE |
| TERMINAL TYPE AND QUANTITY | 2 ANY ACCEPTABLE |
| LIGHT BEAM MOTION | FIXED AND FLASHING |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERTIGHT |
| SPECIAL FEATURES | LENS W/SHIELD |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN3177-12 |
Restrictions/Controls & Freight Information | NSN 6220-00-812-0515
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6220-00-812-0515
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
