6220-00-772-9789 A transparent or translucent item designed to enclose or be placed in front of a light source. Sections of the lens may be opaque. It may or may not include a holder. It is designed to be either a replacement unit for a specific type of light, such as LIGHT, INDICATOR; LIGHT, NAVIGATIONAL, MARINE; STOP LIGHT, VEHICULAR; and LANTERN, ELECTRIC or that portion of a SWITCH, (as modified) used as an actuator and having provisions for illumination. See also, WINDOW, LIGHTING FIXTURE; GLOBE; ELECTRIC LIGHT; and FILTER (2), (as modified).20658500051Visible and Invisible Light Communication Equipment62100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures65150057Medical and Surgical Instruments, Equipment, and Supplies65200043Dental Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies

Part Alternates: 7729789, 6220-00-772-9789, 00-772-9789, 6220007729789, 007729789

Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures

Supply Group (FSG) NSN Assign. NIIN
62 01 JAN 1962 00-772-9789

Drawings & Photos | NSN 6220-00-772-9789


Cross Reference | NSN 6220-00-772-9789

Part Number Cage Code Manufacturer
7729789 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6220-00-772-9789

Technical Data | NSN 6220-00-772-9789

Characteristic Specifications

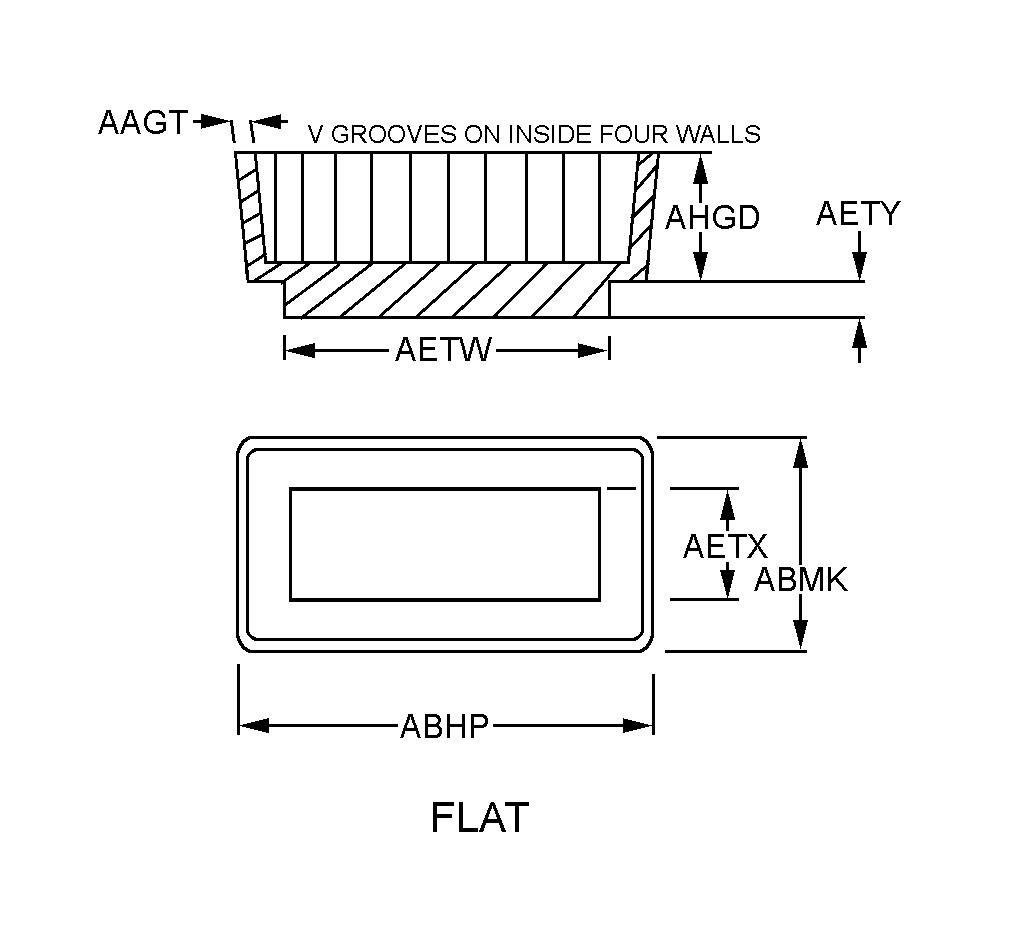

STYLE DESIGNATOR 59 FLAT
WALL THICKNESS 0.090 INCHES NOMINAL
OVERALL LENGTH 1.875 INCHES NOMINAL
OVERALL WIDTH 0.873 INCHES NOMINAL
PLATEAU LENGTH 1.500 INCHES NOMINAL
PLATEAU WIDTH 0.500 INCHES NOMINAL
PLATEAU HEIGHT 0.140 INCHES NOMINAL
FLANGE HEIGHT 0.595 INCHES NOMINAL
MATERIAL PLASTIC METHYL METHACRYLATE LENS
LIGHT TRANSMISSION DESIGN TRANSLUCENT LENS
SURFACE CONDITION GROOVED BACK SMOOTH FACE
MOUNTING METHOD FLANGE
MOUNTING DEVICE QUANTITY 1
MANUFACTURERS CODE 19207
DESIGN CONTROL REFERENCE 7729789
