NSN 6220-00-399-7104 SYM.989, SYM989, 9000S640274270
Product Details | NAVIGATIONAL LIGHT CONTROL
6220-00-399-7104 A device which determines the mode of operation of navigational lights or light systems.20262100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures
Part Alternates: SYM.989, SYM989, 9000S640274270, 9000S6402-74270, 6220-00-399-7104, 00-399-7104, 6220003997104, 003997104
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-399-7104 | 00930 ( CONTROL, NAVIGATIONAL LIGHT ) |
Drawings & Photos | NSN 6220-00-399-7104
Demand History | NSN 6220-00-399-7104
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6220-00-399-7104 | 2024-10-280 | 3 | DIBBS |
| 6220-00-399-7104 | 2023-12-354 | 4 | DIBBS |
| 6220-00-399-7104 | 2023-12-346 | 4 | DIBBS |
| 6220-00-399-7104 | 2023-07-211 | 5 | DIBBS |
| 6220-00-399-7104 | 2023-06-152 | 1 | DIBBS |
| 6220-00-399-7104 | 2023-02-59 | 4 | DIBBS |
| 6220-00-399-7104 | 2023-02-53 | 3 | DIBBS |
| 6220-00-399-7104 | 2023-01-23 | 1 | DIBBS |
| 6220-00-399-7104 | 2021-06-179 | 3 | DIBBS |
| 6220-00-399-7104 | 2021-01-20 | 3 | DIBBS |
| 6220-00-399-7104 | 2021-01-12 | 3 | DIBBS |
| 6220-00-399-7104 | 2019-10-291 | 1 | United States |
| 6220-00-399-7104 | 2019-04-97 | 3 | DIBBS |
| 6220-00-399-7104 | 2018-09-268 | 5 | DIBBS |
| 6220-00-399-7104 | 2016-04-112 | 5 | DIBBS |
| 6220-00-399-7104 | 2014-06-175 | 6 | DIBBS |
| 6220-00-399-7104 | 2014-06-167 | 6 | DIBBS |
| 6220-00-399-7104 | 2009-09-273 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6220-00-399-7104
Related Products | NSN 6220-00-399-7104
Technical Data | NSN 6220-00-399-7104
| Characteristic | Specifications |
|---|---|

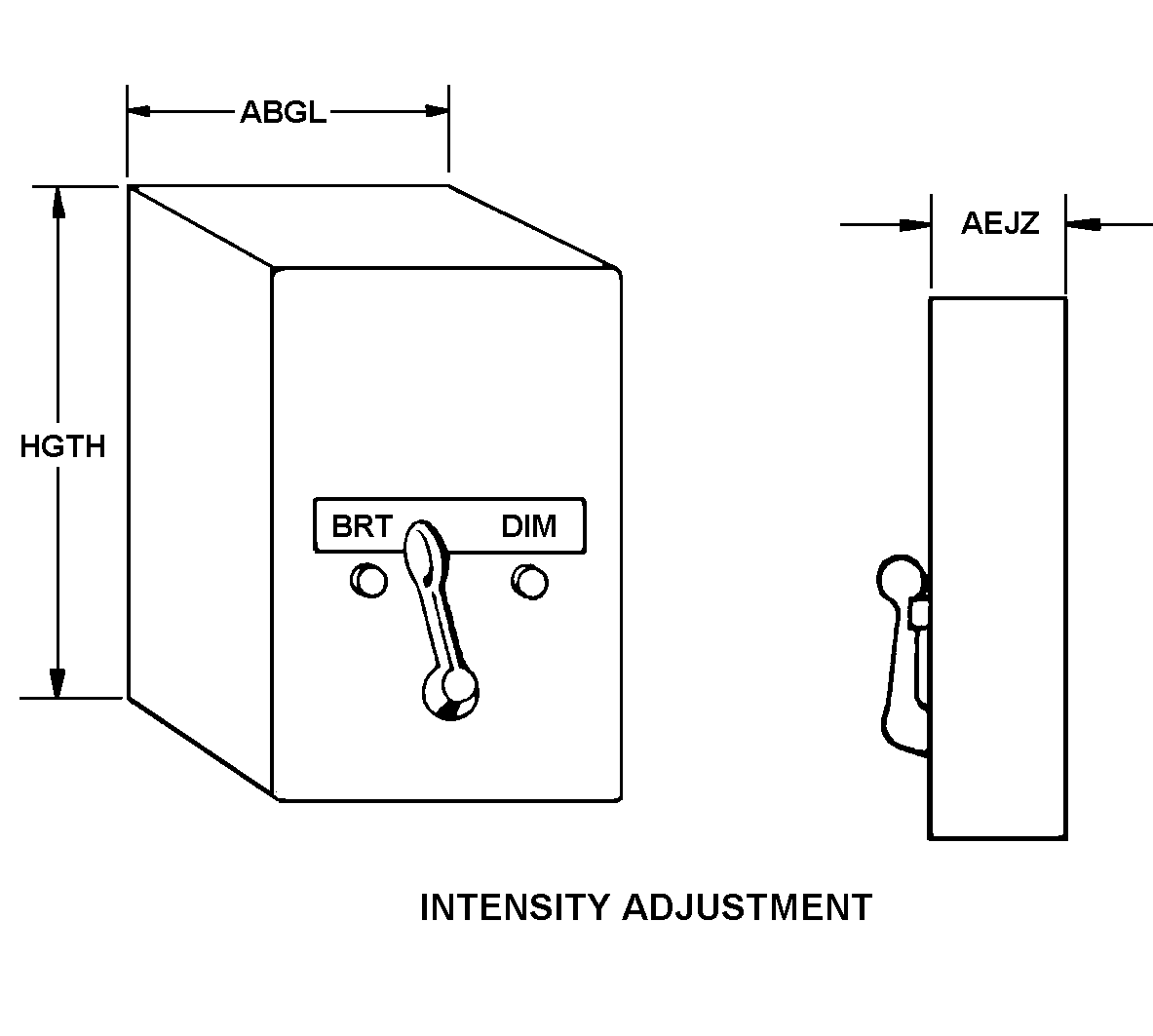

| STYLE DESIGNATOR | D2 INTENSITY ADJUSTMENT |
| WIDTH | 10.500 INCHES NOMINAL |
| DEPTH | 6.000 INCHES NOMINAL |
| HEIGHT | 14.156 INCHES NOMINAL |
| INCLOSURE MATERIAL | STEEL |
| INCLOSURE SURFACE TREATMENT | ENAMEL |
| OPERATING FUNCTION AND METHOD | ACTUATION LEVER |
| FUNCTIONING SIGNAL METHOD | INDICATOR LIGHTS |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 125.0 AC |
| USAGE DESIGN | INDOOR |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 CAPTIVE SCREWS |
| FEATURES PROVIDED | ADJUSTABLE LIGHT INTENSITY ACTUATION CONTROL |
| SPECIAL FEATURES | WALL MTD |
Restrictions/Controls & Freight Information | NSN 6220-00-399-7104
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6220-00-399-7104
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
