NSN 6220-00-334-6984 25047123, 25-0471-23, 00-334-6984
Product Details | LIGHT LENS
6220-00-334-6984 A transparent or translucent item designed to enclose or be placed in front of a light source. Sections of the lens may be opaque. It may or may not include a holder. It is designed to be either a replacement unit for a specific type of light, such as LIGHT, INDICATOR; LIGHT, NAVIGATIONAL, MARINE; STOP LIGHT, VEHICULAR; and LANTERN, ELECTRIC or that portion of a SWITCH, (as modified) used as an actuator and having provisions for illumination. See also, WINDOW, LIGHTING FIXTURE; GLOBE; ELECTRIC LIGHT; and FILTER (2), (as modified).20658500051Visible and Invisible Light Communication Equipment62100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures65150057Medical and Surgical Instruments, Equipment, and Supplies65200043Dental Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies
Part Alternates: 25047123, 25-0471-23, 6220-00-334-6984, 00-334-6984, 6220003346984, 003346984
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 24 DEC 1973 | 00-334-6984 | 29939 ( LENS, LIGHT ) |

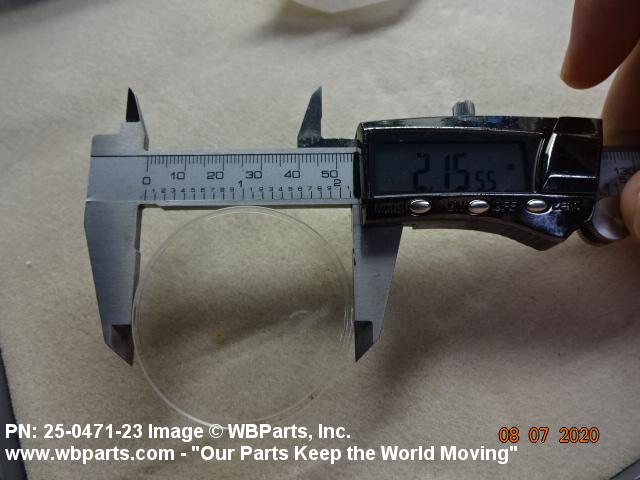

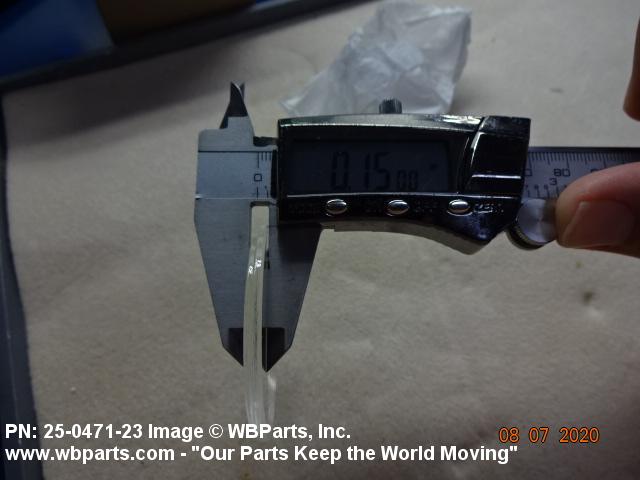

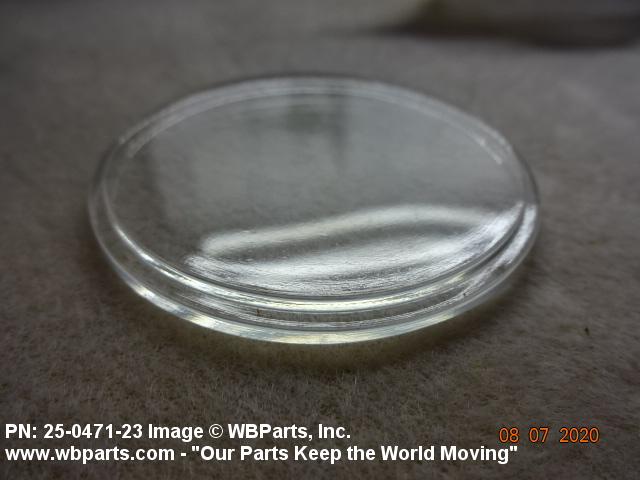

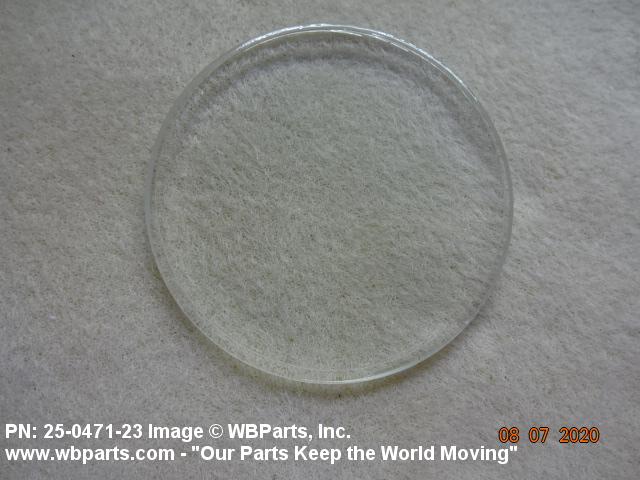

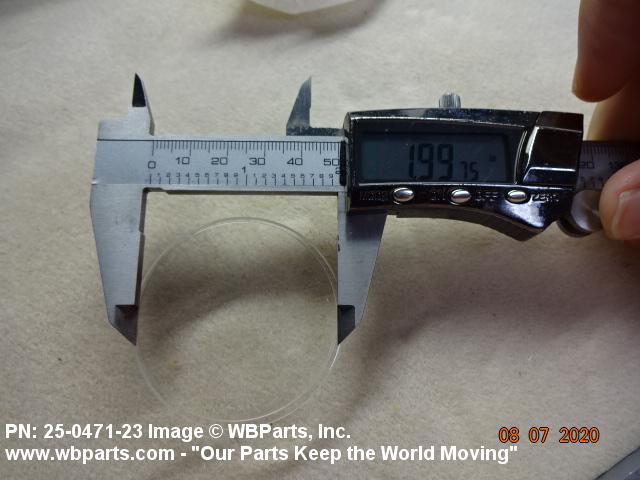

Drawings & Photos | NSN 6220-00-334-6984
Demand History | NSN 6220-00-334-6984
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 25-0471-23 | 2024-11-319 | 7 | DIBBS |
| 25-0471-23 | 2024-08-239 | 5 | DIBBS |
| 25-0471-23 | 2024-08-231 | 5 | DIBBS |
| 25047123 | 2020-08-218 | 32 | United States |
| 25047123 | 2020-06-156 | 32 | United States |
| 25-0471-23 | 2019-03-88 | 27 | DIBBS |
| 25-0471-23 | 2019-03-77 | 27 | DIBBS |
| 25-0471-23 | 2019-02-50 | 27 | DIBBS |
| 25-0471-23 | 2019-02-36 | 27 | DIBBS |
| 6220-00-334-6984 | 2018-08-232 | 12 | DIBBS |
| 6220-00-334-6984 | 2017-11-325 | 14 | DIBBS |
| 6220-00-334-6984 | 2017-11-311 | 14 | DIBBS |
| 6220-00-334-6984 | 2011-11-327 | 30 | DIBBS |
| 6220-00-334-6984 | 2011-05-138 | 10 | DIBBS |
| 6220-00-334-6984 | 2007-05-124 | 39 | DIBBS |
Cross Reference | NSN 6220-00-334-6984
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 25-0471-23 | 72914 | GRIMES AEROSPACE COMPANY DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6220-00-334-6984
Technical Data | NSN 6220-00-334-6984
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 5 CONVEX |
| OVERALL HEIGHT | 0.156 INCHES NOMINAL |
| OVERALL DIAMETER | 2.156 INCHES NOMINAL |
| EFFECTIVE DIAMETER | 2.000 INCHES NOMINAL |
| FLANGE WIDTH | 0.078 INCHES NOMINAL |
| MATERIAL | GLASS LENS |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-C-7989,CL B MIL SPEC SINGLE MATERIAL RESPONSE LENS |
| LIGHT TRANSMISSION DESIGN | TRANSPARENT LENS |
| SURFACE CONDITION | SMOOTH BACK SMOOTH FACE |
| MOUNTING METHOD | FLANGE |
| MOUNTING DEVICE QUANTITY | 1 |
| COLOR | WHITE, AVIATION LENS |
Restrictions/Controls & Freight Information | NSN 6220-00-334-6984
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6220-00-334-6984
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
