NSN 6220-00-299-7563 KD3066, KD3426LS342, KD4392
Product Details | LIGHT LENS
6220-00-299-7563 A transparent or translucent item designed to enclose or be placed in front of a light source. Sections of the lens may be opaque. It may or may not include a holder. It is designed to be either a replacement unit for a specific type of light, such as LIGHT, INDICATOR; LIGHT, NAVIGATIONAL, MARINE; STOP LIGHT, VEHICULAR; and LANTERN, ELECTRIC or that portion of a SWITCH, (as modified) used as an actuator and having provisions for illumination. See also, WINDOW, LIGHTING FIXTURE; GLOBE; ELECTRIC LIGHT; and FILTER (2), (as modified).20658500051Visible and Invisible Light Communication Equipment62100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures65150057Medical and Surgical Instruments, Equipment, and Supplies65200043Dental Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies
Part Alternates: KD3066, KD3426LS342, KD4392, WPP1539, R410, 801E290, 1327R, 1350, 1-350, 1627R, 16T1883, 3066, 4392, 6220-00-299-7563, 00-299-7563, 6220002997563, 002997563
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-299-7563 | 29939 ( LENS, LIGHT ) |
Drawings & Photos | NSN 6220-00-299-7563
Cross Reference | NSN 6220-00-299-7563
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1-350 | 31245 | TEREX USA, LLC DBA CEDARAPIDS |
| 1327R | 51501 | ROGERS BROTHERS CORPORATION |
| 1627R | 78026 | S AND M LAMP CO |
| 16T1883 | 81336 | CHIEF OF ENGINEERS DEPT OF ARMY |
| 3066 | 75175 | CONCORD INSTRUMENTS CORP |
| 4392 | 13696 | TRICO INDUSTRIES INC COLUMBIAN DIV |
| 4392 | 27996 | HEIL ENVIRONMENTAL INDUSTRIES |
| 4392 | 34640 | LA CROSSE TRAILER CORP |
| 4392 | 75175 | CONCORD INSTRUMENTS CORP |
| 4392 | 78845 | HEIL CO TEC DIV |
| 4392 | 81494 | PULLMAN TRAILMOBILE A DIV OF PULLMAN INC |
| 801E290 | 02413 | KERSEY / AMERICAN LAFRANCE A DIV OF FIGGIE INTERNATIONAL INC |
| KD3066 | 75175 | CONCORD INSTRUMENTS CORP |
| KD3426LS342 | 81212 | KAY INDUSTRIES INC |
| KD4392 | 23705 | FRUEHAUF CORP |
| KD4392 | 75175 | CONCORD INSTRUMENTS CORP |
| R410 | 51501 | ROGERS BROTHERS CORPORATION |
| WPP1539 | 79172 | SIEMENS WATER TECHNOLOGIES CORP. DIV WALLACE & TIERNAN PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6220-00-299-7563
Technical Data | NSN 6220-00-299-7563
| Characteristic | Specifications |
|---|---|

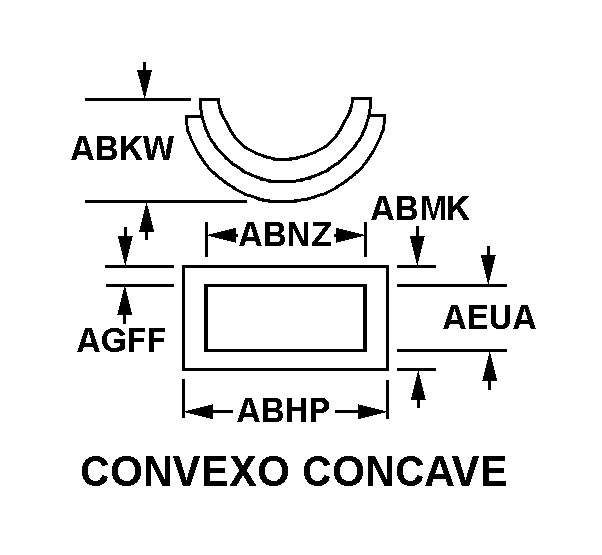

| STYLE DESIGNATOR | 22 CONVEXO CONCAVE |
| OVERALL LENGTH | 2.406 INCHES NOMINAL |
| OVERALL WIDTH | 1.719 INCHES NOMINAL |
| MATERIAL | GLASS LENS |
| LIGHT TRANSMISSION DESIGN | TRANSLUCENT LENS |
| SURFACE CONDITION | SMOOTH BACK FRESNEL FACE |
| MOUNTING METHOD | CLIP |
| MOUNTING DEVICE QUANTITY | 1 |
| COLOR | RED LENS |
Restrictions/Controls & Freight Information | NSN 6220-00-299-7563
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6220-00-299-7563
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
