NSN 6220-00-211-6146 28673304, 286-73-304, 3800B712
Product Details | AUTOMOTIVE DIRECTIONAL SIGNAL LIGHT CONTROL
6220-00-211-6146 An item which, when manually actuated, completes, interrupts, or changes the connections in the electrical circuit to control the operation of the directional signal lights on an automotive vehicle. It may include flasher mechanism.
Part Alternates: 28673304, 286-73-304, 3800B712, 3800-B-7-12, 44084, 44194, 48072, 7285001, 728-5001, 7872000011, 7-872-000011, 900, 900M, 9667NF12V, 966-7NF12V, 97887, 97972, 6220-00-211-6146, 00-211-6146, 6220002116146, 002116146
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 25 APR 1973 | 00-211-6146 | 06106 ( CONTROL, DIRECTIONAL SIGNAL LIGHT, AUTOMOTIVE ) |
Drawings & Photos | NSN 6220-00-211-6146
Demand History | NSN 6220-00-211-6146
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 48072 | 2022-07-207 | 90 | DIBBS |
| 7-872-000011 | 2022-07-207 | 90 | DIBBS |
| 900 | 2022-07-207 | 90 | DIBBS |
| 6220-00-211-6146 | 2018-08-232 | 1 | DIBBS-RFPs |
| 6220-00-211-6146 | 2017-10-278 | 228 | DIBBS |
| 6220-00-211-6146 | 2017-04-114 | 150 | DIBBS |
| 6220-00-211-6146 | 2013-09-254 | 354 | DIBBS |
| 6220-00-211-6146 | 2013-02-38 | 339 | DIBBS |
| 6220-00-211-6146 | 2012-06-164 | 64 | DIBBS |
| 6220-00-211-6146 | 2011-12-362 | 83 | DIBBS |
| 6220-00-211-6146 | 2011-11-319 | 85 | DIBBS |
| 6220-00-211-6146 | 2009-12-341 | 90 | DIBBS |
| 6220-00-211-6146 | 2009-05-151 | 95 | DIBBS |
| 6220-00-211-6146 | 2009-05-134 | 59 | DIBBS |
Cross Reference | NSN 6220-00-211-6146
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 286-73-304 | 20984 | ARROW SAFETY DEVICE CO |
| 3800-B-7-12 | 80753 | ACUTEK INC. Use CAGE Code 99717 for cataloging |
| 44084 | 81834 | GROTE INDUSTRIES INC DIV MILITARY PRODUCTS |
| 44194 | 81834 | GROTE INDUSTRIES INC DIV MILITARY PRODUCTS |
| 48072 | 81834 | GROTE INDUSTRIES INC DIV MILITARY PRODUCTS |
| 7-872-000011 | 12361 | GROVE U.S. L.L.C DBA MANITOWOC CRANE GROUP |
| 728-5001 | 75175 | CONCORD INSTRUMENTS CORP |
| 900 | 4TVG2 | TUG TECHNOLOGIES CORPORATION |
| 900 | 77977 | SIGNAL-STAT CORP |
| 900M | 0PR58 | VEHICLE SAFETY MANUFACTURING L.L.C. DBA V S M |
| 966-7NF12V | 81834 | GROTE INDUSTRIES INC DIV MILITARY PRODUCTS |
| 97887 | 13548 | TRUCK-LITE CO., INC. DBA SIGNAL STAT PRODUCT LINE |
| 97972 | 13548 | TRUCK-LITE CO., INC. DBA SIGNAL STAT PRODUCT LINE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6220-00-211-6146
Technical Data | NSN 6220-00-211-6146
| Characteristic | Specifications |
|---|---|

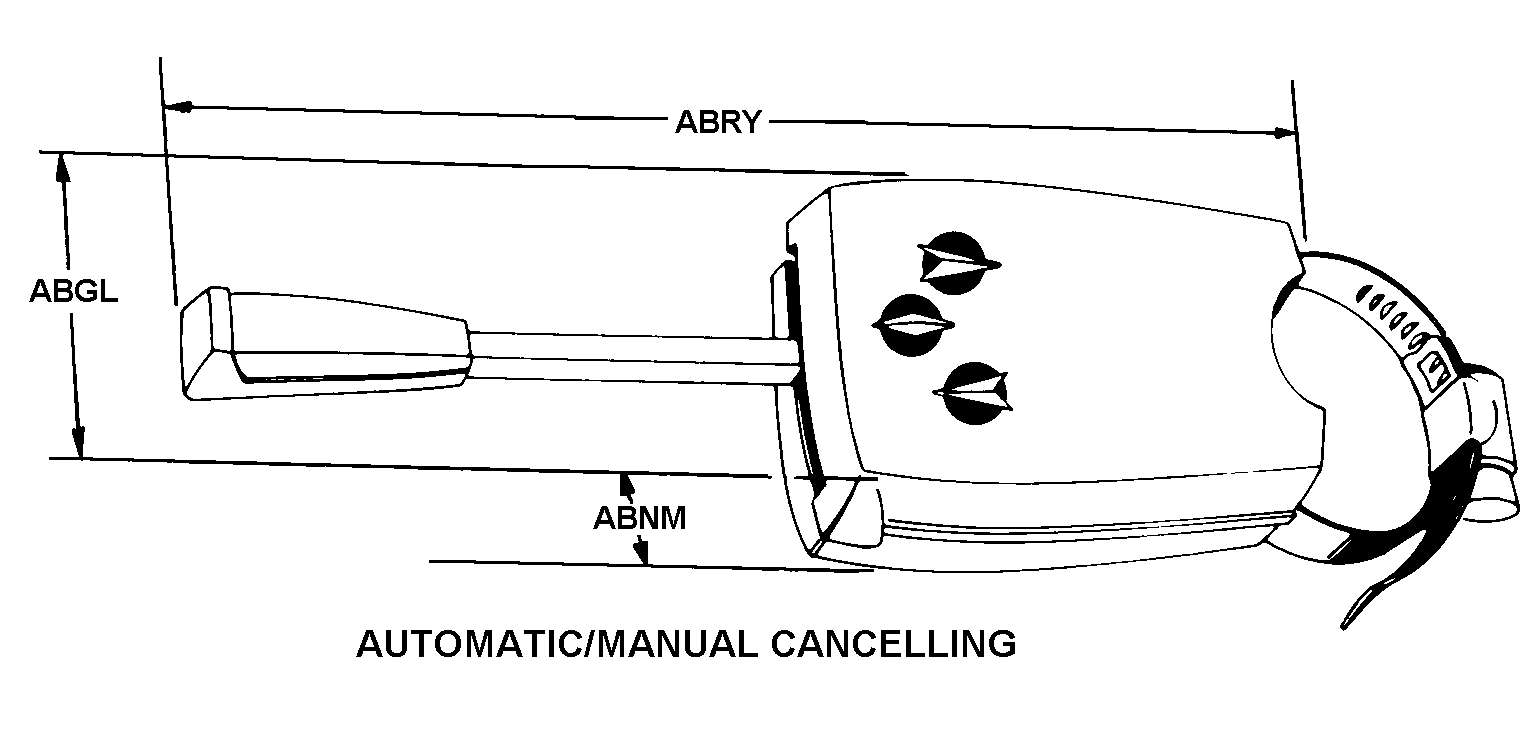

| STYLE DESIGNATOR | A5 AUTOMATIC/MANUAL CANCELLING |
| WIDTH | 2.120 INCHES NOMINAL |
| THICKNESS | 2.780 INCHES NOMINAL |
| LENGTH | 7.230 INCHES NOMINAL |
| INCLOSURE MATERIAL | ZINC ALLOY |
| INCLOSURE SURFACE TREATMENT | ENAMEL |
| OPERATING FUNCTION AND METHOD | ACTUATION LEVER AND DEACTUATION LEVER |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 12.0 DC |
| FEATURES PROVIDED | FLASHER UNIT AND WIRING PROVISION |
| III FLASHER UNIT ACCOMMODATION TYPE | SEPARATE |
Restrictions/Controls & Freight Information | NSN 6220-00-211-6146
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 017870 | AUTO ASSEMBLIES/DEVICE LIGHT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 581 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
