NSN 6220-00-151-7538 A18363, A1836-3, A18366
Product Details | LIGHT LENS
6220-00-151-7538 A transparent or translucent item designed to enclose or be placed in front of a light source. Sections of the lens may be opaque. It may or may not include a holder. It is designed to be either a replacement unit for a specific type of light, such as LIGHT, INDICATOR; LIGHT, NAVIGATIONAL, MARINE; STOP LIGHT, VEHICULAR; and LANTERN, ELECTRIC or that portion of a SWITCH, (as modified) used as an actuator and having provisions for illumination. See also, WINDOW, LIGHTING FIXTURE; GLOBE; ELECTRIC LIGHT; and FILTER (2), (as modified).20658500051Visible and Invisible Light Communication Equipment62100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures65150057Medical and Surgical Instruments, Equipment, and Supplies65200043Dental Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies
Part Alternates: A18363, A1836-3, A18366, A1836-6, AN30424, AN3042-4, S16383, S1638-3, 30424, 3042-4, 40A67272, 40A6727-2, 6220-00-151-7538, 00-151-7538, 6220001517538, 001517538
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-151-7538 | 29939 ( LENS, LIGHT ) |

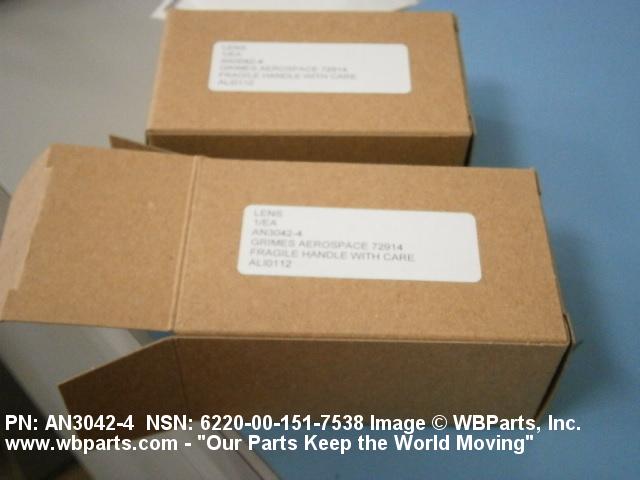

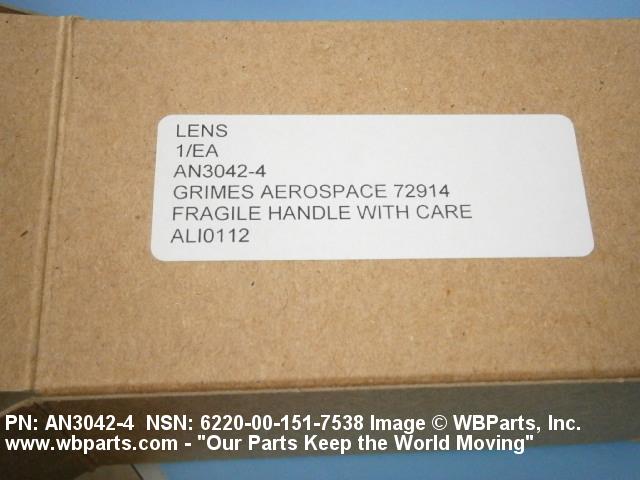

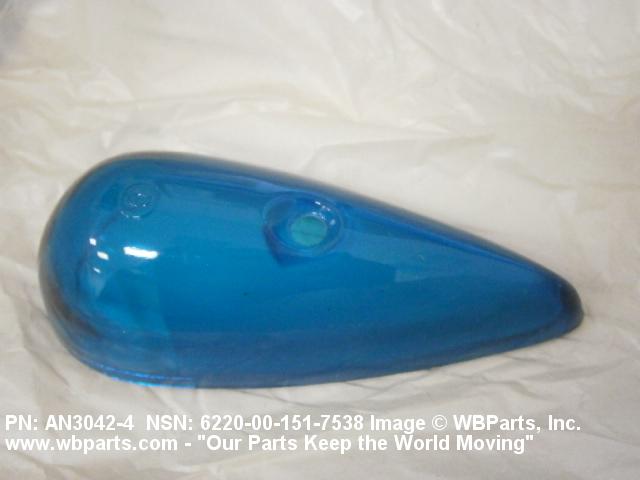

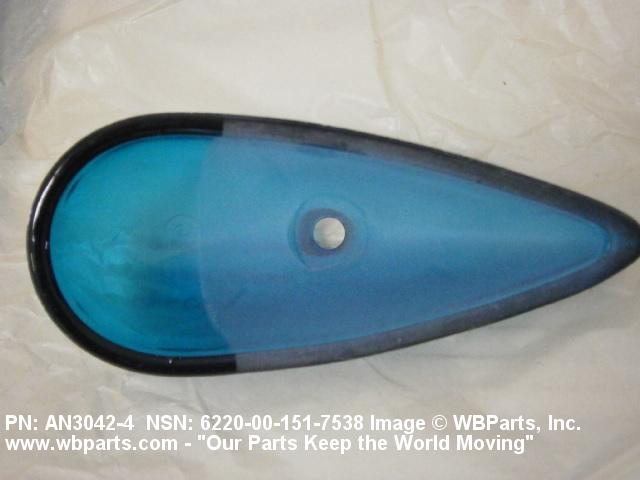

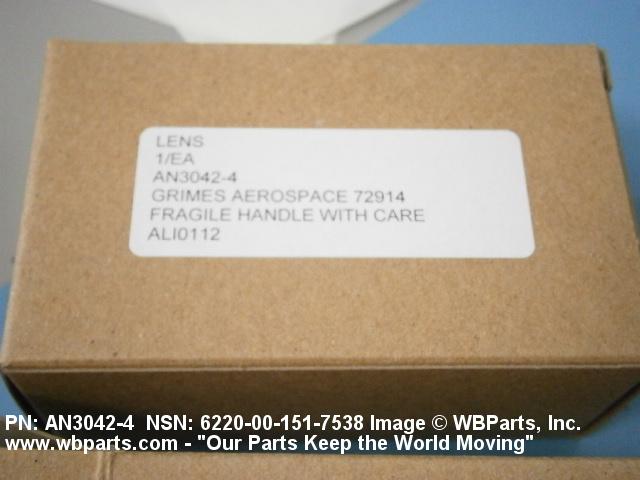

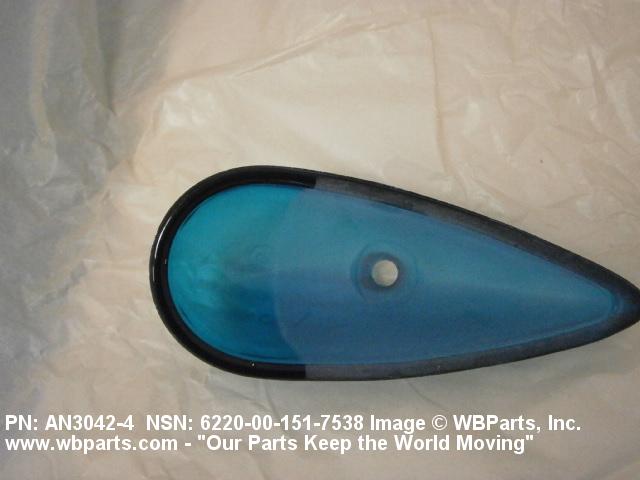

Drawings & Photos | NSN 6220-00-151-7538
Demand History | NSN 6220-00-151-7538
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6220-00-151-7538 | 2024-08-238 | 593 | DIBBS |
| 6220-00-151-7538 | 2024-08-228 | 593 | DIBBS |
| 6220-00-151-7538 | 2024-05-140 | 179 | DIBBS |
| 6220-00-151-7538 | 2023-12-338 | 414 | DIBBS |
| 6220-00-151-7538 | 2023-10-299 | 72 | DIBBS |
| 6220-00-151-7538 | 2023-10-296 | 331 | DIBBS |
| 6220-00-151-7538 | 2023-09-256 | 175 | us |
| 6220-00-151-7538 | 2023-07-197 | 331 | DIBBS |
| 6220-00-151-7538 | 2023-06-152 | 1 | IT |
| 6220-00-151-7538 | 2022-11-333 | 7 | Malaysia |
| 6220-00-151-7538 | 2022-11-331 | 7 | MY |
| AN30424 | 2021-02-53 | 1 | MY |
| AN30424 | 2020-05-147 | 1 | AT |
| 6220-00-151-7538 | 2020-05-147 | 1 | AT |
| 6220-00-151-7538 | 2019-09-268 | 411 | DIBBS |
| 6220-00-151-7538 | 2019-07-211 | 1 | DIBBS-RFPs |
| 6220-00-151-7538 | 2019-07-191 | 411 | DIBBS |
| 6220-00-151-7538 | 2017-09-262 | 1 | DIBBS-RFPs |
| 6220-00-151-7538 | 2017-06-166 | 1 | DIBBS-RFPs |
| 6220-00-151-7538 | 2017-01-18 | 150 | United States |
| 6220-00-151-7538 | 2017-01-17 | 1 | DIBBS-RFPs |
| 6220-00-151-7538 | 2014-11-307 | 1025 | DIBBS |
| 6220-00-151-7538 | 2014-10-299 | 1025 | DIBBS |
| 6220-00-151-7538 | 2014-09-265 | 10 | Malaysia |
| AN30424 | 2014-09-253 | 10 | Malaysia |
| A18366 | 2014-04-98 | 6 | EC |
| 6220-00-151-7538 | 2014-04-97 | 550 | US |
| 6220-00-151-7538 | 2014-04-93 | 550 | DIBBS |
| 6220-00-151-7538 | 2013-11-308 | 983 | DIBBS |
| 6220-00-151-7538 | 2013-11-307 | 983 | DIBBS |
| 6220-00-151-7538 | 2013-05-133 | 559 | DIBBS |
| 6220-00-151-7538 | 2013-05-125 | 559 | DIBBS |
| A18366 | 2012-01-09 | 2 | Italy |
| AN30424 | 2012-01-09 | 2 | Italy |
| 6220-00-151-7538 | 2010-08-228 | 2 | US |
| 6220-00-151-7538 | 2010-08-214 | 1007 | DIBBS |
| 6220-00-151-7538 | 2010-01-15 | 462 | DIBBS |
| 6220-00-151-7538 | 2008-02-44 | 350 | us |
| 6220-00-151-7538 | 2007-08-225 | 315 | DIBBS |
| 6220-00-151-7538 | 2007-07-186 | 276 | DIBBS |
| 6220-00-151-7538 | 2007-06-177 | 140 | DIBBS |
| 6220-00-151-7538 | 2007-06-175 | 136 | DIBBS |
| 6220-00-151-7538 | 2007-04-102 | 77 | DIBBS |
| 6220-00-151-7538 | 2006-06-167 | 77 | DIBBS |
Cross Reference | NSN 6220-00-151-7538
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3042-4 | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| 40A6727-2 | 80049 | DEPARTMENT OF THE AIR FORCE |
| A1836-3 | 72914 | GRIMES AEROSPACE COMPANY DBA HONEYWELL |
| A1836-6 | 72914 | GRIMES AEROSPACE COMPANY DBA HONEYWELL |
| AN3042-4 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| S1638-3 | 78366 | SODERBERG MFG.CO.INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6220-00-151-7538
Related Products | NSN 6220-00-151-7538
Technical Data | NSN 6220-00-151-7538
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 35 TEAR DROP |
| OVERALL LENGTH | 3.750 INCHES NOMINAL |
| OVERALL HEIGHT | 1.016 INCHES NOMINAL |
| OVERALL WIDTH | 1.625 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.188 INCHES NOMINAL |
| MATERIAL | GLASS LENS |
| LIGHT TRANSMISSION DESIGN | TRANSPARENT LENS |
| SURFACE CONDITION | SMOOTH BACK SMOOTH FACE |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING DEVICE QUANTITY | 1 |
| COLOR | GREEN, AVIATION LENS |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN3042-4 |
Restrictions/Controls & Freight Information | NSN 6220-00-151-7538
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6220-00-151-7538
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
