NSN 6220-00-105-4891 53-460055-3, 00-105-4891, 534600553

Product Details | LIGHT LENS

6220-00-105-4891 A transparent or translucent item designed to enclose or be placed in front of a light source. Sections of the lens may be opaque. It may or may not include a holder. It is designed to be either a replacement unit for a specific type of light, such as LIGHT, INDICATOR; LIGHT, NAVIGATIONAL, MARINE; STOP LIGHT, VEHICULAR; and LANTERN, ELECTRIC or that portion of a SWITCH, (as modified) used as an actuator and having provisions for illumination. See also, WINDOW, LIGHTING FIXTURE; GLOBE; ELECTRIC LIGHT; and FILTER (2), (as modified).20658500051Visible and Invisible Light Communication Equipment62100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures65150057Medical and Surgical Instruments, Equipment, and Supplies65200043Dental Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies

Part Alternates: 53-460055-3, 6220-00-105-4891, 00-105-4891, 6220001054891, 534600553, 001054891

Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
62	01 JUL 1968	00-105-4891	29939 ( LENS, LIGHT )

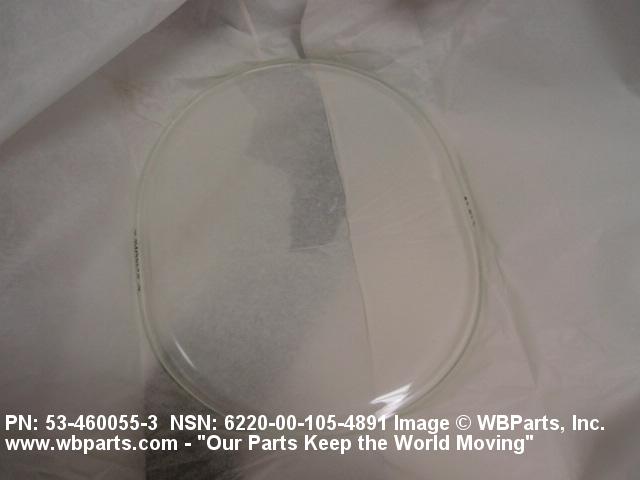

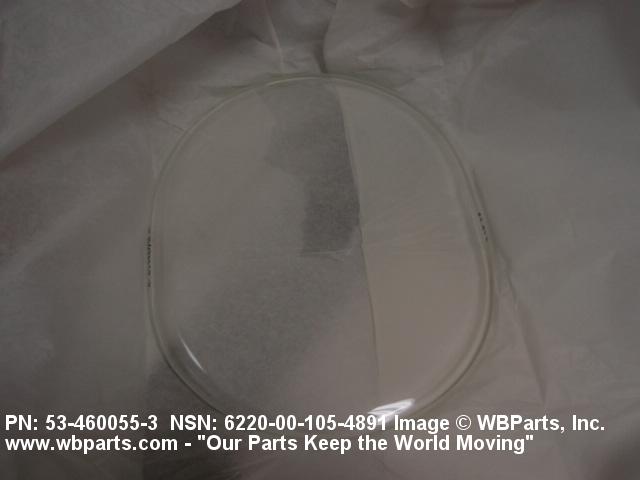

Drawings & Photos | NSN 6220-00-105-4891

Part Number	Request Date	QTY	Origin
6220-00-105-4891	2017-10-289	6	United States
534600553	2016-01-29	6	US
6220-00-105-4891	2016-01-27	4	CA
6220-00-105-4891	2015-06-154	6	US
6220-00-105-4891	2014-04-113	6	DIBBS
6220-00-105-4891	2014-03-63	2	DIBBS
6220-00-105-4891	2014-02-43	2	DIBBS
534600553	2013-08-226	4	India
6220-00-105-4891	2011-10-286	6	DIBBS
6220-00-105-4891	2011-02-34	7	DIBBS
6220-00-105-4891	2011-01-19	6	United States
6220-00-105-4891	2010-10-286	6	DIBBS

Cross Reference | NSN 6220-00-105-4891

Part Number	Cage Code	Manufacturer
53-460055-3	76301	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6220-00-105-4891

Compare

Related Products | NSN 6220-00-105-4891

6220-00-105-6144, 6220-00-105-6695, 6220-00-105-7007, 6220-00-105-7008, 6220-00-105-8968

Technical Data | NSN 6220-00-105-4891

Characteristic	Specifications
STYLE DESIGNATOR	61 FLAT
OVERALL LENGTH	7.230 INCHES NOMINAL
OVERALL HEIGHT	0.165 INCHES MINIMUM AND 0.190 INCHES MAXIMUM
OVERALL WIDTH	5.840 INCHES NOMINAL
EFFECTIVE LENGTH	6.650 INCHES NOMINAL
FLANGE WIDTH	0.290 INCHES NOMINAL
MATERIAL	GLASS LENS
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-C-7989,CL B MIL SPEC SINGLE MATERIAL RESPONSE LENS
LIGHT TRANSMISSION DESIGN	TRANSPARENT LENS
MOUNTING METHOD	RETAINER BLOCK
MOUNTING DEVICE QUANTITY	2
COLOR	WHITE, AVIATION LENS
MANUFACTURERS CODE	76301
DESIGN CONTROL REFERENCE	53-460055-3

Restrictions/Controls & Freight Information | NSN 6220-00-105-4891

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	109700	LAMP OR LIGHTING FIXTURES
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	SU	Ogden Air Logistics Center Hill AFB, UT 84056-5609
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6220-00-105-4891

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	BF	SU:F-4 (PHANTOM II)
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
