NSN 6210-01-464-5319 OX30126/004, OX30126004, 01-464-5319
Product Details | INDICATOR LIGHT FILTER
6210-01-464-5319 An item, other than a lens, specifically designed to be used with an indicator light for the purpose of altering the amount and/or color of light transmitted. May consist of more than one section with different colors, or it may consist of more than one layer of filters.
Part Alternates: OX30126/004, OX30126004, 6210-01-464-5319, 01-464-5319, 6210014645319, 014645319
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 04 MAY 1999 | 01-464-5319 | 34474 ( FILTER, INDICATOR LIGHT ) |

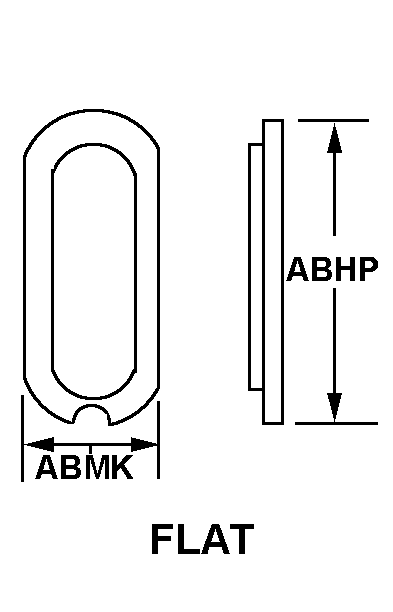

Drawings & Photos | NSN 6210-01-464-5319
Cross Reference | NSN 6210-01-464-5319
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| OX30126/004 | 3R006 | OXLEY, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6210-01-464-5319
Technical Data | NSN 6210-01-464-5319
| Characteristic | Specifications |
|---|---|
| MATERIAL | IR SUPPRESSANT GLASS LAMINATE WITH DICHROIC COATING |
| COLOR | NVIS YELLOW |
| POLARIZATION FEATURE | NOT INCLUDED |
| STYLE DESIGNATOR | 9 FLAT |
| OVERALL LENGTH | 1.150 INCHES NOMINAL |
| OVERALL WIDTH | 0.532 INCHES NOMINAL |
| SPECIAL FEATURES | FUNGUS, SOLVENT AND ABRASION RESISTANT; FILTER IS 0.170 INCHES IN THICKNESS |
Restrictions/Controls & Freight Information | NSN 6210-01-464-5319
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109095 | LAMPS:DIFFUSERS/GLOBES ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6210-01-464-5319
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
