NSN 6210-01-190-6788 0903010716, 09-0301-0716, 5189197003
Product Details | LIGHT LENS
6210-01-190-6788 A transparent or translucent item designed to enclose or be placed in front of a light source. Sections of the lens may be opaque. It may or may not include a holder. It is designed to be either a replacement unit for a specific type of light, such as LIGHT, INDICATOR; LIGHT, NAVIGATIONAL, MARINE; STOP LIGHT, VEHICULAR; and LANTERN, ELECTRIC or that portion of a SWITCH, (as modified) used as an actuator and having provisions for illumination. See also, WINDOW, LIGHTING FIXTURE; GLOBE; ELECTRIC LIGHT; and FILTER (2), (as modified).20658500051Visible and Invisible Light Communication Equipment62100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures65150057Medical and Surgical Instruments, Equipment, and Supplies65200043Dental Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies
Part Alternates: 0903010716, 09-0301-0716, 5189197003, 5189197-003, 0098LLTJ24178, 0098-LL-TJ2-4178, 6210-01-190-6788, 01-190-6788, 6210011906788, 011906788
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 29 SEP 1984 | 01-190-6788 | 29939 ( LENS, LIGHT ) |

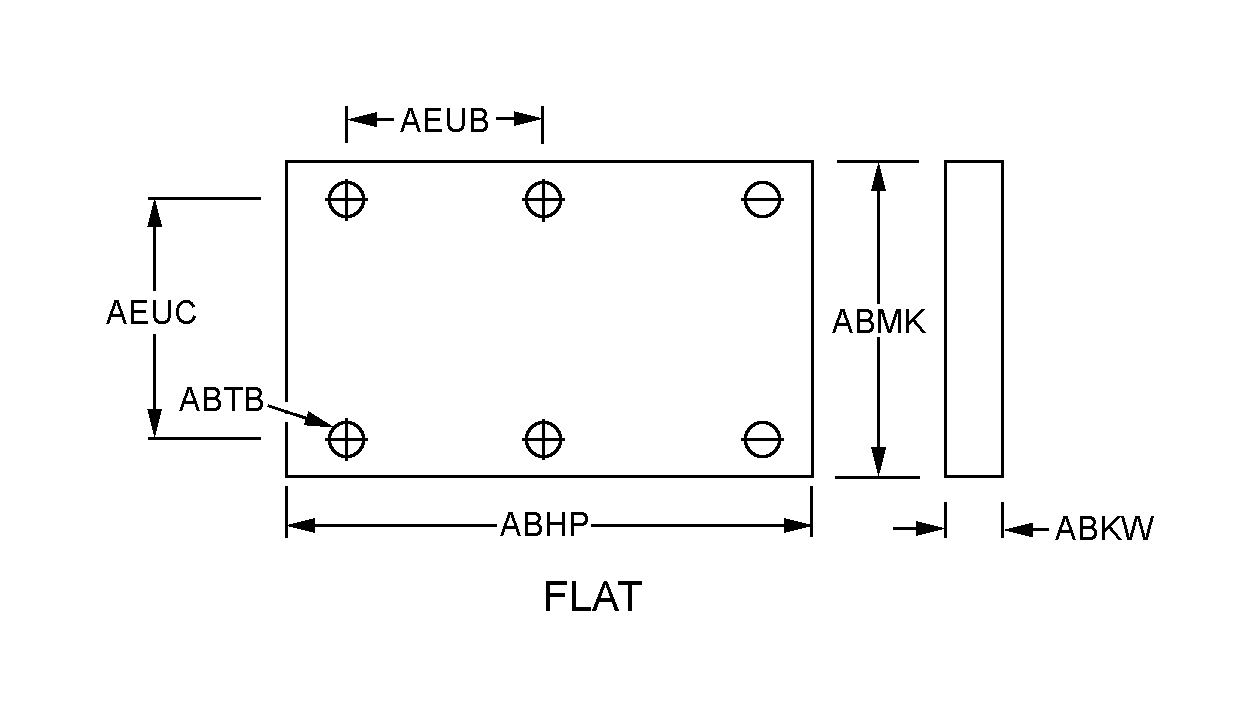

Drawings & Photos | NSN 6210-01-190-6788
Demand History | NSN 6210-01-190-6788
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6210-01-190-6788 | 2022-03-66 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6210-01-190-6788
Technical Data | NSN 6210-01-190-6788
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 45 FLAT |
| OVERALL LENGTH | 3.480 INCHES NOMINAL |
| OVERALL HEIGHT | 0.187 INCHES NOMINAL |
| OVERALL WIDTH | 2.130 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.112 INCHES NOMINAL |
| MAJOR CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 1.606 INCHES NOMINAL |
| MINOR CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.906 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY HOLDER |
| LIGHT TRANSMISSION DESIGN | TRANSLUCENT LENS |
| SURFACE CONDITION | SMOOTH BACK SMOOTH FACE |
| MOUNTING METHOD | SCREW |
| MOUNTING DEVICE QUANTITY | 6 |
| COLOR | AMBER LENS |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | RADIO FREQUENCY RADIATION SUPPRESSIVE |
Restrictions/Controls & Freight Information | NSN 6210-01-190-6788
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | ZA | Australia ZB ZC |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6210-01-190-6788
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
