NSN 6210-00-909-3934 63641RHR, 6364-1RHR, 63641RHR28
Product Details | PANEL LIGHT
6210-00-909-3934 A light specifically designed to be mounted on, near, or through a panel, switchboard, bulletin board, cowl, dashboard, and the like, and specifically designed to provide direct or indirect illumination thereon. It must include a shade, reflector, or other special device to direct illumination or to provide for the direction of illumination through the inherent design of the item, as in lights for edge lighted panels. It may include filters, dimming features, switches, and/or flexible gooseneck. For aircraft installed items prviding illumination for map reading or general utility illumination, in addition to panel illumination, see LIGHT (1), COCKPIT, AIRCRAFT. For items conforming to this basic definition with the additional feature of providing illuminated indication of a specific nature concerning the circuit in which it is inserted, see LIGHT (1), INDICATOR.20262100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures
Part Alternates: 63641RHR, 6364-1RHR, 63641RHR28, 6364-1RHR28, 6210-00-909-3934, 00-909-3934, 6210009093934, 009093934
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1960 | 00-909-3934 | 00119 ( LIGHT, PANEL ) |
Drawings & Photos | NSN 6210-00-909-3934
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6210-00-909-3934
Technical Data | NSN 6210-00-909-3934
| Characteristic | Specifications |
|---|---|

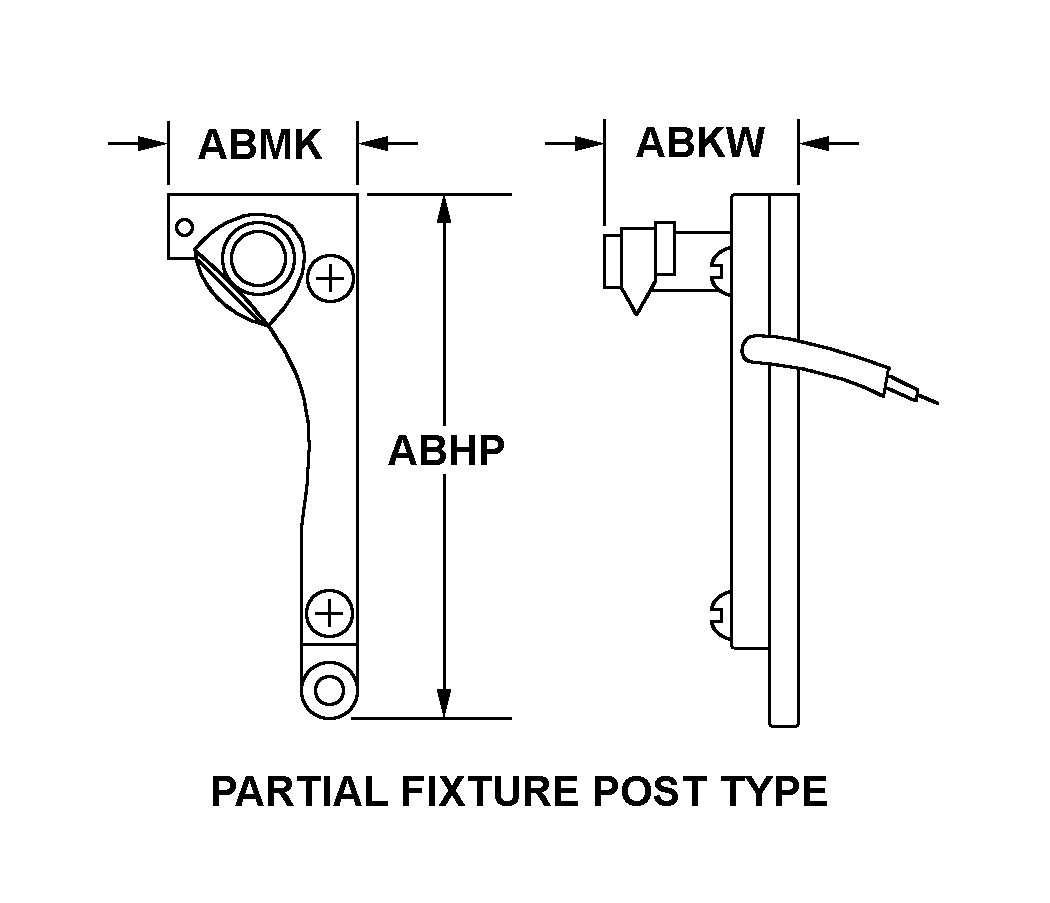

| STYLE DESIGNATOR | A10 PARTIAL FIXTURE POST TYPE |
| OVERALL HEIGHT | 0.270 INCHES NOMINAL |
| OVERALL WIDTH | 0.840 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY BODY |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 1 INCANDESCENT |
| LENS QUANTITY | 1 |
| LENS COLOR | RED SINGLE LIGHT 1ST POSITION HORIZONTAL |
| MOUNTING METHOD | BOLT |
| SPECIAL FEATURES | RIGHT HAND |
| MANUFACTURERS CODE | 0VDA9 |
| DESIGN CONTROL REFERENCE | 6364-1RHR |
Restrictions/Controls & Freight Information | NSN 6210-00-909-3934
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6210-00-909-3934
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
