NSN 6210-00-888-7321 20794344REVE, 207943-44REVE, 2A44
Product Details | LIGHT LENS
6210-00-888-7321 A transparent or translucent item designed to enclose or be placed in front of a light source. Sections of the lens may be opaque. It may or may not include a holder. It is designed to be either a replacement unit for a specific type of light, such as LIGHT, INDICATOR; LIGHT, NAVIGATIONAL, MARINE; STOP LIGHT, VEHICULAR; and LANTERN, ELECTRIC or that portion of a SWITCH, (as modified) used as an actuator and having provisions for illumination. See also, WINDOW, LIGHTING FIXTURE; GLOBE; ELECTRIC LIGHT; and FILTER (2), (as modified).20658500051Visible and Invisible Light Communication Equipment62100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures65150057Medical and Surgical Instruments, Equipment, and Supplies65200043Dental Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies
Part Alternates: 20794344REVE, 207943-44REVE, 2A44, 723898-762, 6210-00-888-7321, 00-888-7321, 6210008887321, 008887321, 723898762
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1962 | 00-888-7321 | 29939 ( LENS, LIGHT ) |

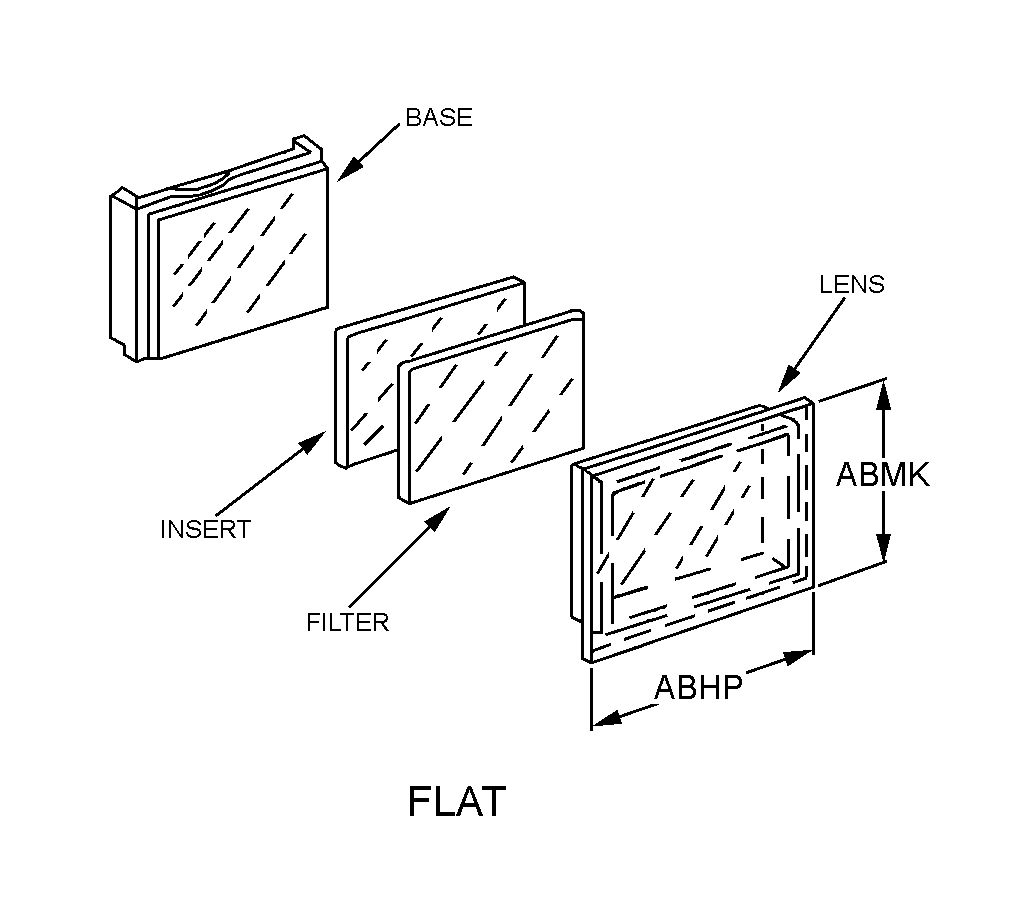

Drawings & Photos | NSN 6210-00-888-7321
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6210-00-888-7321
Technical Data | NSN 6210-00-888-7321
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 91 FLAT |
| OVERALL LENGTH | 1.062 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| MATERIAL | PLASTIC BASE PLASTIC FILTER PLASTIC LENS |
| LIGHT TRANSMISSION DESIGN | TRANSPARENT BASE TRANSPARENT FILTER TRANSLUCENT LENS |
| SURFACE CONDITION | SMOOTH BACK SMOOTH FACE |
| MOUNTING METHOD | PRESS FIT |
| MOUNTING DEVICE QUANTITY | 1 |
| COLOR | CLEAR BASE CLEAR FILTER YELLOW LENS |
Restrictions/Controls & Freight Information | NSN 6210-00-888-7321
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109080 | BOWL/CHIMNEY/GLOBE/ETC |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 704 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
