NSN 6210-00-854-6463 ST136ML537, ST136ML5-37, 69571237
Product Details | INDICATOR LIGHT
6210-00-854-6463 A light, with mounting facilities furnished, designed to convey information of a specific nature concerning the circuit in which inserted. Must include or provide for the use of a lens as a part of it. For items without a lens, see LAMPHOLDER, and also see LIGHT (1), PANEL.20362100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures63400033Aircraft Alarm and Signal Systems
Part Alternates: ST136ML537, ST136ML5-37, 69571237, 695712-37, 6210-00-854-6463, 00-854-6463, 6210008546463, 008546463
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1962 | 00-854-6463 | 00160 ( LIGHT, INDICATOR ) |

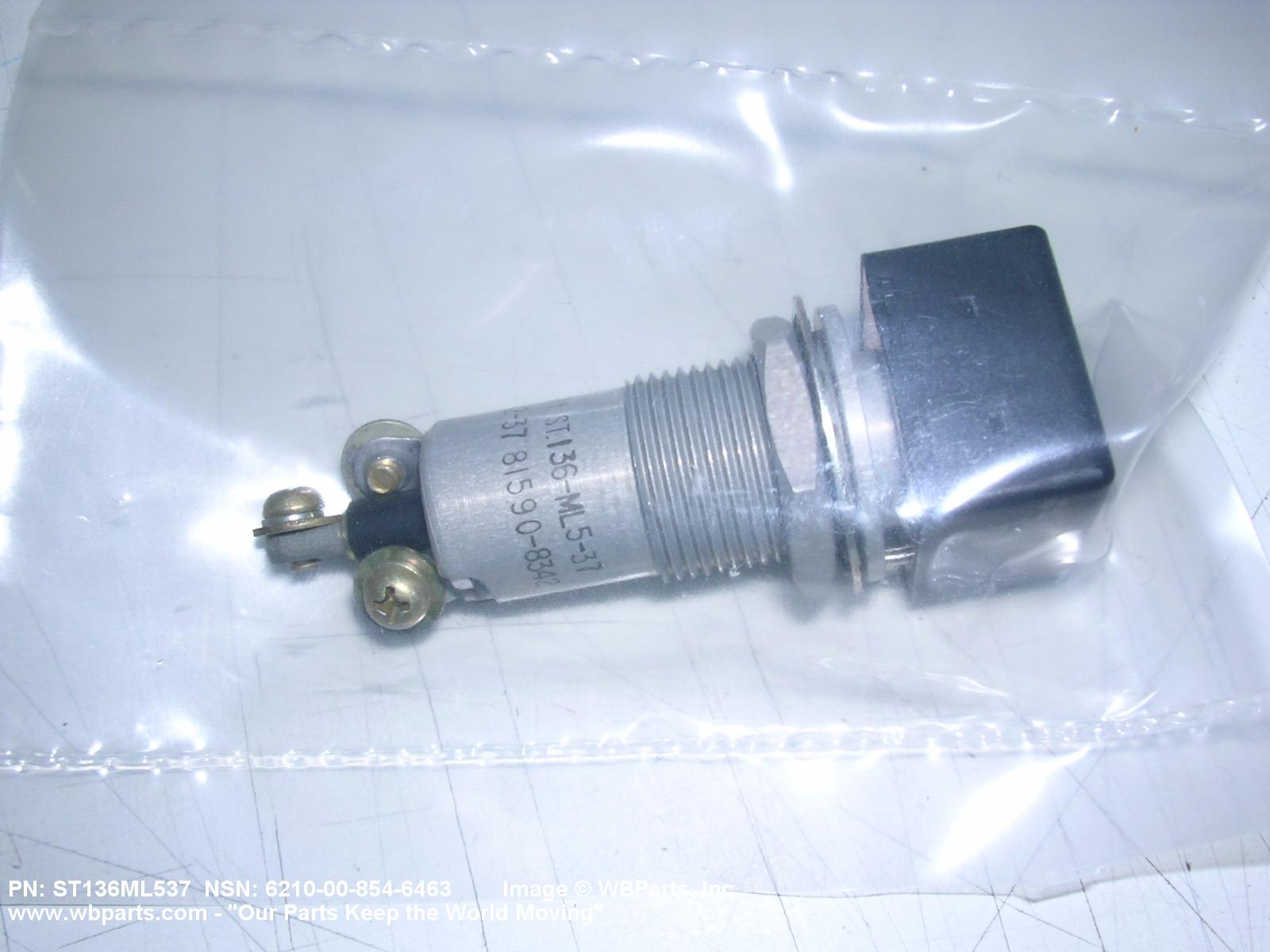

Drawings & Photos | NSN 6210-00-854-6463
Demand History | NSN 6210-00-854-6463
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ST136ML537 | 2021-12-347 | 1 | Sri Lanka |
| 6210-00-854-6463 | 2019-06-172 | 20 | Philippines |
| 6210-00-854-6463 | 2018-07-197 | 9 | DIBBS |
| 6210-00-854-6463 | 2012-02-55 | 37 | DIBBS |
| ST136ML5-37 | 2011-06-180 | 2 | US |
| 6210-00-854-6463 | 2011-01-07 | 19 | DIBBS |
| 6210-00-854-6463 | 2010-04-102 | 1 | DIBBS |
| 6210-00-854-6463 | 2009-10-301 | 1 | DIBBS |
| ST136ML537 | 2008-02-39 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6210-00-854-6463
Related Products | NSN 6210-00-854-6463
Technical Data | NSN 6210-00-854-6463
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1A ROUND FRAME, RECTANGULAR LENS TYPE |
| OVERALL LENGTH | 2.680 INCHES NOMINAL |
| OVERALL HEIGHT | 0.812 INCHES NOMINAL |
| OVERALL WIDTH | 0.812 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY BODY |
| SURFACE TREATMENT | ANODIZE BODY |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 1 INCANDESCENT |
| LAMP BULB SIZE DESIGNATOR | T-3 1/4 |
| LAMP BASE TYPE ACCOMMODATED | MINIATURE BAYONET |
| LENS QUANTITY | 1 |
| LENS MOUNTING METHOD | PUSH IN |
| LENS TYPE | FLAT, SQUARE SHANK SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS LIGHT TRANSMISSION CHARACTERISTIC | TRANSLUCENT SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS FACE SURFACE CONDITION | PAINTED SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS BACK SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS COLOR | YELLOW, AVIATION, MIL-C-25050 TYPE 1 SINGLE LIGHT 1ST POSITION HORIZONTAL |
| TRANSMITTED LIGHT COLOR | BLACK, OPAQUE SINGLE LIGHT 1ST POSITION HORIZONTAL FULL DISPLAY DIVISION A |
| LENS LEGEND | PROP;OIL;LOW SINGLE LIGHT 1ST POSITION HORIZONTAL FULL DISPLAY DIVISION A |
| TRANSMITTED LEGEND COLOR | YELLOW, AVIATION, MIL-C-25050 TYPE 1 SINGLE LIGHT 1ST POSITION HORIZONTAL FULL DISPLAY DIVISION A |
| MOUNTING METHOD | PANEL |
| PANEL ACCOMMODATION HOLE DIAMETER | 0.625 INCHES MINIMUM AND 0.630 INCHES MAXIMUM |
| PANEL THICKNESS FOR WHICH DESIGNED | 0.375 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 3 SCREW |
| FURNISHED ITEMS AND QUANTITY | 3 FLAT WASHER AND 1 HEXAGON NUT AND 3 LOCK WASHER |
| FEATURES PROVIDED | PRESS TO TEST |
| SPECIAL FEATURES | INDEX LOCATIONS B15 |
Restrictions/Controls & Freight Information | NSN 6210-00-854-6463
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6210-00-854-6463
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
