6210-00-815-5488 A light specifically designed to be mounted on, near, or through a panel, switchboard, bulletin board, cowl, dashboard, and the like, and specifically designed to provide direct or indirect illumination thereon. It must include a shade, reflector, or other special device to direct illumination or to provide for the direction of illumination through the inherent design of the item, as in lights for edge lighted panels. It may include filters, dimming features, switches, and/or flexible gooseneck. For aircraft installed items prviding illumination for map reading or general utility illumination, in addition to panel illumination, see LIGHT (1), COCKPIT, AIRCRAFT. For items conforming to this basic definition with the additional feature of providing illuminated indication of a specific nature concerning the circuit in which it is inserted, see LIGHT (1), INDICATOR.20262100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures

Part Alternates: B6626B, 6210-00-815-5488, 00-815-5488, 6210008155488, 008155488

Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures

Supply Group (FSG) NSN Assign. NIIN
62 01 JAN 1962 00-815-5488

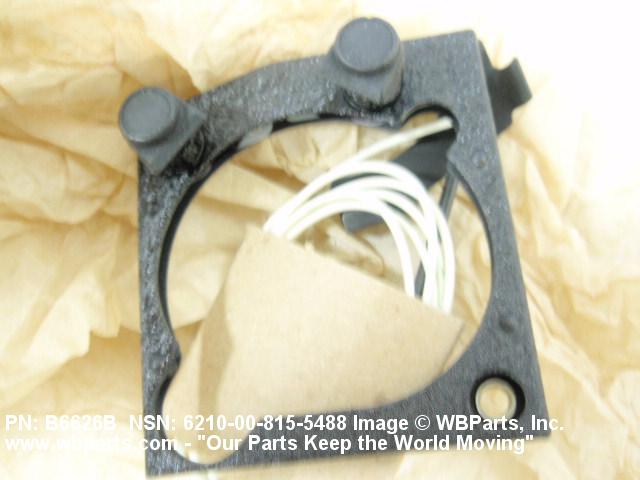

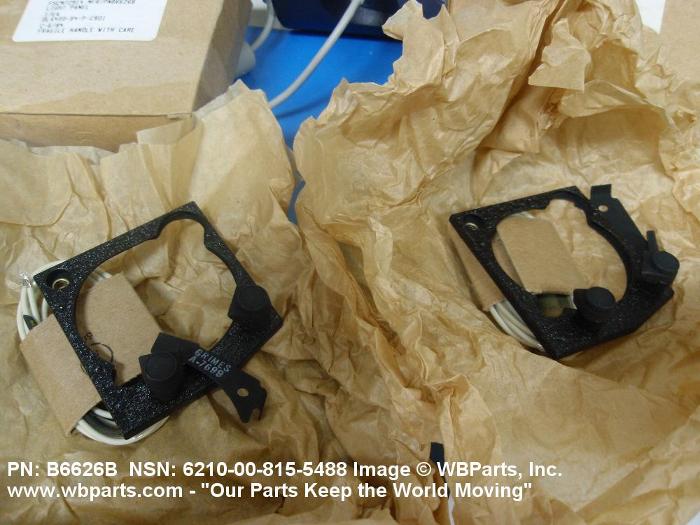

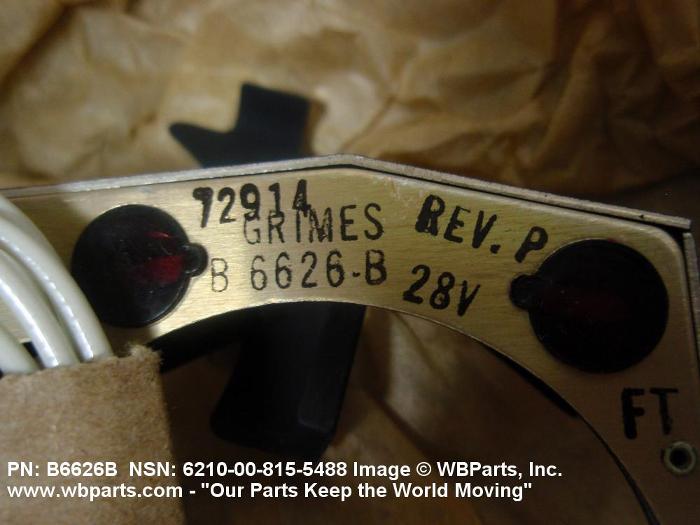

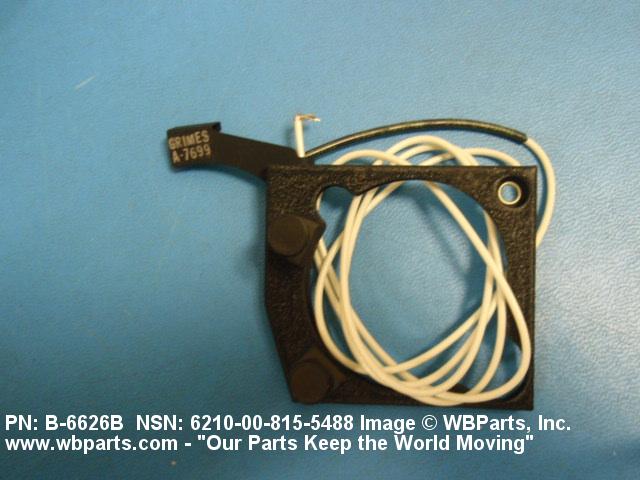

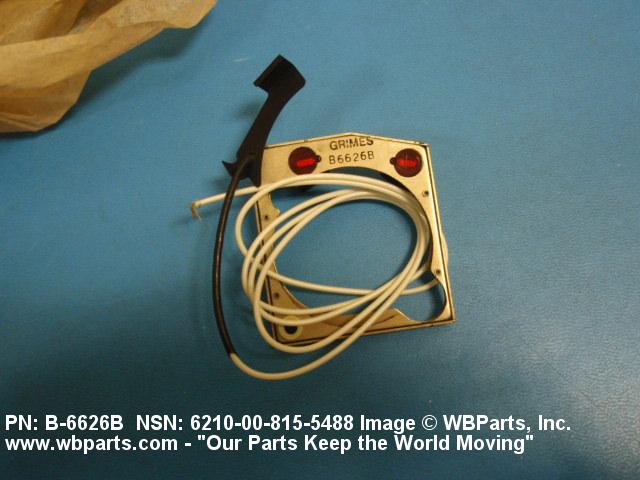

Drawings & Photos | NSN 6210-00-815-5488


Demand History | NSN 6210-00-815-5488

Part Number Request Date QTY Origin
B6626B 2015-10-279 2
B6626B 2015-04-99 20 US
B6626B 2012-02-44 1 United States
B6626B 2010-04-101 5 United States
B6626B 2010-03-89 1 United States
B6626B 2009-09-260 2 United States
B6626B 2009-09-254 2 United States
B6626B 2008-09-261 2 United States

Cross Reference | NSN 6210-00-815-5488

Part Number Cage Code Manufacturer
B6626B 72914 GRIMES AEROSPACE COMPANY DBA HONEYWELL

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6210-00-815-5488

Technical Data | NSN 6210-00-815-5488

Characteristic Specifications
STYLE DESIGNATOR A12 FULL FIXTURE POST TYPE
OVERALL LENGTH 2.656 INCHES NOMINAL
OVERALL HEIGHT 0.750 INCHES NOMINAL
OVERALL WIDTH 2.375 INCHES NOMINAL
MATERIAL ALUMINUM BODY ALUMINUM ILLUMINATION DIRECTING DEVICE
SURFACE TREATMENT PAINT BODY PAINT ILLUMINATION DIRECTING DEVICE
LAMP TYPE ACCOMMODATED AND QUANTITY 2 INCANDESCENT
LAMP INDUSTRY NUMBER 327
LAMP BULB SIZE DESIGNATOR T-1 3/4
LAMP BASE TYPE ACCOMMODATED MIDGET FLANGED
LENS QUANTITY 2
LENS MOUNTING METHOD PUSH IN
LENS TYPE FLAT, NARROW SINGLE LIGHT 1ST POSITION HORIZONTAL
LENS LIGHT TRANSMISSION CHARACTERISTIC TRANSLUCENT SINGLE LIGHT 1ST POSITION HORIZONTAL
LENS FACE SURFACE CONDITION SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL
LENS BACK SURFACE CONDITION SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL
LENS COLOR RED SINGLE LIGHT 1ST POSITION HORIZONTAL
TRANSMITTED LIGHT COLOR RED SINGLE LIGHT 1ST POSITION HORIZONTAL FULL DISPLAY DIVISION A
MOUNTING METHOD BRACKET
TERMINAL TYPE AND QUANTITY 1 WIRE LEAD
(NON-CORE DATA) WIRING PROVISION METHOD INDIVIDUAL WIRE
(NON-CORE DATA) WIRING PROVISION LENGTH 36.000 INCHES NOMINAL
MANUFACTURERS CODE 72914
DESIGN CONTROL REFERENCE B6626B
