NSN 6210-00-814-1210 LC15WT3, LH761LC15WT1, LH76-1-LC15WT1
Product Details | LIGHT LENS
6210-00-814-1210 A transparent or translucent item designed to enclose or be placed in front of a light source. Sections of the lens may be opaque. It may or may not include a holder. It is designed to be either a replacement unit for a specific type of light, such as LIGHT, INDICATOR; LIGHT, NAVIGATIONAL, MARINE; STOP LIGHT, VEHICULAR; and LANTERN, ELECTRIC or that portion of a SWITCH, (as modified) used as an actuator and having provisions for illumination. See also, WINDOW, LIGHTING FIXTURE; GLOBE; ELECTRIC LIGHT; and FILTER (2), (as modified).20658500051Visible and Invisible Light Communication Equipment62100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures65150057Medical and Surgical Instruments, Equipment, and Supplies65200043Dental Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies
Part Alternates: LC15WT3, LH761LC15WT1, LH76-1-LC15WT1, MIL-L-3661/15, MILL366115, MILL3661TYPELC15WT, TA362CC, 6210043, 26-1135-203, 4150730024, 4150730-024, 4150730-24, 6210-00-814-1210, 00-814-1210, 6210008141210, 261135203, 415073024, 008141210
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1962 | 00-814-1210 | 29939 ( LENS, LIGHT ) |
Drawings & Photos | NSN 6210-00-814-1210
Demand History | NSN 6210-00-814-1210
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| LC15WT3 | 2020-03-79 | 1 | Indonesia |
| LC15WT3 | 2013-01-03 | 12 | US |
Cross Reference | NSN 6210-00-814-1210
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 26-1135-203 | 83330 | DIALIGHT CORPORATION |
| 4150730-024 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 4150730-24 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 6210043 | C0984 | WASSER- U. SCHIFFAHRTSVERW. DES BUNDES ZENTRALST. FUER SCHIFFS- U. |
| LC15WT3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| LH76-1-LC15WT1 | 02859 | INTERNATIONAL TELEPHONE AND TELEGRAPH CORP ITT GILFILLAN DIV |
| MIL-L-3661/15 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILL3661TYPELC15WT | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| TA362CC | 07294 | GENISCO FILTER CORP. |
| TA362CC | 13050 | SPECTRUM CONTROL, INC. DIV API TECHNOLOGIES - EIS/WESSON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6210-00-814-1210
Technical Data | NSN 6210-00-814-1210
| Characteristic | Specifications |
|---|---|

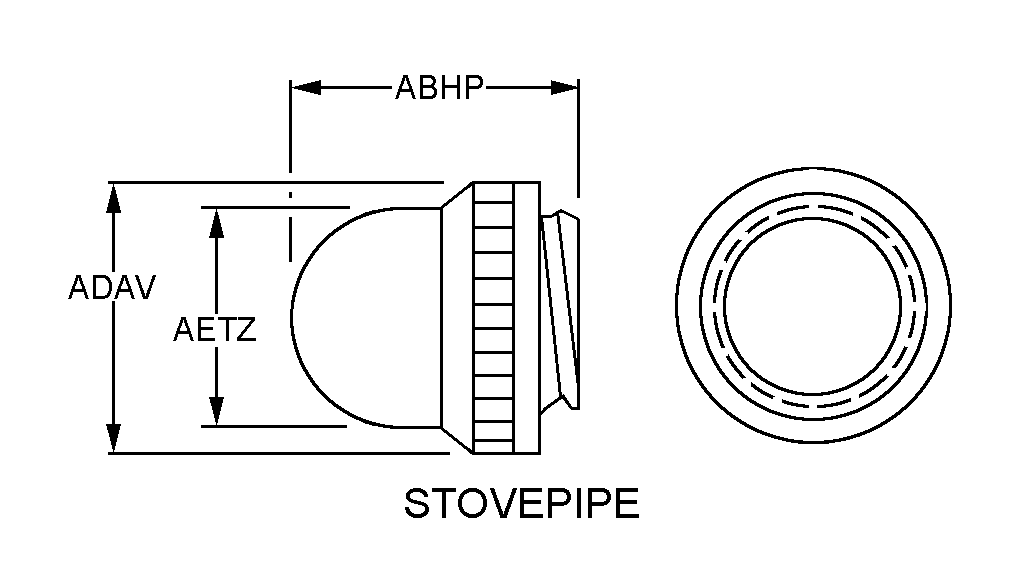

| STYLE DESIGNATOR | 82 STOVEPIPE |
| OVERALL LENGTH | 0.840 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.720 INCHES MINIMUM AND 0.780 INCHES MAXIMUM |
| EFFECTIVE DIAMETER | 0.680 INCHES MAXIMUM |
| MATERIAL | PLASTIC LENS |
| LIGHT TRANSMISSION DESIGN | TRANSLUCENT LENS |
| SURFACE CONDITION | SMOOTH BACK SMOOTH FACE |
| MOUNTING METHOD | EXTERNAL THREAD |
| MOUNTING DEVICE QUANTITY | 1 |
| THREAD SERIES | UNS |
| THREAD DIAMETER | 0.562 INCHES |
| THREAD QUANTITY | 27 PER INCH |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| COLOR | BLACK HOLDER WHITE, AVIATION LENS |
| FURNISHED ITEMS | GASKET |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DRIPPROOF |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | LC15WT3 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-L-3661/15 |
Restrictions/Controls & Freight Information | NSN 6210-00-814-1210
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6210-00-814-1210
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
