NSN 6210-00-752-2146 MS171281, MS17128-1, M3661-54-LC40CN 3

Product Details | LIGHT LENS

6210-00-752-2146 A transparent or translucent item designed to enclose or be placed in front of a light source. Sections of the lens may be opaque. It may or may not include a holder. It is designed to be either a replacement unit for a specific type of light, such as LIGHT, INDICATOR; LIGHT, NAVIGATIONAL, MARINE; STOP LIGHT, VEHICULAR; and LANTERN, ELECTRIC or that portion of a SWITCH, (as modified) used as an actuator and having provisions for illumination. See also, WINDOW, LIGHTING FIXTURE; GLOBE; ELECTRIC LIGHT; and FILTER (2), (as modified).20658500051Visible and Invisible Light Communication Equipment62100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures65150057Medical and Surgical Instruments, Equipment, and Supplies65200043Dental Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies

Part Alternates: MS171281, MS17128-1, M3661-54-LC40CN 3, M366154LC40CN3, A17L66251112, A17L66251-112, LC40BN3, LC40CN3, LC40TN3, MIL-L-3661/54, MILL366154, PL7000564-05 FIND NO. 121, PL700056405FINDNO121, 1855439 PC 108, 1855439PC108, 30901007, 309-01-007, 62366D2004 ITEM 8, 62366D2004ITEM8, 9000S620273907REV5PC10, 9000S6202-73907REV5PC10, 9706039, 97-06-039, 6210-00-752-2146, 00-752-2146, 6210007522146, 007522146

Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
62	01 JAN 1962	00-752-2146	29939 ( LENS, LIGHT )

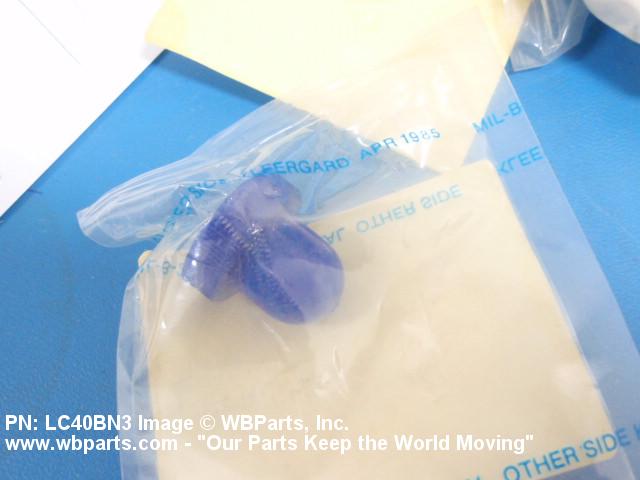

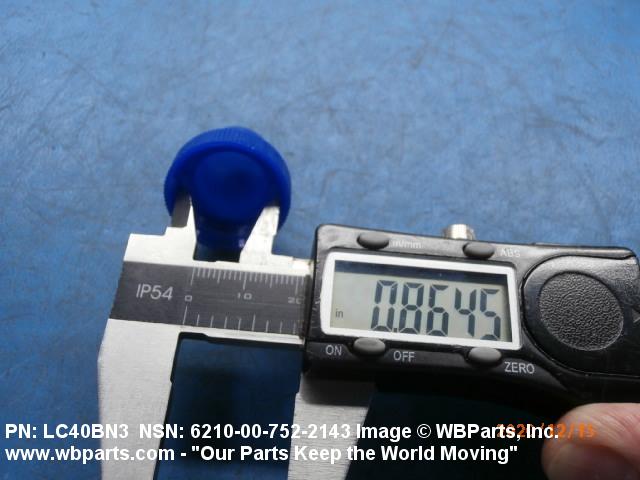

Drawings & Photos | NSN 6210-00-752-2146

Part Number	Request Date	QTY	Origin
6210-00-752-2146	2023-12-26	848	DIBBS
6210-00-752-2146	2023-12-13	848	DIBBS
6210-00-752-2146	2023-07-06	964	DIBBS
6210-00-752-2146	2023-05-11	812	DIBBS
6210-00-752-2146	2020-05-28	1178	DIBBS
6210-00-752-2146	2014-02-19	100	US
6210-00-752-2146	2014-02-04	12	US
6210-00-752-2146	2013-08-19	750	DIBBS
LC40BN3	2010-03-18	20	United States
6210-00-752-2146	2010-03-04	750	DIBBS
6210-00-752-2146	2010-02-09	1100	DIBBS
6210-00-752-2146	2010-01-26	623	DIBBS

Cross Reference | NSN 6210-00-752-2146

Part Number	Cage Code	Manufacturer
1855439 PC 108	43689	HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS
309-01-007	58475	WESTWOOD CORPORATION DBA NMP DIVISION
62366D2004 ITEM 8	30086	SPD ELECTRICAL SYSTEMS, INC
9000S6202-73907REV5PC10	80064	NAVAL SHIP SYSTEMS COMMAND
97-06-039	43689	HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS
A17L66251-112	95683	GENERAL STORES SUPPLY OFFICE
LC40BN3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
LC40CN3	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
LC40CN3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
LC40TN3	27192	DRS POWER & CONTROL TECHNOLOGIES, INC.
LC40TN3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
M3661-54-LC40CN 3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MIL-L-3661/54	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS17128-1	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
PL7000564-05 FIND NO. 121	58475	WESTWOOD CORPORATION DBA NMP DIVISION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6210-00-752-2146

Compare

Related Products | NSN 6210-00-752-2146

6210-00-752-2148, 6210-00-752-2219, 6210-00-752-2434, 6210-00-752-2455, 6210-00-752-2491

Technical Data | NSN 6210-00-752-2146

Characteristic	Specifications
STYLE DESIGNATOR	79 STOVEPIPE
OVERALL LENGTH	1.000 INCHES NOMINAL
OVERALL DIAMETER	1.062 INCHES NOMINAL
EFFECTIVE DIAMETER	0.700 INCHES NOMINAL
MATERIAL	PLASTIC LENS
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-M-20693,COMP A TY 1 MIL SPEC SINGLE MATERIAL RESPONSE LENS
LIGHT TRANSMISSION DESIGN	TRANSPARENT LENS
SURFACE CONDITION	FROSTED BACK SMOOTH FACE
MOUNTING METHOD	INTERNAL THREAD
MOUNTING DEVICE QUANTITY	1
THREAD SERIES	UNS
THREAD LENGTH	0.219 INCHES NOMINAL
THREAD DIAMETER	0.875 INCHES
THREAD QUANTITY	28 PER INCH
THREAD CLASS	2B
THREAD DIRECTION	RIGHT-HAND
COLOR	CLEAR LENS
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION	DRIPPROOF
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	LC40CN3
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-L-3661/54

Restrictions/Controls & Freight Information | NSN 6210-00-752-2146

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	109700	LAMP OR LIGHTING FIXTURES
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6210-00-752-2146

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
