NSN 6210-00-660-8091 MS25010B15A, A7165327CC, A7165-327CC
Product Details | PANEL LIGHT
6210-00-660-8091 A light specifically designed to be mounted on, near, or through a panel, switchboard, bulletin board, cowl, dashboard, and the like, and specifically designed to provide direct or indirect illumination thereon. It must include a shade, reflector, or other special device to direct illumination or to provide for the direction of illumination through the inherent design of the item, as in lights for edge lighted panels. It may include filters, dimming features, switches, and/or flexible gooseneck. For aircraft installed items prviding illumination for map reading or general utility illumination, in addition to panel illumination, see LIGHT (1), COCKPIT, AIRCRAFT. For items conforming to this basic definition with the additional feature of providing illuminated indication of a specific nature concerning the circuit in which it is inserted, see LIGHT (1), INDICATOR.20262100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures
Part Alternates: MS25010B15A, A7165327CC, A7165-327CC, A71656, A7165-6, VM80115, VM801-15, TT68, 27018300212702, 270-1830-0212-702, 6210-00-660-8091, 00-660-8091, 6210006608091, 006608091
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-660-8091 | 00119 ( LIGHT, PANEL ) |

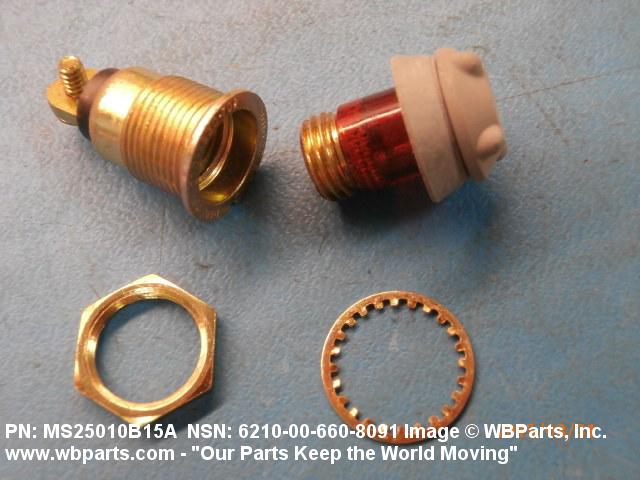

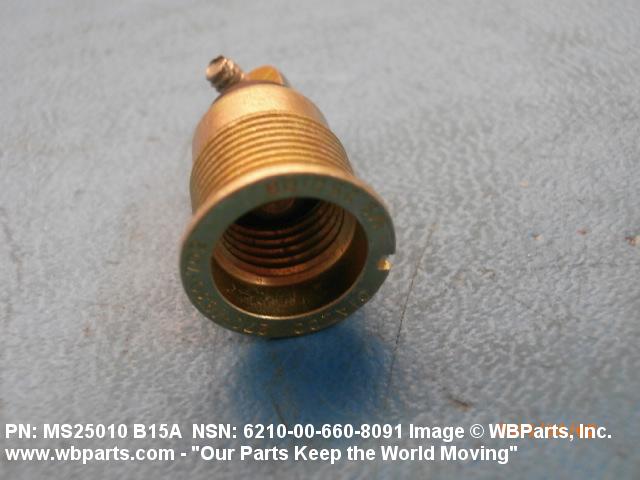

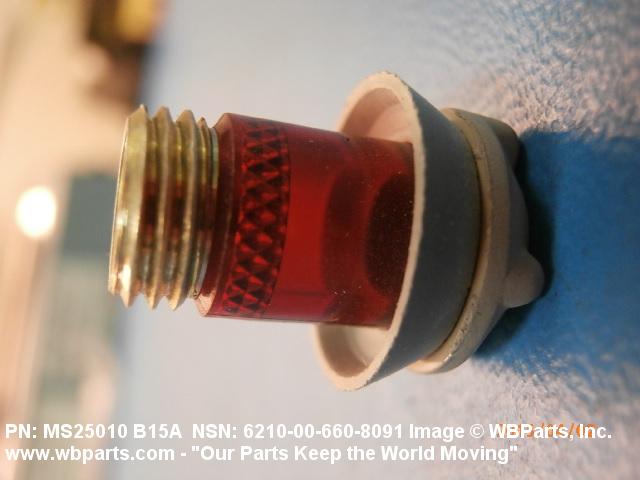

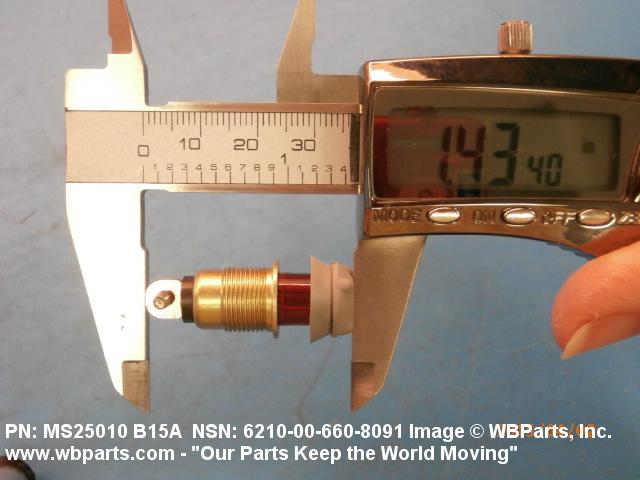

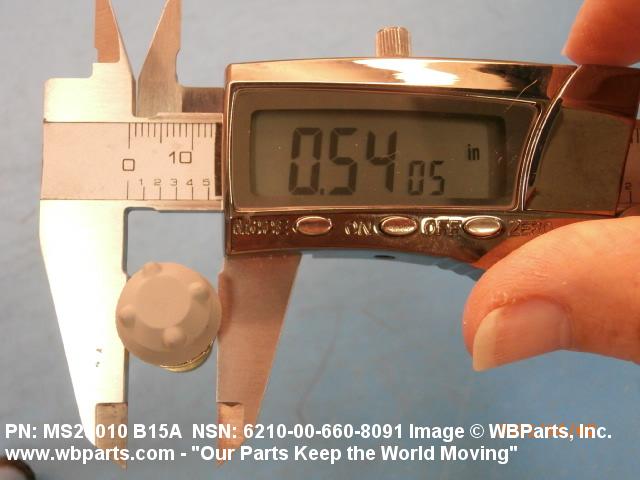

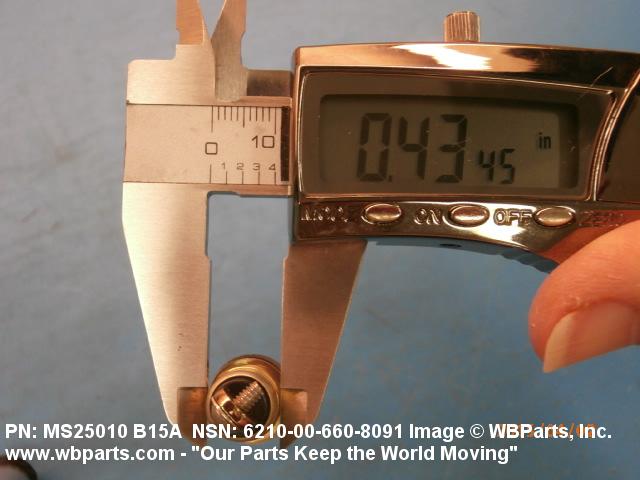

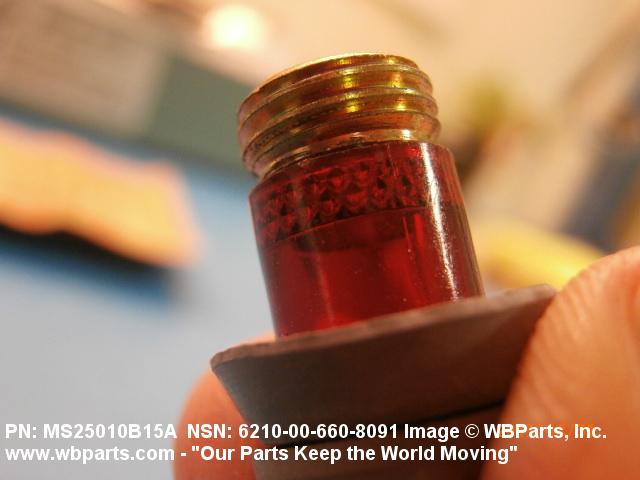

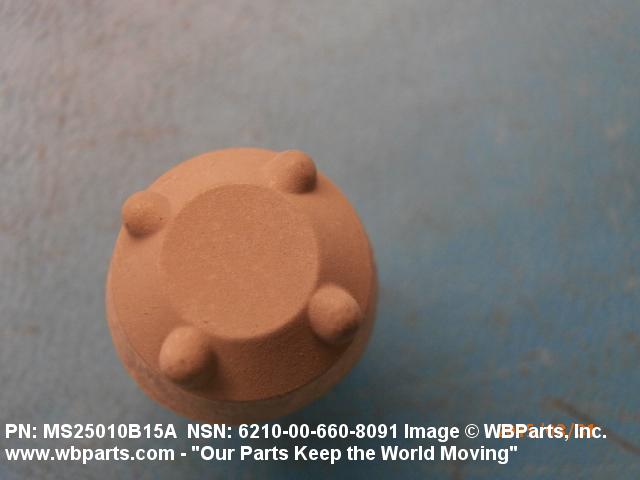

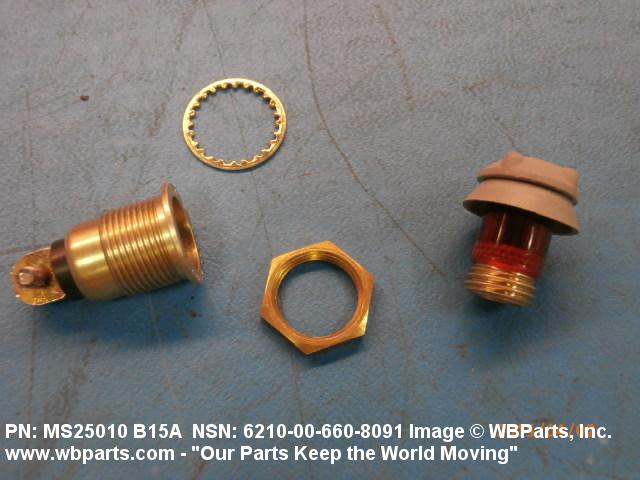

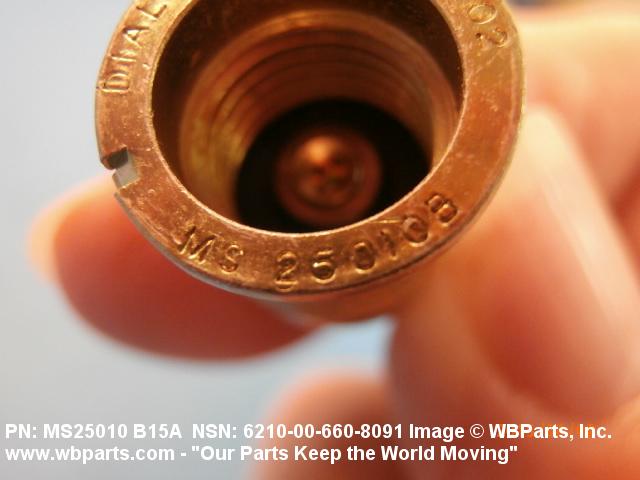

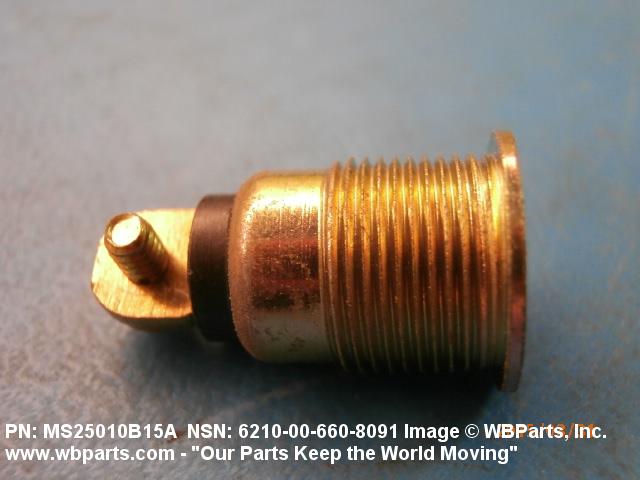

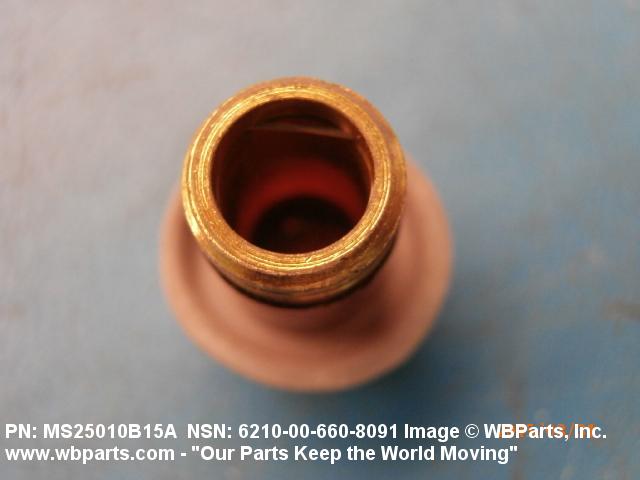

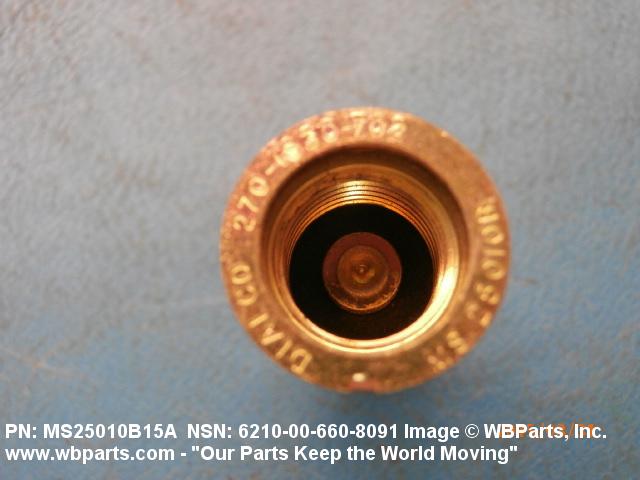

Drawings & Photos | NSN 6210-00-660-8091
Demand History | NSN 6210-00-660-8091
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6210-00-660-8091 | 2019-11-321 | 1448 | DIBBS |
| 6210-00-660-8091 | 2019-08-218 | 810 | DIBBS |
| 6210-00-660-8091 | 2019-02-51 | 54 | DIBBS |
| 6210-00-660-8091 | 2019-01-08 | 90 | DIBBS |
| MS25010B15A | 2015-03-78 | 111 | United States |
| 6210-00-660-8091 | 2013-02-36 | 199 | DIBBS |
| 6210-00-660-8091 | 2012-06-171 | 16 | DIBBS |
Cross Reference | NSN 6210-00-660-8091
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 270-1830-0212-702 | 83330 | DIALIGHT CORPORATION |
| A7165-327CC | 72914 | GRIMES AEROSPACE COMPANY DBA HONEYWELL |
| A7165-6 | 72914 | GRIMES AEROSPACE COMPANY DBA HONEYWELL |
| MS25010B15A | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| TT68 | 83330 | DIALIGHT CORPORATION |
| VM801-15 | 76854 | ELECTRO SWITCH CORP. DBA OAK GRISGSBY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6210-00-660-8091
Technical Data | NSN 6210-00-660-8091
| Characteristic | Specifications |
|---|---|
| PANEL ACCOMMODATION HOLE DIAMETER | 0.469 INCHES NOMINAL |
| MATERIAL | PLASTIC ILLUMINATION DIRECTING DEVICE |
| PANEL THICKNESS FOR WHICH DESIGNED | 0.219 INCHES MAXIMUM |
| LENS COLOR | RED, INSTRUMENT SINGLE LIGHT 1ST POSITION HORIZONTAL |
| OVERALL DIAMETER | 0.562 INCHES NOMINAL |

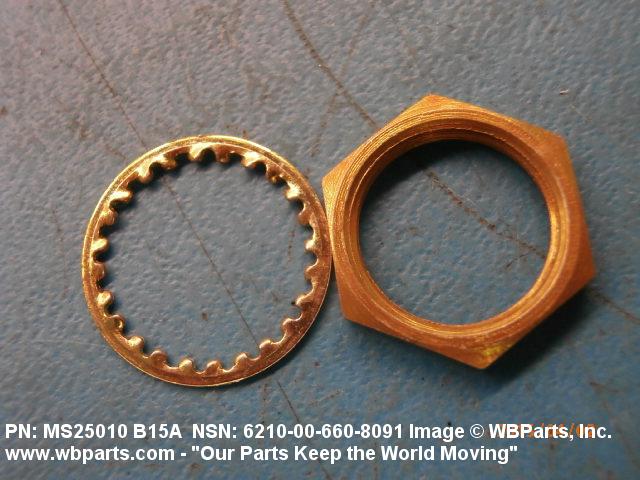

| FURNISHED ITEMS AND QUANTITY | 1 HEXAGON NUT AND 1 LOCK WASHER |
| OVERALL LENGTH | 1.765 INCHES MAXIMUM |
| LENS BACK SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS LIGHT TRANSMISSION CHARACTERISTIC | TRANSLUCENT SINGLE LIGHT 1ST POSITION HORIZONTAL |
| MOUNTING METHOD | PANEL |
| MATERIAL | COPPER ALLOY BODY |
| STYLE DESIGNATOR | TRAP TYPE |
| LAMP BULB SIZE DESIGNATOR | T-1 3/4 |

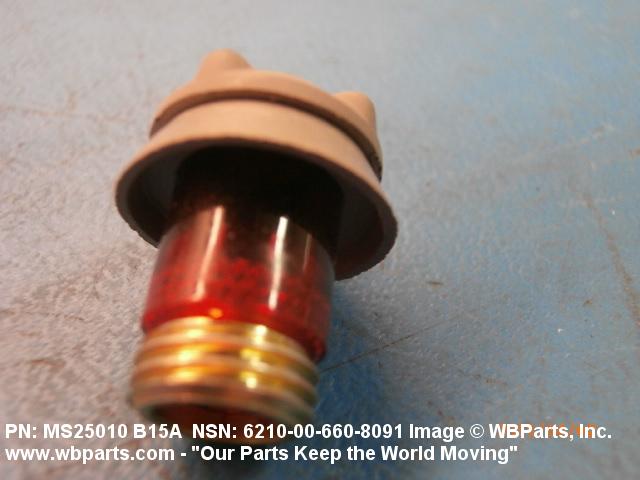

| LENS TYPE | FLAT, EDGE W/BOOT SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS FACE SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 1 INCANDESCENT |
| TRANSMITTED LIGHT COLOR | RED, INSTRUMENT SINGLE LIGHT 1ST POSITION HORIZONTAL FULL DISPLAY DIVISION A |
| TERMINAL TYPE AND QUANTITY | 1 SCREW |
| LENS QUANTITY | 1 |
| LAMP BASE TYPE ACCOMMODATED | MIDGET FLANGED |
| LENS MOUNTING METHOD | SCREW IN |
| SURFACE TREATMENT | CHROMATE BODY |
Restrictions/Controls & Freight Information | NSN 6210-00-660-8091
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6210-00-660-8091
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
