NSN 6210-00-635-8820 M16377/26-003, M1637726003, MIL-F-16377/26
Product Details | ELECTRIC LIGHT GLOBE
6210-00-635-8820 An item of clear or diffusing material which incloses the light source and is specifically designed to be used with a FIXTURE, LIGHTING or other general illumination device, such as LIGHT, FLOOR and LIGHT, DESK.20262100045Indoor and Outdoor Electric Lighting Fixtures62300045Electric Portable and Hand Lighting Equipment
Part Alternates: M16377/26-003, M1637726003, MIL-F-16377/26, MILF1637726, GLB113, 9000S640574222REVBPC159, 9000S6405-74222REVBPC159, 140502, 1405-02, 6210-00-635-8820, 00-635-8820, 6210006358820, 006358820
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-635-8820 | 11119 ( GLOBE, ELECTRIC LIGHT ) |

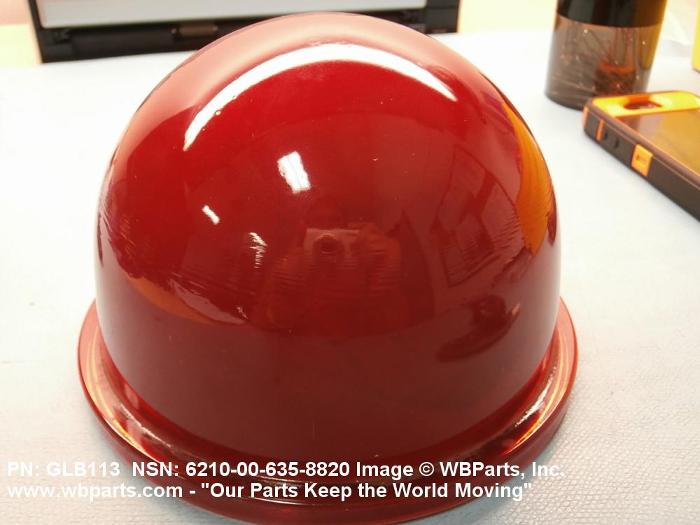

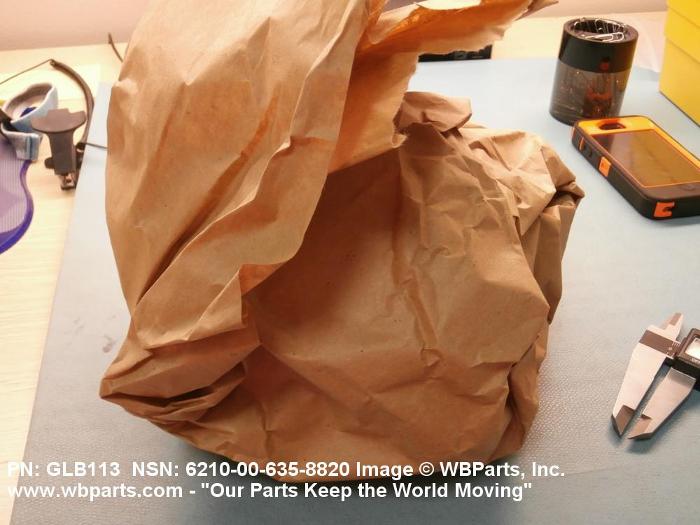

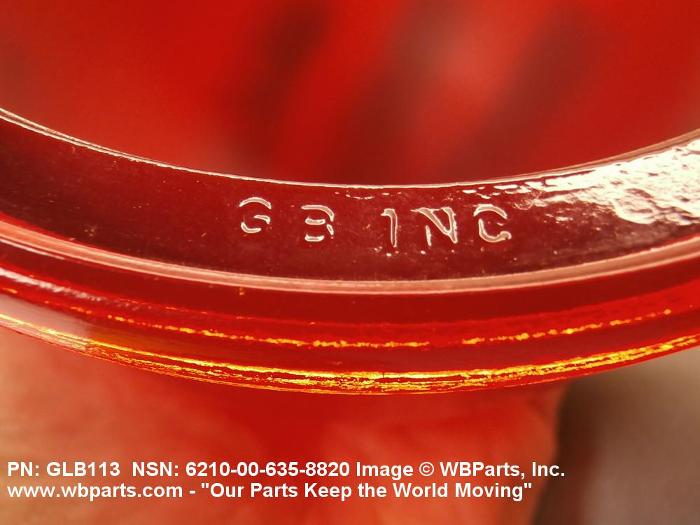

Drawings & Photos | NSN 6210-00-635-8820
Demand History | NSN 6210-00-635-8820
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6210-00-635-8820 | 2024-08-233 | 175 | DIBBS |
| 6210-00-635-8820 | 2024-07-198 | 56 | DIBBS |
| 6210-00-635-8820 | 2024-06-163 | 40 | DIBBS |
| 6210-00-635-8820 | 2024-05-126 | 144 | DIBBS |
| 6210-00-635-8820 | 2024-05-122 | 144 | DIBBS |
| 6210-00-635-8820 | 2024-04-100 | 40 | DIBBS |
| 6210-00-635-8820 | 2023-08-225 | 40 | DIBBS |
| 6210-00-635-8820 | 2020-05-130 | 2 | US |
| 6210-00-635-8820 | 2018-03-72 | 7 | United States |
| 140502 | 2018-01-17 | 96 | United States |
| 6210-00-635-8820 | 2017-04-100 | 1 | DIBBS-RFPs |
| 140502 | 2015-05-128 | 150 | us |
| 6210-00-635-8820 | 2014-09-257 | 156 | DIBBS |
| 6210-00-635-8820 | 2013-04-92 | 442 | DIBBS |
| 6210-00-635-8820 | 2012-11-331 | 237 | DIBBS |
| 6210-00-635-8820 | 2012-07-192 | 1 | United States |
| 6210-00-635-8820 | 2010-08-236 | 197 | DIBBS |
| 6210-00-635-8820 | 2009-11-314 | 125 | DIBBS |
Cross Reference | NSN 6210-00-635-8820
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1405-02 | 28003 | WINCHESTER INDUSTRIES INC |
| 9000S6405-74222REVBPC159 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| GLB113 | 86796 | ROFLAN ASSOCIATES INC |
| M16377/26-003 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-F-16377/26 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6210-00-635-8820
Technical Data | NSN 6210-00-635-8820
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS |
| HIGH STRESS GLASS | INCLUDED |
| COLOR | RED |
| OUTER SURFACE CONDITION | SMOOTH |
| INSIDE SURFACE CONDITION | DIFFUSING PATTERN |
| MATERIAL TRANSPARENCY | CLEAR |
| OVERALL DIAMETER | 6.188 INCHES MINIMUM AND 6.312 INCHES MAXIMUM |
| OVERALL HEIGHT | 3.938 INCHES MINIMUM AND 4.125 INCHES MAXIMUM |
| MOUNTING METHOD | FLANGE |
| FLANGE WIDTH | 0.438 INCHES NOMINAL |

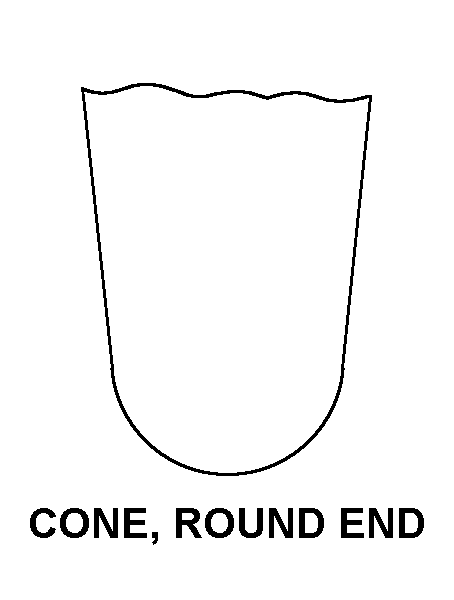

| STYLE DESIGNATOR | 6 CONE, ROUND END |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-16377/26 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M16377/26-003 |
Restrictions/Controls & Freight Information | NSN 6210-00-635-8820
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109080 | BOWL/CHIMNEY/GLOBE/ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 704 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6210-00-635-8820
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
