NSN 6210-00-548-0699 B44671, B4467-1, B45091

Product Details | PANEL LIGHT

6210-00-548-0699 A light specifically designed to be mounted on, near, or through a panel, switchboard, bulletin board, cowl, dashboard, and the like, and specifically designed to provide direct or indirect illumination thereon. It must include a shade, reflector, or other special device to direct illumination or to provide for the direction of illumination through the inherent design of the item, as in lights for edge lighted panels. It may include filters, dimming features, switches, and/or flexible gooseneck. For aircraft installed items prviding illumination for map reading or general utility illumination, in addition to panel illumination, see LIGHT (1), COCKPIT, AIRCRAFT. For items conforming to this basic definition with the additional feature of providing illuminated indication of a specific nature concerning the circuit in which it is inserted, see LIGHT (1), INDICATOR.20262100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures

Part Alternates: B44671, B4467-1, B45091, B4509-1, B46111, B4611-1, B475524, B4755-24, B47556, B4755-6, B4756, B47566, B4756-6, B4758, B47606, B4760-6, B6600, B6610, B661010, B6610-10, PE94000810, PE-940008-10, 972.89.80.503, 9728980503, 6210-00-548-0699, 00-548-0699, 6210005480699, 005480699

Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
62	01 JAN 1963	00-548-0699	00119 ( LIGHT, PANEL )

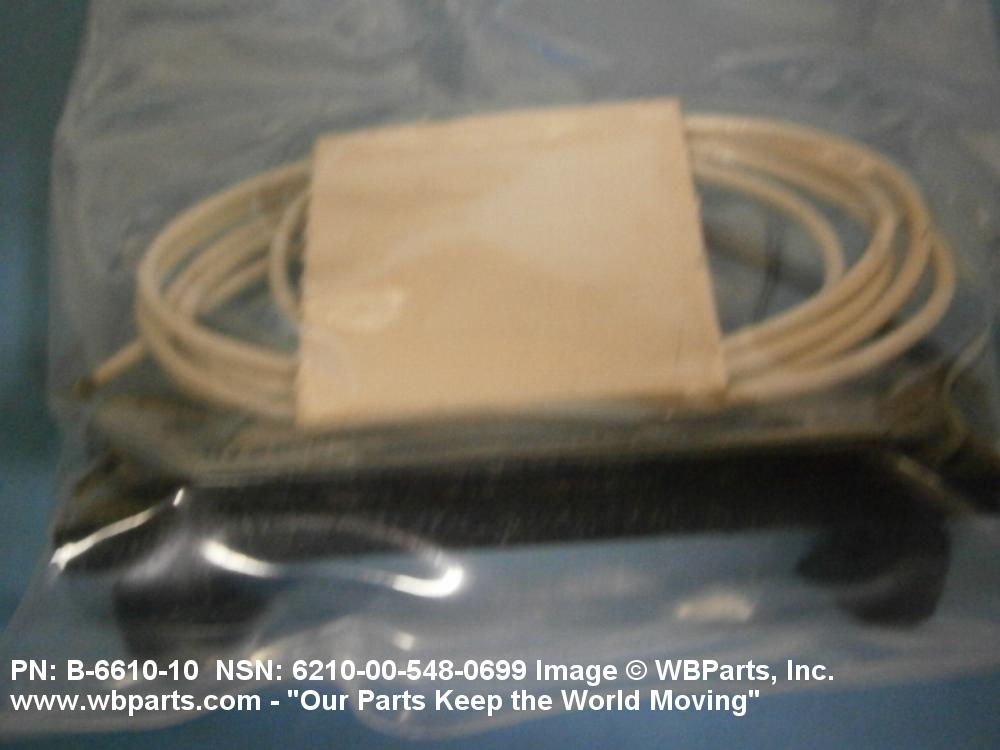

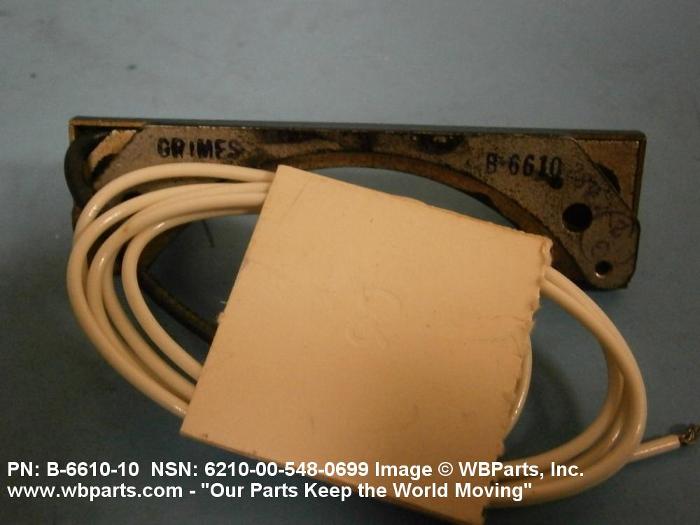

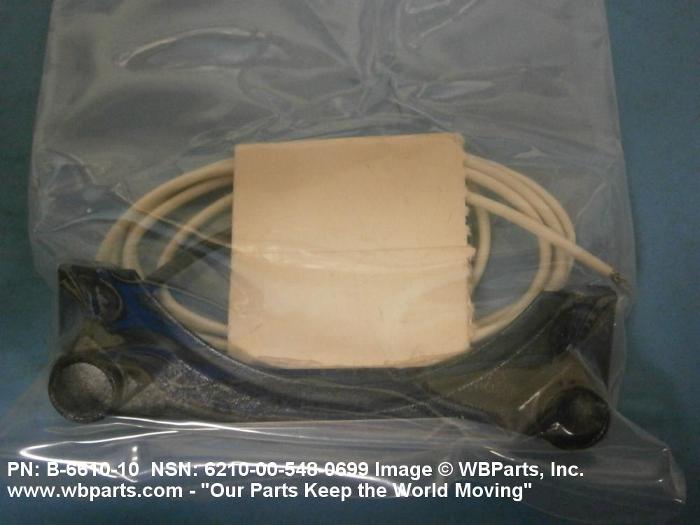

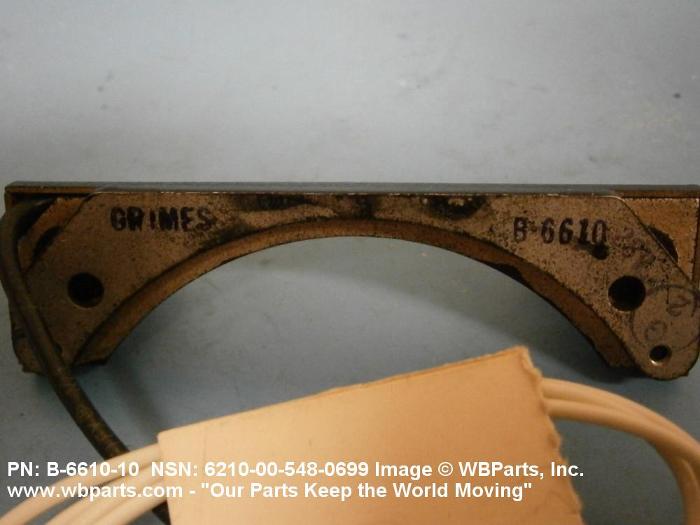

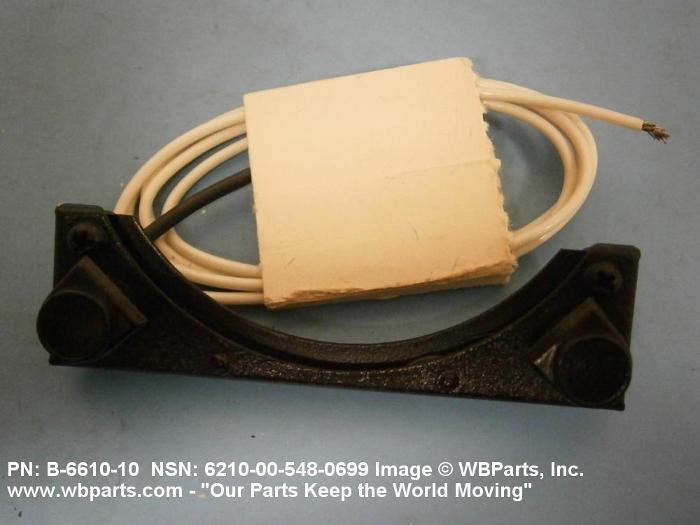

Drawings & Photos | NSN 6210-00-548-0699

Part Number	Request Date	QTY	Origin
6210-00-548-0699	2018-02-37	20	DIBBS
6210-00-548-0699	2016-05-124	31	DIBBS
6210-00-548-0699	2016-04-96	43	DIBBS
6210-00-548-0699	2016-03-69	14	DIBBS
6210-00-548-0699	2015-12-363	19	DIBBS
6210-00-548-0699	2015-10-302	19	DIBBS
B6610	2011-09-270	1	United States
B661010	2011-09-270	1	United States
6210-00-548-0699	2010-11-306	121	DIBBS
6210-00-548-0699	2010-04-102	75	DIBBS
6210-00-548-0699	2010-02-53	113	DIBBS
B661010	2008-07-193	10	US
B661010	2008-07-192	3	US
B661010	2008-03-87	10	US
B661010	2008-03-85	1	US

Cross Reference | NSN 6210-00-548-0699

Part Number	Cage Code	Manufacturer
972.89.80.503	S4080	PILATUS AIRCRAFT LTD
B4467-1	72914	GRIMES AEROSPACE COMPANY DBA HONEYWELL
B4509-1	72914	GRIMES AEROSPACE COMPANY DBA HONEYWELL
B4611-1	72914	GRIMES AEROSPACE COMPANY DBA HONEYWELL
B4755-24	72914	GRIMES AEROSPACE COMPANY DBA HONEYWELL
B4755-6	72914	GRIMES AEROSPACE COMPANY DBA HONEYWELL
B4756	72914	GRIMES AEROSPACE COMPANY DBA HONEYWELL
B4756-6	72914	GRIMES AEROSPACE COMPANY DBA HONEYWELL
B4758	72914	GRIMES AEROSPACE COMPANY DBA HONEYWELL
B4760-6	72914	GRIMES AEROSPACE COMPANY DBA HONEYWELL
B6600	72914	GRIMES AEROSPACE COMPANY DBA HONEYWELL
B6610	72914	GRIMES AEROSPACE COMPANY DBA HONEYWELL
B6610-10	72914	GRIMES AEROSPACE COMPANY DBA HONEYWELL
PE-940008-10	1SG29	PANELIGHT COMPONENTS GROUP, LLC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6210-00-548-0699

Compare

Related Products | NSN 6210-00-548-0699

6210-00-548-1317, 6210-00-548-1318, 6210-00-548-1319, 6210-00-548-1989, 6210-00-548-3752

Technical Data | NSN 6210-00-548-0699

Characteristic	Specifications
STYLE DESIGNATOR	A11 HALF FIXTURE POST TYPE
OVERALL LENGTH	3.250 INCHES NOMINAL
OVERALL HEIGHT	0.880 INCHES NOMINAL
OVERALL WIDTH	0.916 INCHES NOMINAL
MATERIAL	ALUMINUM BODY ALUMINUM ILLUMINATION DIRECTING DEVICE
SURFACE TREATMENT	PAINT BODY PAINT ILLUMINATION DIRECTING DEVICE
LAMP TYPE ACCOMMODATED AND QUANTITY	2 INCANDESCENT
LAMP BULB SIZE DESIGNATOR	T-1 3/4
LAMP BASE TYPE ACCOMMODATED	MIDGET FLANGED
LENS QUANTITY	2
LENS MOUNTING METHOD	PUSH IN
LENS TYPE	FLAT, NARROW SINGLE LIGHT 1ST POSITION HORIZONTAL
LENS LIGHT TRANSMISSION CHARACTERISTIC	TRANSLUCENT SINGLE LIGHT 1ST POSITION HORIZONTAL
LENS FACE SURFACE CONDITION	SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL
LENS BACK SURFACE CONDITION	SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL
LENS COLOR	RED SINGLE LIGHT 1ST POSITION HORIZONTAL
TRANSMITTED LIGHT COLOR	RED SINGLE LIGHT 1ST POSITION HORIZONTAL FULL DISPLAY DIVISION A
MOUNTING METHOD	UNTHREADED HOLE
TERMINAL TYPE AND QUANTITY	1 WIRE LEAD
(NON-CORE DATA) WIRING PROVISION METHOD	INDIVIDUAL WIRE
(NON-CORE DATA) WIRING PROVISION LENGTH	36.000 INCHES NOMINAL
MANUFACTURERS CODE	72914
DESIGN CONTROL REFERENCE	B6610-10

Restrictions/Controls & Freight Information | NSN 6210-00-548-0699

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	109700	LAMP OR LIGHTING FIXTURES
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	761	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6210-00-548-0699

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
