NSN 6210-00-548-0226 MS171811491, MS17181-149-1, M16377/6-149.2
Product Details | LIGHTING FIXTURE
6210-00-548-0226 An item consisting of one or more lampholder(s) or other electrical connection, designed to provide general illumination. May include a shade, light window, switch and the like. Do not use if a more specific item name exists,such as LIGHT (as modified).
Part Alternates: MS171811491, MS17181-149-1, M16377/6-149.2, M16377/6-149.4, M16377/6-149.4SS, M1637761492, M1637761494, M1637761494SS, MIL-F-16377/6, MILF163776, 202CP, 202-CP, 6210-00-548-0226, 00-548-0226, 6210005480226, 005480226
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-548-0226 | 00513 ( FIXTURE, LIGHTING ) |

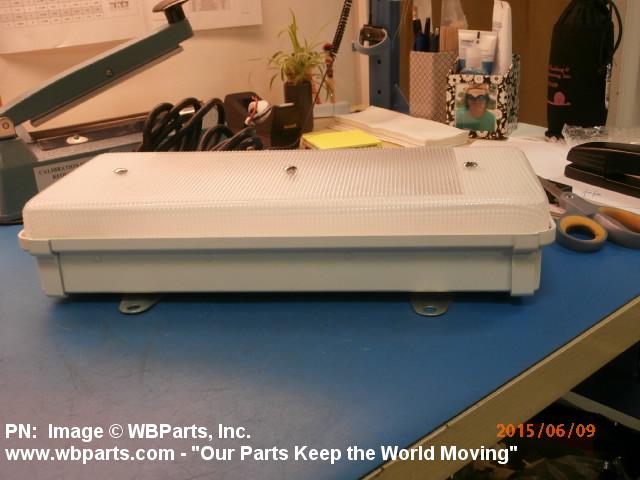

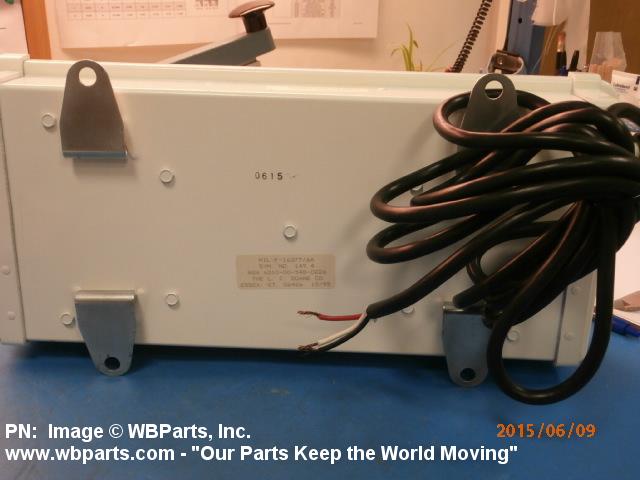

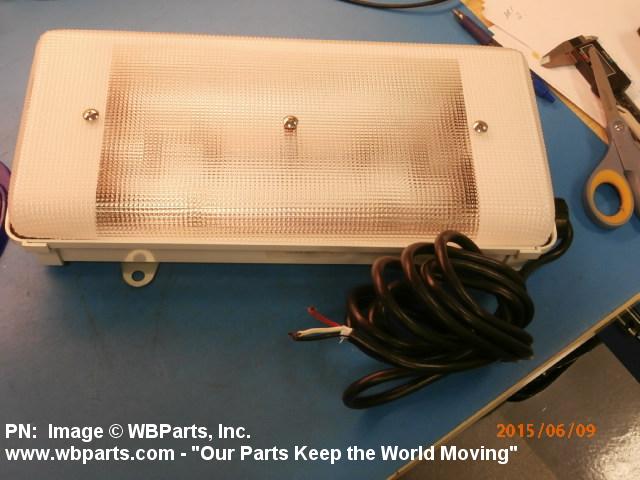

Drawings & Photos | NSN 6210-00-548-0226
Demand History | NSN 6210-00-548-0226
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6210-00-548-0226 | 2018-12-351 | 1 | US |
| 6210-00-548-0226 | 2018-06-156 | 52 | DIBBS |
| 6210-00-548-0226 | 2015-10-294 | 71 | DIBBS |
| 6210-00-548-0226 | 2015-05-149 | 2 | United States |
| M1637761492 | 2015-05-141 | 2 | US |
Cross Reference | NSN 6210-00-548-0226
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 202-CP | 85213 | L.C.DOANE COMPANY,THE |
| M16377/6-149.2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M16377/6-149.4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M16377/6-149.4SS | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-F-16377/6 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS17181-149-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6210-00-548-0226
Related Products | NSN 6210-00-548-0226
Technical Data | NSN 6210-00-548-0226
| Characteristic | Specifications |
|---|---|
| SHAPE | RECTANGULAR |
| OVERALL HEIGHT | 3.500 INCHES MAXIMUM |
| OVERALL LENGTH | 16.031 INCHES MINIMUM AND 16.062 INCHES MAXIMUM |
| OVERALL WIDTH | 7.281 INCHES MINIMUM AND 7.344 INCHES MAXIMUM |
| VOLTAGE RATING IN VOLTS | 120.0 AC NOMINAL |
| MATERIAL | ANY ACCEPTABLE BODY PLASTIC ACRYLIC ILLUMINATION DIRECTING DEVICE |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-P-24191,TYPE CLEAR-2 MIL SPEC SINGLE MATERIAL RESPONSE ILLUMINATION DIRECTING DEVICE |
| SURFACE TREATMENT | ANY ACCEPTABLE BODY |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 2 FLUORESCENT |
| LAMP BASE TYPE ACCOMMODATED | MINIATURE BIPIN |
| MOUNTING METHOD | UNTHREADED HOLE |
| TERMINAL TYPE AND QUANTITY | 1 WIRE LEAD |
| WIRING PROVISION METHOD | CABLE |
| WIRING PROVISION LENGTH | 120.0 INCHES NOMINAL SINGLE PROVISION |
| ILLUMINATION DIRECTING DEVICE TYPE | WINDOW |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERTIGHT AND SHOCK AND VIBRATION RESISTANT |
| FURNISHED ITEMS AND QUANTITY | 2 LAMP AND 2 TYPE I AND 1 TYPE IV LABELS |
| SPECIAL FEATURES | LOUVERS AND 3 LG SECURING SCREW ASSY INCL |
| III UNPACKAGED UNIT WEIGHT | 7.750 POUNDS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-16377/6 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M16377/6-149.4 |
Restrictions/Controls & Freight Information | NSN 6210-00-548-0226
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6210-00-548-0226
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
