NSN 6210-00-536-8614 161552-001, 30288LL1, 30288LL-1
Product Details | INDICATOR LIGHT
6210-00-536-8614 A light, with mounting facilities furnished, designed to convey information of a specific nature concerning the circuit in which inserted. Must include or provide for the use of a lens as a part of it. For items without a lens, see LAMPHOLDER, and also see LIGHT (1), PANEL.20362100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures63400033Aircraft Alarm and Signal Systems
Part Alternates: 161552-001, 30288LL1, 30288LL-1 , 6210-00-536-8614, 00-536-8614, 6210005368614, 161552001, 005368614
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 22 SEP 1974 | 00-536-8614 | 00160 ( LIGHT, INDICATOR ) |

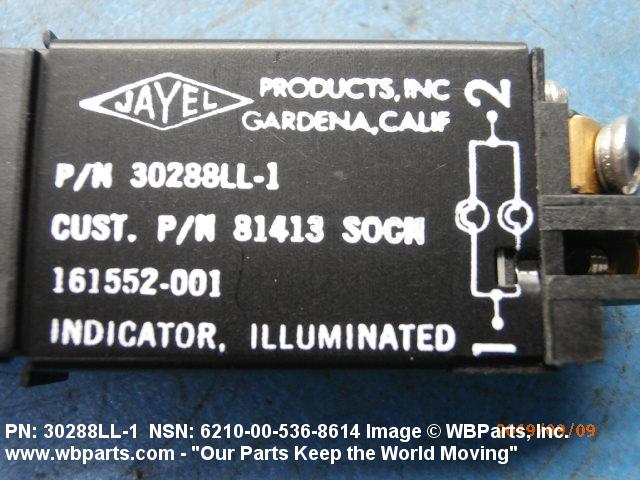

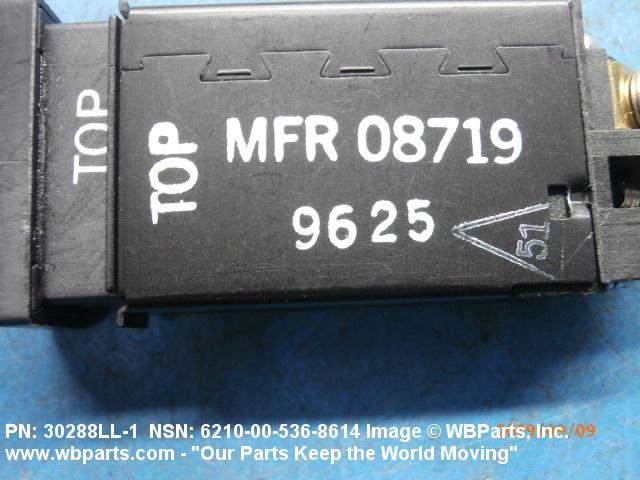

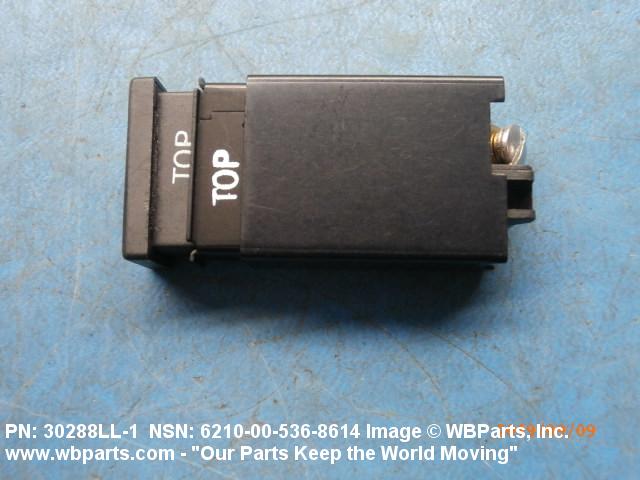

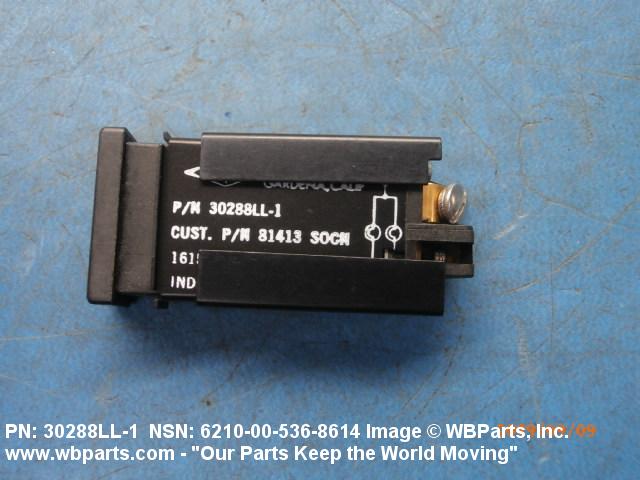

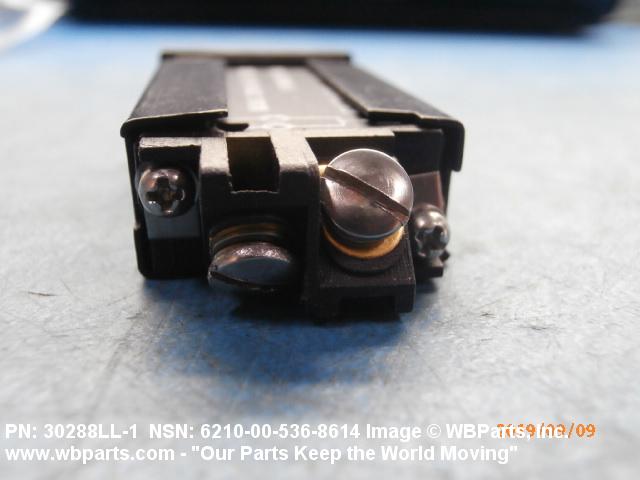

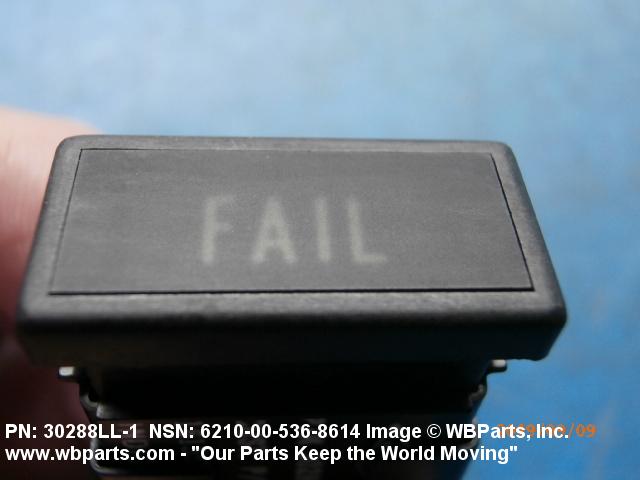

Drawings & Photos | NSN 6210-00-536-8614
Demand History | NSN 6210-00-536-8614
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 30288LL-1 | 2024-08-236 | 23 | DIBBS |
| 30288LL-1 | 2024-08-228 | 23 | DIBBS |
| 30288LL-1 | 2024-07-208 | 21 | DIBBS |
| 30288LL-1 | 2024-07-200 | 21 | DIBBS |
| 30288LL-1 | 2024-03-85 | 2 | DIBBS |
| 30288LL-1 | 2024-03-77 | 2 | DIBBS |
| 30288LL-1 | 2023-09-268 | 4 | DIBBS |
| 30288LL-1 | 2023-09-260 | 4 | DIBBS |
| 30288LL-1 | 2023-05-125 | 29 | DIBBS |
| 30288LL-1 | 2023-04-110 | 29 | DIBBS |
| 30288LL-1 | 2023-04-106 | 8 | DIBBS |
| 30288LL-1 | 2023-01-09 | 25 | DIBBS |
| 30288LL1 | 2019-10-280 | 21 | US |
| 30288LL1 | 2019-08-214 | 12 | United States |
| 6210-00-536-8614 | 2012-08-218 | 183 | DIBBS |
| 6210-00-536-8614 | 2010-03-85 | 133 | DIBBS |
| 6210-00-536-8614 | 2009-10-299 | 90 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6210-00-536-8614
Related Products | NSN 6210-00-536-8614
Technical Data | NSN 6210-00-536-8614
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A9 RECTANGULAR FRAME TYPE |

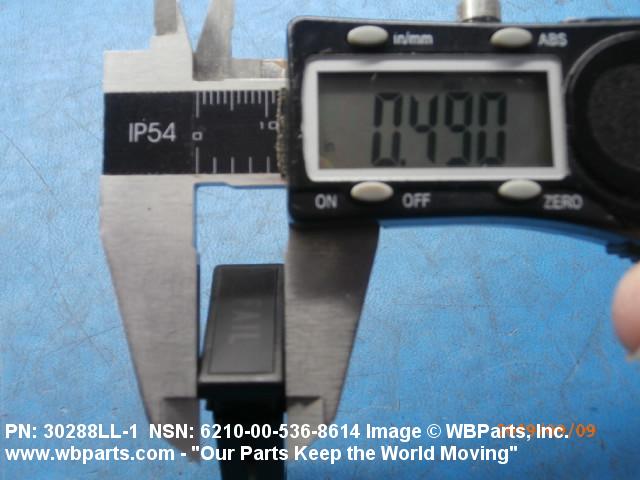

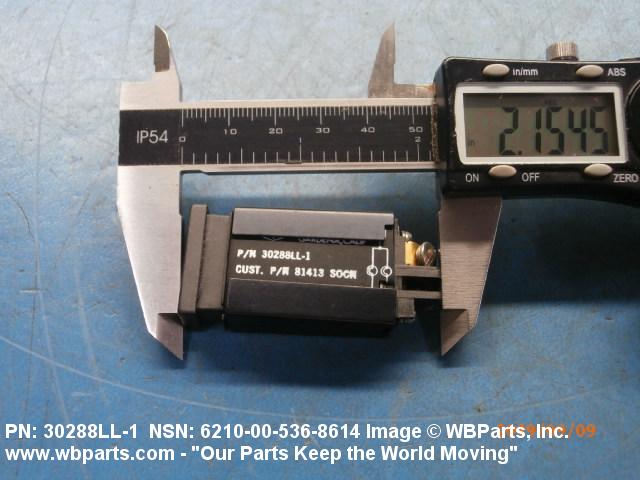

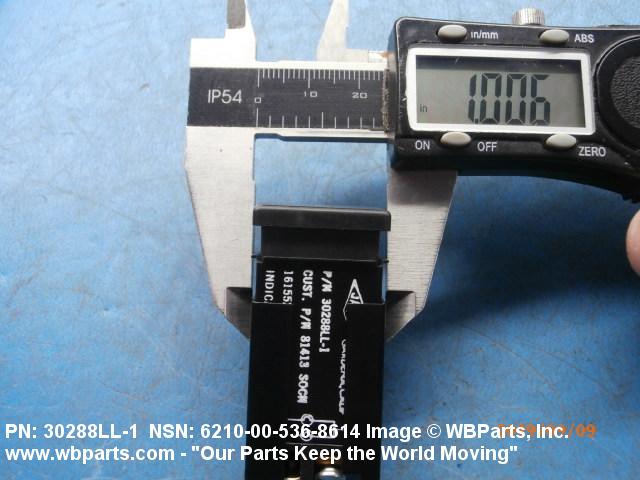

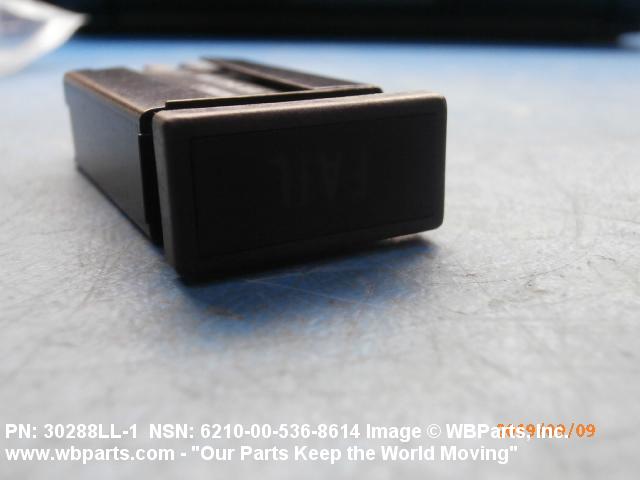

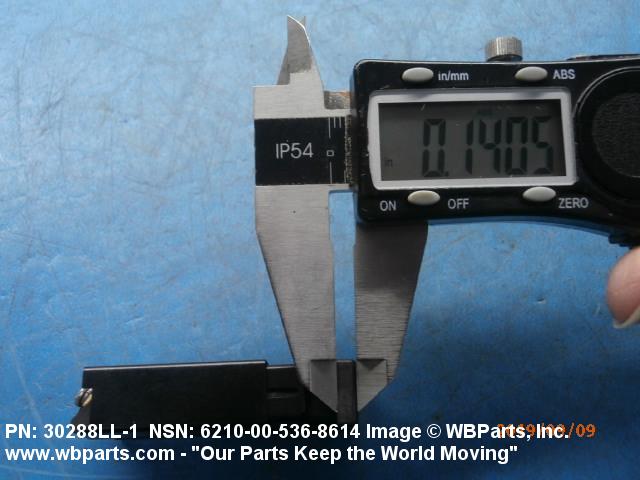

| OVERALL LENGTH | 2.020 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.510 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES MINIMUM AND 1.015 INCHES MAXIMUM |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 2 INCANDESCENT |
| LAMP INDUSTRY NUMBER | 387 |
| LAMP BULB SIZE DESIGNATOR | T-1 3/4 |
| LENS QUANTITY | 1 |
| LENS LIGHT TRANSMISSION CHARACTERISTIC | TRANSLUCENT SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS FACE SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS BACK SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |
| MOUNTING METHOD | PANEL |
| PANEL THICKNESS FOR WHICH DESIGNED | 0.190 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 2 SCREW |
| MULTILAMP CIRCUIT TYPE | TWO LAMP COMMON |
| III END ITEM IDENTIFICATION | AN/ALR-56C; AIRCRAFT, EAGLE F-15 |
