NSN 6210-00-349-9274 90031328R2, 90-031-328R2, 00-349-9274
Product Details | PANEL LIGHT
6210-00-349-9274 A light specifically designed to be mounted on, near, or through a panel, switchboard, bulletin board, cowl, dashboard, and the like, and specifically designed to provide direct or indirect illumination thereon. It must include a shade, reflector, or other special device to direct illumination or to provide for the direction of illumination through the inherent design of the item, as in lights for edge lighted panels. It may include filters, dimming features, switches, and/or flexible gooseneck. For aircraft installed items prviding illumination for map reading or general utility illumination, in addition to panel illumination, see LIGHT (1), COCKPIT, AIRCRAFT. For items conforming to this basic definition with the additional feature of providing illuminated indication of a specific nature concerning the circuit in which it is inserted, see LIGHT (1), INDICATOR.20262100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures
Part Alternates: 90031328R2, 90-031-328R2, 6210-00-349-9274, 00-349-9274, 6210003499274, 003499274
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 31 MAR 1971 | 00-349-9274 | 00119 ( LIGHT, PANEL ) |

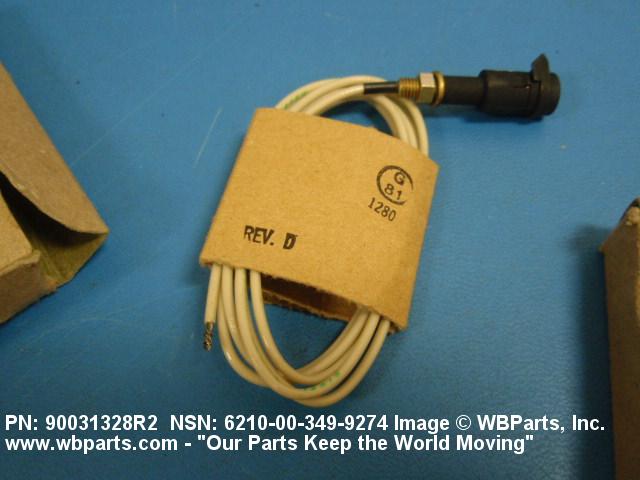

Drawings & Photos | NSN 6210-00-349-9274
Demand History | NSN 6210-00-349-9274
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 90031328R2 | 2009-06-163 | 2 | United States |
| 90031328R2 | 2009-06-163 | 1 | United States |
Cross Reference | NSN 6210-00-349-9274
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 90-031-328R2 | 97499 | BELL HELICOPTER TEXTRON INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6210-00-349-9274
Technical Data | NSN 6210-00-349-9274
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A5 INSTRUMENT POST TYPE |
| OVERALL LENGTH | 1.406 INCHES NOMINAL |
| OVERALL HEIGHT | 0.469 INCHES NOMINAL |
| OVERALL WIDTH | 0.469 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY BODY |
| SURFACE TREATMENT | PAINT BODY PAINT ILLUMINATION DIRECTING DEVICE |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 1 INCANDESCENT |
| LAMP INDUSTRY NUMBER | 328 |
| LAMP BULB SIZE DESIGNATOR | T-1 3/4 |
| LAMP BASE TYPE ACCOMMODATED | MIDGET FLANGED |
| LENS QUANTITY | 1 |
| LENS MOUNTING METHOD | PUSH IN |
| LENS LIGHT TRANSMISSION CHARACTERISTIC | TRANSLUCENT SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS FACE SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS BACK SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS COLOR | RED, IDENTIFICATION SINGLE LIGHT 1ST POSITION HORIZONTAL |
| TRANSMITTED LIGHT COLOR | RED, IDENTIFICATION SINGLE LIGHT 1ST POSITION HORIZONTAL FULL DISPLAY DIVISION A |
| MOUNTING METHOD | PANEL |
| PANEL THICKNESS FOR WHICH DESIGNED | 0.094 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 1 WIRE LEAD |
| (NON-CORE DATA) MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/4 FED SPEC SINGLE MATERIAL RESPONSE QQ-A-250/4 FED SPEC SINGLE MATERIAL RESPONSE |
| (NON-CORE DATA) WIRING PROVISION METHOD | INDIVIDUAL WIRE |
| (NON-CORE DATA) WIRING PROVISION LENGTH | 36.000 INCHES NOMINAL |
| MANUFACTURERS CODE | 97499 |
| DESIGN CONTROL REFERENCE | 90-031-328R2 |
