NSN 6210-00-244-1966 12304081231243, 123-0408-1231-243, 1230408243
Product Details | INDICATOR LIGHT
6210-00-244-1966 A light, with mounting facilities furnished, designed to convey information of a specific nature concerning the circuit in which inserted. Must include or provide for the use of a lens as a part of it. For items without a lens, see LAMPHOLDER, and also see LIGHT (1), PANEL.20362100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures63400033Aircraft Alarm and Signal Systems
Part Alternates: 12304081231243, 123-0408-1231-243, 1230408243, 123-0408-243, 12313081231443, 123-1308-1231-443 , 6210-00-244-1966, 00-244-1966, 6210002441966, 002441966
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 19 MAR 1971 | 00-244-1966 | 00160 ( LIGHT, INDICATOR ) |

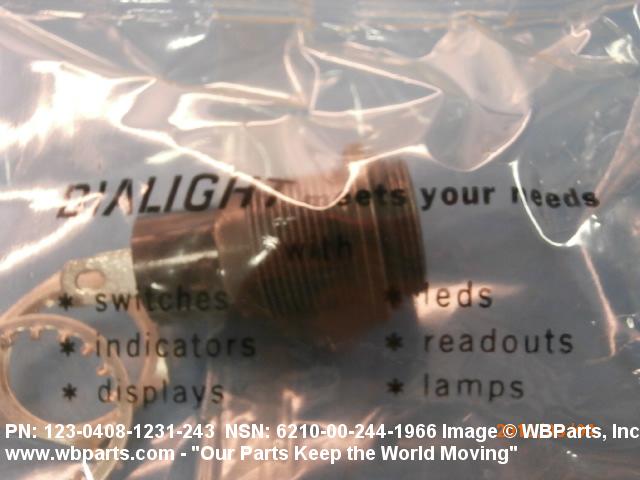

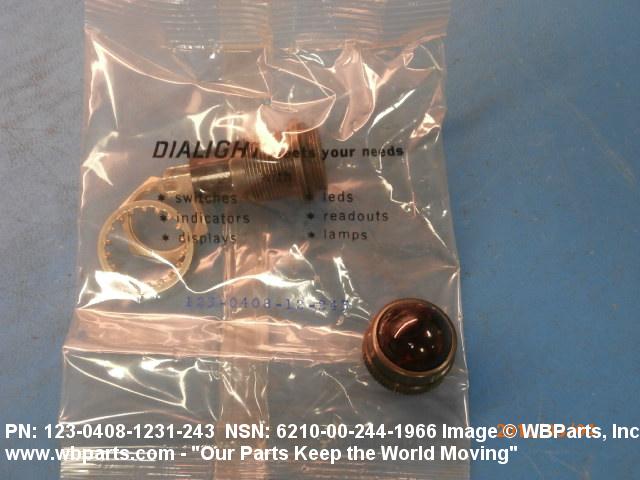

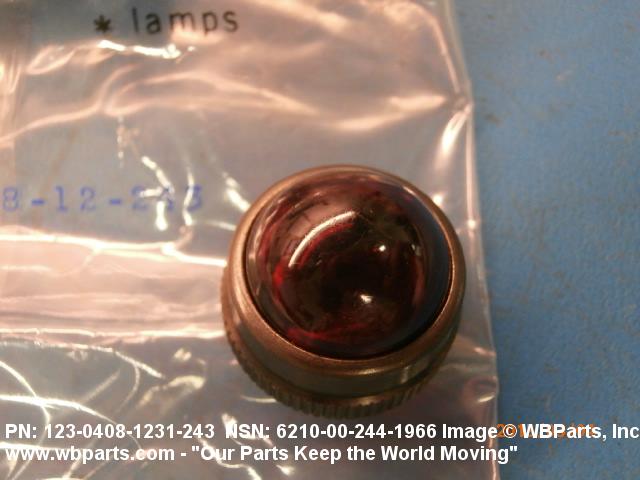

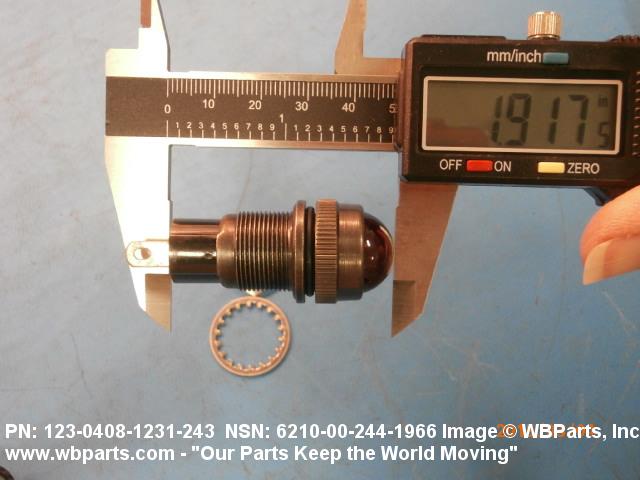

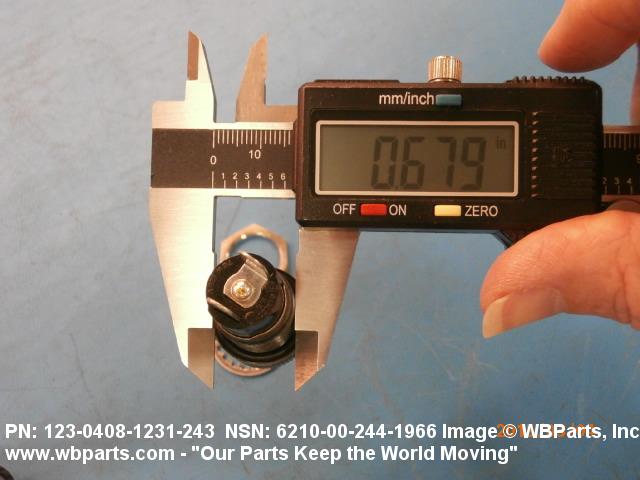

Drawings & Photos | NSN 6210-00-244-1966
Demand History | NSN 6210-00-244-1966
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12313081231443 | 2016-08-237 | 5 | United States |
| 6210-00-244-1966 | 2015-10-287 | 1 | DIBBS |
| 6210-00-244-1966 | 2015-08-230 | 1 | DIBBS |
| 6210-00-244-1966 | 2015-08-218 | 1 | DIBBS |
| 12304081231243 | 2015-02-36 | 4 | United States |
| 6210-00-244-1966 | 2015-02-35 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6210-00-244-1966

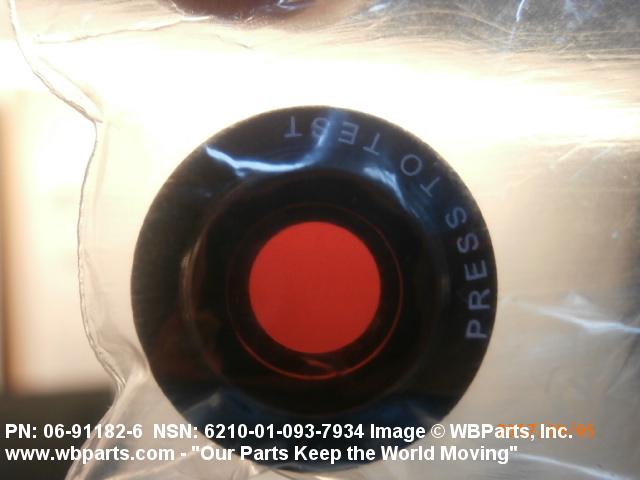

Related Products | NSN 6210-00-244-1966
Technical Data | NSN 6210-00-244-1966
| Characteristic | Specifications |
|---|---|

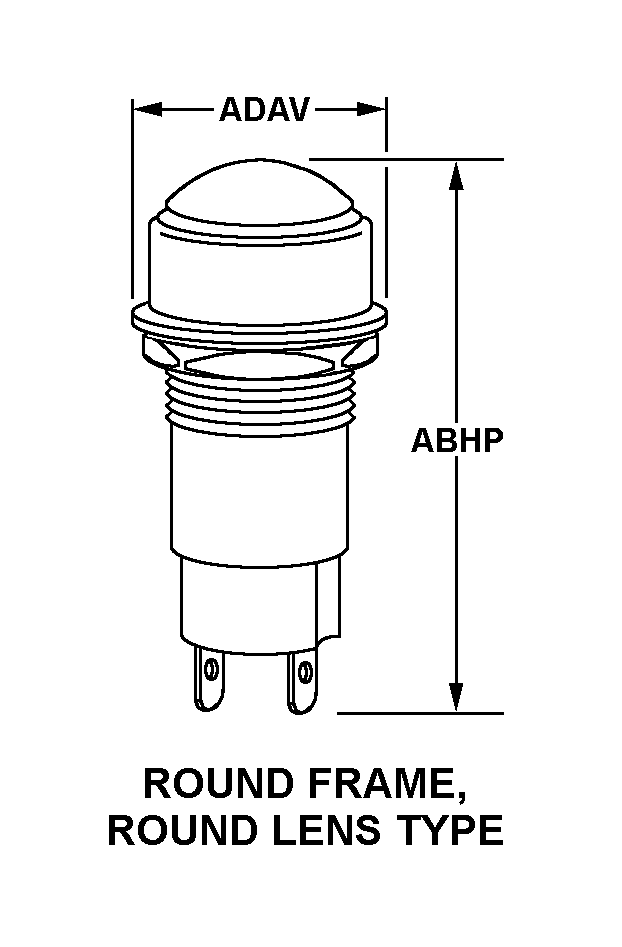

| STYLE DESIGNATOR | A1 ROUND FRAME, ROUND LENS TYPE |
| OVERALL LENGTH | 2.109 INCHES NOMINAL |

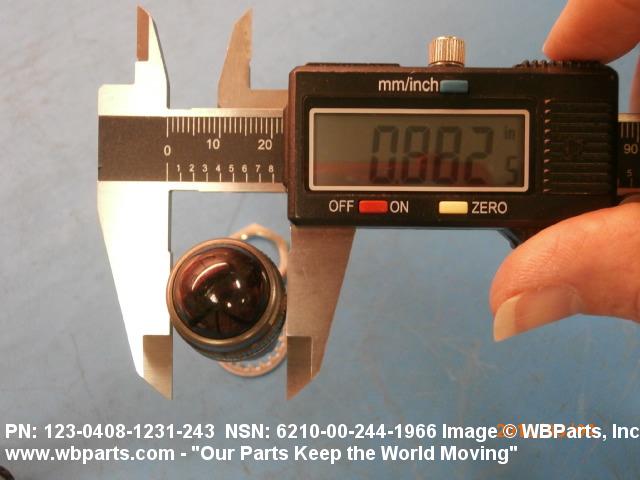

| OVERALL DIAMETER | 0.828 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY BODY |
| SURFACE TREATMENT | NICKEL BODY |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 1 NEON |
| LAMP INDUSTRY NUMBER | B1A |
| LAMP BULB SIZE DESIGNATOR | T-3 1/4 |
| LAMP BASE TYPE ACCOMMODATED | MINIATURE BAYONET |
| LENS QUANTITY | 1 |
| LENS MOUNTING METHOD | SCREW ON |
| LENS TYPE | DOME, KNURLED, INTERNAL THREAD SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS FACE SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS BACK SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |

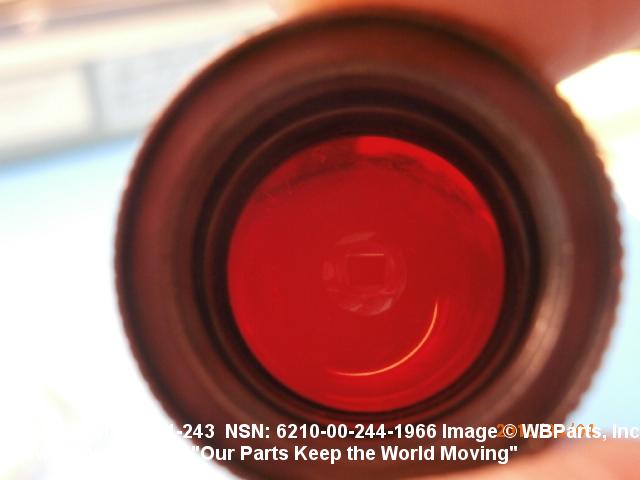

| LENS COLOR | RED SINGLE LIGHT 1ST POSITION HORIZONTAL |
| TRANSMITTED LIGHT COLOR | RED SINGLE LIGHT 1ST POSITION HORIZONTAL FULL DISPLAY DIVISION A |
| MOUNTING METHOD | PANEL |
| PANEL ACCOMMODATION HOLE DIAMETER | 0.688 INCHES NOMINAL |
| PANEL THICKNESS FOR WHICH DESIGNED | 0.312 INCHES MAXIMUM |

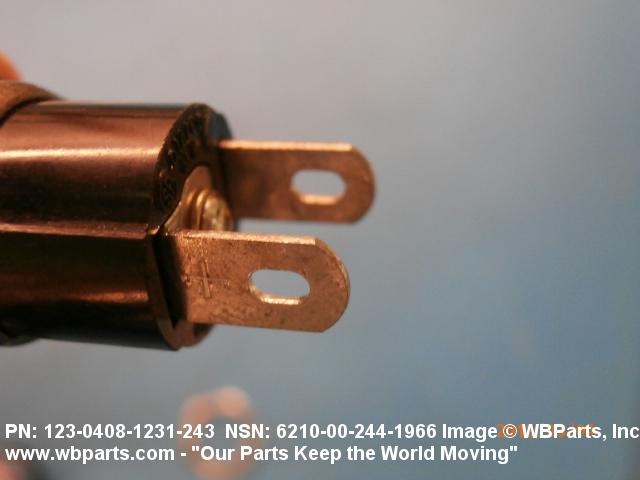

| TERMINAL TYPE AND QUANTITY | 2 SOLDER LUG |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | OILTIGHT AND WATERTIGHT |

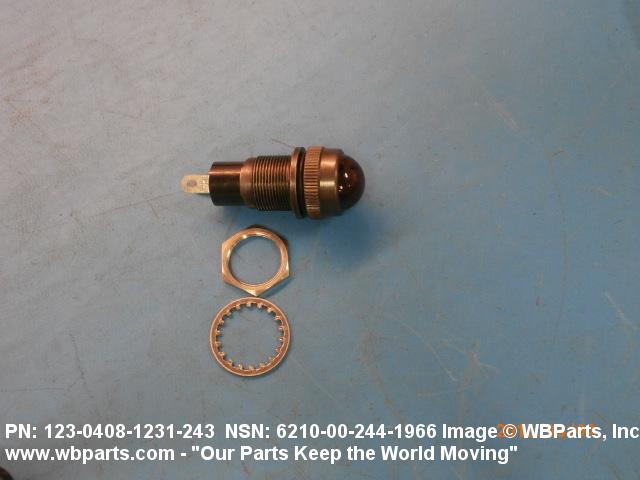

| FURNISHED ITEMS AND QUANTITY | 1 GASKET AND 1 HEXAGON NUT AND 1 LOCK WASHER AND 2 O-RING |
| (NON-CORE DATA) RESISTOR LOCATION AND QUANTITY | 1 INTERNAL |
| (NON-CORE DATA) ELECTRICAL RESISTANCE | 56.0 KILOHMS |
Restrictions/Controls & Freight Information | NSN 6210-00-244-1966
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6210-00-244-1966
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
