NSN 6210-00-112-8954 BEP62ALP, BEPBA07ALP, BEPB-A07-ALP
Product Details | INDICATOR LIGHT
6210-00-112-8954 A light, with mounting facilities furnished, designed to convey information of a specific nature concerning the circuit in which inserted. Must include or provide for the use of a lens as a part of it. For items without a lens, see LAMPHOLDER, and also see LIGHT (1), PANEL.20362100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures63400033Aircraft Alarm and Signal Systems
Part Alternates: BEP62ALP, BEPBA07ALP, BEPB-A07-ALP, 4150368004, 415-0368-004, 6210-00-112-8954, 00-112-8954, 6210001128954, 001128954
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 26 AUG 1968 | 00-112-8954 | 00160 ( LIGHT, INDICATOR ) |

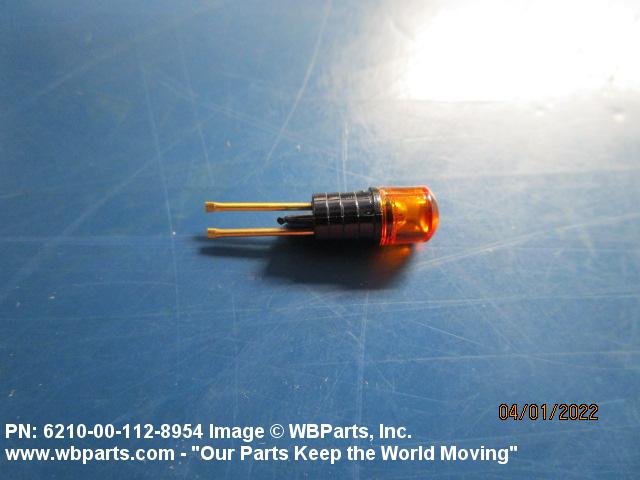

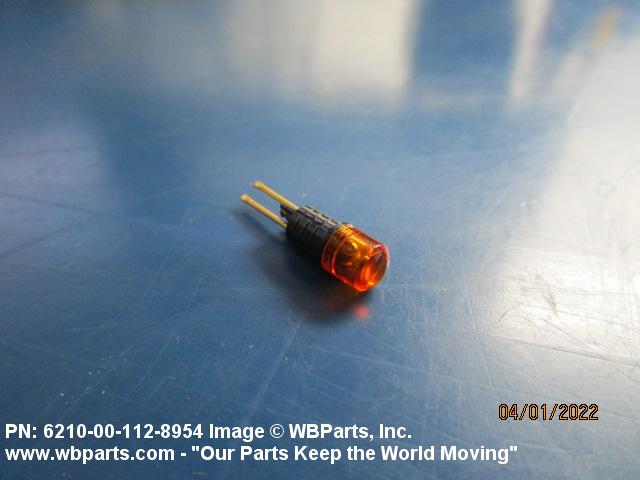

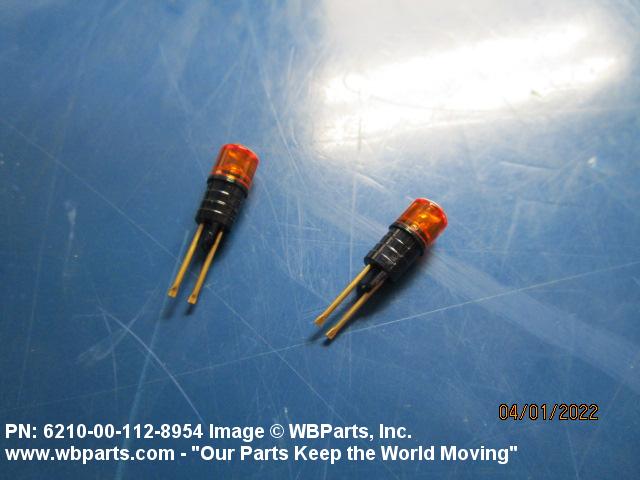

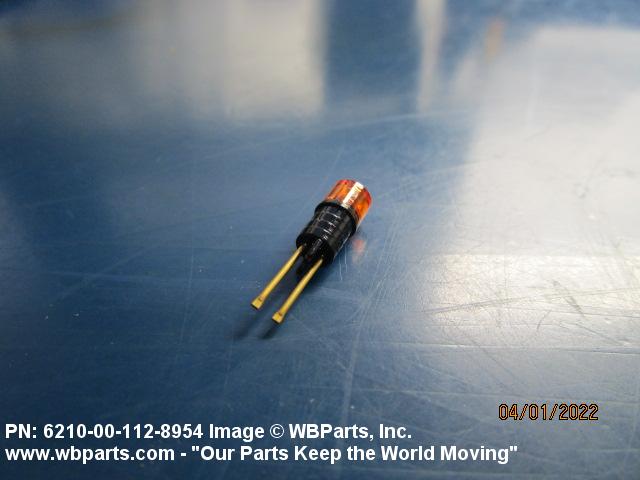

Drawings & Photos | NSN 6210-00-112-8954
Demand History | NSN 6210-00-112-8954
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 415-0368-004 | 2024-07-196 | 6 | DIBBS |
| 415-0368-004 | 2024-05-136 | 6 | DIBBS |
| BEPBA07ALP | 2024-01-07 | 4 | PH |
| BEP62ALP | 2023-09-263 | 3 | US |
| 415-0368-004 | 2023-08-234 | 6 | DIBBS |
| BEP62ALP | 2023-06-171 | 2 | US |
| 415-0368-004 | 2022-08-213 | 6 | DIBBS |
| 415-0368-004 | 2022-05-139 | 6 | DIBBS |
| BEPB-A07-ALP | 2022-05-139 | 6 | DIBBS |
| 6210-00-112-8954 | 2022-03-87 | 2 | Sweden |
| 6210-00-112-8954 | 2021-04-111 | 20 | US |
| BEP62ALP | 2014-12-353 | 2 | United States |
| 6210-00-112-8954 | 2009-11-317 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6210-00-112-8954
Technical Data | NSN 6210-00-112-8954
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1 ROUND FRAME, ROUND LENS TYPE |

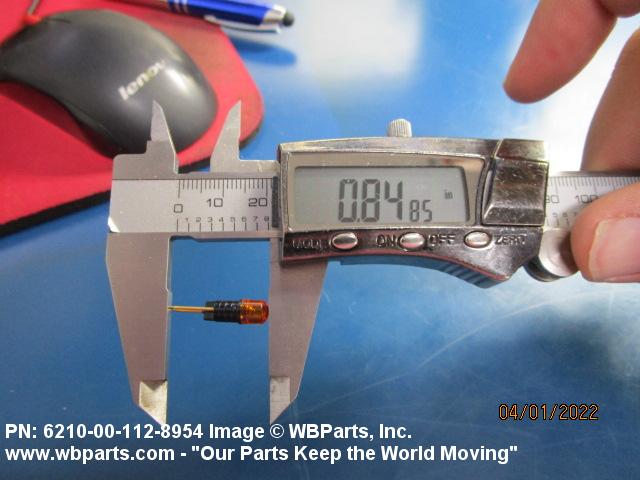

| OVERALL LENGTH | 0.875 INCHES NOMINAL |

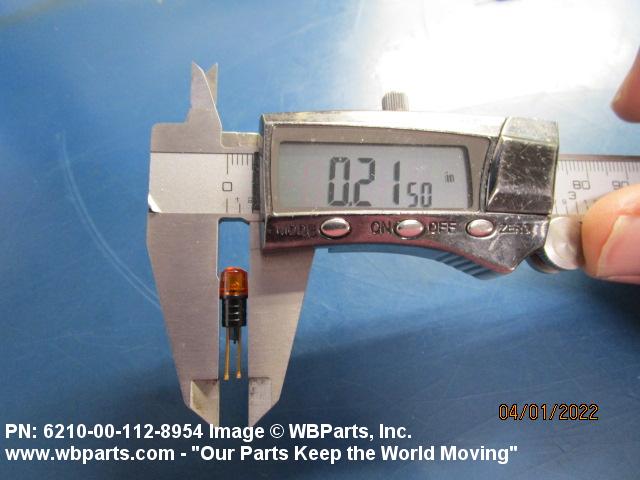

| OVERALL DIAMETER | 0.225 INCHES NOMINAL |
| MATERIAL | PLASTIC POLYCARBONATE BODY |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 1 INCANDESCENT |
| LAMP INDUSTRY NUMBER | 62 |
| LAMP BULB SIZE DESIGNATOR | T-1 |
| LAMP BASE TYPE ACCOMMODATED | WIRE TERMINALS, DOWN |
| LENS QUANTITY | 1 |
| LENS MOUNTING METHOD | PUSH ON |
| LENS TYPE | STOVEPIPE, PLAIN SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS FACE SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS BACK SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS COLOR | AMBER SINGLE LIGHT 1ST POSITION HORIZONTAL |
| TRANSMITTED LIGHT COLOR | AMBER SINGLE LIGHT 1ST POSITION HORIZONTAL FULL DISPLAY DIVISION A |
| MOUNTING METHOD | PANEL |
| PANEL ACCOMMODATION HOLE DIAMETER | 0.188 INCHES MINIMUM AND 0.191 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 2 SOLDER LUG |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.040 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | TERMINALS GOLD |
| MANUFACTURERS CODE | 00303 |
| DESIGN CONTROL REFERENCE | BEP62ALP |
Restrictions/Controls & Freight Information | NSN 6210-00-112-8954
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6210-00-112-8954
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
