NSN 6210-00-087-7909 LC14RN, LC14RN1, MILL3661
Product Details | LIGHT LENS
6210-00-087-7909 A transparent or translucent item designed to enclose or be placed in front of a light source. Sections of the lens may be opaque. It may or may not include a holder. It is designed to be either a replacement unit for a specific type of light, such as LIGHT, INDICATOR; LIGHT, NAVIGATIONAL, MARINE; STOP LIGHT, VEHICULAR; and LANTERN, ELECTRIC or that portion of a SWITCH, (as modified) used as an actuator and having provisions for illumination. See also, WINDOW, LIGHTING FIXTURE; GLOBE; ELECTRIC LIGHT; and FILTER (2), (as modified).20658500051Visible and Invisible Light Communication Equipment62100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures65150057Medical and Surgical Instruments, Equipment, and Supplies65200043Dental Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies
Part Alternates: LC14RN, LC14RN1, MILL3661, MILL366114, MILL3661-14, TA312RC, 81-0131-203, 12Z7502116, 12Z7502-116, 12Z7502168, 12Z7502-168, 6210-00-087-7909, 00-087-7909, 6210000877909, 000877909, 810131203
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-087-7909 | 29939 ( LENS, LIGHT ) |

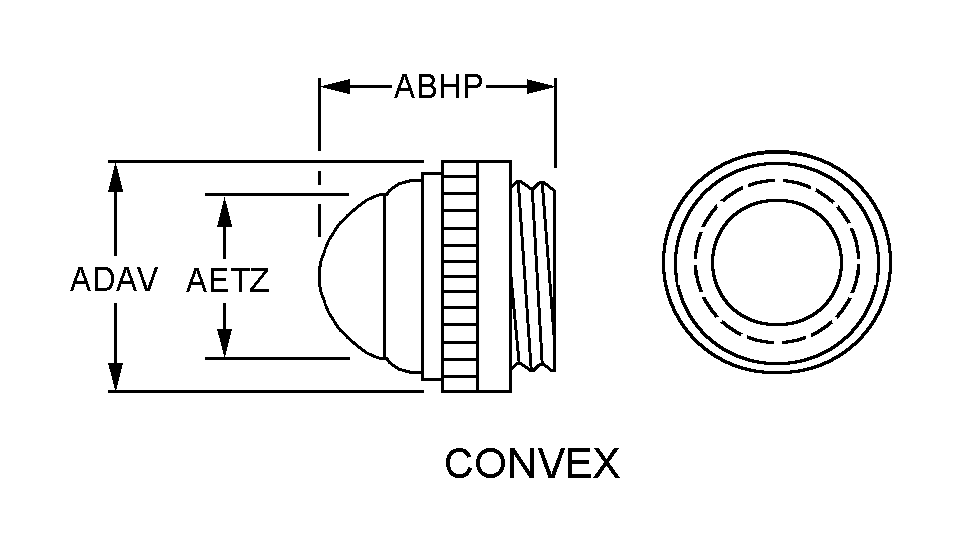

Drawings & Photos | NSN 6210-00-087-7909
Cross Reference | NSN 6210-00-087-7909
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12Z7502-116 | 94135 | NAVAL ORDNANCE STANDARDS |
| 12Z7502-168 | 94135 | NAVAL ORDNANCE STANDARDS |
| 81-0131-203 | 83330 | DIALIGHT CORPORATION |
| LC14RN | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| LC14RN1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILL3661 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILL3661-14 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| TA312RC | 07294 | GENISCO FILTER CORP. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6210-00-087-7909
Technical Data | NSN 6210-00-087-7909
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 81 CONVEX |
| OVERALL LENGTH | 0.690 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.590 INCHES MINIMUM AND 0.650 INCHES MAXIMUM |
| EFFECTIVE DIAMETER | 0.470 INCHES MINIMUM AND 0.530 INCHES MAXIMUM |
| MATERIAL | GLASS LENS |
| LIGHT TRANSMISSION DESIGN | TRANSPARENT LENS |
| SURFACE CONDITION | SMOOTH BACK SMOOTH FACE |
| MOUNTING METHOD | EXTERNAL THREAD |
| MOUNTING DEVICE QUANTITY | 1 |
| THREAD SERIES | UNS |
| THREAD DIAMETER | 0.562 INCHES |
| THREAD QUANTITY | 27 PER INCH |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| COLOR | BLACK HOLDER RED LENS |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DRIPPROOF |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | LC14RN1 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILL3661-14 |
Restrictions/Controls & Freight Information | NSN 6210-00-087-7909
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109080 | BOWL/CHIMNEY/GLOBE/ETC |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 704 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6210-00-087-7909
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
