NSN 6210-00-067-8388 LC24RD1, LC24RD3, MIL-L-3661/24

Product Details | LIGHT LENS

6210-00-067-8388 A transparent or translucent item designed to enclose or be placed in front of a light source. Sections of the lens may be opaque. It may or may not include a holder. It is designed to be either a replacement unit for a specific type of light, such as LIGHT, INDICATOR; LIGHT, NAVIGATIONAL, MARINE; STOP LIGHT, VEHICULAR; and LANTERN, ELECTRIC or that portion of a SWITCH, (as modified) used as an actuator and having provisions for illumination. See also, WINDOW, LIGHTING FIXTURE; GLOBE; ELECTRIC LIGHT; and FILTER (2), (as modified).20658500051Visible and Invisible Light Communication Equipment62100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures65150057Medical and Surgical Instruments, Equipment, and Supplies65200043Dental Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies

Part Alternates: LC24RD1, LC24RD3, MIL-L-3661/24, MILL366124, 2090111300, 209-0111-300, 2100111203, 210-0111-203, 621000678388 , 71B111, 71SB11, 6210-00-067-8388, 00-067-8388, 6210000678388, 000678388

Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
62	01 JAN 1963	00-067-8388	29939 ( LENS, LIGHT )

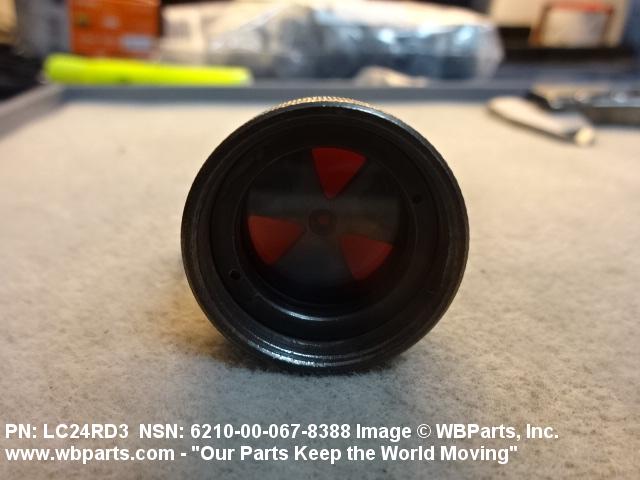

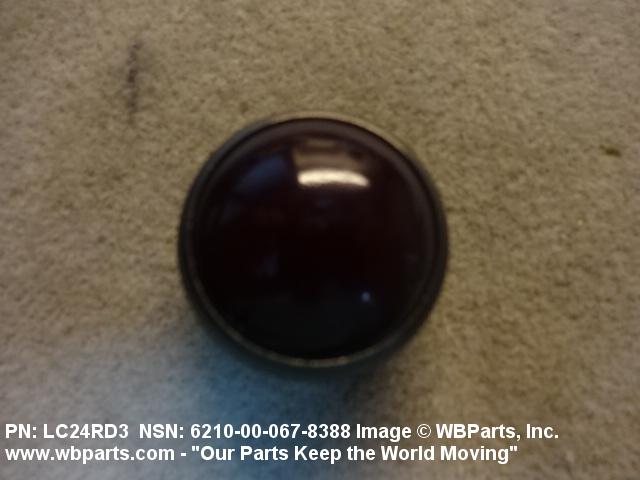

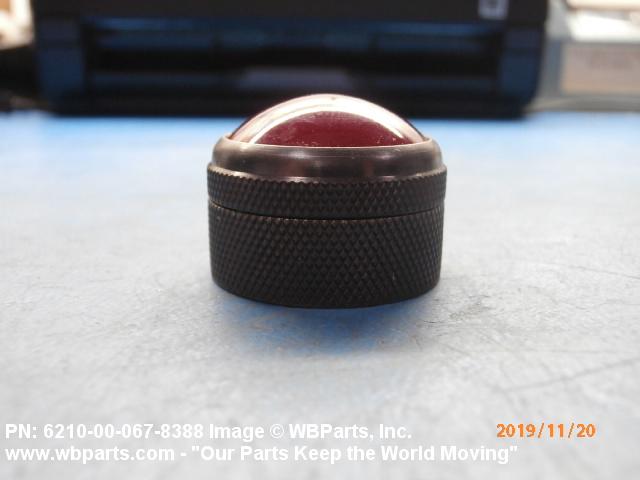

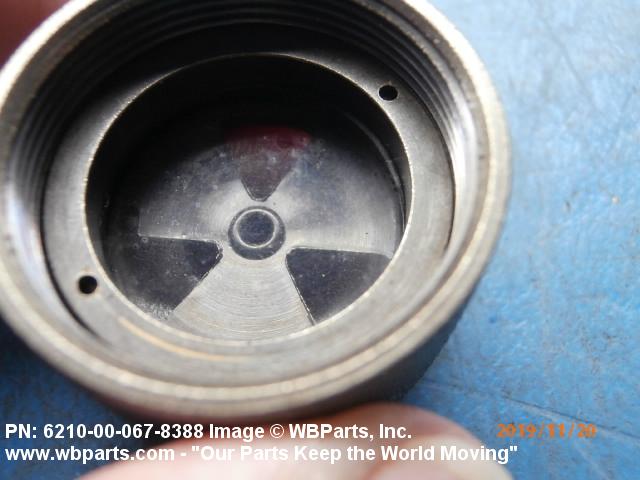

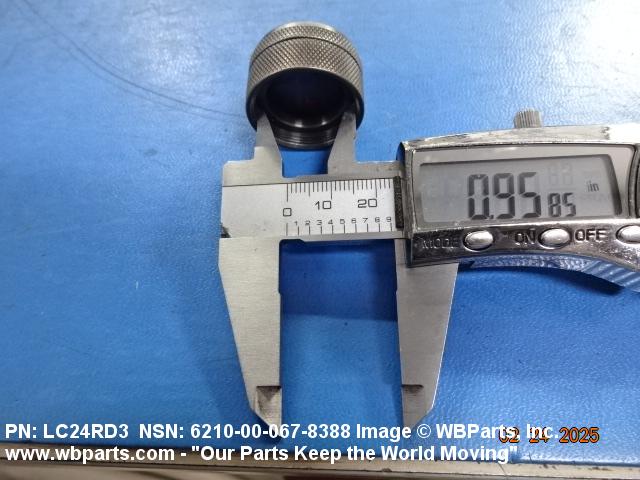

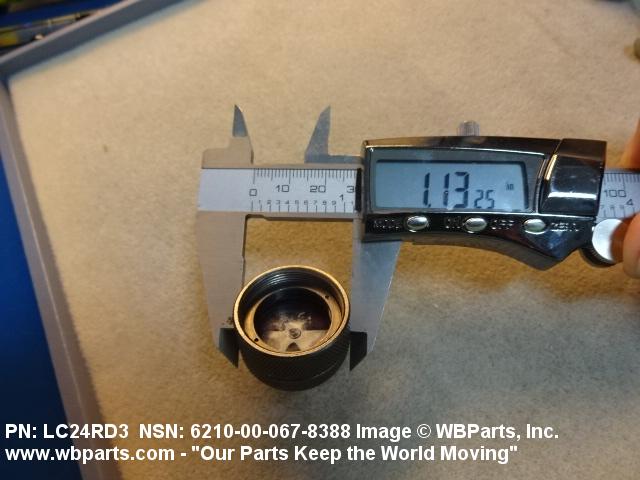

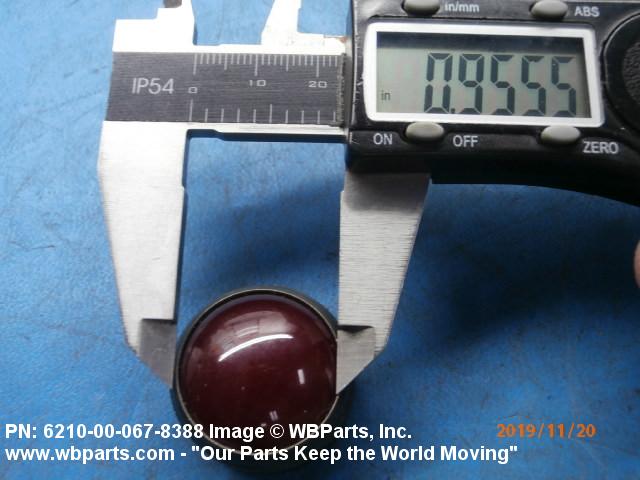

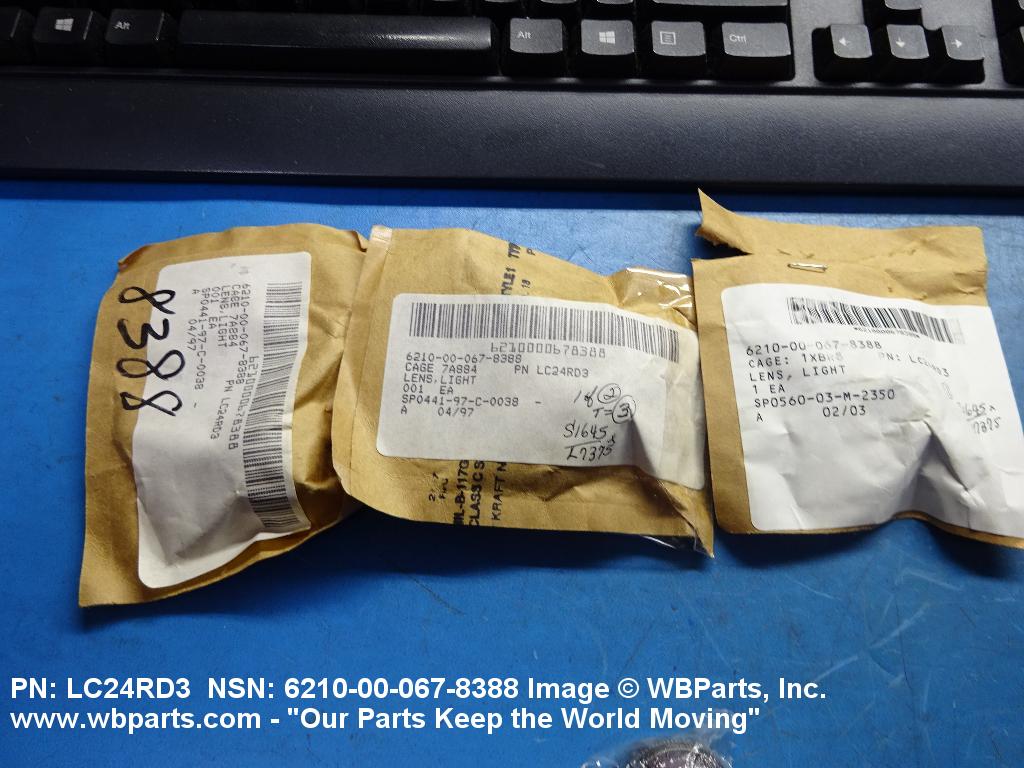

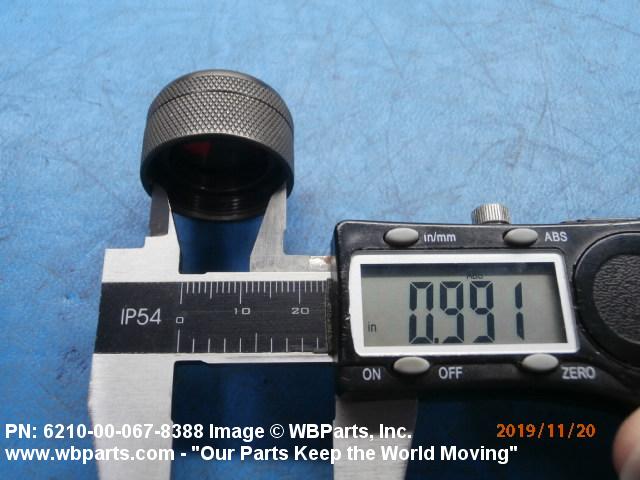

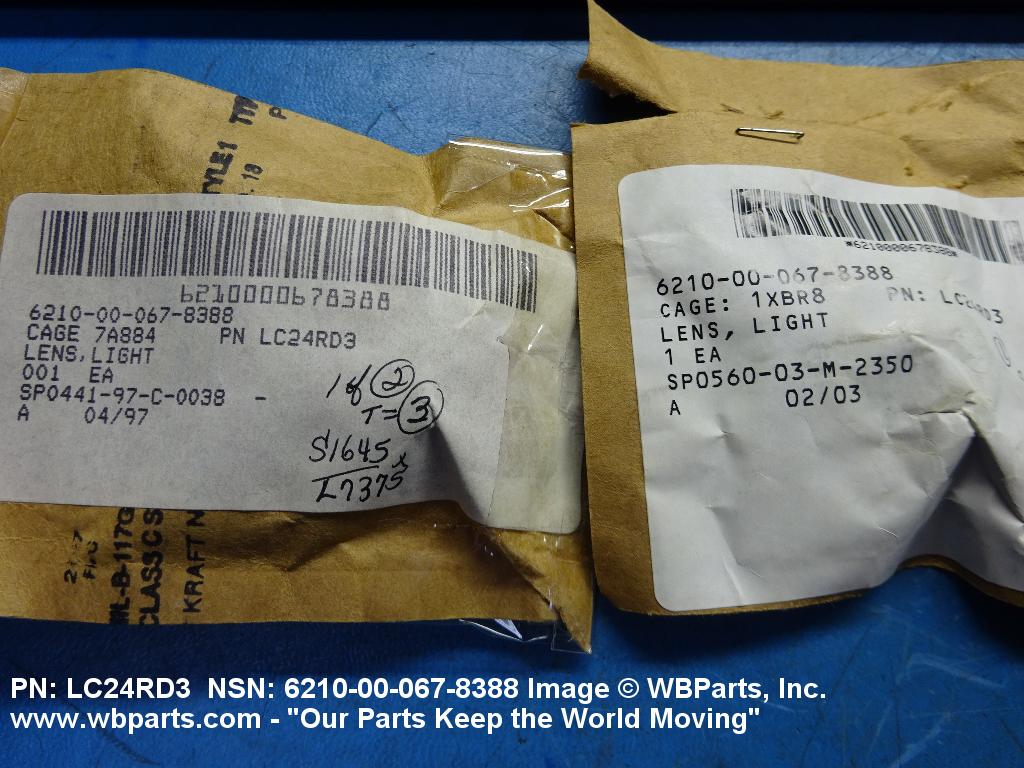

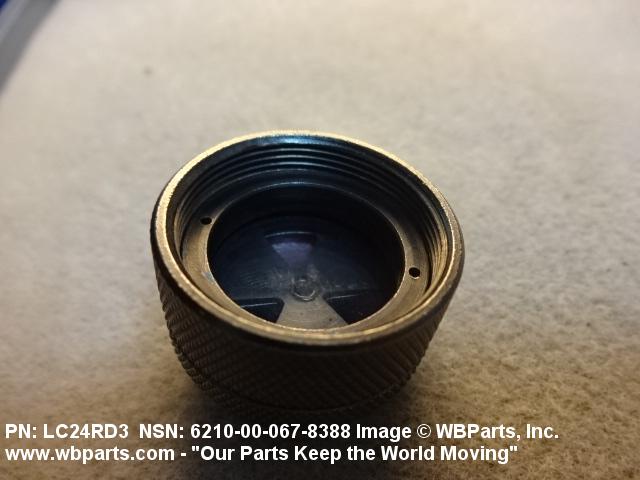

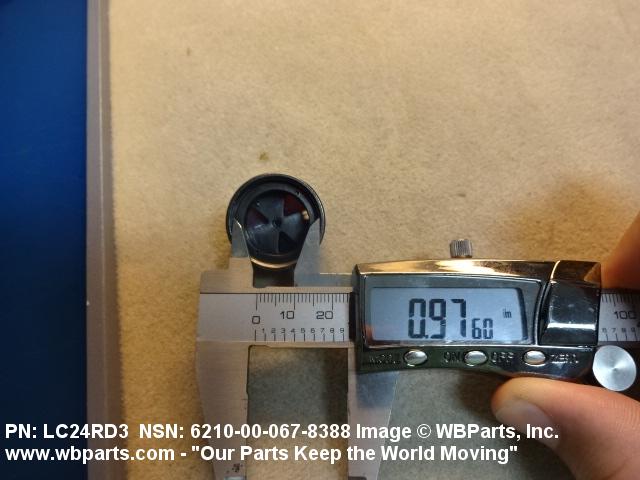

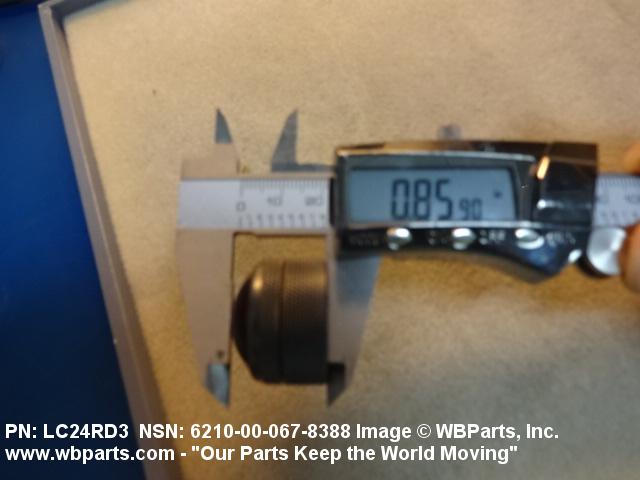

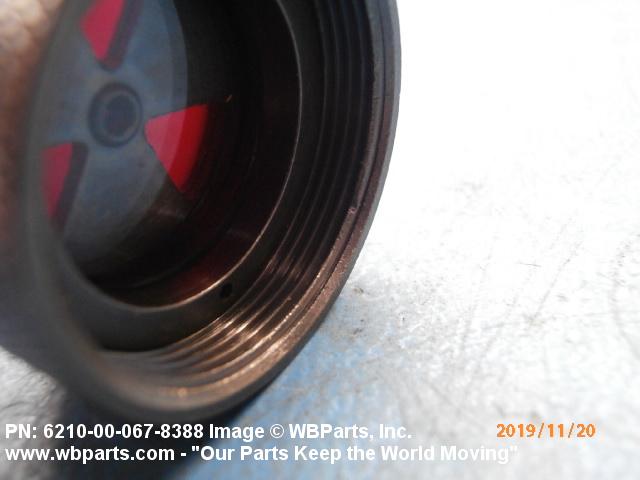

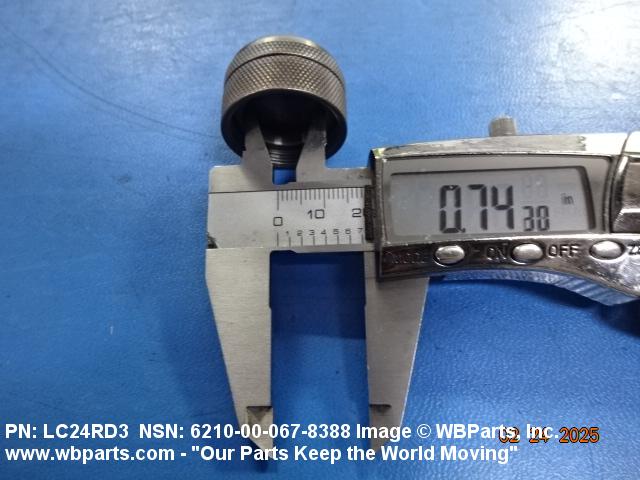

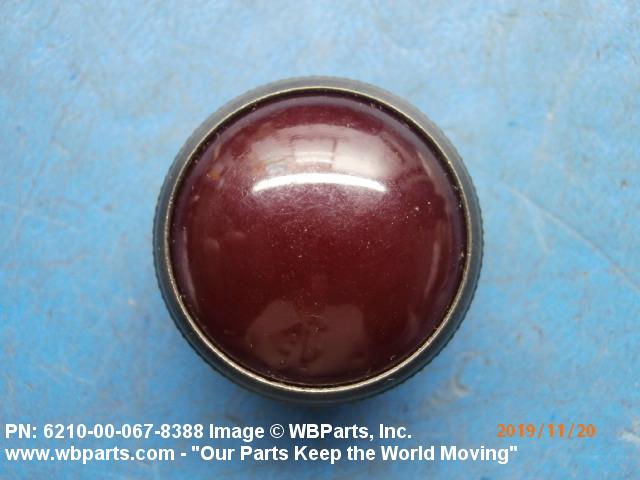

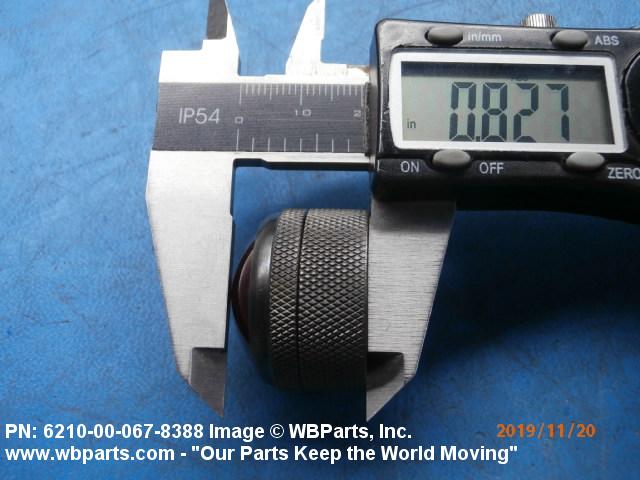

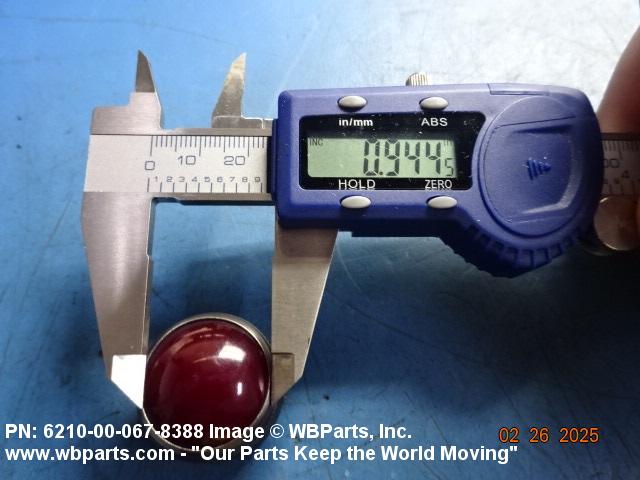

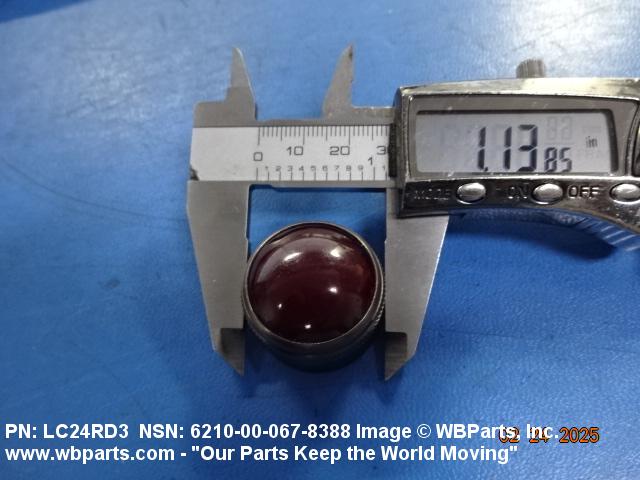

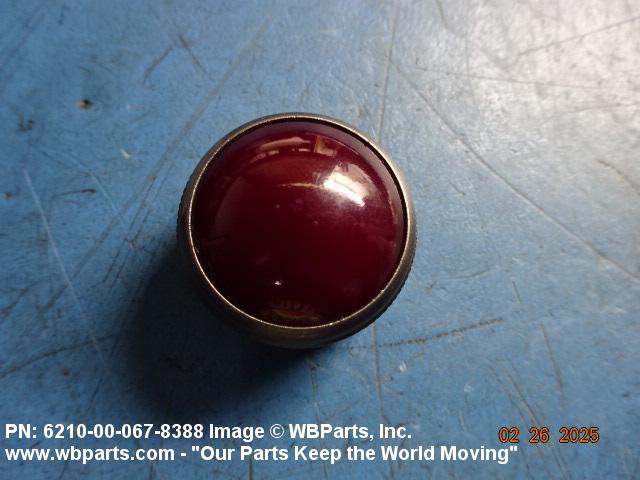

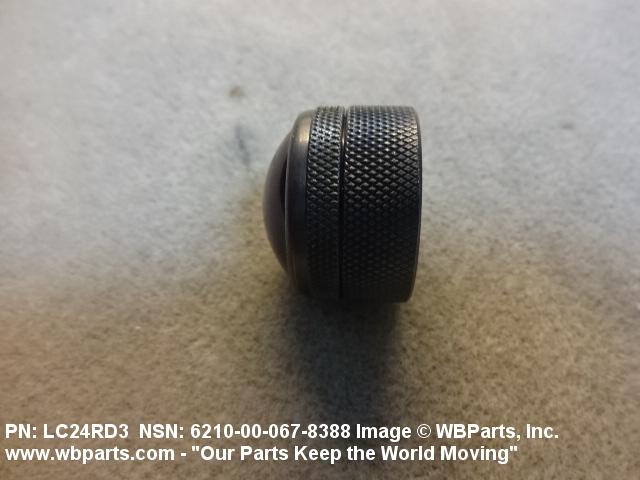

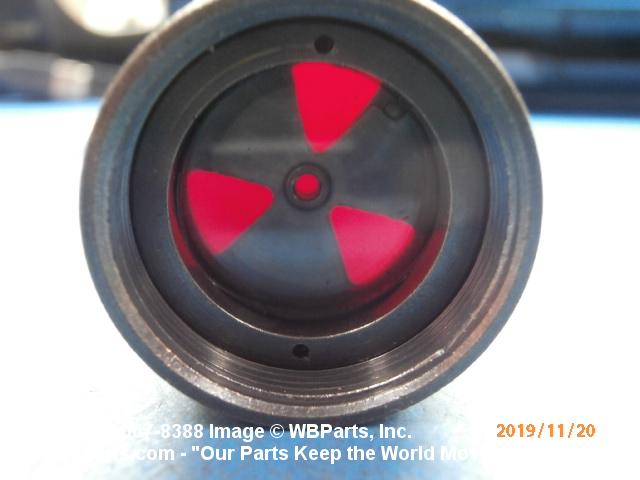

Drawings & Photos | NSN 6210-00-067-8388

Part Number	Request Date	QTY	Origin
LC24RD3	2024-11-334	183	TH
6210-00-067-8388	2023-02-47	142	DIBBS
6210-00-067-8388	2022-12-342	84	DIBBS
6210-00-067-8388	2022-10-299	45	DIBBS
6210-00-067-8388	2022-10-276	88	DIBBS
6210-00-067-8388	2022-07-187	3	United States
6210-00-067-8388	2022-07-186	3	United States
6210-00-067-8388	2022-06-164	105	DIBBS
6210-00-067-8388	2021-11-313	105	DIBBS
6210-00-067-8388	2021-04-109	114	DIBBS
6210-00-067-8388	2020-10-281	85	DIBBS
6210-00-067-8388	2020-08-231	1	KR
6210-00-067-8388	2020-03-77	67	DIBBS
6210-00-067-8388	2020-03-73	1116	Thailand
6210-00-067-8388	2020-02-57	32	DIBBS
6210-00-067-8388	2019-10-302	35	Thailand
6210-00-067-8388	2019-01-10	35	MANUAL
6210-00-067-8388	2018-08-233	56	DIBBS
6210-00-067-8388	2017-12-339	272	DIBBS
6210-00-067-8388	2017-06-178	524	DIBBS
6210-00-067-8388	2017-06-173	171	DIBBS
LC24RD3	2017-03-82	1	US
6210-00-067-8388	2017-03-66	524	DIBBS
6210-00-067-8388	2017-01-04	70	DIBBS
6210-00-067-8388	2016-05-126	170	DIBBS
6210-00-067-8388	2016-03-70	164	DIBBS
6210-00-067-8388	2013-04-114	392	DIBBS
6210-00-067-8388	2009-11-331	244	DIBBS

Cross Reference | NSN 6210-00-067-8388

Part Number	Cage Code	Manufacturer
209-0111-300	83330	DIALIGHT CORPORATION
210-0111-203	83330	DIALIGHT CORPORATION
621000678388	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
71B111	83330	DIALIGHT CORPORATION
71SB11	83330	DIALIGHT CORPORATION
LC24RD1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
LC24RD3	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-L-3661/24	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6210-00-067-8388

Compare

Related Products | NSN 6210-00-067-8388

6210-00-067-8389, 6210-00-067-8390, 6210-00-067-8392, 6210-00-067-8833, 6210-00-067-8834

Technical Data | NSN 6210-00-067-8388

Characteristic	Specifications

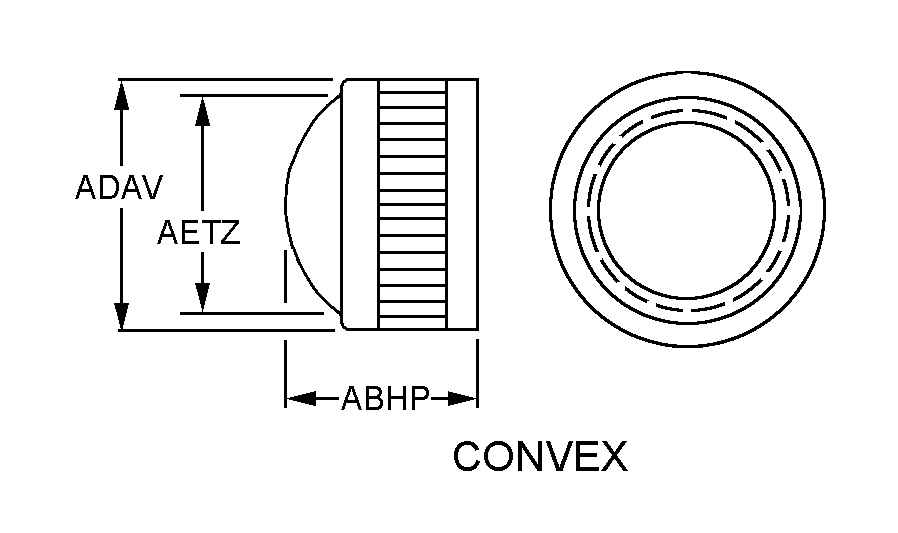

STYLE DESIGNATOR	83 CONVEX
OVERALL LENGTH	0.940 INCHES MAXIMUM

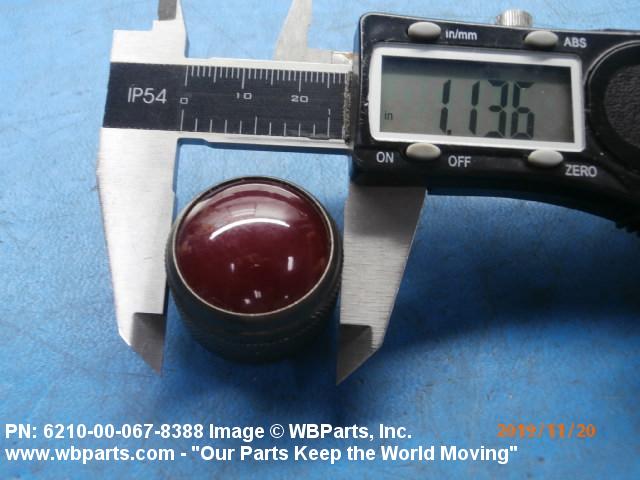

OVERALL DIAMETER	1.090 INCHES MINIMUM AND 1.150 INCHES MAXIMUM
EFFECTIVE DIAMETER	0.940 INCHES MINIMUM AND 1.000 INCHES MAXIMUM
MATERIAL	PLASTIC LENS
LIGHT TRANSMISSION DESIGN	TRANSLUCENT LENS
SURFACE CONDITION	FROSTED BACK SMOOTH FACE
MOUNTING METHOD	INTERNAL THREAD
MOUNTING DEVICE QUANTITY	1
THREAD SERIES	UNS
THREAD LENGTH	0.200 INCHES MINIMUM AND 0.260 INCHES MAXIMUM
THREAD DIAMETER	1.000 INCHES

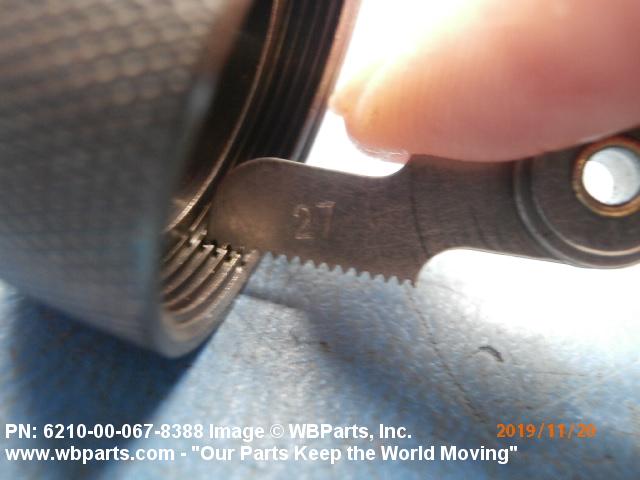

THREAD QUANTITY	27 PER INCH
THREAD CLASS	2B
THREAD DIRECTION	RIGHT-HAND

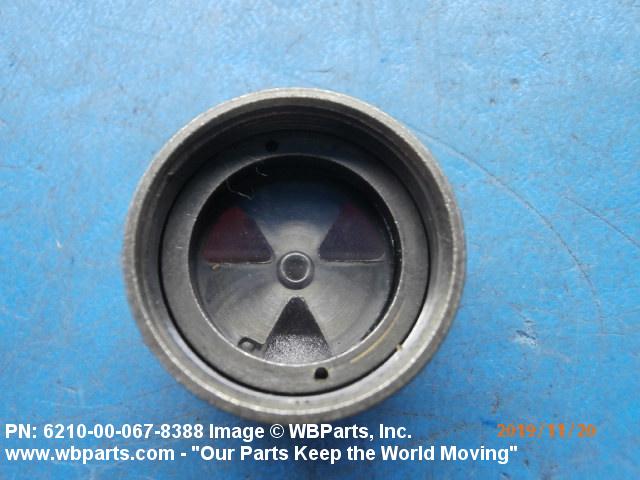

DIMMING DEVICE TYPE	MECHANICAL SHUTTER
COLOR	BLACK HOLDER RED, IDENTIFICATION LENS
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION	DRIPPROOF
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	LC24RD3
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-L-3661/24

Restrictions/Controls & Freight Information | NSN 6210-00-067-8388

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	109700	LAMP OR LIGHTING FIXTURES
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6210-00-067-8388

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
