Product Details | ELECTRICAL LEAD

6150-01-580-3025 A definite length of one-conductor electrical wire, wire braid, or other conductive material, except cable or cord, one or both ends of which are processed or terminated. The lead may be of any size or shape, insulated or uninsulated. See also LEAD, TEST and BUS CONDUCTOR. Excludes LEAD, STORAGE BATTERY; LEAD, IGNITION, ENGINE, and items having attached switches, lampholders, suppressors, resistors, and the like.20511350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance5995000061500055Miscellaneous Electric Power and Distribution Equipment65150057Medical and Surgical Instruments, Equipment, and Supplies

Part Alternates: M83413/8-G004CC, M834138G004CC, 6150-01-580-3025, 01-580-3025, 6150015803025, 015803025

Electric Wire, and Power and Distribution Equipment | Miscellaneous Electric Power and Distribution Equipment

Supply Group (FSG) NSN Assign. NIIN
61 10 DEC 2009 01-580-3025

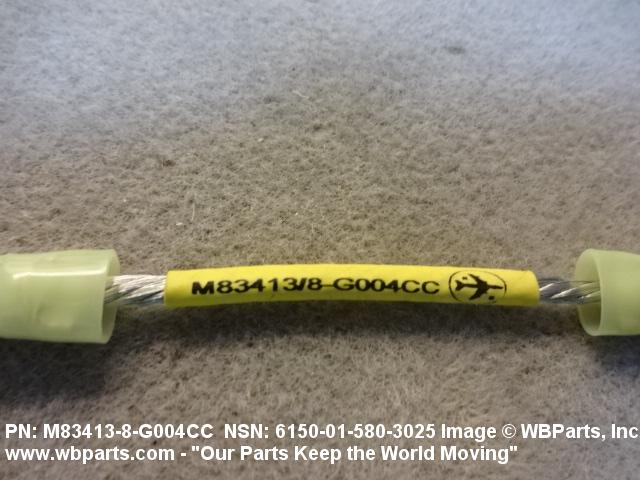

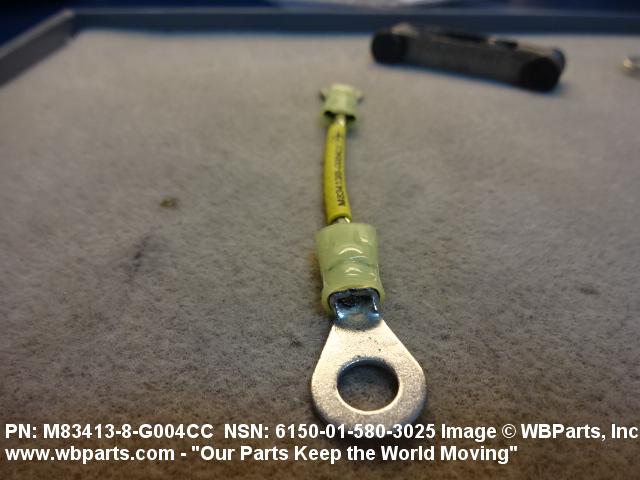

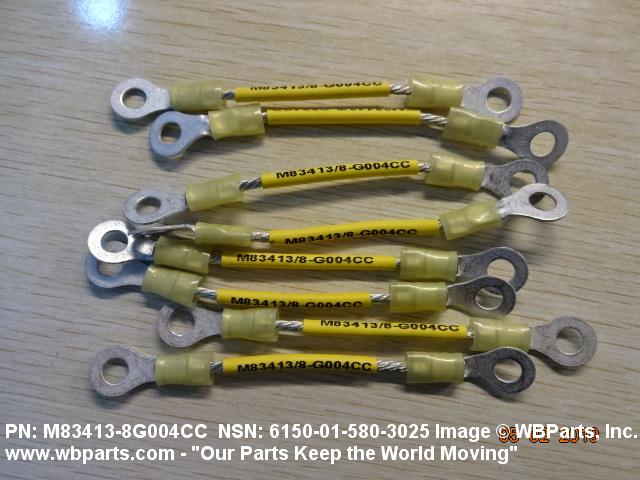

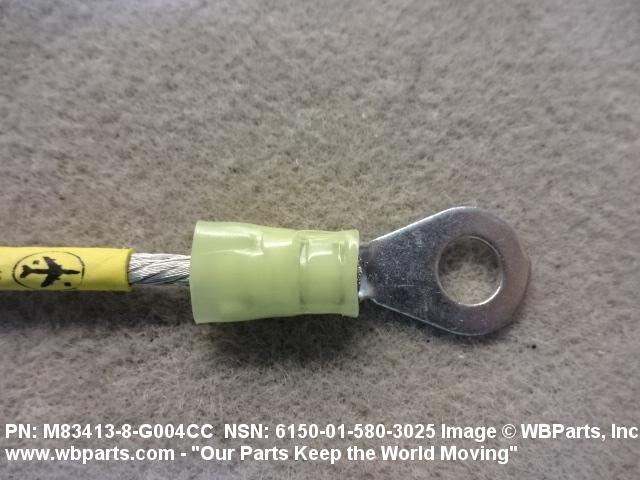

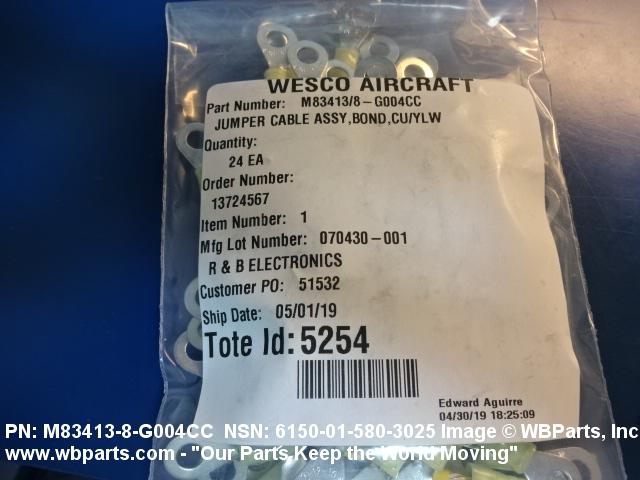

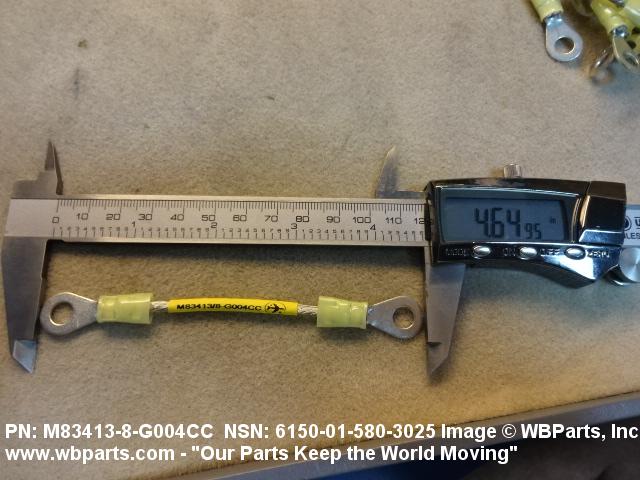

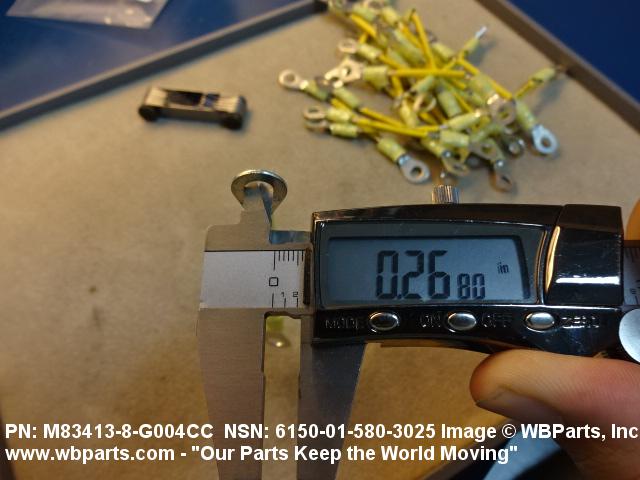

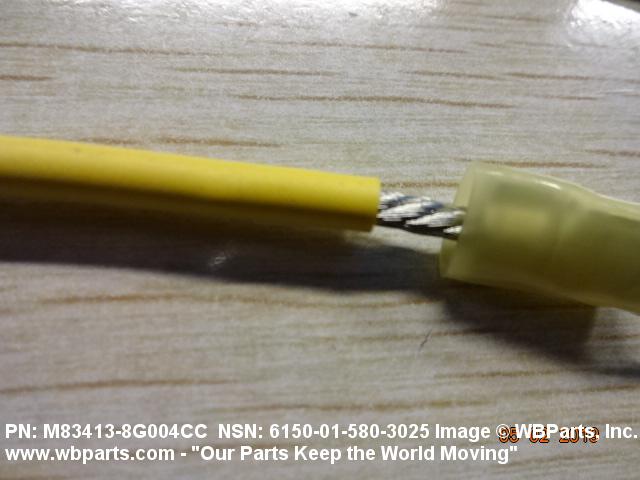

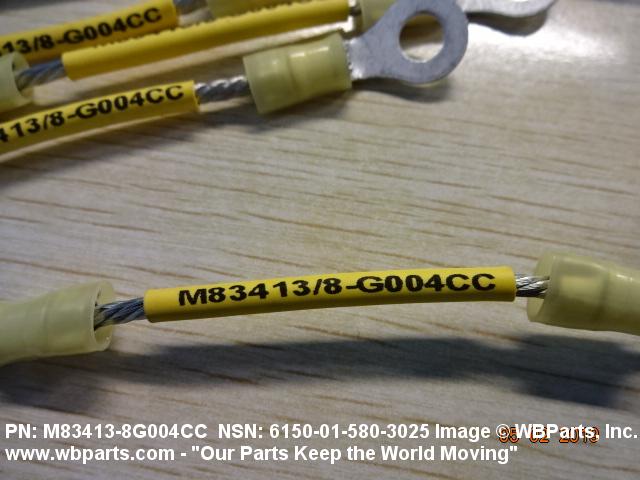

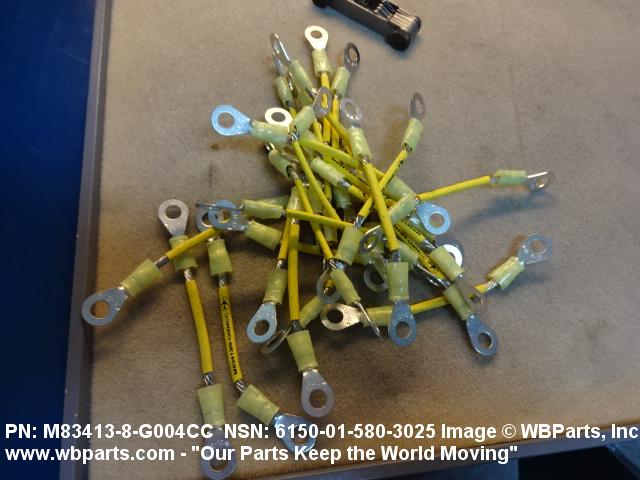

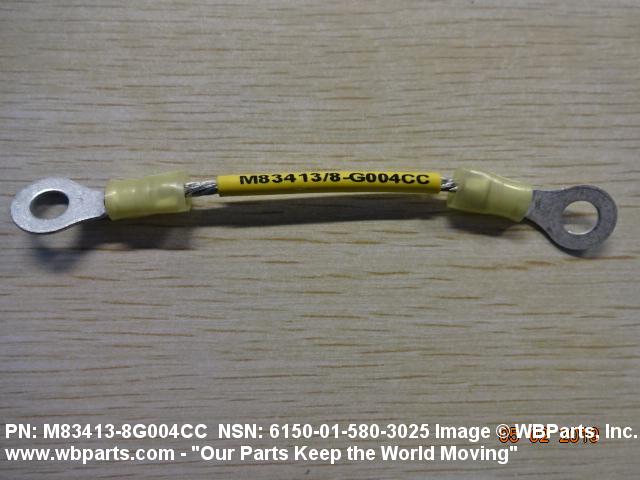

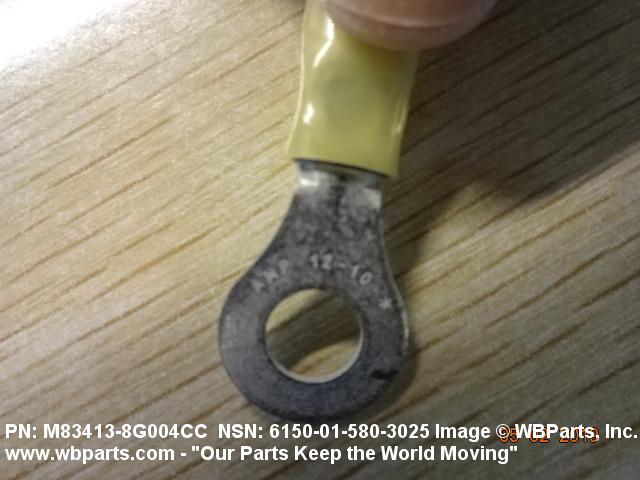

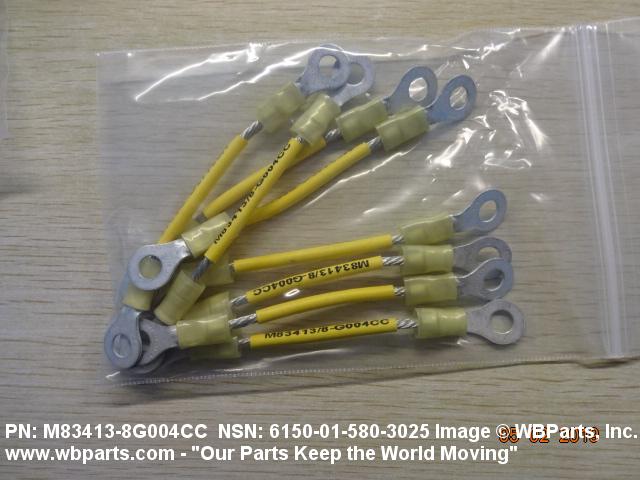

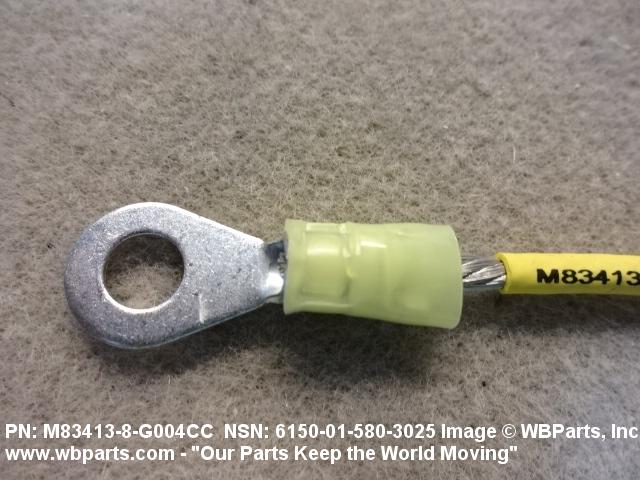

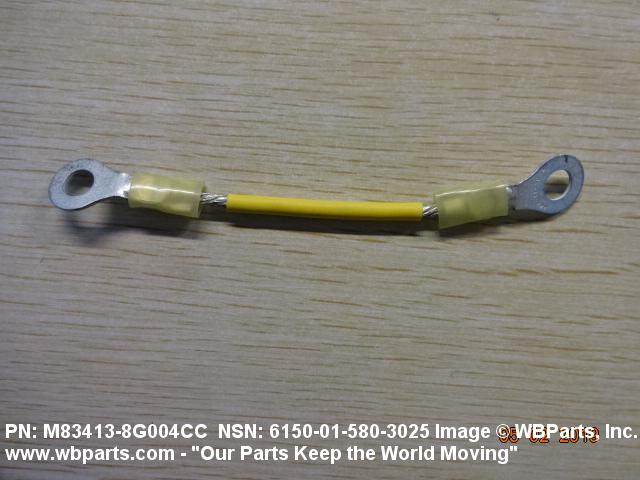

Drawings & Photos | NSN 6150-01-580-3025


Demand History | NSN 6150-01-580-3025

Part Number Request Date QTY Origin
M834138G004CC 2024-10-296 1 FR
M834138G004CC 2020-03-71 90 United States
M834138G004CC 2019-10-301 66 United States
M834138G004CC 2019-04-119 24 United States
6150-01-580-3025 2019-01-24 8 United States

Cross Reference | NSN 6150-01-580-3025

Part Number Cage Code Manufacturer
M83413/8-G004CC 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6150-01-580-3025

Technical Data | NSN 6150-01-580-3025

Characteristic Specifications
CONDUCTOR FORM STRANDED SINGLE CONDUCTOR
TERMINATION TYPE LUG TERMINAL W/MOUNTING HOLE BOTH ENDS SINGLE CONDUCTOR
CROSS-SECTIONAL SHAPE STYLE ROUND
STRAND QUANTITY PER CONDUCTOR 7 SINGLE CONDUCTOR
END ITEM IDENTIFICATION F/A-22 RAPTOR
STRAND AWG SIZE PER CONDUCTOR 37 SINGLE CONDUCTOR
ROUND CONDUCTOR SIZE 12 AWG SINGLE CONDUCTOR

Restrictions/Controls & Freight Information | NSN 6150-01-580-3025

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:BMunitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
