NSN 6150-01-521-2775 A31U19318, A31U1931823, A31U19318-23
Product Details | ELECTRICAL SPECIAL PURPOSE CABLE ASSEMBLY
6150-01-521-2775 A definite continuous length of CABLE, SPECIAL PURPOSE, ELECTRICAL, having one or more ends processed or terminated in fittings which provide for connection to other items. Excludes items having branches or forks. Excludes LEAD, TEST and CABLE AND CONDUIT ASSEMBLY, ELECTRICAL.20611350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance132500004935000059950057Cable, Cord, and Wire Assemblies: Communication Equipment61500055Miscellaneous Electric Power and Distribution Equipment
Part Alternates: A31U19318, A31U1931823, A31U19318-23, 6150-01-521-2775, 01-521-2775, 6150015212775, 015212775
Electric Wire, and Power and Distribution Equipment | Miscellaneous Electric Power and Distribution Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 16 JUN 2004 | 01-521-2775 | 00782 ( CABLE ASSEMBLY, SPECIAL PURPOSE, ELECTRICAL ) |
Drawings & Photos | NSN 6150-01-521-2775
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6150-01-521-2775
Related Products | NSN 6150-01-521-2775
Technical Data | NSN 6150-01-521-2775
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 50 |
| CONDUCTOR FORM | RIBBON ALL CONDUCTORS |
| MATERIAL | PLASTIC CORE CONDUCTOR ALL CONDUCTORS |
| ROUND CONDUCTOR SIZE | 30 AWG 1ST CONDUCTOR 32 AWG 2ND CONDUCTOR |
| CONDUCTOR CROSS-SECTIONAL SHAPE | RECTANGULAR ALL CONDUCTORS |
| HEIGHT | 2.660 INCHES NOMINAL ALL CONDUCTORS |
| WIDTH | 0.240 INCHES NOMINAL ALL CONDUCTORS |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 25 TWIN-AXIAL PARALLEL |
| COLOR | BLACK CORE CONDUCTOR ALL CONDUCTORS |
| STYLE DESIGNATOR | 59 INTERNAL CONNECTORS |
| OVERALL LENGTH | 12.000 INCHES |

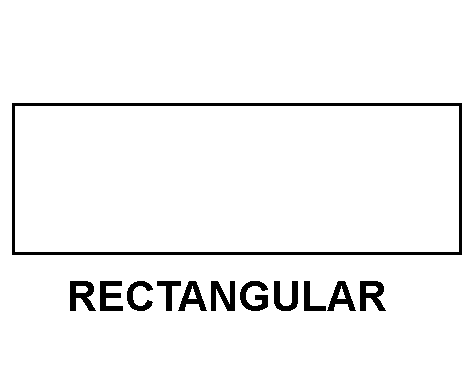

| CROSS-SECTIONAL SHAPE STYLE | 11 RECTANGULAR |
| TERMINATION TYPE | FLAT CABLE CONNECTOR FEMALE STRAIGHT ALL ENDS ALL CONDUCTORS |
| TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER | A31U19318-23 ALL ENDS ALL CONDUCTORS |
| TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE | 26916 ALL ENDS ALL CONDUCTORS |
| SPECIAL FEATURES | LABEL A: P1-1 TO J13-1 LABEL B: A31U19318-23 MFR XXXXX LABEL C: P2-1 TO J13B-1 |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III END ITEM IDENTIFICATION | 4940-01-471-6396, ELECTRONIC SHOP, TRANSPORTABLE. W/S; MISSILE, PATRIOT |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | CABLE ASSEMBLY TLC 50 OHM |
Restrictions/Controls & Freight Information | NSN 6150-01-521-2775
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | C | Item contains two or more precious metals |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061130 | CABLE ASSEMBLY |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | CH | Defense Supply Center Richmond Richmond, VA 23297 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
