NSN 6150-01-485-1620 9331906, 01-485-1620, 014851620
Product Details | ELECTRICAL POWER CABLE ASSEMBLY
6150-01-485-1620 A definite continuous length of CABLE, POWER, ELECTRICAL having one or both ends processed and/or terminated in fittings which provide for connection to other items. Excludes CABLE AND CONDUIT ASSEMBLY, ELECTRICAL and items having branches or forks. See also WIRING HARNESS.20511150037Nuclear Warheads and Warhead Sections11350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance5995000061500055Miscellaneous Electric Power and Distribution Equipment
Part Alternates: 9331906, 6150-01-485-1620, 01-485-1620, 6150014851620, 014851620
Electric Wire, and Power and Distribution Equipment | Miscellaneous Electric Power and Distribution Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 17 MAY 2001 | 01-485-1620 | 00485 ( CABLE ASSEMBLY, POWER, ELECTRICAL ) |
Drawings & Photos | NSN 6150-01-485-1620
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6150-01-485-1620
Technical Data | NSN 6150-01-485-1620
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 4 |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| MATERIAL | COPPER CORE CONDUCTOR ALL CONDUCTORS |

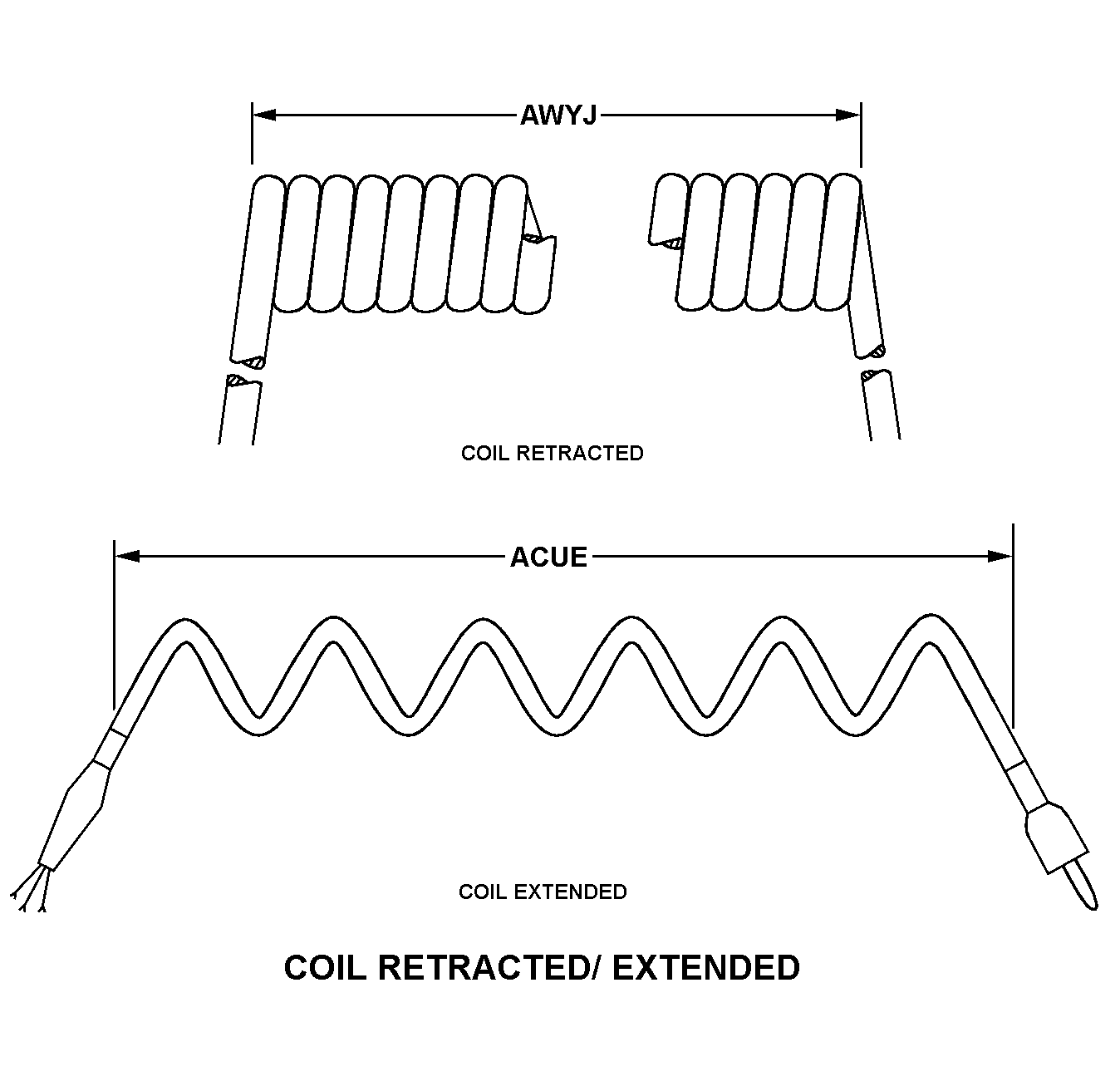

| STYLE DESIGNATOR | 57 COIL RETRACTED/EXTENDED |
| EXTENDED LENGTH | 60.000 INCHES |
| RETRACTED LENGTH | 20.000 INCHES |

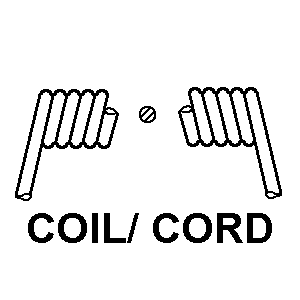

| CROSS-SECTIONAL SHAPE STYLE | 1 COIL/CORD |
| TERMINATION TYPE | TERMINAL QUICK DISCONNECT 1ST END ALL CONDUCTORS PROD TERMINAL 2ND END ALL CONDUCTORS |
| INDIVIDUAL CONDUCTOR LENGTH | 60.000 INCHES NOMINAL BOTH ENDS ALL CONDUCTORS |
| SPECIAL FEATURES | NOMENCLATURE-CABLE,POWER; NHA P/N 9331900; MANUF/SUPP-AIRBORN INC(0URH0), AIR FORCE MUNITIONS SYSTEMS DIV(18894) |
| III END ITEM IDENTIFICATION | FMU-152B |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | CABLE,POWER |
Restrictions/Controls & Freight Information | NSN 6150-01-485-1620
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 6150-01-485-1620
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | A | The standard price is being analyzed.
|
| Materiel Management Aggregation Code | NM | SU:NONEXPLOSIVE MANAGED ASSETS |
| Budget Code | U | 8157X3080:Ammunition Replenishment Spares |
| Source of Supply | FGZ | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
