NSN 6150-01-206-1919 473402B26, 01-206-1919, 012061919
Product Details | FLEXIBLE PRINTED CABLE ASSEMBLY
6150-01-206-1919 A definite continuous length of flat electrical cable consisting of two or more deposited, etched, or printed conductive paths laminated between insulating films and having one or more ends processed or terminated with facilities which provide for connection to other items. It may also provide facilities for connections to other items at locations other than the ends of the cable. For items with solid and/or stranded conductors, see CABLE (as modified); CABLE ASSEMBLY (as modified); and WIRING HARNESS (as modified). For rigid items consisting only of electrical conductor paths and two or more connectors, see BACKPLANE ASSEMBLY. See also PRINTED CIRCUIT BOARD and PRINTED WIRING BOARD.20259950057Cable, Cord, and Wire Assemblies: Communication Equipment61500055Miscellaneous Electric Power and Distribution Equipment
Part Alternates: 473402B26, 6150-01-206-1919, 01-206-1919, 6150012061919, 012061919
Electric Wire, and Power and Distribution Equipment | Miscellaneous Electric Power and Distribution Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 15 APR 1985 | 01-206-1919 | 35612 ( CABLE ASSEMBLY, PRINTED, FLEXIBLE ) |

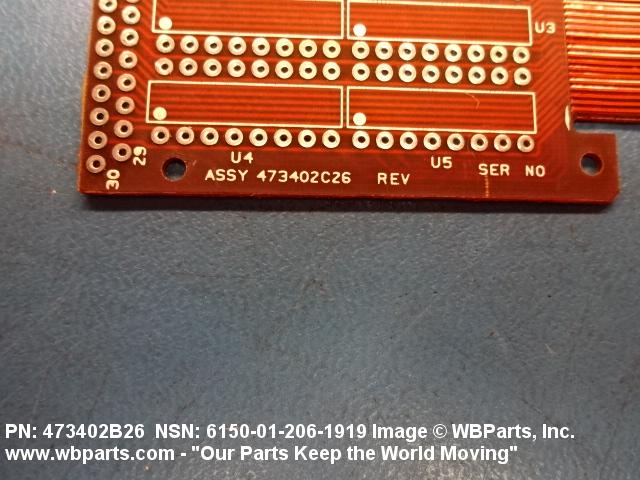

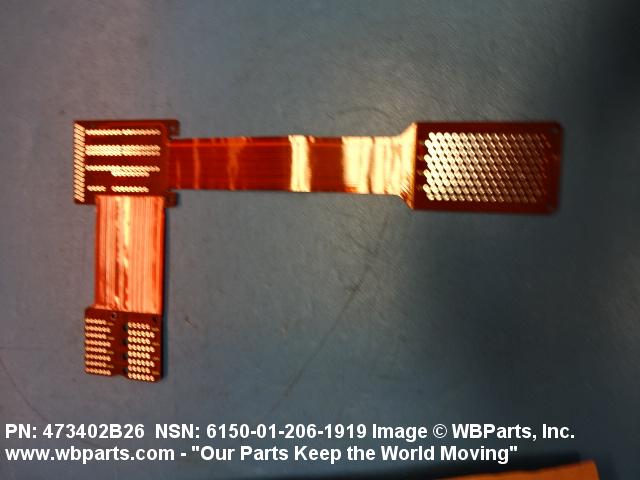

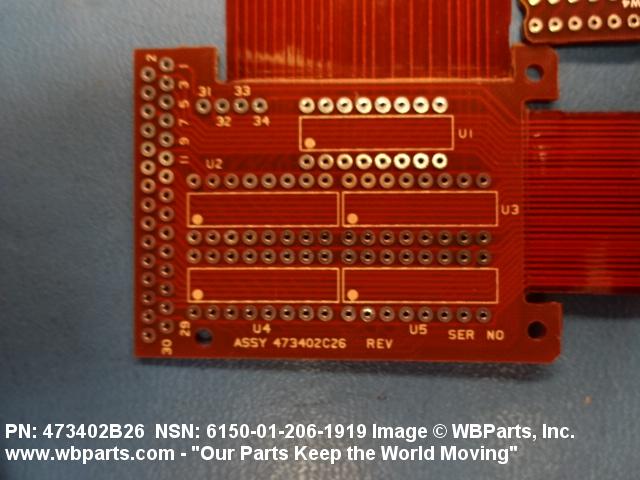

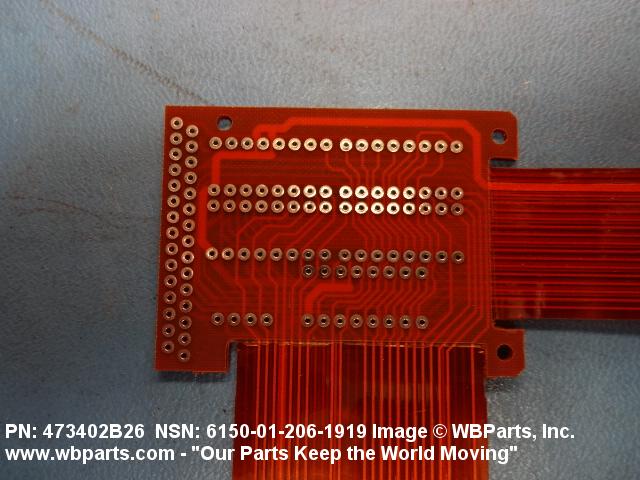

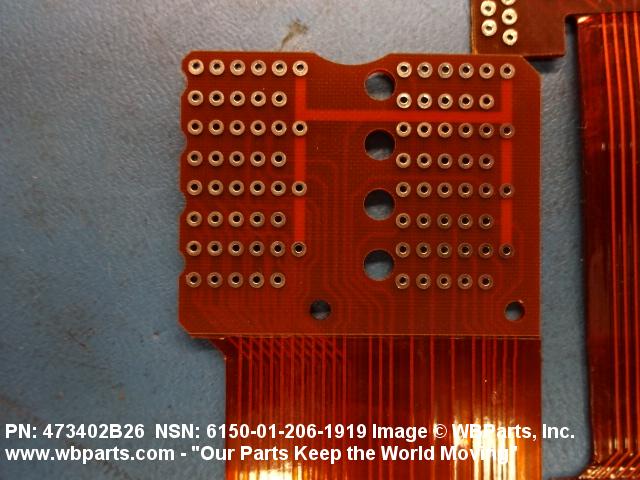

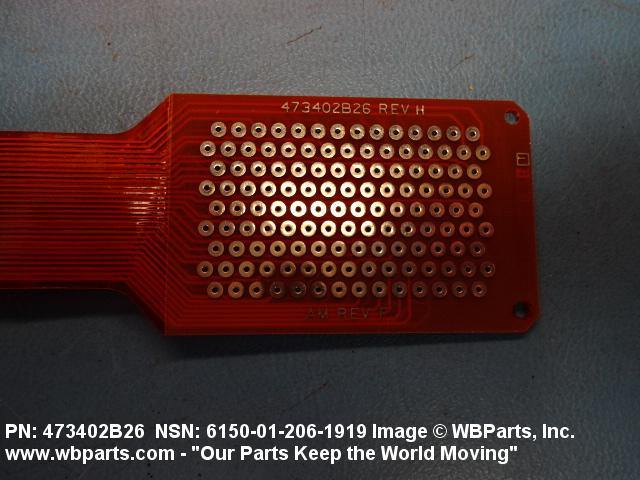

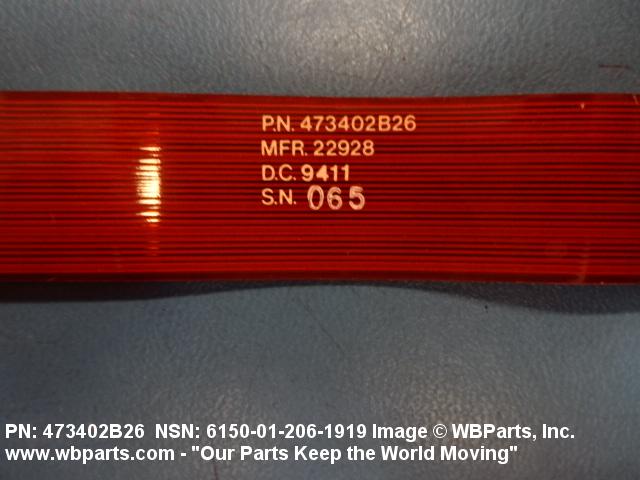

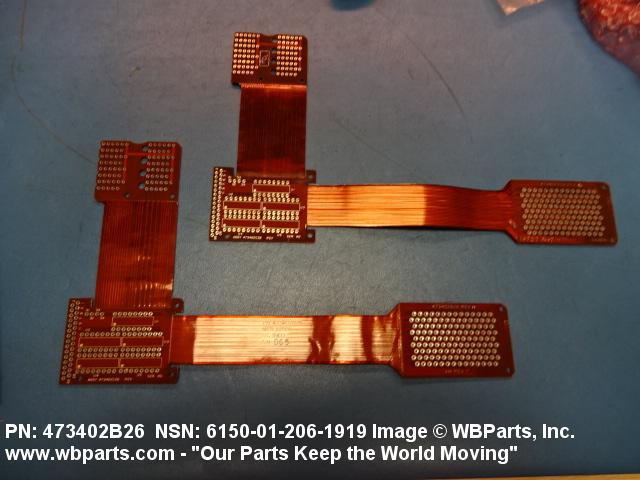

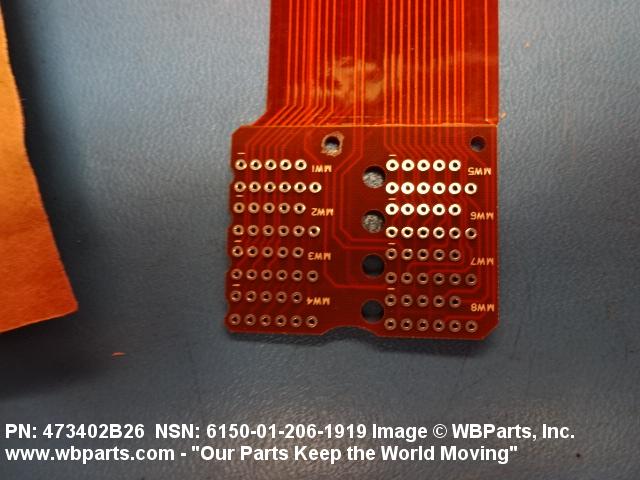

Drawings & Photos | NSN 6150-01-206-1919
Demand History | NSN 6150-01-206-1919
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6150-01-206-1919 | 2019-02-42 | 2 | United States |
| 6150-01-206-1919 | 2018-12-338 | 2 | DIBBS |
| 6150-01-206-1919 | 2012-06-177 | 2 | DIBBS |
| 6150-01-206-1919 | 2012-06-162 | 2 | DIBBS |
| 6150-01-206-1919 | 2012-05-142 | 3 | DIBBS |
| 6150-01-206-1919 | 2012-05-127 | 3 | DIBBS |
| 6150-01-206-1919 | 2012-03-74 | 2 | DIBBS |
| 6150-01-206-1919 | 2011-08-213 | 3 | DIBBS |
| 6150-01-206-1919 | 2011-01-07 | 2 | DIBBS |
| 6150-01-206-1919 | 2010-04-106 | 1 | DIBBS |
| 6150-01-206-1919 | 2010-02-55 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6150-01-206-1919
Technical Data | NSN 6150-01-206-1919
| Characteristic | Specifications |
|---|---|
| CABLE IDENTIFICATION | 473402B26 |
| CABLE MANUFACTURER CODE | 22928 |
| END ITEM IDENTIFICATION | 6680011425606,INDICATOR,LIQUID |
| SPECIAL FEATURES | NOMENCLATURE CABLE ASSY,PRINTED,FLEXIBLE; NUCLEAR HARDNESS CRITICAL ITEM(HCI); MATERIAL IS POLIMIDE PER MIL-P-4112,TYPE 2,GRADE A (KAPTAN H),FOIL,COPPER PER IPC-CF-150E; LAYERS-11 |
Restrictions/Controls & Freight Information | NSN 6150-01-206-1919
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061130 | CABLE ASSEMBLY |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6150-01-206-1919
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | QD | SX:MISCELLANEOUS INSTRUMENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
