NSN 6150-00-725-1184 MS250832BB5, MS25083-2BB5, M83413/8-A005BB

Product Details | ELECTRICAL LEAD

6150-00-725-1184 A definite length of one-conductor electrical wire, wire braid, or other conductive material, except cable or cord, one or both ends of which are processed or terminated. The lead may be of any size or shape, insulated or uninsulated. See also LEAD, TEST and BUS CONDUCTOR. Excludes LEAD, STORAGE BATTERY; LEAD, IGNITION, ENGINE, and items having attached switches, lampholders, suppressors, resistors, and the like.20511350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance5995000061500055Miscellaneous Electric Power and Distribution Equipment65150057Medical and Surgical Instruments, Equipment, and Supplies

Part Alternates: MS250832BB5, MS25083-2BB5, M83413/8-A005BB , M83413/8-A05BB, M834138A005BB, M834138A05BB, AN74935, AN749-3-5, AN75135, AN751-3-5, MIL-C-83413/8, MILC834138, 6150M230021, 6150M23-0021, CE5E, 6150-00-725-1184, 00-725-1184, 6150007251184, 007251184

Electric Wire, and Power and Distribution Equipment | Miscellaneous Electric Power and Distribution Equipment

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
61	01 JAN 1963	00-725-1184	04581 ( LEAD, ELECTRICAL )

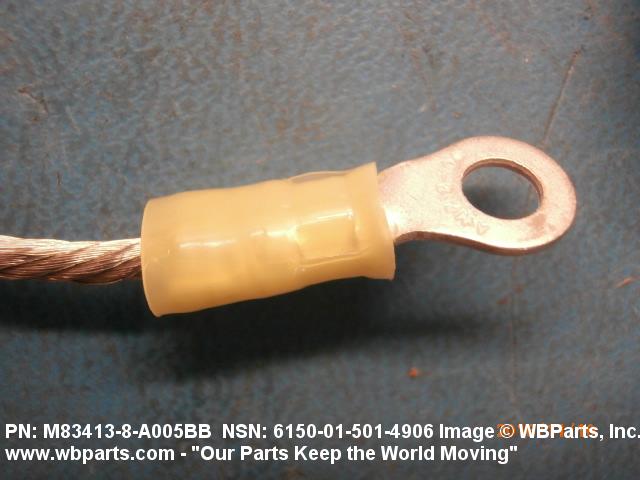

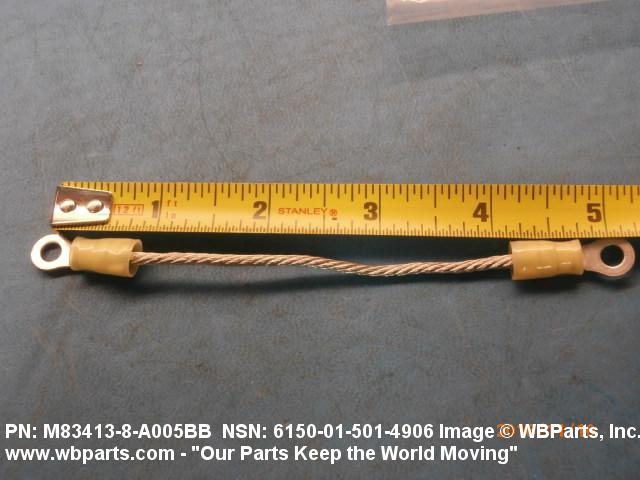

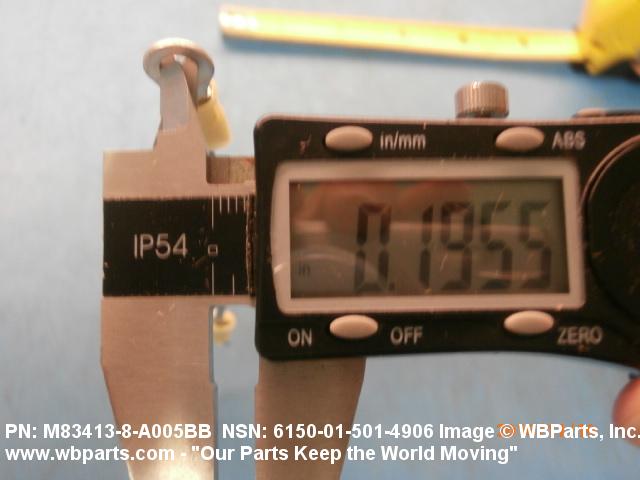

Drawings & Photos | NSN 6150-00-725-1184

Part Number	Request Date	QTY	Origin
6150-00-725-1184	2025-01-05	3000	TR
M834138A005BB	2024-08-232	6	US
MS250832BB5	2024-03-79	20	Croatia
6150-00-725-1184	2023-12-346	2510	DIBBS
6150-00-725-1184	2023-05-136	4	United States
CE5E	2020-11-315	10	United States
MS250832BB5	2020-11-315	4	United States
MS250832BB5	2018-11-317	1	US
6150-00-725-1184	2018-02-46	1	DIBBS-RFPs
M834138A005BB	2016-09-270	22	Korea
M834138A005BB	2015-11-308	17	United States
M834138A005BB	2015-11-308	51	United States
M834138A005BB	2015-11-308	119	United States
M834138A005BB	2015-11-308	255	United States
M834138A005BB	2015-11-308	493	United States
M834138A005BB	2015-11-308	969	United States
6150-00-725-1184	2015-06-166	82	US
M834138A005BB	2014-01-22	20	US
M834138A005BB	2012-01-17	50	Italy
6150-00-725-1184	2011-10-284	5	US
MS250832BB5	2011-06-171	10	France
MS250832BB5	2011-05-144	22	United States
M834138A005BB	2010-04-95	10	United States
M834138A005BB	2010-03-90	10	United States
6150-00-725-1184	2008-05-148	549	DIBBS

Cross Reference | NSN 6150-00-725-1184

Part Number	Cage Code	Manufacturer
6150M23-0021	81996	U S ARMY AVIATION AND MISSILE COMMAND
AN749-3-5	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN751-3-5	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
CE5E	79550	ELECTRO-WIRE PRODUCTS INC
M83413/8-A005BB	0XPA4	A F TECHNOLOGIES INC
M83413/8-A05BB	0XPA4	A F TECHNOLOGIES INC
M83413/8-A05BB	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-83413/8	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS25083-2BB5	04939	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
MS25083-2BB5	38597	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
MS25083-2BB5	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6150-00-725-1184

Compare

Related Products | NSN 6150-00-725-1184

6150-00-725-1185, 6150-00-725-1186, 6150-00-725-1187, 6150-00-725-1189, 6150-00-725-4605

Technical Data | NSN 6150-00-725-1184

Characteristic	Specifications
CONDUCTOR FORM	STRANDED SINGLE CONDUCTOR
MATERIAL	COPPER ALLOY CORE CONDUCTOR SINGLE CONDUCTOR
ROUND CONDUCTOR SIZE	12 AWG SINGLE CONDUCTOR
STRAND QUANTITY PER CONDUCTOR	7 SINGLE CONDUCTOR
STRAND AWG SIZE PER CONDUCTOR	37 SINGLE CONDUCTOR
CROSS-SECTIONAL SHAPE STYLE	6 ROUND
CROSS SECTION OUTSIDE DIAMETER	0.081 INCHES NOMINAL
TERMINATION TYPE	LUG TERMINAL W/MOUNTING HOLE BOTH ENDS SINGLE CONDUCTOR
TERMINAL LUG APERTURE SIZE	0.193 INCHES 1ST END SINGLE CONDUCTOR 0.193 INCHES 2ND END SINGLE CONDUCTOR
TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER	MS25036-112 BOTH ENDS SINGLE CONDUCTOR
TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE	96906 BOTH ENDS SINGLE CONDUCTOR
LEAD OVERALL LENGTH	5.375 INCHES NOMINAL
LEAD PULL STRENGTH	110.0 POUNDS
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-83413/8
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M83413/8-A05BB

Restrictions/Controls & Freight Information | NSN 6150-00-725-1184

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	062360	LEADS/LEAD WIRES ELEC ARTICLE ETC
Less than car load rating
Less than truck load rating	J	100.2
Water commodity Code	743	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6150-00-725-1184

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
