NSN 6150-00-681-1367 MS250832BB12, MS25083-2BB12, M83413/8-A12BB
Product Details | ELECTRICAL LEAD
6150-00-681-1367 A definite length of one-conductor electrical wire, wire braid, or other conductive material, except cable or cord, one or both ends of which are processed or terminated. The lead may be of any size or shape, insulated or uninsulated. See also LEAD, TEST and BUS CONDUCTOR. Excludes LEAD, STORAGE BATTERY; LEAD, IGNITION, ENGINE, and items having attached switches, lampholders, suppressors, resistors, and the like.20511350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance5995000061500055Miscellaneous Electric Power and Distribution Equipment65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: MS250832BB12, MS25083-2BB12, M83413/8-A12BB, M834138A12BB, BACJ40A2012, BAC-J40A-20-12, CE12E, MIL-C-83413/8, MILC834138, 740A2012, 740A-20-12, 740A20-12, 25832BB12, 2583-2BB12, 6150-00-681-1367, 00-681-1367, 6150006811367, 006811367
Electric Wire, and Power and Distribution Equipment | Miscellaneous Electric Power and Distribution Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1961 | 00-681-1367 | 04581 ( LEAD, ELECTRICAL ) |

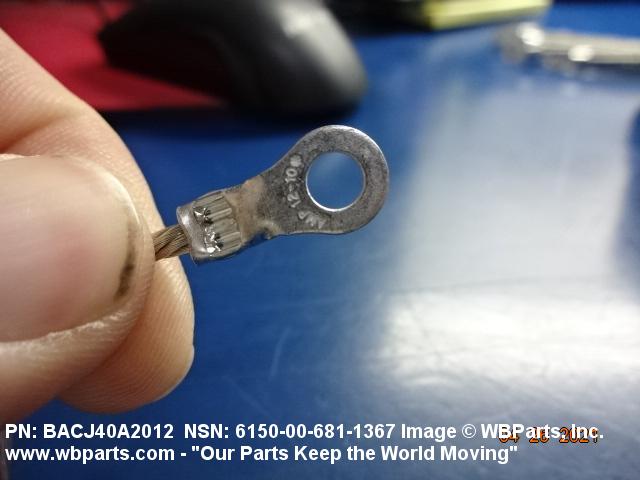

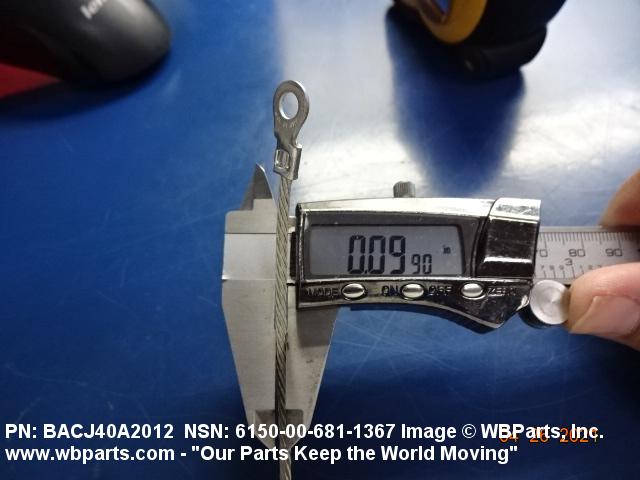

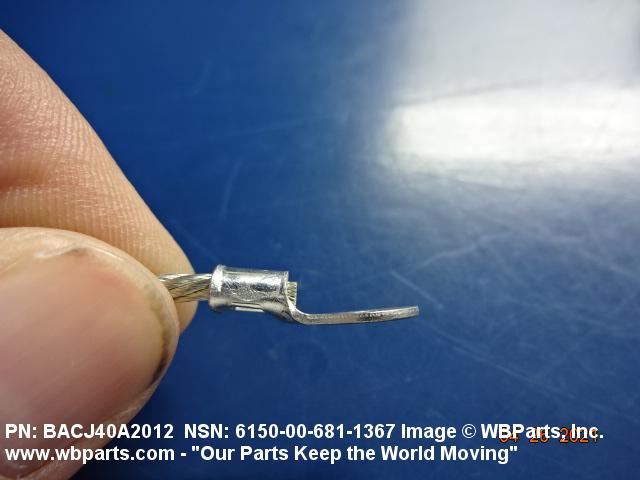

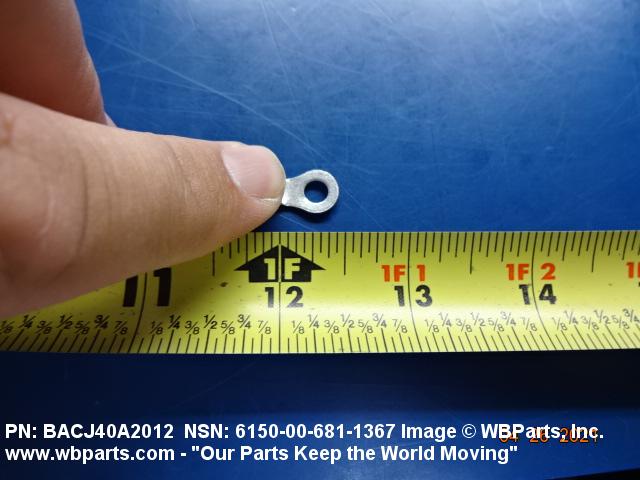

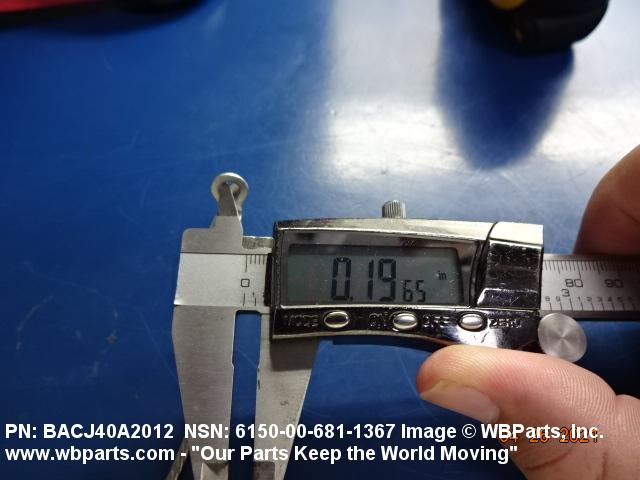

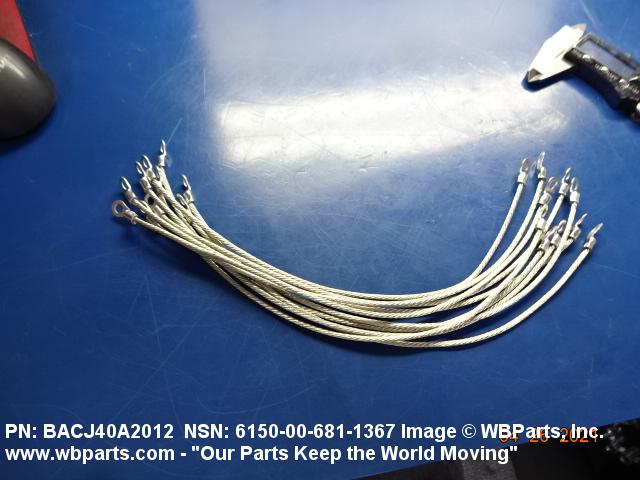

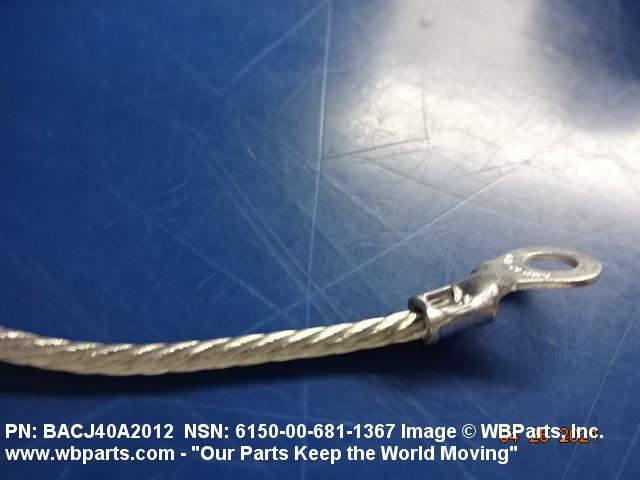

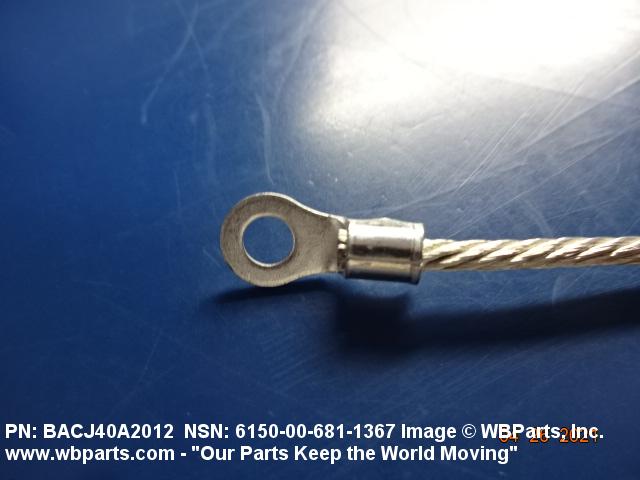

Drawings & Photos | NSN 6150-00-681-1367
Demand History | NSN 6150-00-681-1367
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACJ40A2012 | 2022-06-164 | 100 | US |
| CE12E | 2021-01-21 | 2 | United States |
| CE12E | 2021-01-11 | 3 | United States |
| CE12E | 2020-11-315 | 20 | United States |
| BACJ40A2012 | 2019-08-213 | 3 | US |
| BACJ40A2012 | 2019-05-128 | 34 | US |
| MS25083-2BB12 | 2017-12-348 | 1 | US |
| M834138A12BB | 2017-06-172 | 2 | US |
| M834138A12BB | 2017-06-172 | 20 | US |
| M834138A12BB | 2017-06-172 | 50 | US |
| M834138A12BB | 2017-06-172 | 100 | US |
| 6150-00-681-1367 | 2008-03-86 | 6 | Singapore |
Cross Reference | NSN 6150-00-681-1367
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2583-2BB12 | 91812 | JANCO CORPORATION DBA ESTERLINE MASON |
| 740A-20-12 | 91812 | JANCO CORPORATION DBA ESTERLINE MASON |
| 740A20-12 | 01812 | AMERICAN AUTOMATIC TYPEWRITTER CO |
| BAC-J40A-20-12 | 81205 | THE BOEING COMPANY DBA BOEING |
| CE12E | 79550 | ELECTRO-WIRE PRODUCTS INC |
| M83413/8-A12BB | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-83413/8 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS25083-2BB12 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6150-00-681-1367
Technical Data | NSN 6150-00-681-1367
| Characteristic | Specifications |
|---|---|
| CONDUCTOR FORM | STRANDED SINGLE CONDUCTOR |
| MATERIAL | COPPER ALLOY CORE CONDUCTOR SINGLE CONDUCTOR |
| ROUND CONDUCTOR SIZE | 12 AWG SINGLE CONDUCTOR |
| STRAND QUANTITY PER CONDUCTOR | 7 SINGLE CONDUCTOR |
| STRAND AWG SIZE PER CONDUCTOR | 37 SINGLE CONDUCTOR |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| CROSS SECTION OUTSIDE DIAMETER | 0.081 INCHES NOMINAL |
| TERMINATION TYPE | LUG TERMINAL W/MOUNTING HOLE BOTH ENDS SINGLE CONDUCTOR |
| TERMINAL LUG APERTURE SIZE | 0.193 INCHES 1ST END SINGLE CONDUCTOR 0.193 INCHES 2ND END SINGLE CONDUCTOR |
| TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER | MS25036-112 BOTH ENDS SINGLE CONDUCTOR |
| TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE | 96906 BOTH ENDS SINGLE CONDUCTOR |
| LEAD OVERALL LENGTH | 12.391 INCHES NOMINAL |
| LEAD PULL STRENGTH | 110.0 POUNDS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-83413/8 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M83413/8-A12BB |
Restrictions/Controls & Freight Information | NSN 6150-00-681-1367
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062360 | LEADS/LEAD WIRES ELEC ARTICLE ETC |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6150-00-681-1367
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
