NSN 6145-01-597-5086 AA59551, A-A-59551, AA59551H20S1S
Product Details | ELECTRICAL WIRE
6145-01-597-5086 A single metallic conductor of solid, stranded, or tinsel construction, designed to carry current in an electrical circuit. It may be a bare or insulated, may have metalic covering sheath, shield or and additional jacket. Refers to bulk quantities only. For items that are solid or stranded, insulated or uninsulated, and have the chemical composition specified but no conductivity (electrical properties) see WIRE,(as modified), Includes Litz wire and insulated/uninsulated armored, and ground wire. Excludes BRAID, WIRE; FUSE WIRE; RESISTANCE WIRE and MAGNET WIRE.
Part Alternates: AA59551, A-A-59551, AA59551H20S1S, AA59551-H20S1S, QQW343, QQ-W-343, QQW343H20S1S, 6145-01-597-5086, 01-597-5086, 6145015975086, 015975086
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 10 JUN 2011 | 01-597-5086 | 00798 ( WIRE, ELECTRICAL ) |

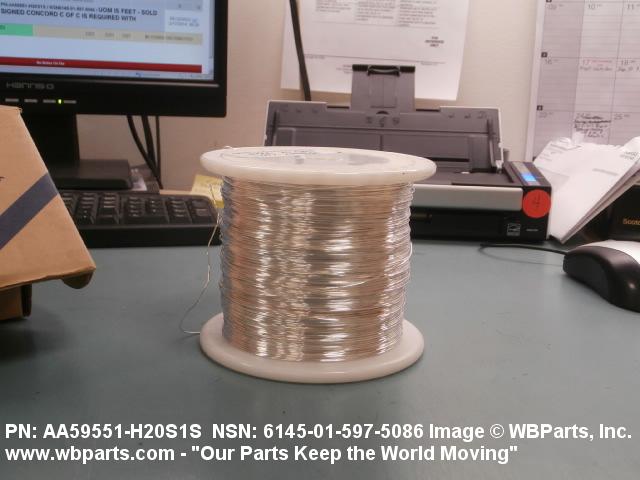

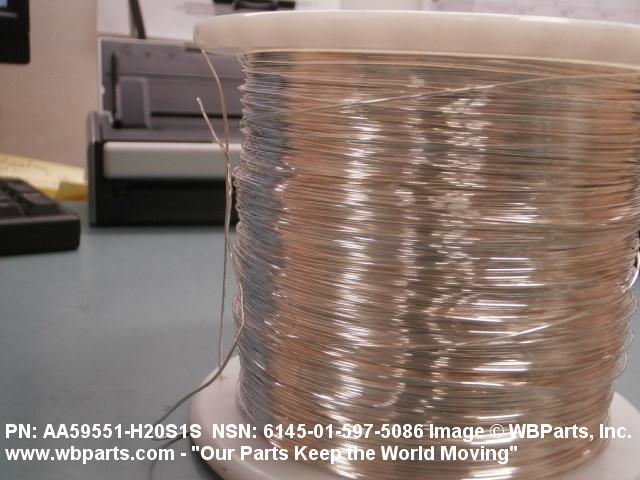

Drawings & Photos | NSN 6145-01-597-5086
Demand History | NSN 6145-01-597-5086
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AA59551H20S1S | 2023-12-339 | 100 | US |
| QQW343 | 2021-01-08 | 1 | United States |
| AA59551 | 2019-12-337 | 6 | US |
| AA59551H20S1S | 2015-10-296 | 10 | us |
| 6145-01-597-5086 | 2015-07-182 | 16 | US |
| 6145-01-597-5086 | 2015-03-70 | 1 | US |
| 6145-01-597-5086 | 2015-03-70 | 5 | US |
| 6145-01-597-5086 | 2015-03-70 | 10 | US |
| 6145-01-597-5086 | 2012-06-180 | 42 | DIBBS |
| QQ-W-343 | 2012-02-45 | 1 | United States |
| 6145-01-597-5086 | 2011-12-344 | 1 | DIBBS |
| 6145-01-597-5086 | 2011-10-297 | 50 | DIBBS |
Cross Reference | NSN 6145-01-597-5086
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A-A-59551 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA59551-H20S1S | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| QQ-W-343 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| QQW343H20S1S | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6145-01-597-5086
Related Products | NSN 6145-01-597-5086
Technical Data | NSN 6145-01-597-5086
| Characteristic | Specifications |
|---|---|
| CROSS SECTION OUTSIDE DIAMETER | 0.032 INCHES NOMINAL |
| SPECIAL FEATURES | SOLDERABILITY IS TESTED IAW METHOD 208 OF ML-STD-202 |
| CROSS-SECTIONAL SHAPE STYLE | ROUND |
| MATERIAL | COPPER CORE CONDUCTOR SINGLE CONDUCTOR |
| ROUND CONDUCTOR SIZE | 20 AWG SINGLE CONDUCTOR |
| PRECIOUS MATERIAL AND LOCATION | SURFACE SINGLE CONDUCTOR SILVER |
| END ITEM IDENTIFICATION | 1430-01-418-4396, RADAR SET,SEMITRAILER MOUNTED |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | WIRE, ELECTRICAL, COPPER (UNINSULATED) |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B298 ASSN STD SINGLE MATERIAL RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR |
| CONDUCTOR FORM | SOLID SINGLE CONDUCTOR |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM B298 ASSN STD SINGLE TREATMENT RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR |
| PRECIOUS MATERIAL | SILVER |
Restrictions/Controls & Freight Information | NSN 6145-01-597-5086
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030310 | CABLE OR WIRE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | BD | U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6145-01-597-5086
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z FT : Foot |
