NSN 6145-01-546-4082 M22759/16-16-9, M2275916169, MIL-W-22759/16
Product Details | ELECTRICAL WIRE
6145-01-546-4082 A single metallic conductor of solid, stranded, or tinsel construction, designed to carry current in an electrical circuit. It may be a bare or insulated, may have metalic covering sheath, shield or and additional jacket. Refers to bulk quantities only. For items that are solid or stranded, insulated or uninsulated, and have the chemical composition specified but no conductivity (electrical properties) see WIRE,(as modified), Includes Litz wire and insulated/uninsulated armored, and ground wire. Excludes BRAID, WIRE; FUSE WIRE; RESISTANCE WIRE and MAGNET WIRE.
Part Alternates: M22759/16-16-9, M2275916169, MIL-W-22759/16, MILW2275916, 6145-01-546-4082, 01-546-4082, 6145015464082, 015464082
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01-546-4082 | 00798 ( WIRE, ELECTRICAL ) |

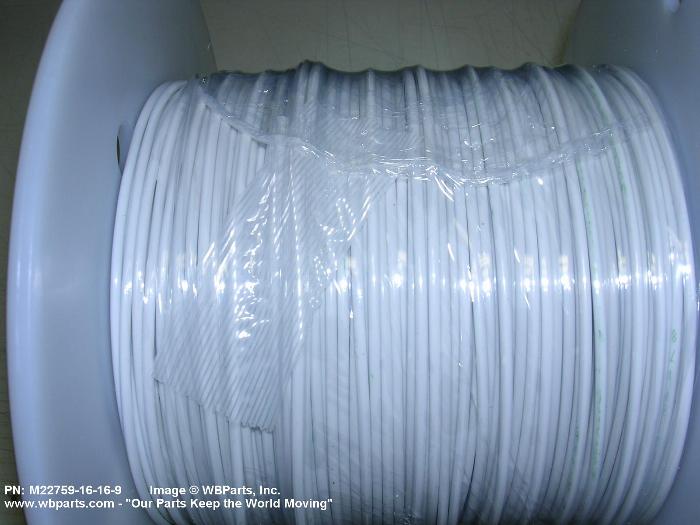

Drawings & Photos | NSN 6145-01-546-4082
Demand History | NSN 6145-01-546-4082
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M2275916169 | 2019-04-100 | 100 | United States |
| MIL-W-22759/16 | 2015-03-76 | 400 | TH |
| 6145-01-546-4082 | 2011-05-144 | 1 | CA |
| 6145-01-546-4082 | 2010-11-308 | 2366 | DIBBS |
| 6145-01-546-4082 | 2010-10-295 | 1667 | DIBBS |
| 6145-01-546-4082 | 2009-08-243 | 25 | DIBBS |
| 6145-01-546-4082 | 2008-01-20 | 4 | DIBBS |
Cross Reference | NSN 6145-01-546-4082
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13230E6653 | 97403 | CECOM LR CENTER |
| 13230E6653-5 | 97403 | CECOM LR CENTER |
| 4369 | 55944 | FALMAT, INC. DBA C B S |
| 503 217-9 | S3708 | HUBER AND SUHNER LTD |
| 75916-16-9 | 12515 | NEXANS AEROSPACE USA LLC |
| AS22759/16 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M22759/16-16-9 | 12814 | CARLISLE INTERCONNECT TECHNOLOGIES, INC. |
| M22759/16-16-9 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-W-22759/16 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| R61AWG16/19-9 | D2773 | DRAKA DEUTSCHLAND GMBH & CO. KG |
| TFZ 19X29U(0.0125)-9 | 90484 | ROCKBESTOS-SURPRENANT CABLE CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6145-01-546-4082
Technical Data | NSN 6145-01-546-4082
| Characteristic | Specifications |
|---|---|
| CONDUCTOR FORM | STRANDED SINGLE CONDUCTOR |
| MATERIAL | COPPER ALLOY CORE CONDUCTOR SINGLE CONDUCTOR PLASTIC ETHYLENE-TETRAFLUOROETHYLENE 1ST POSITION PRIMARY INSULATION SINGLE CONDUCTOR |
| SURFACE TREATMENT | TIN CORE CONDUCTOR SINGLE CONDUCTOR |
| ROUND CONDUCTOR SIZE | 16 AWG SINGLE CONDUCTOR |
| STRAND QUANTITY PER CONDUCTOR | 19 SINGLE CONDUCTOR |
| STRAND AWG SIZE PER CONDUCTOR | 29 SINGLE CONDUCTOR |
| COLOR | WHITE 1ST POSITION PRIMARY INSULATION SINGLE CONDUCTOR |
| VOLTAGE RATING | 600.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE SINGLE CONDUCTOR |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| CROSS SECTION OUTSIDE DIAMETER | 0.079 INCHES NOMINAL |
| TEMP RATING | 150.0 DEG CELSIUS |
| SPECIFICATION/STANDARD DATA | 81349-MIL-W-22759/16 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-W-22759/16 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M22759/16-16-9 |
Restrictions/Controls & Freight Information | NSN 6145-01-546-4082
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
