NSN 6145-01-135-6822 M2750016SB2T23, M27500-16SB2T23, NEMA WC27500
Product Details | ELECTRICAL POWER CABLE
6145-01-135-6822 Two or more insulated conductors (solid or stranded) contained in a common covering, or two or more insulated conductors twisted or molded together without a common covering, or one insulated conductor with a metallic covering, covering, shield, or outer conductor. The rated working voltage of the item must be 300 volts or more, or in lieu of this the test voltage must be 1,000 volts or more; and the size of each individual conductor must be number 18 American Wire Gage (0.75 SQUARE MILLIMETERS) or larger. For cables with uninsulated neutral conductor use the hightest rated voltage. Refers to bulk quantities only, for items of definite length with processed ends or terminated in fittings, see CABLE ASSEMBLY, POWER, ELECTRICAL. For low voltage aircraft and automotive cable, see CABLE, SPECIAL PURPOSE, ELECTRICAL.202411000006145000000
Part Alternates: M2750016SB2T23, M27500-16SB2T23, NEMA WC27500, NEMAWC27500, MILC27500, MIL-C-27500, 55A1121-16-9/96-9, 55A1121169969, 6145-01-135-6822, 01-135-6822, 6145011356822, 011356822
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 28 JUL 1982 | 01-135-6822 | 00232 ( CABLE, POWER, ELECTRICAL ) |

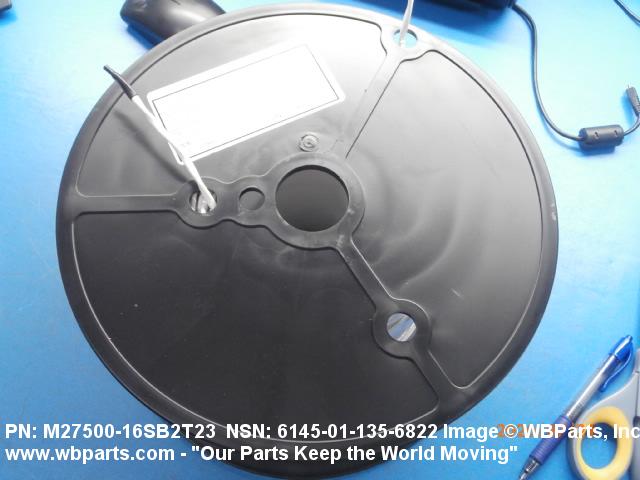

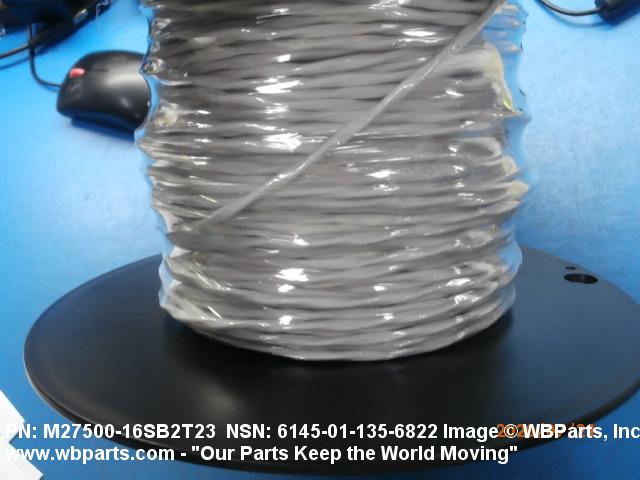

Drawings & Photos | NSN 6145-01-135-6822
Demand History | NSN 6145-01-135-6822
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6145-01-135-6822 | 2024-05-130 | 5500 | DIBBS |
| 6145-01-135-6822 | 2024-03-88 | 1500 | DIBBS |
| 6145-01-135-6822 | 2024-02-42 | 26000 | DIBBS |
| 6145-01-135-6822 | 2023-08-226 | 29000 | DIBBS |
| M2750016SB2T23 | 2023-03-74 | 45 | Oman |
| 6145-01-135-6822 | 2022-06-153 | 18500 | DIBBS |
| 6145-01-135-6822 | 2022-05-131 | 7500 | DIBBS |
| 6145-01-135-6822 | 2022-04-111 | 20500 | DIBBS |
| 6145-01-135-6822 | 2022-04-100 | 20500 | DIBBS |
| 6145-01-135-6822 | 2020-07-189 | 350 | United States |
| 6145-01-135-6822 | 2020-06-175 | 1000 | United States |
| 6145-01-135-6822 | 2020-02-36 | 51500 | DIBBS |
| 6145-01-135-6822 | 2019-11-324 | 51500 | DIBBS |
| 6145-01-135-6822 | 2018-01-28 | 3000 | DIBBS |
| 6145-01-135-6822 | 2018-01-11 | 63700 | DIBBS |
| 6145-01-135-6822 | 2017-12-346 | 1500 | DIBBS |
| 6145-01-135-6822 | 2017-08-234 | 6817 | DIBBS |
| 6145-01-135-6822 | 2015-08-221 | 580 | DIBBS |
| 6145-01-135-6822 | 2014-07-190 | 72500 | DIBBS |
| 6145-01-135-6822 | 2013-08-225 | 36000 | DIBBS |
| M2750016SB2T23 | 2012-12-339 | 150 | UK |
| 6145-01-135-6822 | 2012-08-215 | 7796 | DIBBS |
| 6145-01-135-6822 | 2012-07-193 | 20500 | DIBBS |
| 6145-01-135-6822 | 2012-06-171 | 8000 | DIBBS |
| 6145-01-135-6822 | 2012-06-153 | 9000 | DIBBS |
| 6145-01-135-6822 | 2012-05-143 | 5132 | DIBBS |
| 6145-01-135-6822 | 2012-04-114 | 6000 | DIBBS |
| 6145-01-135-6822 | 2012-04-103 | 3500 | DIBBS |
| 6145-01-135-6822 | 2010-04-120 | 11917 | DIBBS |
| 6145-01-135-6822 | 2009-06-181 | 5000 | DIBBS |
| 6145-01-135-6822 | 2009-05-132 | 8500 | DIBBS |
| 6145-01-135-6822 | 2008-03-86 | 198 | China |
| MILC27500 | 2007-07-184 | 500 | Canada |
Cross Reference | NSN 6145-01-135-6822
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 55A1121-16-9/96-9 | 34964 | RAYCHEM CORP |
| M27500-16SB2T23 | 1P787 | NATIONAL ELECTRICAL MFRS ASSN DBA NEMA |
| M27500-16SB2T23 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-27500 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NEMA WC27500 | 1P787 | NATIONAL ELECTRICAL MFRS ASSN DBA NEMA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6145-01-135-6822
Related Products | NSN 6145-01-135-6822
Technical Data | NSN 6145-01-135-6822
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 2 |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| MATERIAL | COPPER CORE CONDUCTOR ALL CONDUCTORS PLASTIC CROSS-LINKED MODIFIED ETHYLENE TETRAFLUOROETHYLENE 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS COPPER 2ND POSITION SHIELD BRAID, METALLIC CABLE PLASTIC CROSS-LINKED MODIFIED ETHYLENE TETRAFLUOROETHYLENE 3RD POSITION JACKET CABLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B33 ASSN STD SINGLE MATERIAL RESPONSE CORE CONDUCTOR ALL CONDUCTORS |
| SURFACE TREATMENT | TIN CORE CONDUCTOR ALL CONDUCTORS TIN 2ND POSITION SHIELD BRAID, METALLIC CABLE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM B33-63 ASSN STD SINGLE TREATMENT RESPONSE CORE CONDUCTOR ALL CONDUCTORS |
| ROUND CONDUCTOR SIZE | 16 AWG ALL CONDUCTORS |
| STRAND QUANTITY PER CONDUCTOR | 19 ALL CONDUCTORS |
| STRAND AWG SIZE PER CONDUCTOR | 29 ALL CONDUCTORS |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 2 SINGLES |
| COLOR | WHITE 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS WHITE 3RD POSITION JACKET CABLE |
| TRACER COLOR | BLUE FIRST TRACER SECOND CONDUCTOR |
| VOLTAGE RATING | 600.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE ALL CONDUCTORS |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| TEMP RATING | -65.0 DEG CELSIUS AND 150.0 DEG CELSIUS |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | MISSILE,MINUTEMAN LGM-30,SUPPORT EQUIP F-15 AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 6145-01-135-6822
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030310 | CABLE OR WIRE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6145-01-135-6822
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
V FT : Foot |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
V FT : Foot |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
V FT : Foot |
