NSN 6145-01-060-7863 M22759/16-18-9, M2275916189, AS22759/16
Product Details | ELECTRICAL WIRE

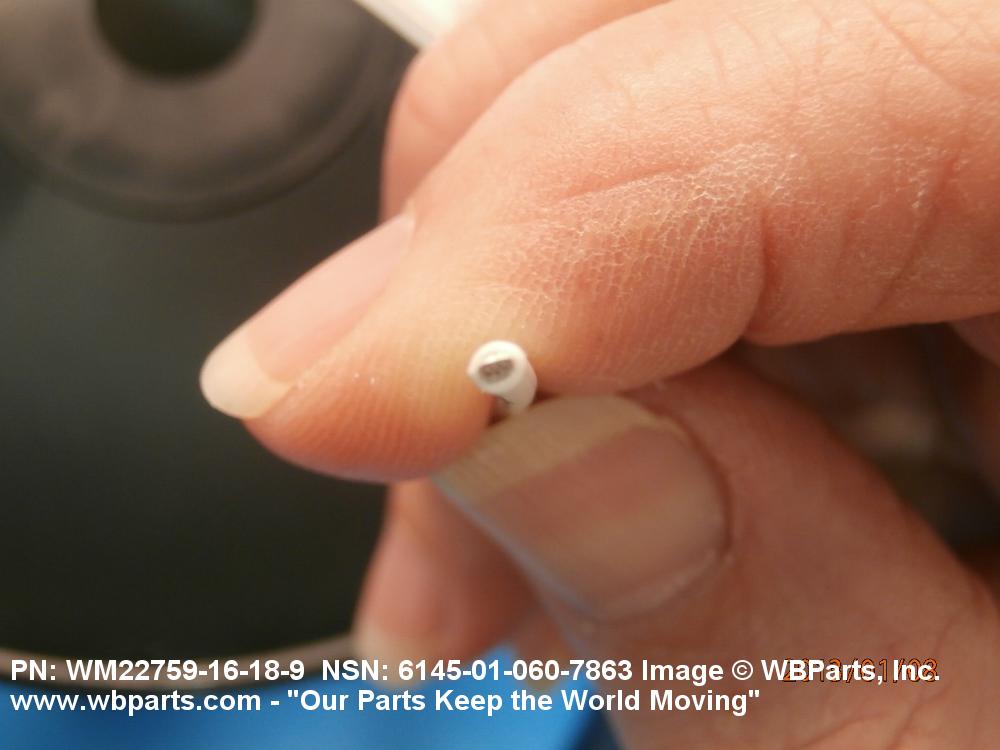

6145-01-060-7863 A single metallic conductor of solid, stranded, or tinsel construction, designed to carry current in an electrical circuit. It may be a bare or insulated, may have metalic covering sheath, shield or and additional jacket. Refers to bulk quantities only. For items that are solid or stranded, insulated or uninsulated, and have the chemical composition specified but no conductivity (electrical properties) see WIRE,(as modified), Includes Litz wire and insulated/uninsulated armored, and ground wire. Excludes BRAID, WIRE; FUSE WIRE; RESISTANCE WIRE and MAGNET WIRE.
Part Alternates: M22759/16-18-9, M2275916189, AS22759/16, AS2275916, MIL-W-22759/16, MILW2275916, R61AWG18/19-9, R61AWG18199, TFZ19X30U00129, 75916189, 75916-18-9, 815UN0024, 13230E6653, 13230E66534, 13230E6653-4, 17000079, 17-00007-9, 4368, 503 250-9, 5032509, 6145-01-060-7863, 01-060-7863, 6145010607863, 010607863
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JUN 1978 | 01-060-7863 | 00798 ( WIRE, ELECTRICAL ) |
Drawings & Photos | NSN 6145-01-060-7863
Demand History | NSN 6145-01-060-7863
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6145-01-060-7863 | 2024-08-214 | 29645 | DIBBS |
| 6145-01-060-7863 | 2024-07-203 | 29645 | DIBBS |
| 6145-01-060-7863 | 2021-06-154 | 42000 | DIBBS |
| 6145-01-060-7863 | 2021-05-143 | 42000 | DIBBS |
| 6145-01-060-7863 | 2018-08-221 | 33485 | DIBBS |
| 6145-01-060-7863 | 2018-02-57 | 55391 | DIBBS |
| M2275916189 | 2017-10-277 | 312 | US |
| M2275916189 | 2016-01-18 | 40 | Brazil |
| 6145-01-060-7863 | 2015-08-215 | 35944 | DIBBS |
| M2275916189 | 2015-03-77 | 1 | EC |
| MIL-W-22759/16 | 2015-03-76 | 400 | TH |
| 6145-01-060-7863 | 2012-12-352 | 800 | Malaysia |
| 6145-01-060-7863 | 2011-11-334 | 200 | UK |
| 6145-01-060-7863 | 2011-07-210 | 109 | DIBBS |
| 6145-01-060-7863 | 2011-05-137 | 84 | DIBBS |
| 6145-01-060-7863 | 2011-04-115 | 61 | DIBBS |
| M2275916189 | 2011-03-89 | 1000 | UM |
| 6145-01-060-7863 | 2010-06-152 | 170 | DIBBS |
| 6145-01-060-7863 | 2008-02-37 | 333 | DIBBS |
Cross Reference | NSN 6145-01-060-7863
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13230E6653 | 97403 | CECOM LR CENTER |
| 13230E6653-4 | 97403 | CECOM LR CENTER |
| 17-00007-9 | 05973 | CHAMPLAIN CABLE CORP SUB OF HUBER AND SUHNER INC |
| 4368 | 55944 | FALMAT, INC. DBA C B S |
| 503 250-9 | C1375 | HUBER + SUHNER GMBH |
| 503 250-9 | S3708 | HUBER AND SUHNER LTD |
| 75916-18-9 | 12515 | NEXANS AEROSPACE USA LLC |
| AS22759/16 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M22759/16-18-9 | 12814 | CARLISLE INTERCONNECT TECHNOLOGIES, INC. |
| M22759/16-18-9 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M22759/16-18-9 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-W-22759/16 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| R61AWG18/19-9 | D2733 | AMOHR TECHNISCHE TEXTILIEN GMBH |
| TFZ 19X30U(0.012)-9 | 90484 | ROCKBESTOS-SURPRENANT CABLE CORP |
