NSN 6145-01-042-4622 M22759/16-22-71124, M22759/16-22-9, M22759162271124
Product Details | ELECTRICAL WIRE
6145-01-042-4622 A single metallic conductor of solid, stranded, or tinsel construction, designed to carry current in an electrical circuit. It may be a bare or insulated, may have metalic covering sheath, shield or and additional jacket. Refers to bulk quantities only. For items that are solid or stranded, insulated or uninsulated, and have the chemical composition specified but no conductivity (electrical properties) see WIRE,(as modified), Includes Litz wire and insulated/uninsulated armored, and ground wire. Excludes BRAID, WIRE; FUSE WIRE; RESISTANCE WIRE and MAGNET WIRE.
Part Alternates: M22759/16-22-71124, M22759/16-22-9, M22759162271124, M2275916229, AS22759/16, AS2275916, MIL-W-22759/16, MILW2275916, R61AWG22/19-9, R61AWG22199, TFZ19X34U00119, 17000059, 17-00005-9, 503 216-9, 5032169, 75916229, 75916-22-9, 815UN0029, 6145-01-042-4622, 01-042-4622, 6145010424622, 010424622
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 10 JUN 1977 | 01-042-4622 | 00798 ( WIRE, ELECTRICAL ) |

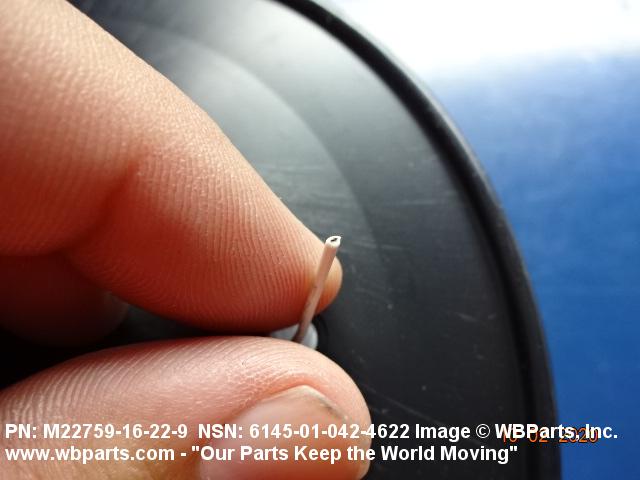

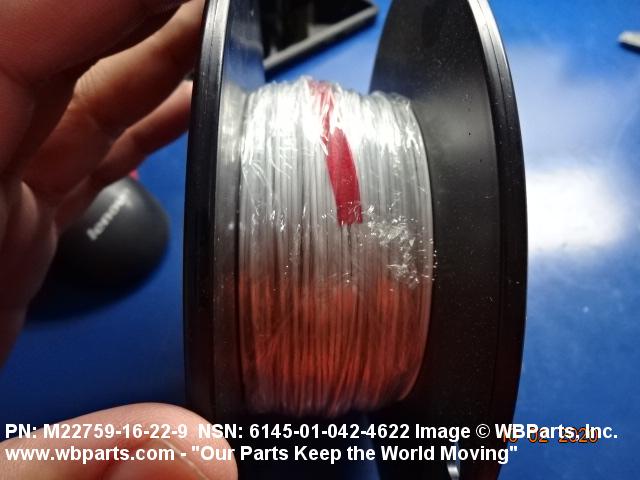

Drawings & Photos | NSN 6145-01-042-4622
Demand History | NSN 6145-01-042-4622
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6145-01-042-4622 | 2020-12-343 | 1000 | DIBBS |
| M2275916229 | 2020-10-280 | 5 | US |
| M2275916229 | 2020-09-274 | 5 | US |
| 6145-01-042-4622 | 2019-02-57 | 3000 | MANUAL |
| 6145-01-042-4622 | 2019-02-55 | 3000 | DIBBS |
| 6145-01-042-4622 | 2017-12-339 | 111500 | DIBBS |
| M2275916229 | 2017-10-277 | 130 | US |
| 6145-01-042-4622 | 2017-09-254 | 109000 | DIBBS |
| 6145-01-042-4622 | 2017-06-180 | 65621 | DIBBS |
| 6145-01-042-4622 | 2017-04-120 | 57759 | DIBBS |
| 6145-01-042-4622 | 2017-04-93 | 31000 | DIBBS |
| 6145-01-042-4622 | 2016-10-278 | 86190 | DIBBS |
| 6145-01-042-4622 | 2016-08-235 | 1000 | DIBBS |
| M2275916229 | 2016-01-18 | 150 | Brazil |
| 6145-01-042-4622 | 2015-08-229 | 1000 | DIBBS |
| M2275916229 | 2015-03-77 | 1 | EC |
| MIL-W-22759/16 | 2015-03-76 | 400 | TH |
| 6145-01-042-4622 | 2015-02-39 | 153000 | DIBBS |
| M2275916229 | 2014-05-147 | 100 | United States |
| 6145-01-042-4622 | 2012-12-352 | 1200 | Malaysia |
| 6145-01-042-4622 | 2012-08-226 | 107135 | DIBBS |
| 6145-01-042-4622 | 2011-11-334 | 142000 | UK |
| 6145-01-042-4622 | 2011-08-220 | 21500 | DIBBS |
| 6145-01-042-4622 | 2010-02-58 | 500 | DIBBS |
| 6145-01-042-4622 | 2009-12-341 | 1000 | China |
| M2275916229 | 2009-11-312 | 1 | US |
| 6145-01-042-4622 | 2006-11-307 | 100 | United Kingdom |
Cross Reference | NSN 6145-01-042-4622
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17-00005-9 | 05973 | CHAMPLAIN CABLE CORP SUB OF HUBER AND SUHNER INC |
| 503 216-9 | C1375 | HUBER + SUHNER GMBH |
| 503 216-9 | S3708 | HUBER AND SUHNER LTD |
| 75916-22-9 | 12515 | NEXANS AEROSPACE USA LLC |
| 815UN0029 | 0291H | ROSOMAK S.A |
| 815UN0029 | A0199 | OTO MELARA SPA |
| AS22759/16 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M22759/16-22-71124 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M22759/16-22-9 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M22759/16-22-9 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-W-22759/16 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| R61AWG22/19-9 | D2773 | DRAKA DEUTSCHLAND GMBH & CO. KG |
| TFZ 19X34U(0.011)-9 | 90484 | ROCKBESTOS-SURPRENANT CABLE CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6145-01-042-4622
Technical Data | NSN 6145-01-042-4622
| Characteristic | Specifications |
|---|---|
| CONDUCTOR FORM | STRANDED SINGLE CONDUCTOR |
| MATERIAL | COPPER ALLOY 101 OR COPPER ALLOY 102 CORE CONDUCTOR SINGLE CONDUCTOR |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B33 ASSN STD ALL MATERIAL RESPONSES CORE CONDUCTOR SINGLE CONDUCTOR |
| SURFACE TREATMENT | TIN CORE CONDUCTOR SINGLE CONDUCTOR |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM B33-63 ASSN STD SINGLE TREATMENT RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR |
| ROUND CONDUCTOR SIZE | 22 AWG SINGLE CONDUCTOR |
| STRAND QUANTITY PER CONDUCTOR | 19 SINGLE CONDUCTOR |
| STRAND AWG SIZE PER CONDUCTOR | 34 SINGLE CONDUCTOR |
| COLOR | WHITE 1ST POSITION COVER SINGLE CONDUCTOR |
| VOLTAGE RATING | 600.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE SINGLE CONDUCTOR |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| CROSS SECTION OUTSIDE DIAMETER | 0.052 INCHES NOMINAL |
| TEMP RATING | 150.0 DEG CELSIUS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-W-22759/16 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M22759/16-22-9 |
Restrictions/Controls & Freight Information | NSN 6145-01-042-4622
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
