NSN 6145-00-144-0231 M81044/11-22-9, M81044/12-22-9, M81044/12-9

Product Details | ELECTRICAL WIRE

6145-00-144-0231 A single metallic conductor of solid, stranded, or tinsel construction, designed to carry current in an electrical circuit. It may be a bare or insulated, may have metalic covering sheath, shield or and additional jacket. Refers to bulk quantities only. For items that are solid or stranded, insulated or uninsulated, and have the chemical composition specified but no conductivity (electrical properties) see WIRE,(as modified), Includes Litz wire and insulated/uninsulated armored, and ground wire. Excludes BRAID, WIRE; FUSE WIRE; RESISTANCE WIRE and MAGNET WIRE.

Part Alternates: M81044/11-22-9, M81044/12-22-9, M81044/12-9, M81044/4-22-9, M8104411229, M8104412229, M81044129, M810444229, MPDS5-19.400-22, MPDS51940022, AS81044/12 , AS8104412, BR81044/121/22-9, BR81044/12-22-9, BR81044121229, BR8104412229, H30122249, H3012224-9, GE 2784A, GE 2804B, GE2784A, GE2804B, RVS0289AA220, RVS0289AA22-0, T-101001/22-9, T101001229, T-104891/22-9, T104891229, VG95218T1000, VG95218-T1000, MIL-W-81044/11, MIL-W-81044/12, MIL-W-81044/4, MILW8104411, MILW8104412, MILW810444, 7040350P032, 77738789, 84412229, 84412-22-9, 9510933, 951093-3, 361608-110, 4390695010, 439-0695-010, 44A0111229, 44A0111-22-9, 44A0111229US, 44A0111-22-9-US, 510252-0125.137, 10149768 , 10185093006, 1018-5093-006, 16344 12209, 1634412209, 513 607-9, 5136079, 531591J, 6145-00-144-0231, 00-144-0231, 6045001440231 , 6145001440231, 5102520125137, 361608110, 001440231

Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
61	06 AUG 1969	00-144-0231	00798 ( WIRE, ELECTRICAL )

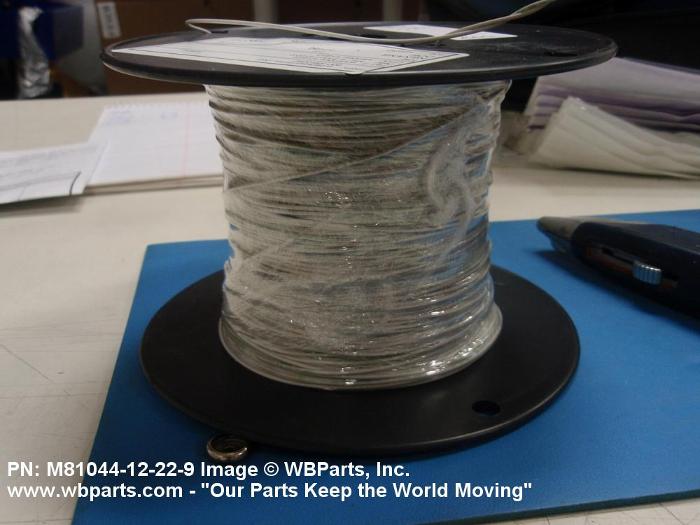

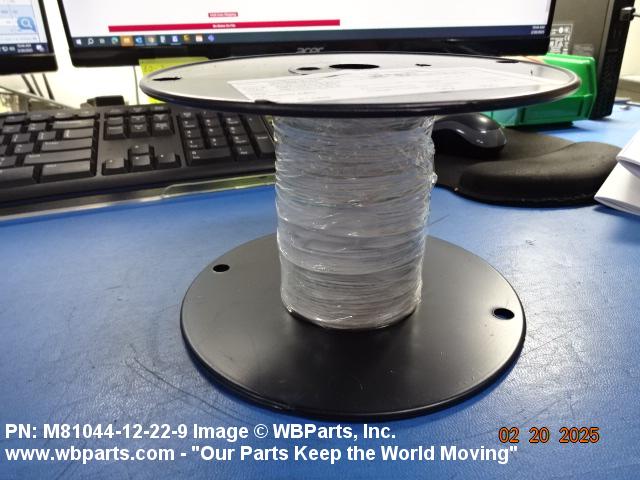

Drawings & Photos | NSN 6145-00-144-0231

Part Number	Request Date	QTY	Origin
M8104412229	2025-01-29	1	Japan
M8104412229	2021-07-187	20000	United States
6145-00-144-0231	2020-10-290	100	United States
6145-00-144-0231	2020-07-211	5	United States
M8104412229	2019-09-255	1	US
M8104412229	2019-05-149	160	US
6145-00-144-0231	2018-12-340	288000	DIBBS
6145-00-144-0231	2018-11-317	278000	DIBBS
6145-00-144-0231	2018-11-309	278000	DIBBS
6145-00-144-0231	2018-05-134	229000	DIBBS
6145-00-144-0231	2018-04-106	172000	DIBBS
6145-00-144-0231	2016-08-222	42500	DIBBS
M81044/12-22-9	2016-03-61	15000	Turkey
6145-00-144-0231	2015-12-341	129000	DIBBS
M8104412229	2015-07-188	16	United States
M8104412229	2015-07-188	48	United States
M8104412229	2015-05-142	414	US
M8104412229	2014-05-147	100	United States
6145-00-144-0231	2012-08-239	82000	DIBBS
6145-00-144-0231	2012-07-185	34000	DIBBS
6145-00-144-0231	2012-06-182	11000	DIBBS
6145-00-144-0231	2012-06-153	52000	DIBBS
M8104412229	2012-05-144	100	United States
6145-00-144-0231	2012-02-52	10000	DIBBS
M81044/12-22-9	2012-02-39	18533	IL
6145-00-144-0231	2011-12-357	38000	DIBBS
M8104412229	2011-06-171	1000	United States
6145-00-144-0231	2011-06-167	500	United States
6145-00-144-0231	2011-06-167	1000	United States
6145-00-144-0231	2011-06-155	66000	DIBBS
6145-00-144-0231	2011-05-136	26000	DIBBS
6145-00-144-0231	2007-03-85	5	US

Cross Reference | NSN 6145-00-144-0231

Part Number	Cage Code	Manufacturer
1018-5093-006	K0656	BAE SYSTEMS (OPERATIONS) LTD
16344 12209	D8385	THALES ELECTRONIC SYSTEMS GMBH DBA VERTEIDIGUNGSSYSTEME SEL GMBH
361608-110	00752	EDO CORPORATION DIV EDO CORPORATION AP&T
439-0695-010	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
44A0111-22-9	06090	TYCO ELECTRONICS CORPORATION
44A0111-22-9	D1973	TYCO ELECTRONICS RAYCHEM GMBH
44A0111-22-9	F0286	TYCO ELECTRONICS FRANCE SAS
44A0111-22-9	F6220	RAYCHEM SA
44A0111-22-9	K1010	TE CONNECTIVITY LIMITED
44A0111-22-9-US	06090	TYCO ELECTRONICS CORPORATION
510252-0125.137	D0703	CARL ZEISS AG
513 607-9	S3708	HUBER AND SUHNER LTD
531591J	K0656	BAE SYSTEMS (OPERATIONS) LTD
6045001440231	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
7040350P032	03538	LOCKHEED MARTIN CORPORATION DIV MST
77738789	K0131	GOODRICH LTD DIV GOODRICH CONTROL SYSTEMS
84412-22-9	12515	NEXANS AEROSPACE USA LLC
951093-3	80249	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
AS81044/12	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
BR81044/12-22-9	71124	GENERAL CABLE INDUSTRIES, INC. DBA WILLIMANTIC, CT PLANT
BR81044/121/22-9	71124	GENERAL CABLE INDUSTRIES, INC. DBA WILLIMANTIC, CT PLANT
GE 2784A	U5602	SCHLUMBERGER INDUSTRIES
GE 2804B	U5602	SCHLUMBERGER INDUSTRIES
H3012224-9	12703	JUDD WIRE INC.
M81044/11-22-9	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M81044/12-22-9	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M81044/12-22-9	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M81044/12-9	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M81044/4-22-9	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-W-81044/11	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-W-81044/12	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-W-81044/4	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MPDS5-19.400-22	77646	NORTHROP GRUMMAN SYSTEMS CORPORATION DBA AEROSPACE SYSTEMS SECTOR
RVS0289AA22-0	17077	LOCKHEED MARTIN CORPORATION DBA SPACE SYSTEMS COMPANY
T-101001/22-9	71124	GENERAL CABLE INDUSTRIES, INC. DBA WILLIMANTIC, CT PLANT
T-101001/22-9	C1921	HEUTE + COMP. GMBH + CO
T-104891/22-9	71124	GENERAL CABLE INDUSTRIES, INC. DBA WILLIMANTIC, CT PLANT
VG95218-T1000	D9477	BUNDESAMT FUER AUSRUESTUNG,

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6145-00-144-0231

Compare

Related Products | NSN 6145-00-144-0231

6145-00-144-0233, 6145-00-144-0243, 6145-00-144-0258, 6145-00-144-0284, 6145-00-144-0296

Technical Data | NSN 6145-00-144-0231

Characteristic	Specifications
CONDUCTOR FORM	STRANDED SINGLE CONDUCTOR
MATERIAL	COPPER ALLOY 101 OR COPPER ALLOY 102 CORE CONDUCTOR SINGLE CONDUCTOR
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM B33 ASSN STD ALL MATERIAL RESPONSES CORE CONDUCTOR SINGLE CONDUCTOR
SURFACE TREATMENT	TIN CORE CONDUCTOR SINGLE CONDUCTOR
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM B33-63 ASSN STD SINGLE TREATMENT RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR
ROUND CONDUCTOR SIZE	22 AWG SINGLE CONDUCTOR
STRAND QUANTITY PER CONDUCTOR	19 SINGLE CONDUCTOR
STRAND AWG SIZE PER CONDUCTOR	34 SINGLE CONDUCTOR
COLOR	WHITE 1ST POSITION COVER SINGLE CONDUCTOR
VOLTAGE RATING	600.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE SINGLE CONDUCTOR
CROSS-SECTIONAL SHAPE STYLE	6 ROUND
CROSS SECTION OUTSIDE DIAMETER	0.047 INCHES NOMINAL
TEMP RATING	150.0 DEG CELSIUS
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-W-81044/12
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M81044/12-22-9

Restrictions/Controls & Freight Information | NSN 6145-00-144-0231

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	030310	CABLE OR WIRE
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	743	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6145-00-144-0231

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Z FT : Foot

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 FT : Foot

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Z FT : Foot

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Z FT : Foot
