NSN 6140-01-286-6294 D8565/11-1, D8565111, MILB8565
Product Details | STORAGE BATTERY
6140-01-286-6294 A battery, composed of two or more cells forming a single unit, which may or may not be readily separable and which may be efficiently recharged by sending an electric current through the cells in a direction opposite that of the discharging current. The item may be furnished with integral charging facilities. For items which are composed of a single cell see CELL, BATTERY.
Part Alternates: D8565/11-1, D8565111, MILB8565, MIL-B-8565, MILPRF8565, MIL-PRF-8565, RG111, RG11-1, 6140-01-286-6294, 01-286-6294, 6140012866294, 012866294
Electric Wire, and Power and Distribution Equipment | Batteries, Rechargeable
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 05 OCT 1988 | 01-286-6294 | 00013 ( BATTERY, STORAGE ) |

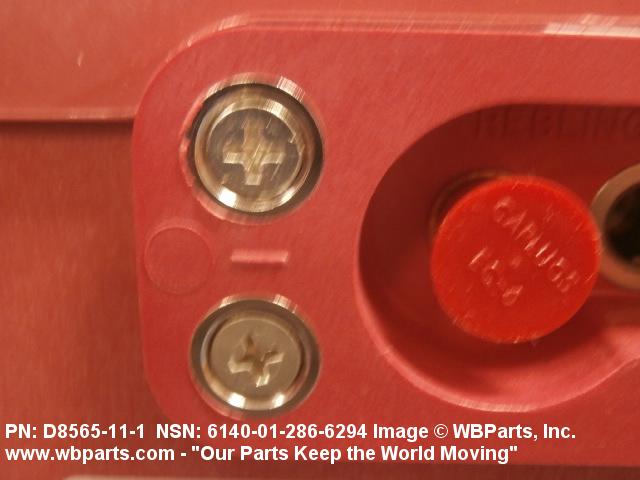

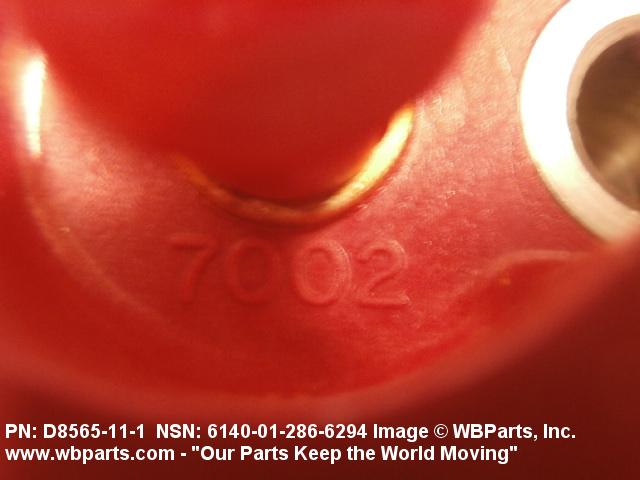

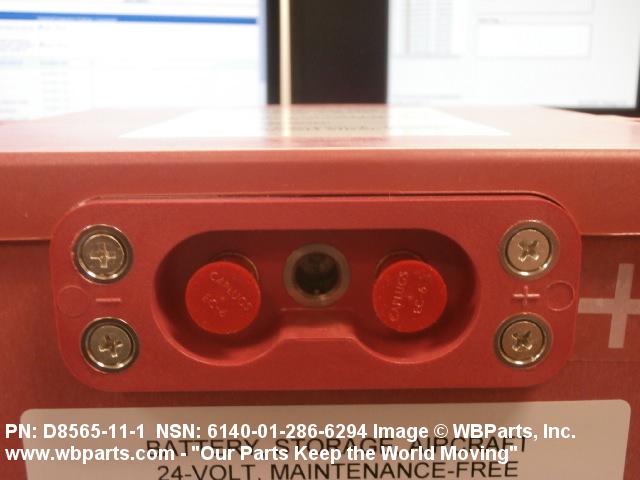

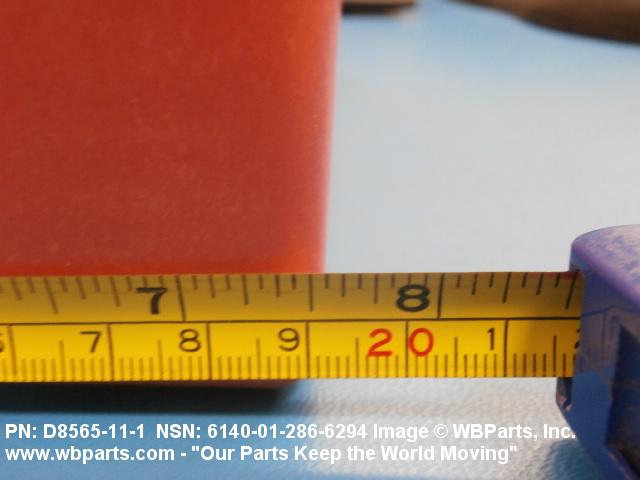

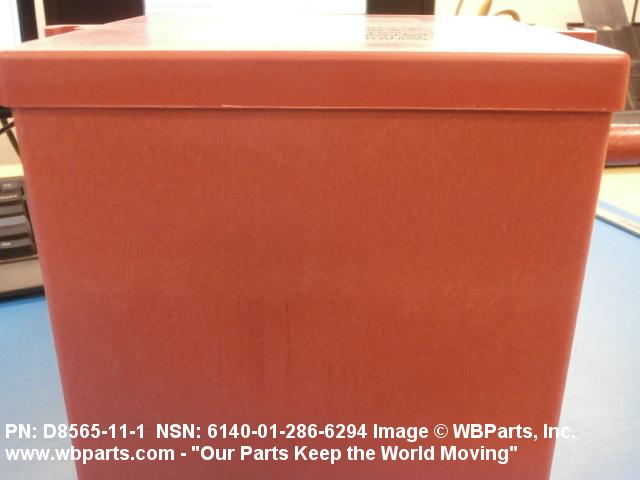

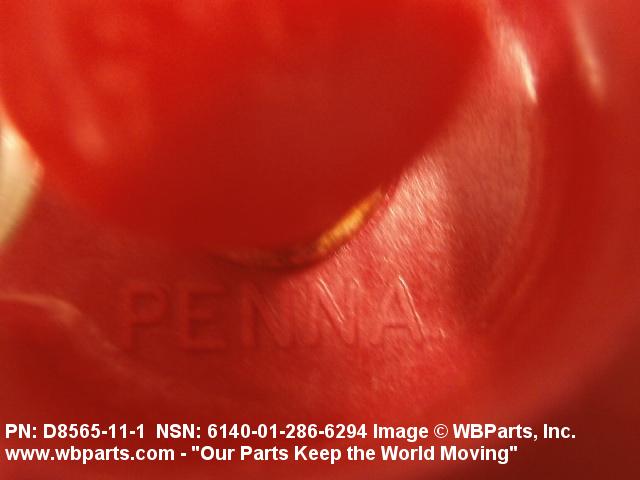

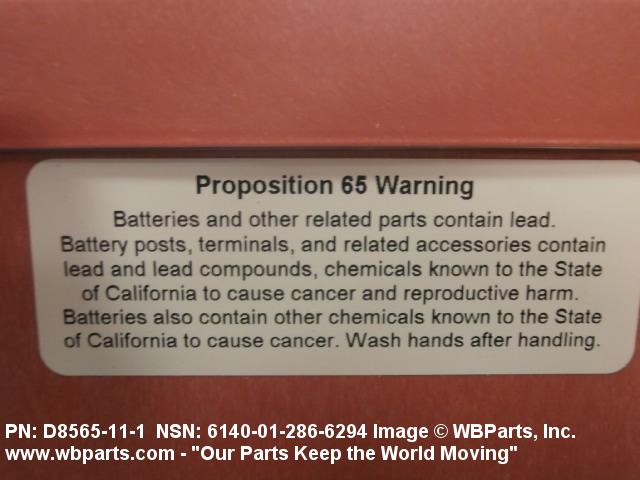

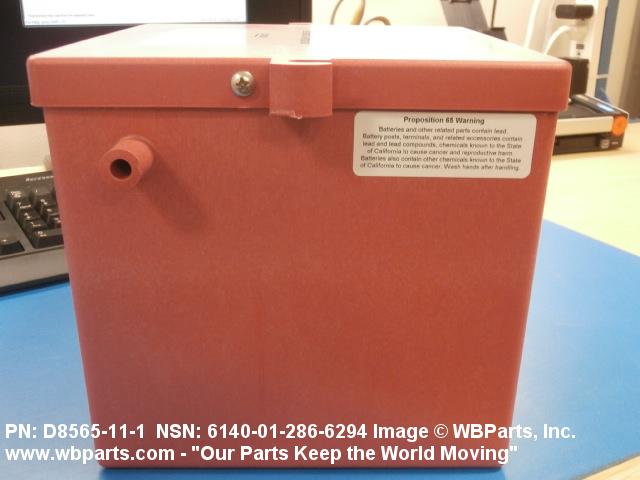

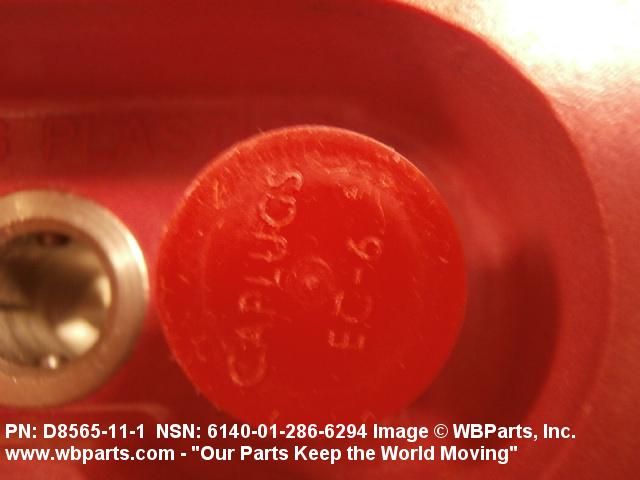

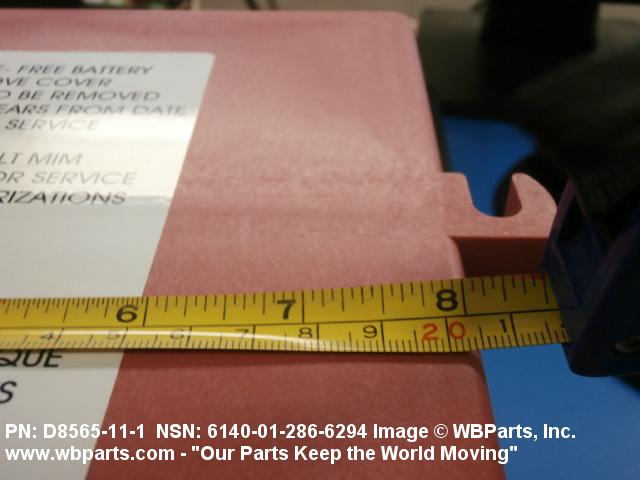

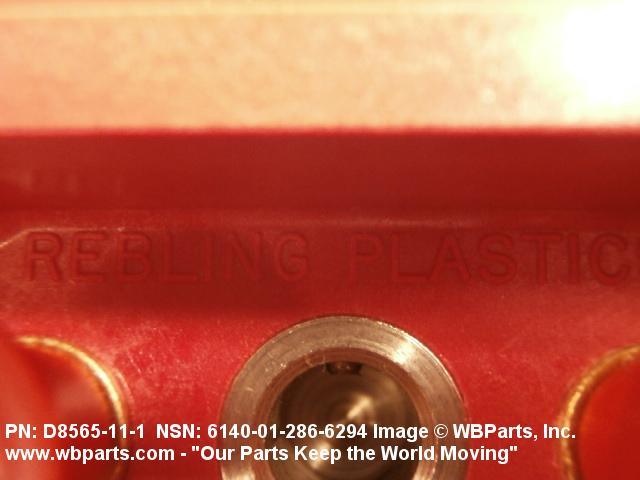

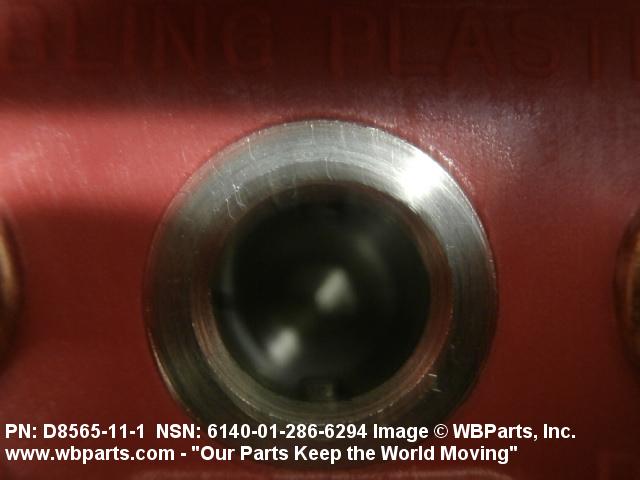

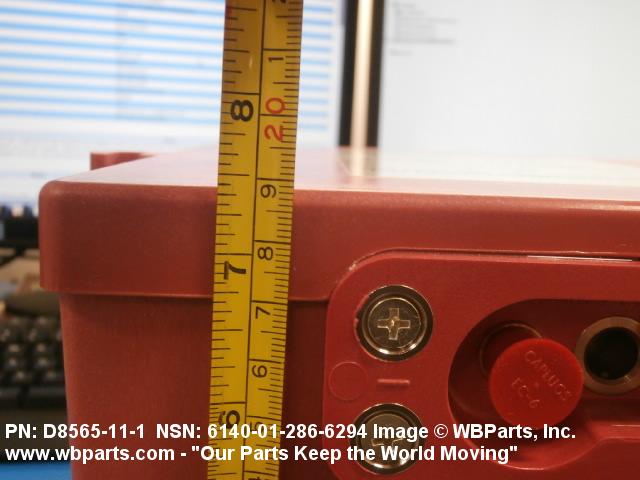

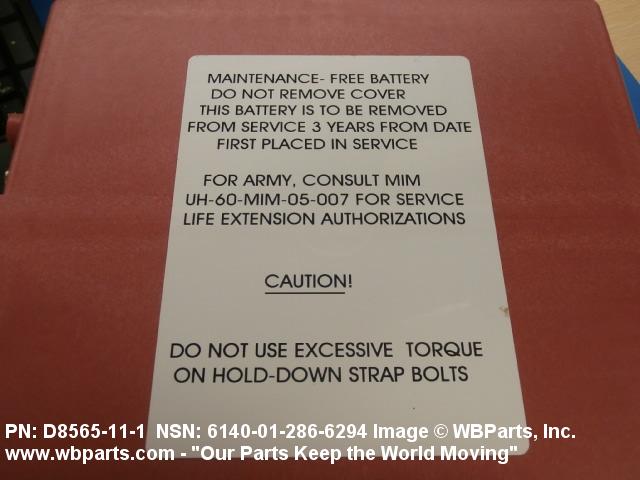

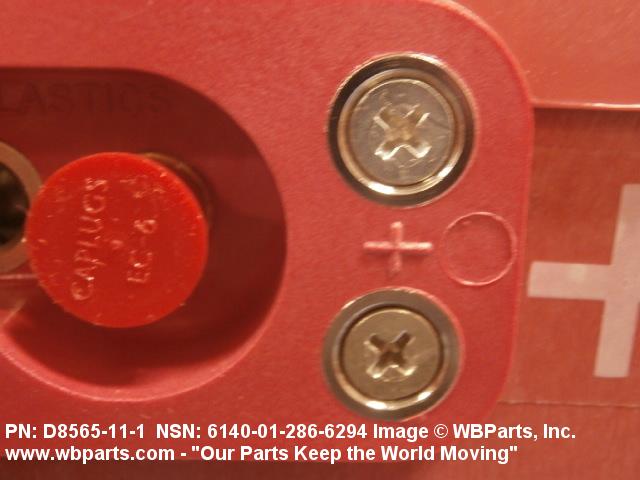

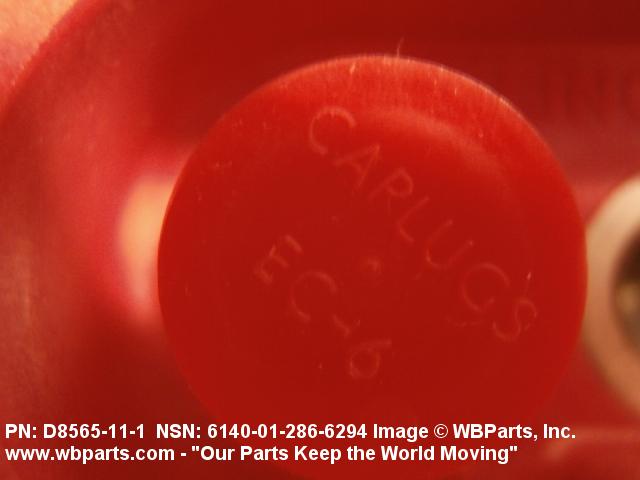

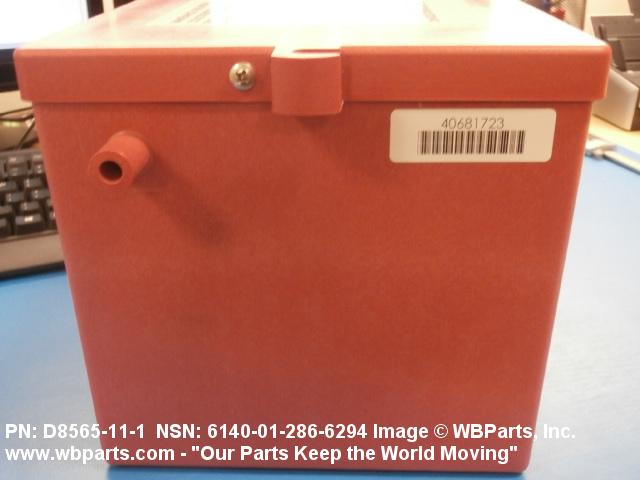

Drawings & Photos | NSN 6140-01-286-6294
Demand History | NSN 6140-01-286-6294
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6140-01-286-6294 | 2024-11-316 | 1 | Mexico |
| 6140-01-286-6294 | 2024-11-308 | 34 | US |
| D8565111 | 2024-08-222 | 48 | MX |
| 6140-01-286-6294 | 2024-08-222 | 6 | US |
| D8565111 | 2024-07-213 | 6 | United States |
| 6140-01-286-6294 | 2024-06-180 | 5 | Singapore |
| D8565111 | 2024-05-145 | 4 | United States |
| D8565111 | 2023-08-232 | 1 | ID |
| 6140-01-286-6294 | 2023-08-228 | 1 | United States |
| 6140-01-286-6294 | 2023-05-134 | 23 | MY |
| 6140-01-286-6294 | 2023-05-130 | 28 | MY |
| 6140-01-286-6294 | 2023-03-86 | 1 | SA |
| 6140-01-286-6294 | 2023-01-16 | 138 | DIBBS |
| 6140-01-286-6294 | 2022-05-139 | 1 | United States |
| 6140-01-286-6294 | 2022-02-48 | 1 | ES |
| 6140-01-286-6294 | 2022-02-45 | 11 | MX |
| 6140-01-286-6294 | 2021-11-313 | 2 | US |
| 6140-01-286-6294 | 2021-09-268 | 12 | MY |
| 6140-01-286-6294 | 2021-08-231 | 12 | PE |
| MILB8565 | 2021-08-224 | 2 | PE |
| MILB8565 | 2021-08-224 | 2 | PE |
| MILB8565 | 2021-08-224 | 2 | PE |
| 6140-01-286-6294 | 2021-08-219 | 16 | United States |
| 6140-01-286-6294 | 2021-08-218 | 12 | United States |
| 6140-01-286-6294 | 2021-03-64 | 1 | VI |
| 6140-01-286-6294 | 2021-01-18 | 10 | France |
| 6140-01-286-6294 | 2020-04-111 | 50 | Malaysia |
| 6140-01-286-6294 | 2020-01-06 | 40 | JO |
| D8565111 | 2019-11-314 | 1 | IL |
| 6140-01-286-6294 | 2019-08-227 | 1 | US |
| 6140-01-286-6294 | 2019-03-72 | 2 | CO |
| 6140-01-286-6294 | 2018-12-341 | 1 | United States |
| 6140-01-286-6294 | 2018-09-252 | 4 | DIBBS |
| 6140-01-286-6294 | 2018-04-94 | 1 | US |
| 6140-01-286-6294 | 2018-03-71 | 1 | United Arab Emirates |
| 6140-01-286-6294 | 2018-01-02 | 1 | US |
| 6140-01-286-6294 | 2017-08-235 | 2 | US |
| D8565111 | 2017-02-39 | 1 | us |
| D8565111 | 2017-02-34 | 1 | us |
| 6140-01-286-6294 | 2017-01-16 | 8 | AE |
| D8565111 | 2015-07-203 | 1 | US |
| 6140-01-286-6294 | 2015-05-148 | 1 | DIBBS-RFPs |
| 6140-01-286-6294 | 2015-05-121 | 4 | US |
| 6140-01-286-6294 | 2015-04-96 | 12 | United States |
| 6140-01-286-6294 | 2015-02-35 | 2 | United States |
| 6140-01-286-6294 | 2014-05-142 | 9 | Singapore |
| 6140-01-286-6294 | 2014-05-142 | 9 | SG |
| D8565/11-1 | 2014-04-119 | 1 | |
| 6140-01-286-6294 | 2014-04-111 | 1 | DIBBS-RFPs |
| 6140-01-286-6294 | 2014-04-106 | 10 | US |
| 6140-01-286-6294 | 2014-02-54 | 10 | US |
| 6140-01-286-6294 | 2013-10-279 | 1 | YE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6140-01-286-6294
Related Products | NSN 6140-01-286-6294
Technical Data | NSN 6140-01-286-6294
| Characteristic | Specifications |
|---|---|
| BATTERY ELECTROLYTE | ACID |
| VOLTAGE IN VOLTS | 24.0 |
| TAP VOLTAGE IN VOLTS | ANY ACCEPTABLE |
| AMPERE HOUR CAPACITY | 9.50 |
| TIME CAPACITY IN HOURS | ANY ACCEPTABLE |
| TERMINAL QUANTITY | 2 |
| TERMINAL TYPE | PLUG-IN |
| TERMINAL LOCATION | SIDE |
| CELL QUANTITY | 6 |
| PLATE MATERIAL | LEAD ALLOY |
| PLATE TYPE | NEGATIVE AND POSITIVE |
| OVERALL WIDTH | 7.750 INCHES NOMINAL |
| OVERALL LENGTH | 7.620 INCHES NOMINAL |
| OVERALL HEIGHT | 7.000 INCHES NOMINAL |
| CASE DESIGN TYPE | SEALED |
| VENTILATION DESIGN TYPE | VENTING ACCOMPLISHED THRU DESIGN |
| NONSPILLING FEATURE | INCLUDED |
| CHARGE INDICATOR | NOT INCLUDED |
| ELECTROLYTE LEVEL INDICATOR | NOT INCLUDED |
| FORDING FEATURE | NOT INCLUDED |
| INTEGRAL CHARGING FACILITY | NOT INCLUDED |
| SPECIAL FEATURES | MS3059 STYLE 1 CONNECTOR USED |
| III END ITEM IDENTIFICATION | U/O F-4 ACFT |
| III FSC APPLICATION DATA | BATTERIES,RECHARGEABLE |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | D8565/11-1 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-B-8565 |
Restrictions/Controls & Freight Information | NSN 6140-01-286-6294
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 5 | 18 months |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 060680 | BATTERIES OR CELL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 582 | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6140-01-286-6294
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 5 | 18 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 5 | 18 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | V | Acid (Medical) |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 5 | 18 months |
| Purchasing | QTY UOM |
1 EA : Each |
