NSN 6140-00-889-1027 MSZR2516L, MSZR25-16L, AA55439
Product Details | STORAGE BATTERY
6140-00-889-1027 A battery, composed of two or more cells forming a single unit, which may or may not be readily separable and which may be efficiently recharged by sending an electric current through the cells in a direction opposite that of the discharging current. The item may be furnished with integral charging facilities. For items which are composed of a single cell see CELL, BATTERY.
Part Alternates: MSZR2516L, MSZR25-16L, AA55439, A-A-55439, A-A-55439-1-24T -370-D, AA55439124T370D, BB451U, MILB82117, MILB821172, MILB82117-2, 221-0032-00, 51220001000, 5122-000-1000, 51220001100, 5122-000-1100, 6140-00-889-1027, 00-889-1027, 6140008891027, 221003200, 008891027
Electric Wire, and Power and Distribution Equipment | Batteries, Rechargeable
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1962 | 00-889-1027 | 00013 ( BATTERY, STORAGE ) |

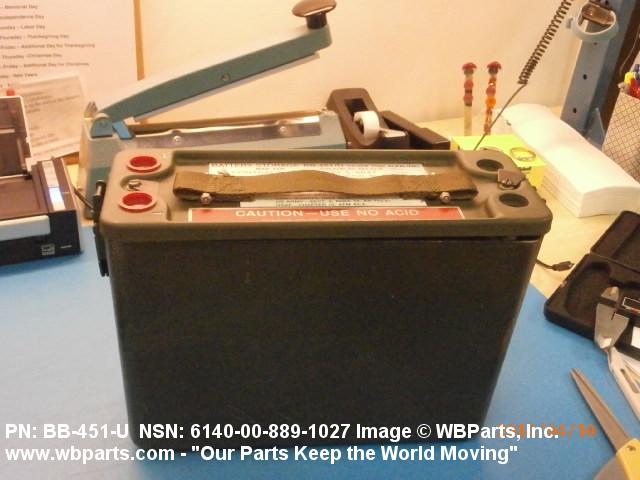

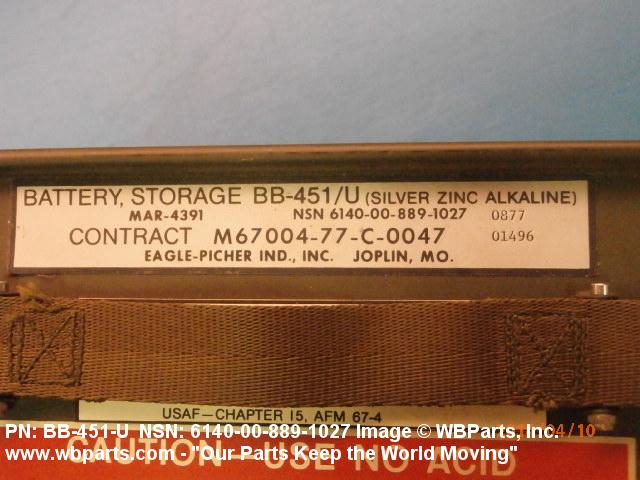

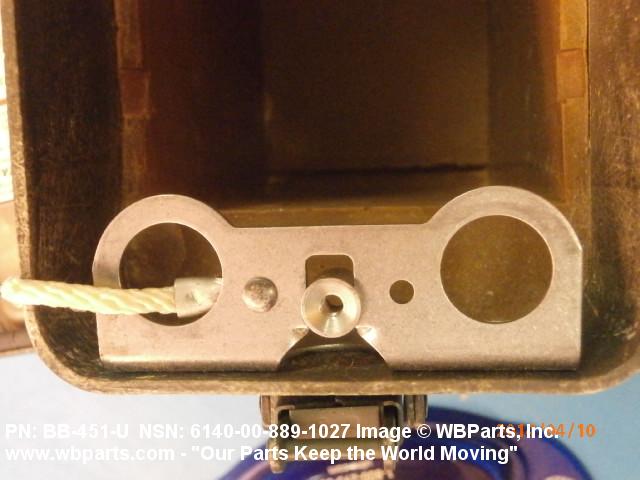

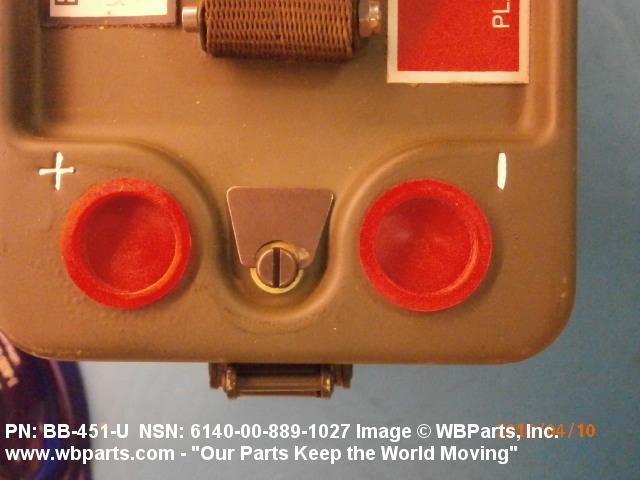

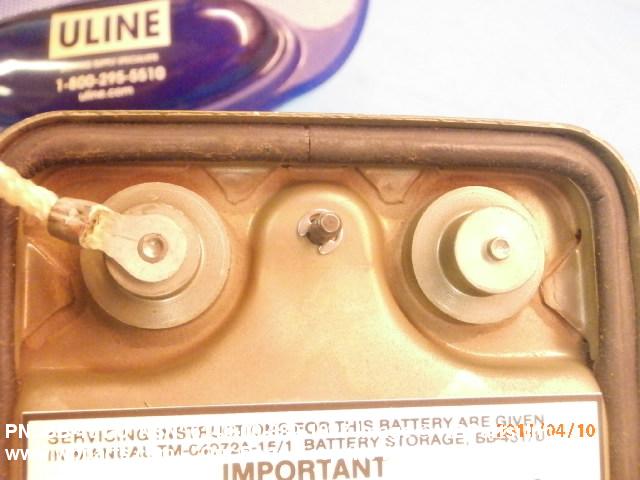

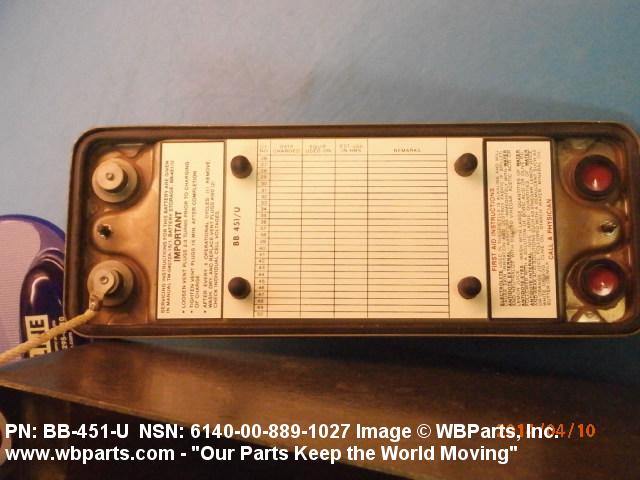

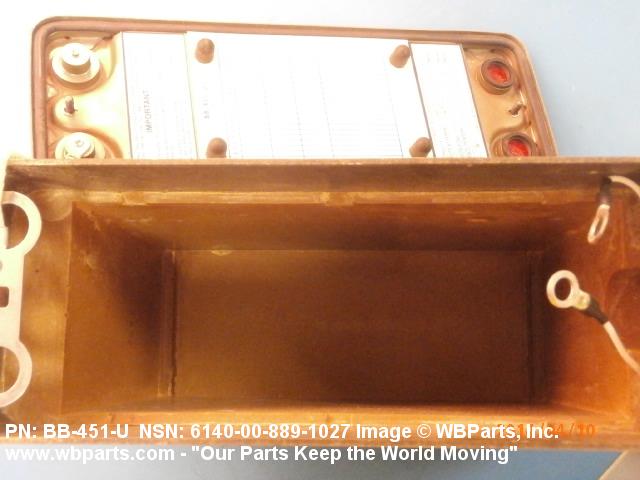

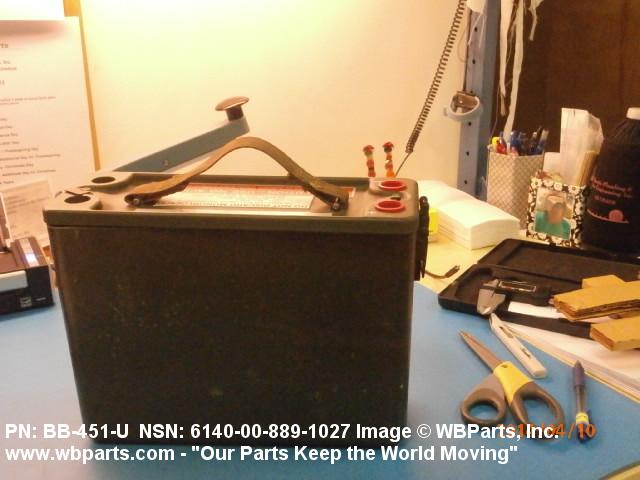

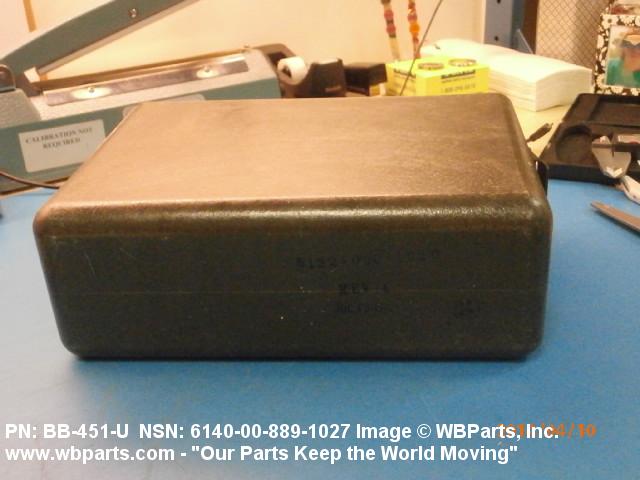

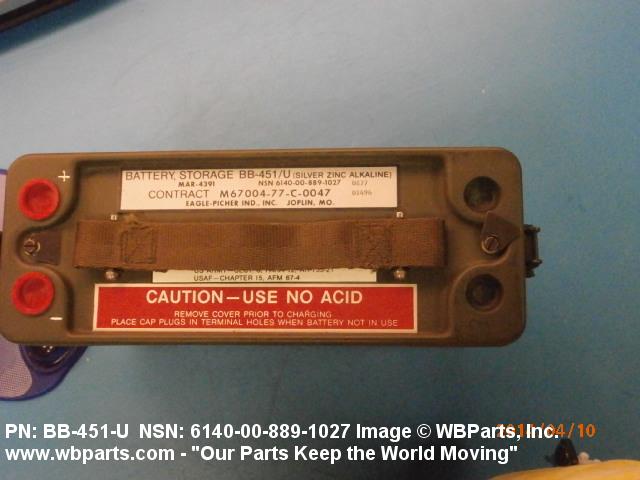

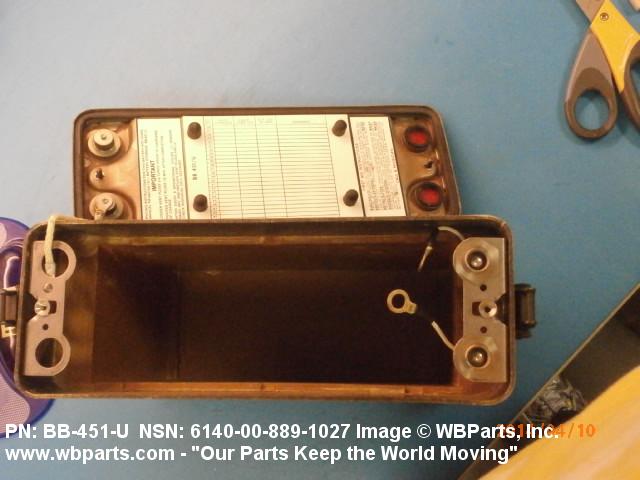

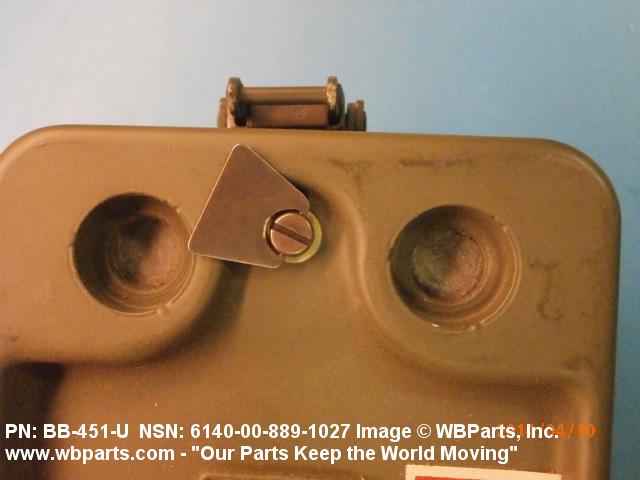

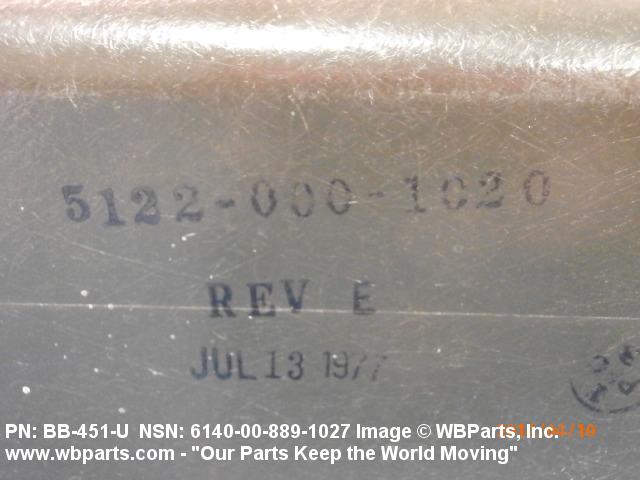

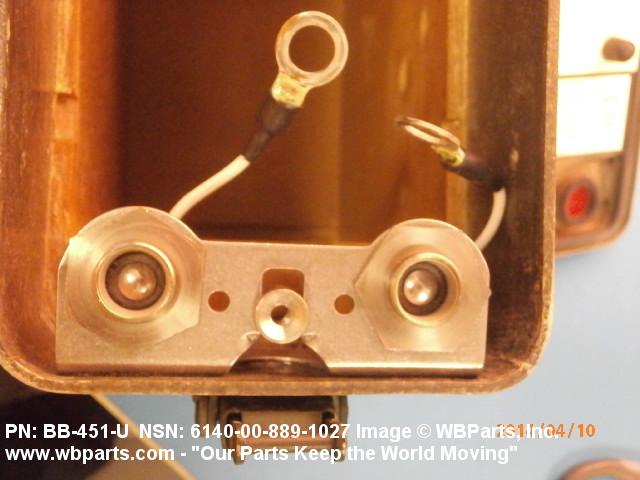

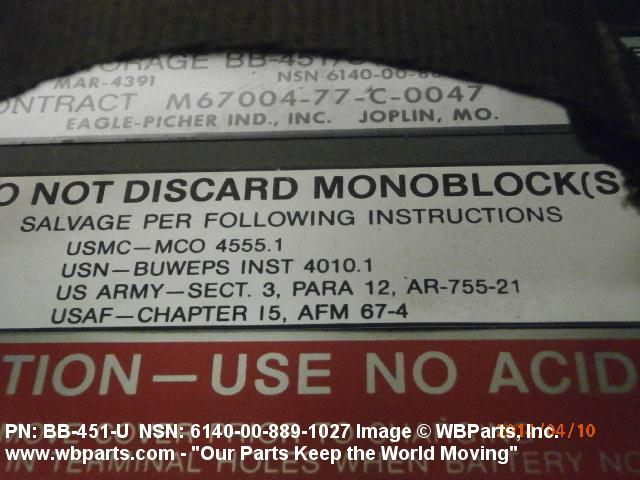

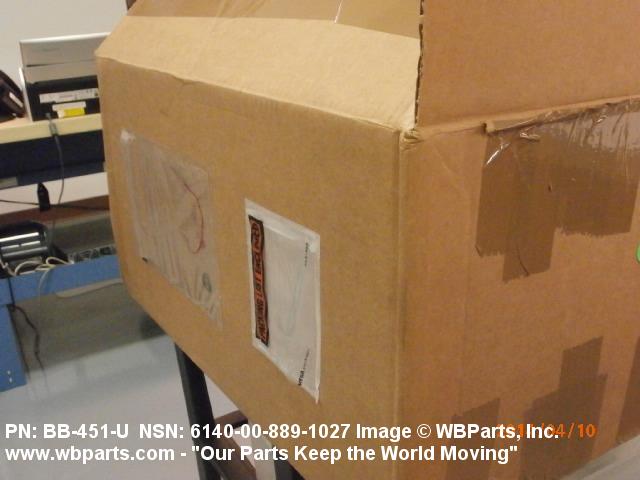

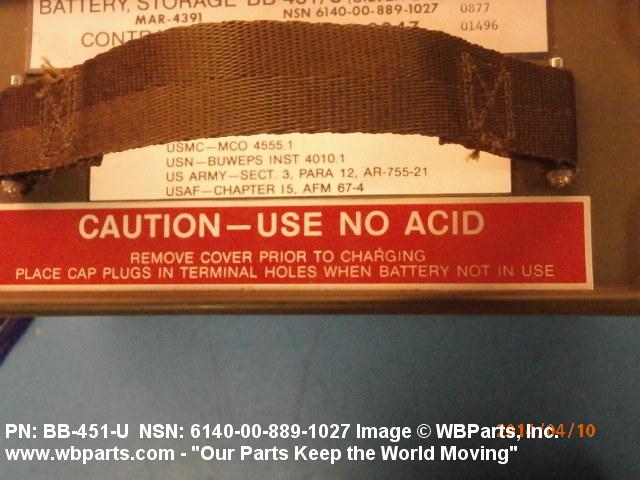

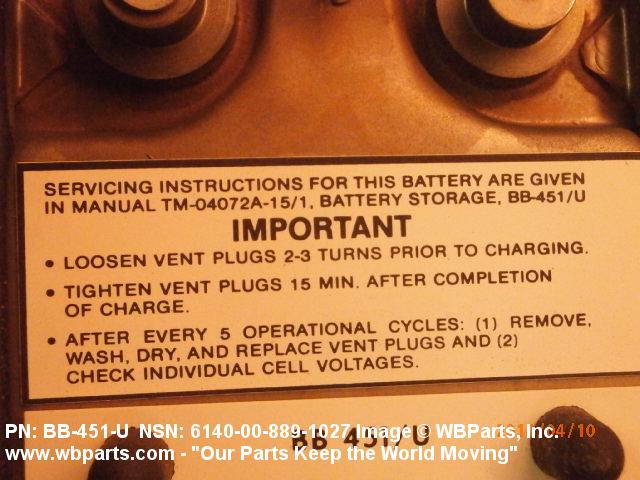

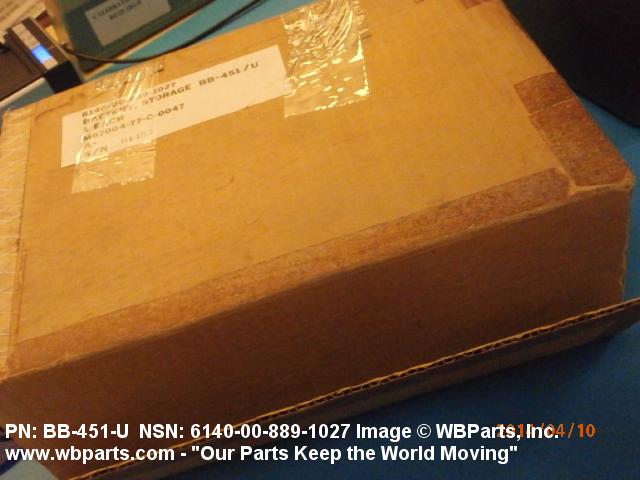

Drawings & Photos | NSN 6140-00-889-1027
Demand History | NSN 6140-00-889-1027
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BB451U | 2021-05-122 | 1 | US |
| 6140-00-889-1027 | 2021-01-31 | 1 | US |
| 6140-00-889-1027 | 2014-08-237 | 20 | SA |
| 6140-00-889-1027 | 2014-04-99 | 3 | Canada |
| 6140-00-889-1027 | 2014-03-90 | 3 | United States |
| 6140-00-889-1027 | 2013-07-203 | 20 | SA |
| 6140-00-889-1027 | 2008-03-83 | 1 | Saudi Arabia |
Cross Reference | NSN 6140-00-889-1027
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 221-0032-00 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 5122-000-1000 | 87990 | QUARTERMASTER GENERAL |
| 5122-000-1100 | 87990 | QUARTERMASTER GENERAL |
| A-A-55439 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| A-A-55439-1-24T -370-D | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| BB451U | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| MILB82117 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILB82117-2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MSZR25-16L | 88220 | SWISHER MOWER & MACHINE COMPANY, INC. |
| MSZR2516L | 88219 | EXIDE TECHNOLOGIES DBA GNB TECHNOLOGIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6140-00-889-1027
Related Products | NSN 6140-00-889-1027
Technical Data | NSN 6140-00-889-1027
| Characteristic | Specifications |
|---|---|
| BATTERY ELECTROLYTE | ALKALINE |
| VOLTAGE IN VOLTS | 24.0 |
| AMPERE HOUR CAPACITY | 25.00 |
| TIME CAPACITY IN HOURS | 1.00 |
| DISCHARGE RATE IN AMPS | 25.00 |
| DISCHARGE TIME IN MINUTES | 60.0 |
| TERMINAL QUANTITY | 2 |
| TERMINAL TYPE | UNTHREADED SOCKET |
| CELL QUANTITY | 16 |
| PLATE MATERIAL | SILVER AND ZINC |
| PLATE QUANTITY PER CELL | 17 |
| SEPARATOR MATERIAL | ANY ACCEPTABLE |
| OVERALL WIDTH | 4.141 INCHES NOMINAL |
| OVERALL LENGTH | 11.563 INCHES NOMINAL |
| OVERALL HEIGHT | 7.688 INCHES NOMINAL |
| CASE MATERIAL | FIBERGLASS |
| CASE DESIGN TYPE | FILLING PLUG OPENINGS |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| NONSPILLING FEATURE | NOT INCLUDED |
| CHARGE INDICATOR | INCLUDED |
| ELECTROLYTE LEVEL INDICATOR | NOT INCLUDED |
| FORDING FEATURE | NOT INCLUDED |
| STORAGE/SHIPMENT CONDITION | DRY CHARGED OR MOIST CHARGED OR WET CHARGED |
| INTEGRAL CHARGING FACILITY | NOT INCLUDED |
| SPECIAL FEATURES | WPRESSURE RELIEF VALVE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILB82117 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILB82117-2 |
Restrictions/Controls & Freight Information | NSN 6140-00-889-1027
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 060680 | BATTERIES OR CELL |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 582 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6140-00-889-1027
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | G | Communications and Electronics Equipment, Electronics Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | C | Other Aircraft Categories |
| Weapons Systems/End Item or Homogeneous Group | C8 | Aviation Sets, Kits and Outfits, Aircraft Ground Support Equipment (AGSE) Surface-to-Air Missiles |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | B16 | US Army Communications-Electronics Command and Fort Monmouth Fort Monmouth, NJ 07703-5016 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | B16 | US Army Communications-Electronics Command and Fort Monmouth Fort Monmouth, NJ 07703-5016 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Y | Navy-owned stocks of material managed by the Army within the Army Communications and Electronics Materiel Readiness Command Naval Inventory Control Point, Mechanicsburg |
| Issue Repair, or Requisition | R9 | Integrated Manager reparable item. Includes Defense Logistics Agency-managed items which are reportable in non-RFI condition to appropriate Defense Supply Center per NAVSUP instructions for return of excess material to DLA. |
| Special Material Content | C | Corrosive Solids/Corrosive Liquid (other than Acid) |
| Source of Supply | B16 | US Army Communications-Electronics Command and Fort Monmouth Fort Monmouth, NJ 07703-5016 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
