NSN 6140-00-688-7476 006887476
Product Details | STORAGE BATTERY LEAD
6140-00-688-7476 A definite continuous length of electrical conductor of stranded, braided, or laminated construction. Both ends must be terminated and at least one end must have a lug terminal specifically designed for connection to a storage battery. It may be insulated or uninsulated and may also include an outer protecting sleeve or conduit. For leads of this nature with other types of terminals see LEAD, ELECTRICAL. Excludes LEAD, IGNITION, ENGINE; and LEAD, ENGINE.
Part Alternates: 006887476
Electric Wire, and Power and Distribution Equipment | Batteries, Rechargeable
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 00-688-7476 | 16129 ( LEAD, STORAGE BATTERY ) |
Drawings & Photos | NSN 6140-00-688-7476
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6140-00-688-7476
Technical Data | NSN 6140-00-688-7476
| Characteristic | Specifications |
|---|---|
| CONDUCTOR FORM | STRANDED SINGLE CONDUCTOR |
| MATERIAL | COPPER CORE CONDUCTOR SINGLE CONDUCTOR |
| SURFACE TREATMENT | TIN CORE CONDUCTOR SINGLE CONDUCTOR |
| ROUND CONDUCTOR SIZE | 0 AWG SINGLE CONDUCTOR |
| STRAND QUANTITY PER CONDUCTOR | 1045 SINGLE CONDUCTOR |
| STRAND AWG SIZE PER CONDUCTOR | 30 SINGLE CONDUCTOR |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| TERMINATION TYPE | TERMINAL STORAGE BATTERY BOTH ENDS FIRST CONDUCTOR |

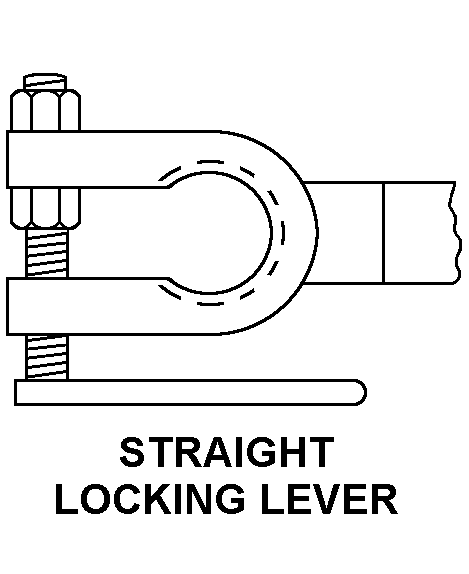

| TERMINAL LUG STYLE | 3 STRAIGHT LOCKING LEVER 1ST END SINGLE CONDUCTOR 3 STRAIGHT LOCKING LEVER 2ND END SINGLE CONDUCTOR |
| TERMINAL POLARITY | POSITIVE BOTH ENDS SINGLE CONDUCTOR |
| CENTER TO CENTER DISTANCE BETWEEN TERMINAL HOLES | 13.500 INCHES NOMINAL |
| MANUFACTURERS CODE | 98749 |
| DESIGN CONTROL REFERENCE | 66C43802 |
Restrictions/Controls & Freight Information | NSN 6140-00-688-7476
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
