NSN 6140-00-068-7356 MP702T, D38447-002 TYPE 10-S103, D38447002TYPE10S103
Product Details | STORAGE BATTERY
6140-00-068-7356 A battery, composed of two or more cells forming a single unit, which may or may not be readily separable and which may be efficiently recharged by sending an electric current through the cells in a direction opposite that of the discharging current. The item may be furnished with integral charging facilities. For items which are composed of a single cell see CELL, BATTERY.
Part Alternates: MP702T, D38447-002 TYPE 10-S103, D38447002TYPE10S103, 62404154, 62404-154, 33S009031 , 6140-00-068-7356, 00-068-7356, 6140000687356, 000687356
Electric Wire, and Power and Distribution Equipment | Batteries, Rechargeable
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 15 DEC 1971 | 00-068-7356 | 00013 ( BATTERY, STORAGE ) |

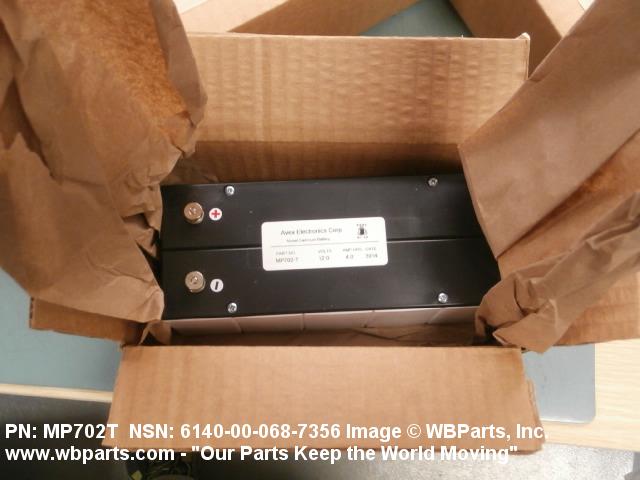

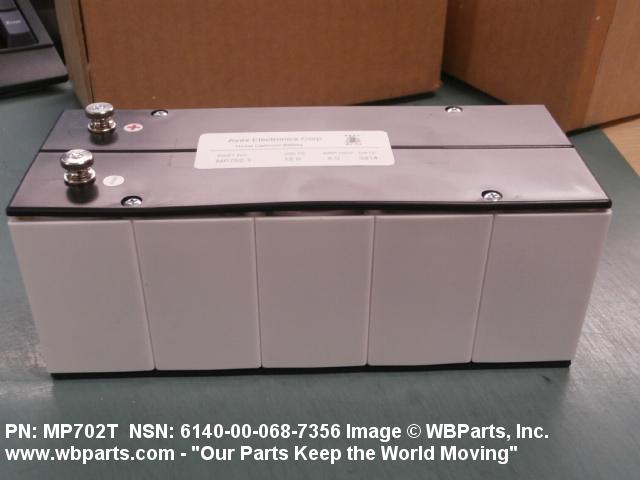

Drawings & Photos | NSN 6140-00-068-7356
Demand History | NSN 6140-00-068-7356
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 003455-032 | 2024-08-221 | 158 | DIBBS |
| MP702T | 2024-05-134 | 396 | DIBBS |
| 6140-00-068-7356 | 2024-05-123 | 396 | US |
| MP702T | 2024-05-123 | 396 | DIBBS |
| 6140-00-068-7356 | 2024-04-106 | 7 | United States |
| MP702T | 2023-10-289 | 141 | DIBBS |
| MP702T | 2023-10-278 | 141 | DIBBS |
| MP702T | 2023-05-138 | 144 | DIBBS |
| MP702T | 2023-05-127 | 144 | DIBBS |
| MP702T | 2022-07-199 | 313 | DIBBS |
| 6140-00-068-7356 | 2022-07-188 | 313 | US |
| MP702T | 2022-07-188 | 313 | DIBBS |
| MP702T | 2022-02-41 | 163 | DIBBS |
| 6140-00-068-7356 | 2021-10-278 | 4 | United States |
| MP702T | 2021-10-278 | 4 | United States |
| 6140-00-068-7356 | 2021-09-247 | 444 | IQ |
| MP702T | 2021-08-242 | 444 | DIBBS |
| 6140-00-068-7356 | 2021-08-223 | 338 | US |
| MP702T | 2020-03-78 | 304 | DIBBS |
| 6140-00-068-7356 | 2019-11-326 | 5 | TW |
| 6140-00-068-7356 | 2019-10-275 | 2 | ES |
| MP702T | 2019-08-216 | 237 | DIBBS |
| MP702T | 2019-03-65 | 1 | United States |
| MP702T | 2019-02-42 | 8 | BD |
| MP702T | 2019-01-31 | 304 | DIBBS |
| 6140-00-068-7356 | 2018-11-330 | 213 | DIBBS |
| MP702T | 2018-07-194 | 12 | US |
| 6140-00-068-7356 | 2018-06-177 | 157 | DIBBS |
| 6140-00-068-7356 | 2017-10-302 | 174 | DIBBS |
| 6140-00-068-7356 | 2017-08-226 | 159 | DIBBS |
| 6140-00-068-7356 | 2017-05-123 | 1 | US |
| 6140-00-068-7356 | 2016-12-355 | 64 | DIBBS |
| 6140-00-068-7356 | 2016-11-312 | 143 | DIBBS |
| 6140-00-068-7356 | 2016-05-124 | 90 | DIBBS |
| 6140-00-068-7356 | 2015-10-299 | 4 | Saudi Arabia |
| 6140-00-068-7356 | 2015-05-147 | 60 | DIBBS |
| 6140-00-068-7356 | 2015-03-68 | 72 | DIBBS |
| 6140-00-068-7356 | 2014-12-336 | 169 | DIBBS |
| MP702T | 2014-09-266 | 3 | United States |
| 6140-00-068-7356 | 2014-07-210 | 3 | United States |
| 6140-00-068-7356 | 2014-01-06 | 212 | DIBBS |
| 6140-00-068-7356 | 2013-03-87 | 410 | DIBBS |
| 6140-00-068-7356 | 2012-12-363 | 0 | DIBBS |
| 6140-00-068-7356 | 2012-12-362 | 106 | DIBBS |
| 6140-00-068-7356 | 2012-11-324 | 240 | DIBBS |
| 6140-00-068-7356 | 2012-05-136 | 77 | DIBBS |
| 6140-00-068-7356 | 2012-04-107 | 102 | DIBBS |
| 6140-00-068-7356 | 2012-03-62 | 165 | DIBBS |
| 6140-00-068-7356 | 2012-02-40 | 72 | DIBBS |
| 6140-00-068-7356 | 2011-12-354 | 54 | DIBBS |
| 6140-00-068-7356 | 2011-09-256 | 82 | DIBBS |
| 6140-00-068-7356 | 2011-08-222 | 67 | DIBBS |
| 6140-00-068-7356 | 2011-05-151 | 44 | DIBBS |
| 6140-00-068-7356 | 2011-04-95 | 110 | DIBBS |
| 6140-00-068-7356 | 2010-12-342 | 3 | US |
| 6140-00-068-7356 | 2010-10-280 | 56 | DIBBS |
| 6140-00-068-7356 | 2010-08-232 | 45 | DIBBS |
| 6140-00-068-7356 | 2010-07-200 | 51 | DIBBS |
Cross Reference | NSN 6140-00-068-7356
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 33S009031 | 027CB | SUYFA DEFENCE SL |
| 62404-154 | 12763 | DYNALEC CORPORATION |
| D38447-002 TYPE 10-S103 | 74025 | MARATHONNORCO AEROSPACE, INC. DBA MARATHON BATTERY |
| MP702T | 09052 | SAFT AMERICA INC DBA TRANSPORTATION DIVISION |
| MP702T | 09823 | BURGESS INC |
| MP702T | 58414 | AVEX ELECTRONICS CORP. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6140-00-068-7356
Related Products | NSN 6140-00-068-7356
Technical Data | NSN 6140-00-068-7356
| Characteristic | Specifications |
|---|---|
| BATTERY ELECTROLYTE | POTASSIUM HYDROXIDE |
| VOLTAGE IN VOLTS | 12.0 |
| TERMINAL QUANTITY | 2 |
| TERMINAL TYPE | STUD W/NUT |
| TERMINAL LOCATION | TOP |
| CELL QUANTITY | 10 |
| PLATE MATERIAL | NICKEL CADMIUM |
| PLATE TYPE | NEGATIVE AND POSITIVE |
| PLATE QUANTITY PER CELL | ANY ACCEPTABLE |
| SEPARATOR MATERIAL | ANY ACCEPTABLE |

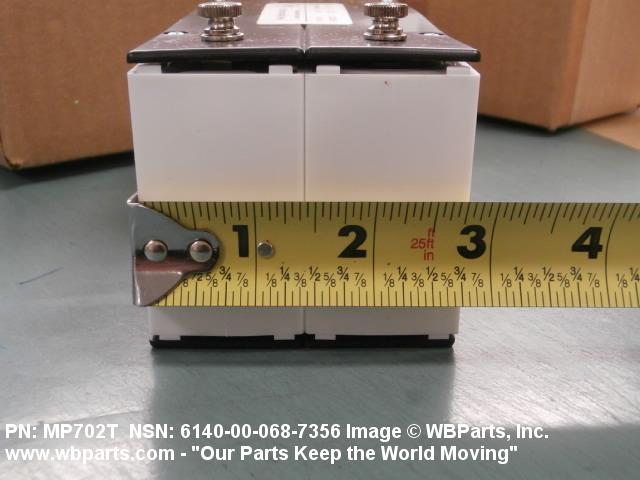

| OVERALL WIDTH | 2.880 INCHES MAXIMUM |

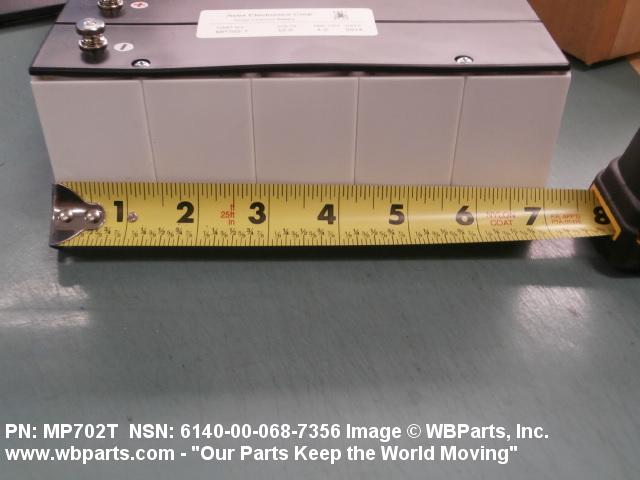

| OVERALL LENGTH | 7.090 INCHES MAXIMUM |

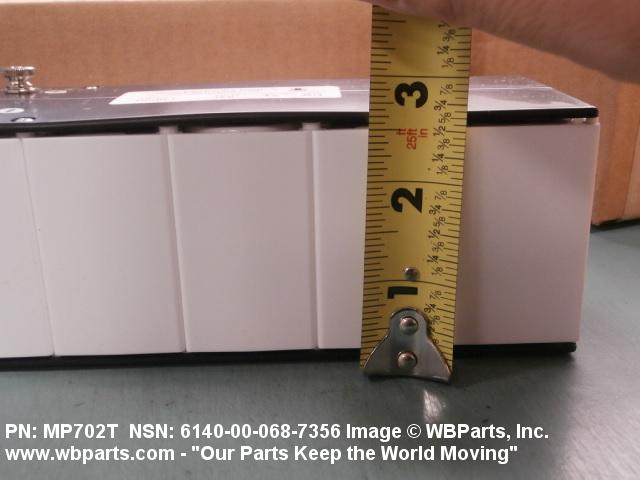

| OVERALL HEIGHT | 2.780 INCHES MAXIMUM |
| CASE MATERIAL | PLASTIC |
| CASE DESIGN TYPE | SEALED |
| NONSPILLING FEATURE | INCLUDED |
| CHARGE INDICATOR | NOT INCLUDED |
| ELECTROLYTE LEVEL INDICATOR | NOT INCLUDED |
| FORDING FEATURE | NOT INCLUDED |
| STORAGE/SHIPMENT CONDITION | WET CHARGED |
| INTEGRAL CHARGING FACILITY | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 6140-00-068-7356
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | S | 60 months |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Hazardous Control Code: | Z5 | Article, Battery, Nickel Cadmium, Nonspillable BATT, NICAD, NONSPIL |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 060680 | BATTERIES OR CELL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 582 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | D | Hazardous material (not required hand to hand receipt) including all regulated items other than special weapons and their components. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | W | Corrosive materials, UN class 8 (corrosive label) |
Management | NSN 6140-00-068-7356
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
