NSN 6130-01-523-3836 LZS5003, LZS-500-3, LZSA5003
Product Details | POWER SUPPLY
6130-01-523-3836 A component which converts available alternating current or direct current electrical power into a form required to operate another component or set. The item may consist of a combination of an INVERTOR, VIBRATOR; VIBRATOR, INTERRUPTER; VIBRATOR, SELF-RECTIFYING; INVERTOR, POWER, STATIC; with a transformer and rectifier(s) employing electron tubes, semiconductor diode or metallic (dry disc) type components, or the synchronized secondary contact(s) of a VIBRATOR, SELF-RECTIFYING; or may consist of electron tubes, semiconductor diode or metallic (dry disc) type rectifiers and capacitors in transformerless (alternating current-direct current type) circuits which may be of the voltage-multiplier type. The item may incorporate a FILTER, DIRECT CURRENT POWER and provisions for regulation of input and/or output voltage. The item may have special input, output, control or other facilities for applications in specialized environments such as medical, dental or other operations. Excludes battery chargers and rotating machinery types of items, such as motor generators and dynamotors.20461200044Transformers: Distribution and Power Station61300035Converters, Electrical, Nonrotating65150057Medical and Surgical Instruments, Equipment, and Supplies65200043Dental Instruments, Equipment, and Supplies
Part Alternates: LZS5003, LZS-500-3, LZSA5003, LZSA-500-3 , 77D616024P001, 77D616024P1, 6130-01-523-3836, 01-523-3836, 6130015233836, 015233836
Electric Wire, and Power and Distribution Equipment | Converters, Electrical, Nonrotating
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 31 AUG 2004 | 01-523-3836 | 00740 ( POWER SUPPLY ) |

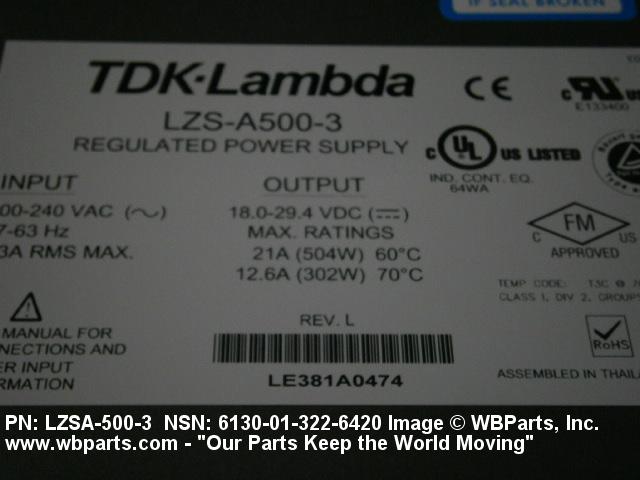

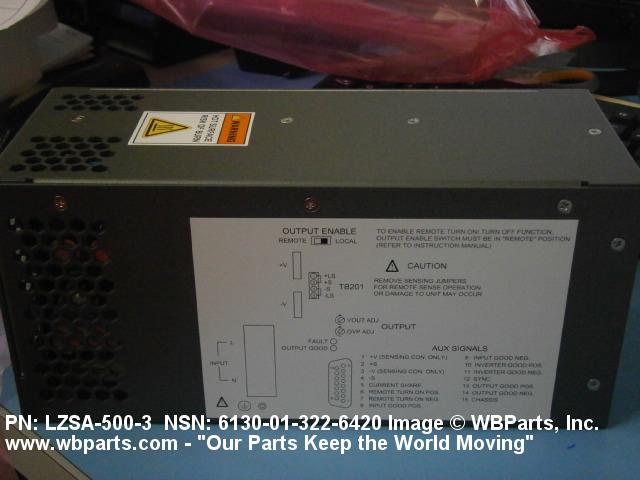

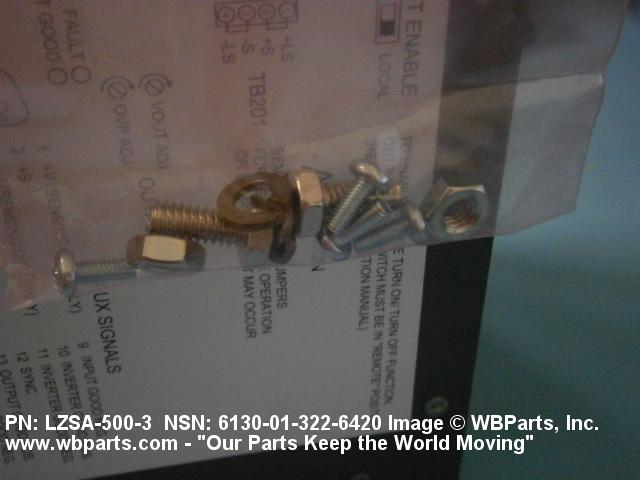

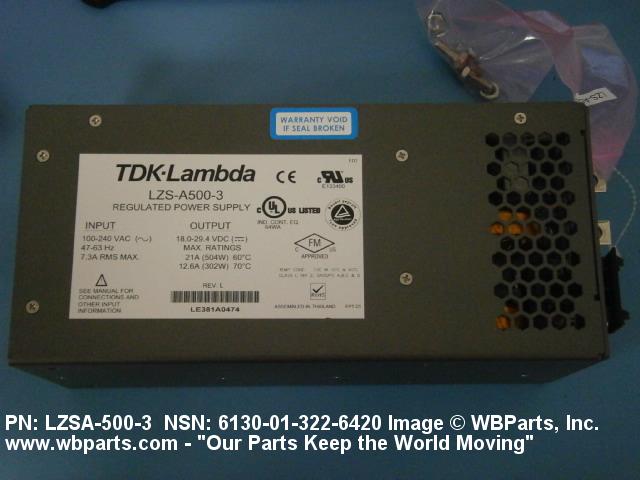

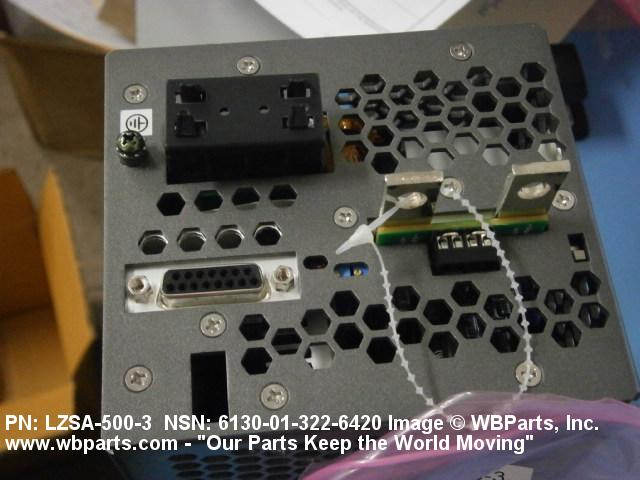

Drawings & Photos | NSN 6130-01-523-3836
Demand History | NSN 6130-01-523-3836
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| LZSA-500-3 | 2024-05-02 | 10 | DIBBS |
| LZSA-500-3 | 2024-02-22 | 6 | DIBBS |
| LZSA-500-3 | 2023-08-03 | 3 | DIBBS |
| LZSA-500-3 | 2023-01-12 | 3 | DIBBS |
| LZSA-500-3 | 2022-01-10 | 5 | DIBBS |
| LZSA5003 | 2020-12-30 | 2 | MY |
| 6130-01-523-3836 | 2018-09-20 | 8 | DIBBS |
| 6130-01-523-3836 | 2018-07-19 | 7 | DIBBS |
| 77D616024P001 | 2016-05-17 | 1 | France |
| 6130-01-523-3836 | 2016-03-21 | 1 | NL |
| 6130-01-523-3836 | 2016-02-04 | 7 | DIBBS |
| 6130-01-523-3836 | 2013-12-05 | 1 | DIBBS |
| 6130-01-523-3836 | 2013-03-14 | 1 | Pakistan |
| 77D616024P001 | 2012-05-15 | 3 | |
| 6130-01-523-3836 | 2011-09-26 | 2 | United States |
| 77D616024P001 | 2011-08-04 | 2 |
Cross Reference | NSN 6130-01-523-3836
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 77D616024P001 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 77D616024P1 | Z0CF4 | LOCKHEED MARTIN AUSTRALIAELECTRONIC SYSTEMS PTY LTD |
| LZS-500-3 | 9T790 | TDK-LAMBDA AMERICAS, INC. DIV TDK-LAMBDA AMERICAS-LOW POWER |
| LZSA-500-3 | 9T790 | TDK-LAMBDA AMERICAS, INC. DIV TDK-LAMBDA AMERICAS-LOW POWER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6130-01-523-3836
Technical Data | NSN 6130-01-523-3836
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | TPS-117 RADAR SYSTEM, PART NO. 77D616662G001 |
| MANUFACTURERS CODE | 03538 |
| MFR SOURCE CONTROLLING REFERENCE | 77D616024P001 |
Restrictions/Controls & Freight Information | NSN 6130-01-523-3836
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062900 | RECTIFIERS NOI/BATTERY ELIMINATORS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 595 | unknown |
| Originating Activity Code | ZA | Australia ZB ZC |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6130-01-523-3836
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
