Product Details | POWER SUPPLY

6130-01-518-8609 A component which converts available alternating current or direct current electrical power into a form required to operate another component or set. The item may consist of a combination of an INVERTOR, VIBRATOR; VIBRATOR, INTERRUPTER; VIBRATOR, SELF-RECTIFYING; INVERTOR, POWER, STATIC; with a transformer and rectifier(s) employing electron tubes, semiconductor diode or metallic (dry disc) type components, or the synchronized secondary contact(s) of a VIBRATOR, SELF-RECTIFYING; or may consist of electron tubes, semiconductor diode or metallic (dry disc) type rectifiers and capacitors in transformerless (alternating current-direct current type) circuits which may be of the voltage-multiplier type. The item may incorporate a FILTER, DIRECT CURRENT POWER and provisions for regulation of input and/or output voltage. The item may have special input, output, control or other facilities for applications in specialized environments such as medical, dental or other operations. Excludes battery chargers and rotating machinery types of items, such as motor generators and dynamotors.20461200044Transformers: Distribution and Power Station61300035Converters, Electrical, Nonrotating65150057Medical and Surgical Instruments, Equipment, and Supplies65200043Dental Instruments, Equipment, and Supplies

Part Alternates: SU3000 R3BX120 , SU3000R3BX120, SUA3000RM2U, 8200018, 6130-01-518-8609, 01-518-8609, 6130015188609, 015188609

Electric Wire, and Power and Distribution Equipment | Converters, Electrical, Nonrotating

Supply Group (FSG) NSN Assign. NIIN
61 25 MAR 2004 01-518-8609

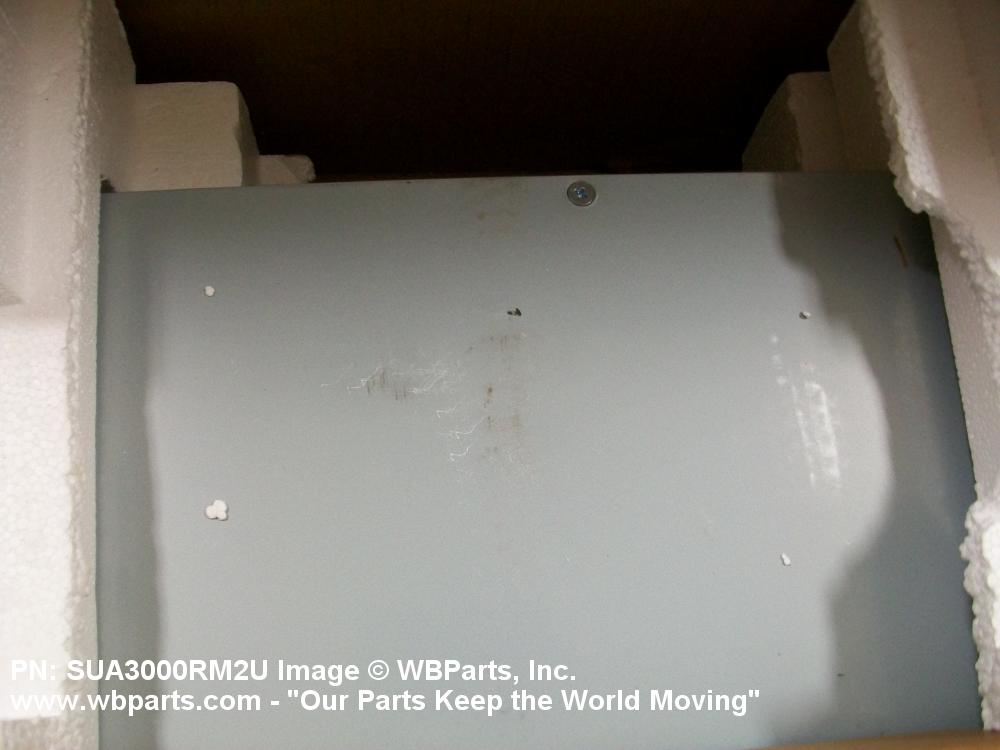

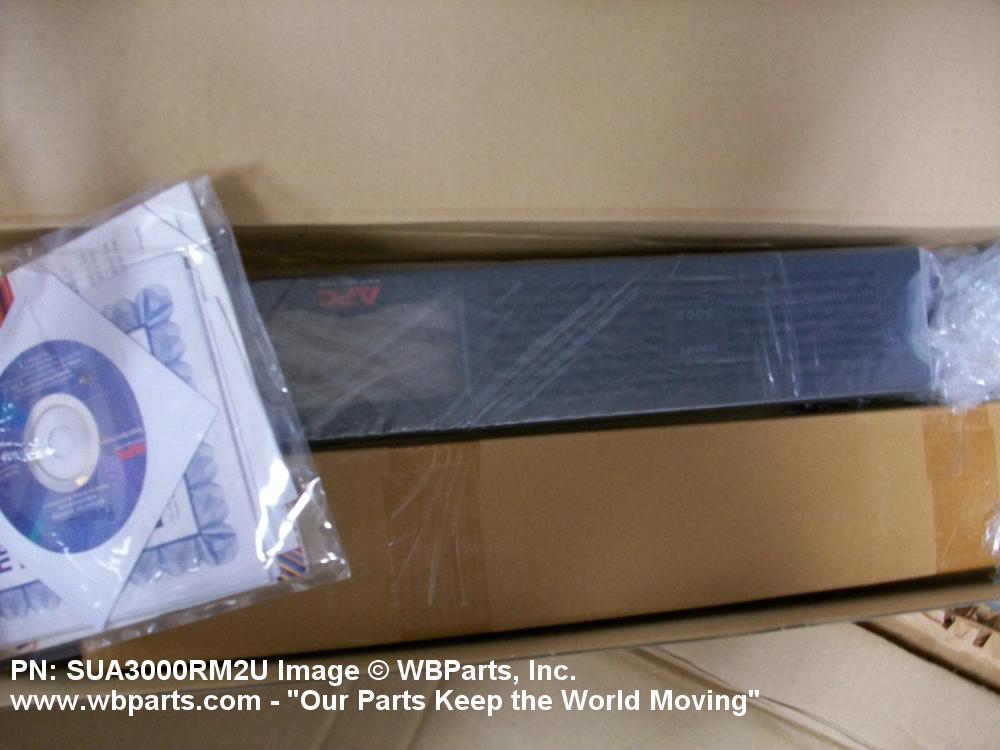

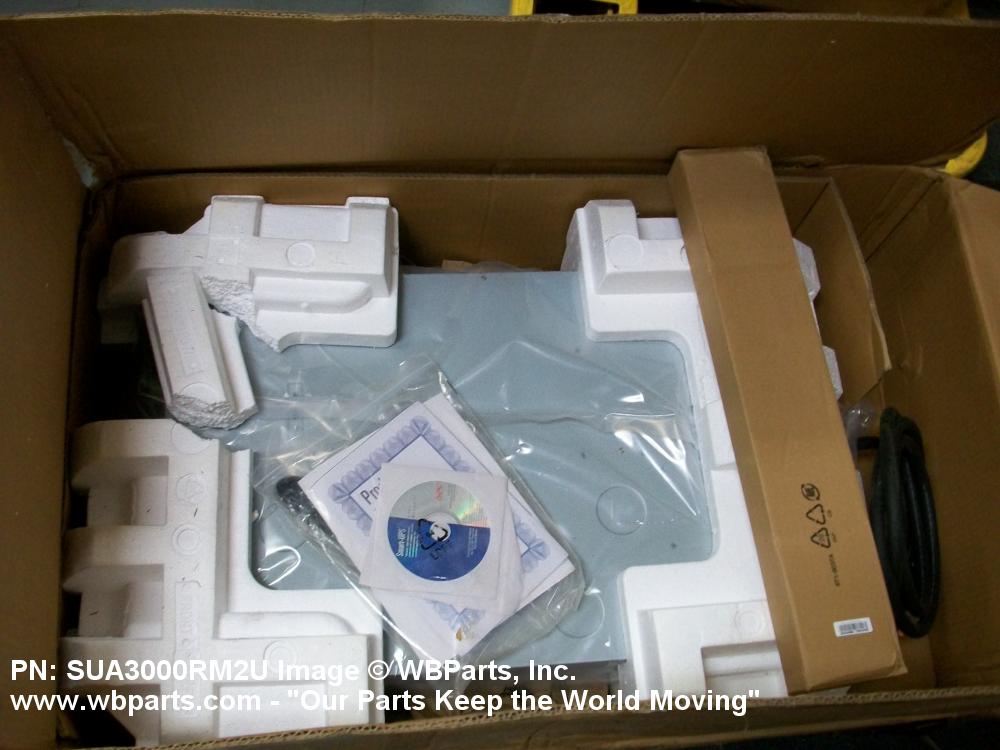

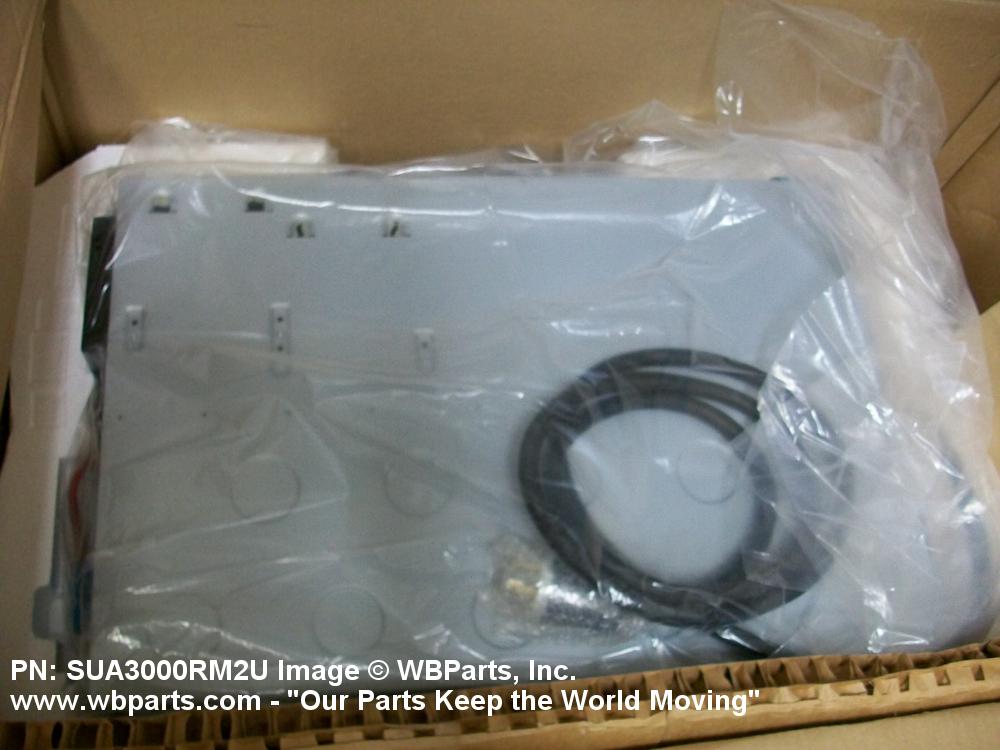

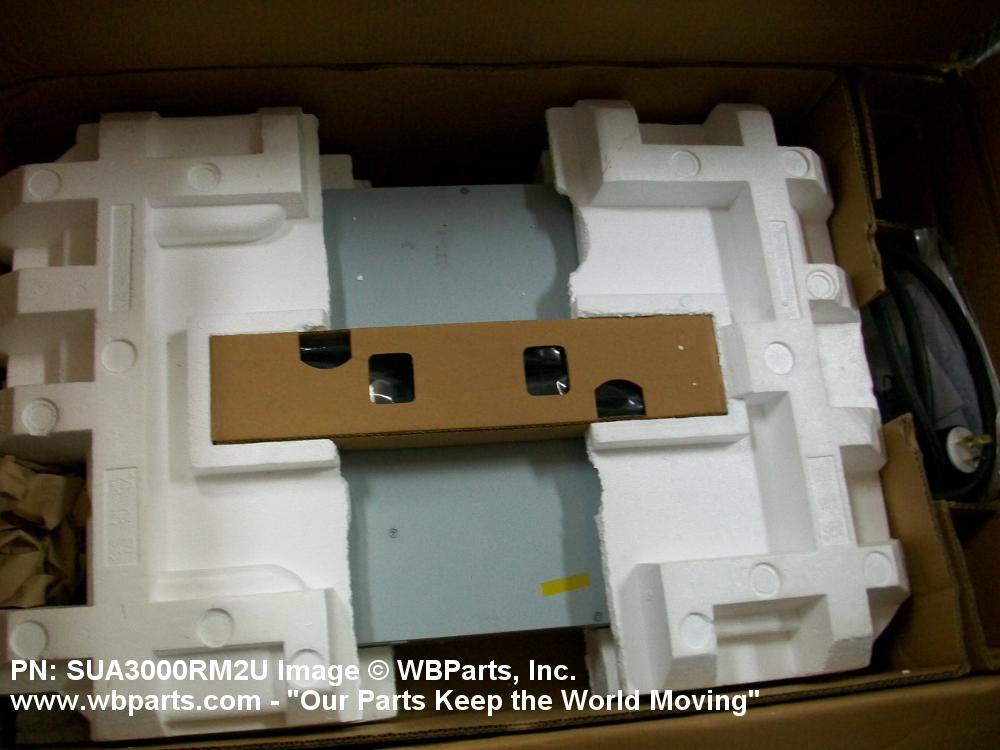

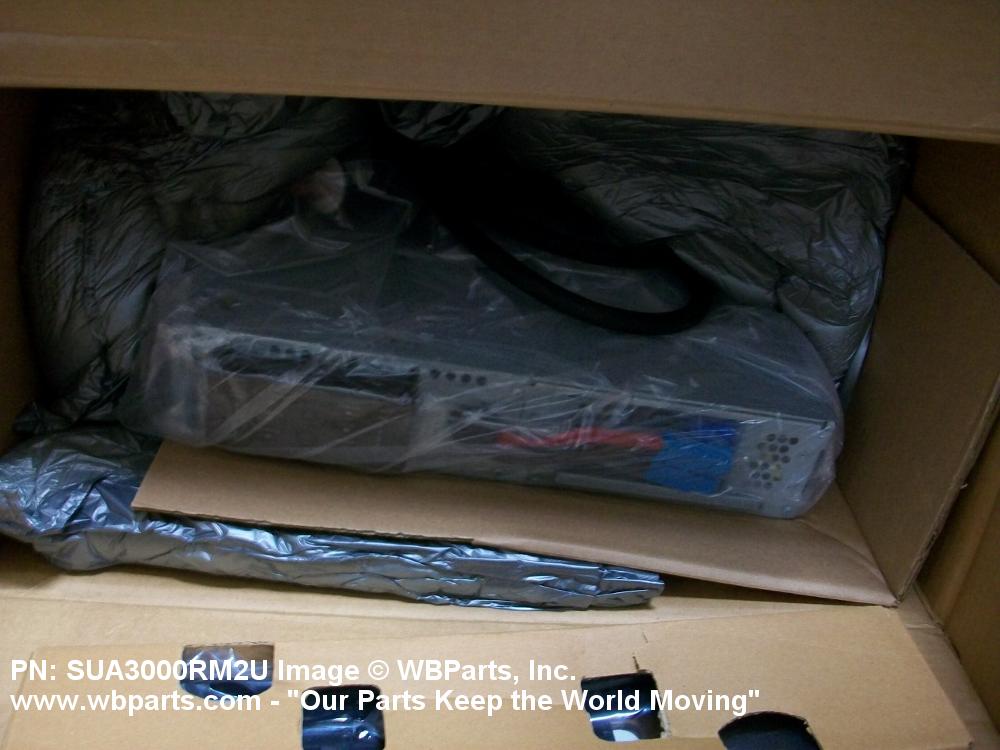

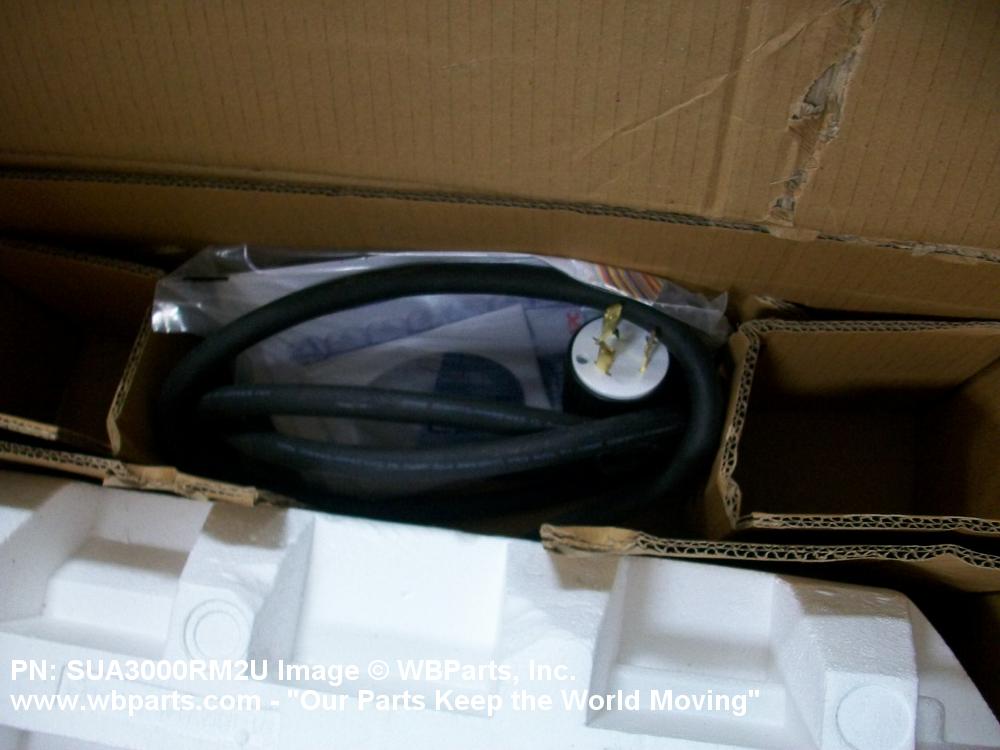

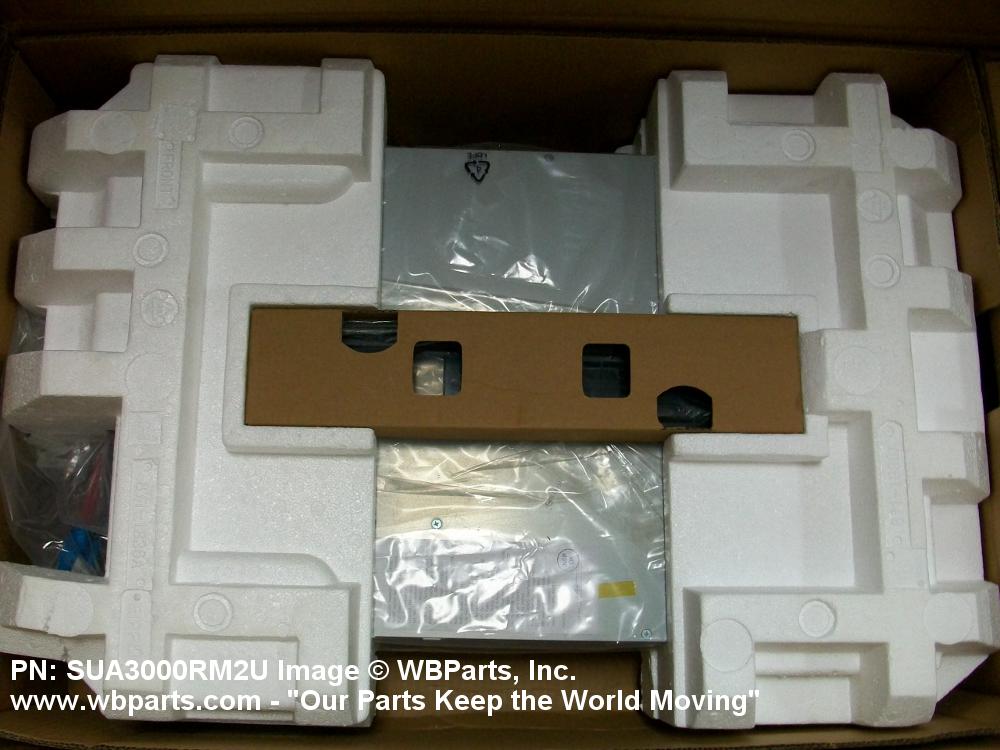

Drawings & Photos | NSN 6130-01-518-8609


Demand History | NSN 6130-01-518-8609

Part Number Request Date QTY Origin
6130-01-518-8609 2023-05-137 1 United States
6130-01-518-8609 2011-07-201 4 United States
8200018 2011-06-167 4
6130-01-518-8609 2011-06-165 4 NECO
SUA3000RM2U 2011-06-154 5
SUA3000RM2U 2011-06-153 6
6130-01-518-8609 2011-06-152 6 NECO
6130-01-518-8609 2011-06-152 5 NECO

Cross Reference | NSN 6130-01-518-8609

Part Number Cage Code Manufacturer
8200018 1NPW9 901 D, LLC
SU3000 R3BX120 0MG77 SCHNEIDER ELECTRIC IT CORPORATION DBA FOREIGN PARENT IS SCHNEIDER
SUA3000RM2U 0MG77 SCHNEIDER ELECTRIC IT CORPORATION DBA FOREIGN PARENT IS SCHNEIDER

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6130-01-518-8609

Technical Data | NSN 6130-01-518-8609

Characteristic Specifications
OUTPUT VOLTAGE RATING 120.0 AC VOLTS NOMINAL SINGLE POWER OUTPUT
OUTPUT CURRENT RATING 3000.0 AC VOLT-AMPERE NOMINAL SINGLE POWER OUTPUT
OUTPUT WATTAGE RATING 2700.0 WATTS NOMINAL SINGLE POWER OUTPUT
INPUT VOLTAGE RATING 120.0 AC VOLTS NOMINAL SINGLE OPERATING POWER RQMT
INPUT FREQUENCY RATING 50.0 HERTZ MINIMUM AND 60.0 HERTZ MAXIMUM SINGLE OPERATING POWER RQMT
BATTERY FEATURE AND TYPE NONRECHARGEABLE LEAD ACID CELL
BATTERY QUANTITY 1
BATTERY LOCATION INTERNAL
BATTERY SWITCHING TIME THREE MINUTES
MAXIMUM OPERATING ALTITUDE RATING 10000.0 FEET
OVERALL LENGTH 26.000 INCHES MAXIMUM
OVERALL WIDTH 19.000 INCHES MAXIMUM
OVERALL HEIGHT 3.500 INCHES MAXIMUM
OPERATING AMBIENT TEMP RANGE 0.1 TO 40.0 DEG CELSIUS
III END ITEM IDENTIFICATION CND-EFW,PWR SPLY,UNITERRUPTED
III UNIT OF ISSUE WEIGHT 96.00 POUNDS

Restrictions/Controls & Freight Information | NSN 6130-01-518-8609

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information

Management | NSN 6130-01-518-8609

Category Code Description
Cognizance Codes7GDepot level reparable electronic material to support
Naval Inventory Control Point, Space and Naval Warfare Systems Command, Mechanicsburg
Special Material Content9 Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of SupplyNRPNAVICP-ERP
700 Robbins Avenue
Philadelphia, PA 19111-5098
AgencyDNDepartment of the Navy
Service OrganizationLLead Service - 22 (Repairable)
ReparabilityHDepot Level Reparable
Acquisition Advice CodesCSERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
