NSN 6130-01-294-1002 E815E430VF, E815-E430VF, 10215-2250

Product Details | STATIC POWER INVERTER

6130-01-294-1002 An item that changes a direct current input into a single or multiple phase alternating current output, by the combined action of oscillators, semiconductor devices, magnetic amplifiers, phase splitters, and the like. For items that perform the same function by means of rotating machine techniques, see MOTOR-GENERATOR. See also CONVERTER, FREQUENCY, STATIC.

Part Alternates: E815E430VF, E815-E430VF, 10215-2250, 6130-01-294-1002, 01-294-1002, 6130012941002, 102152250, 012941002

Electric Wire, and Power and Distribution Equipment | Converters, Electrical, Nonrotating

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
61	10 FEB 1989	01-294-1002	22284 ( INVERTER, POWER, STATIC )

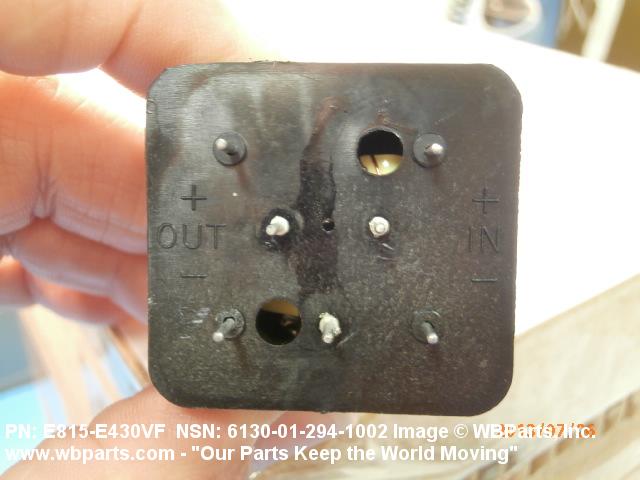

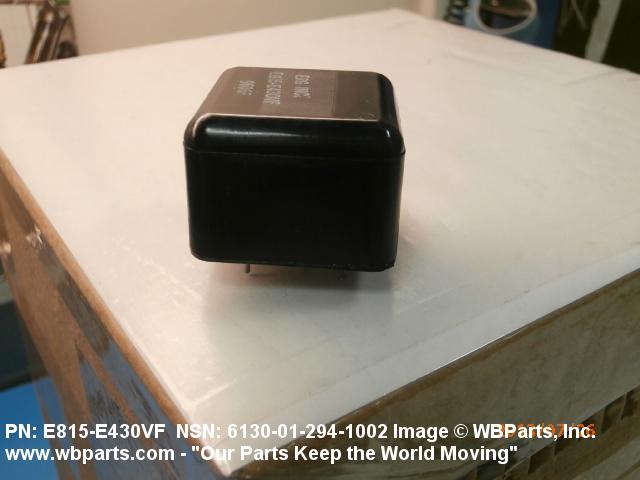

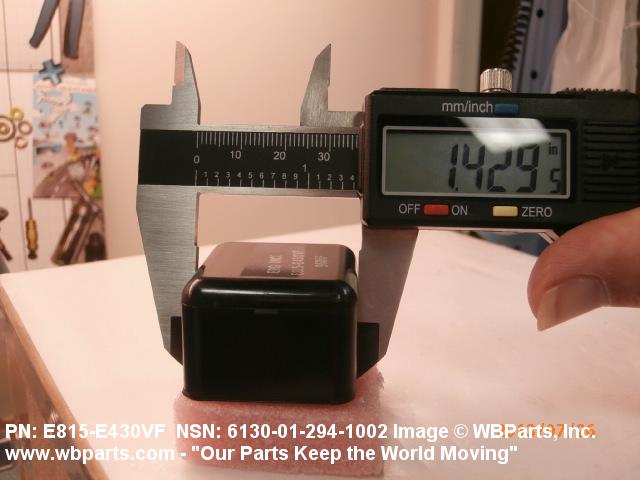

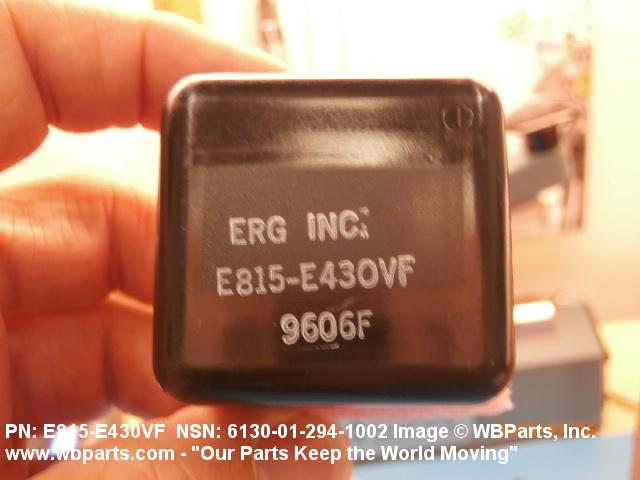

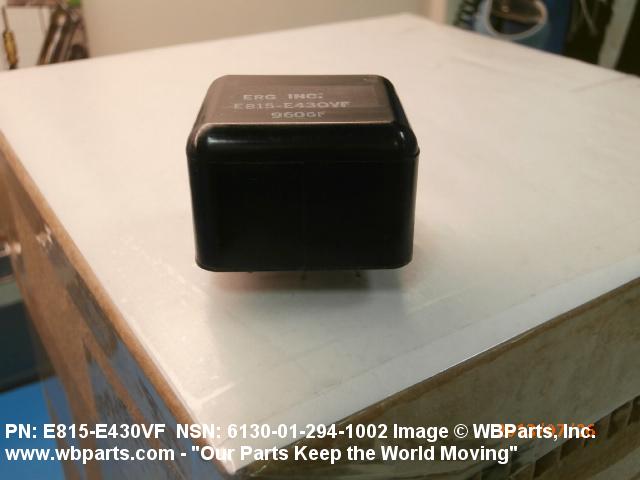

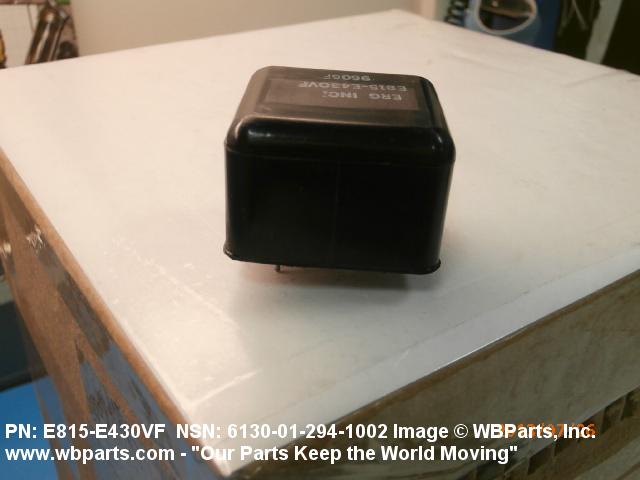

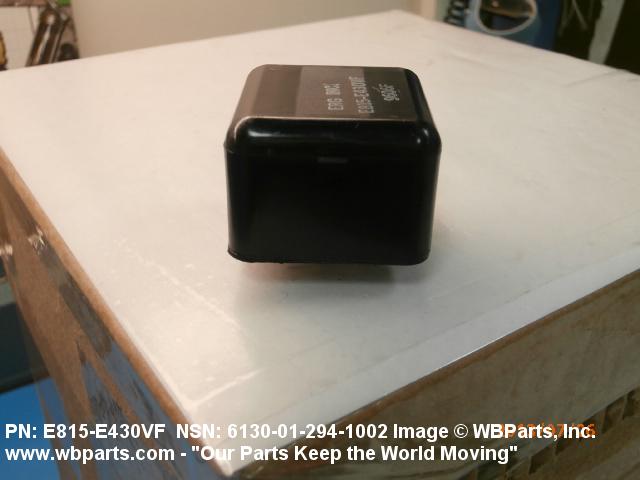

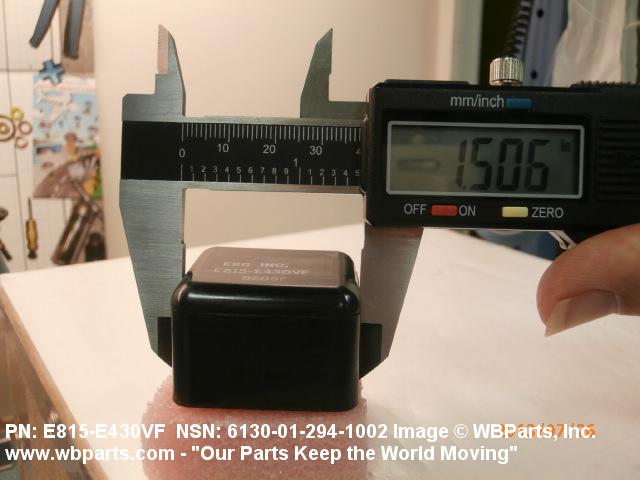

Drawings & Photos | NSN 6130-01-294-1002

Part Number	Request Date	QTY	Origin
E815-E430VF	2024-08-235	56	DIBBS
6130-01-294-1002	2021-09-258	1	US
6130-01-294-1002	2020-11-324	4	NZ
6130-01-294-1002	2020-10-290	1	CA
6130-01-294-1002	2020-08-238	2	US
102152250	2020-08-235	2	US
6130-01-294-1002	2014-03-64	85	DIBBS
6130-01-294-1002	2013-07-203	1	United States
6130-01-294-1002	2013-06-179	1	United States
6130-01-294-1002	2013-02-42	51	DIBBS
6130-01-294-1002	2012-04-114	38	DIBBS
6130-01-294-1002	2011-06-180	17	DIBBS
6130-01-294-1002	2011-01-27	28	DIBBS
6130-01-294-1002	2010-12-361	17	DIBBS
6130-01-294-1002	2010-10-281	6	DIBBS
6130-01-294-1002	2010-05-141	12	DIBBS
6130-01-294-1002	2010-04-111	14	DIBBS
6130-01-294-1002	2010-03-60	10	DIBBS
6130-01-294-1002	2009-10-292	17	DIBBS
6130-01-294-1002	2009-09-273	9	DIBBS
6130-01-294-1002	2009-08-215	6	DIBBS
6130-01-294-1002	2008-10-304	14	DIBBS
6130-01-294-1002	2008-08-242	5	DIBBS
6130-01-294-1002	2008-03-64	17	DIBBS

Cross Reference | NSN 6130-01-294-1002

Part Number	Cage Code	Manufacturer
10215-2250	14304	HARRIS CORPORATION DBA HARRIS RF COMMUNICATION
E815-E430VF	63312	ENDICOTT RESEARCH GROUP, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6130-01-294-1002

Compare

Related Products | NSN 6130-01-294-1002

6130-01-294-1007, 6130-01-294-1008, 6130-01-294-1009, 6130-01-294-1149, 6130-01-294-1908

Restrictions/Controls & Freight Information | NSN 6130-01-294-1002

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	062120	GENERATORS/MOTORS/PARTS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	593	unknown
Originating Activity Code	CX	Defense Supply Center Richmond Richmond, VA 23297-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6130-01-294-1002

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
